Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556) | New

Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556) | New

SKU: 700504556-N
(0)No Reviews yet

🗹 4 Analog trunk ports
🗹 6 Digital station ports
🗹 2 Analog station ports
🗹 10 VCM channels
🗹 Up to two cards per IP500 V2 control unit

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$159.99 $159.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556) | New

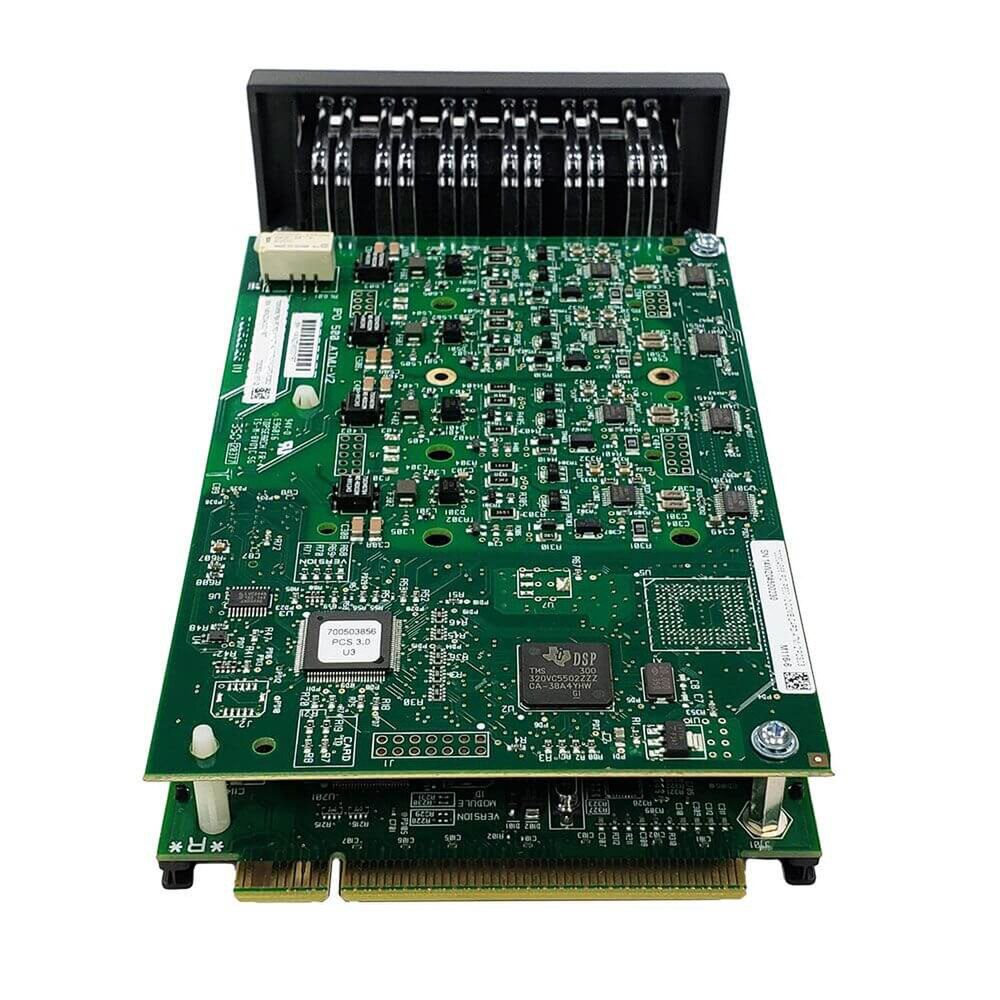

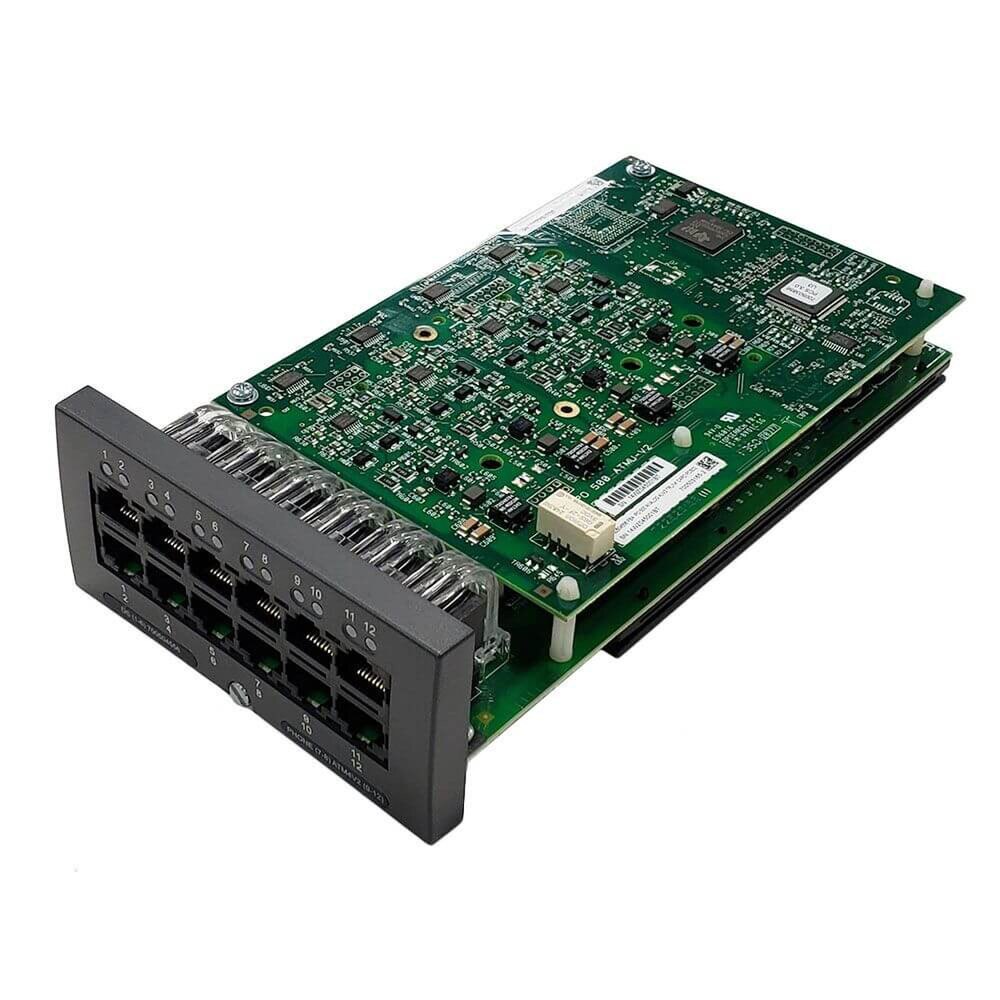

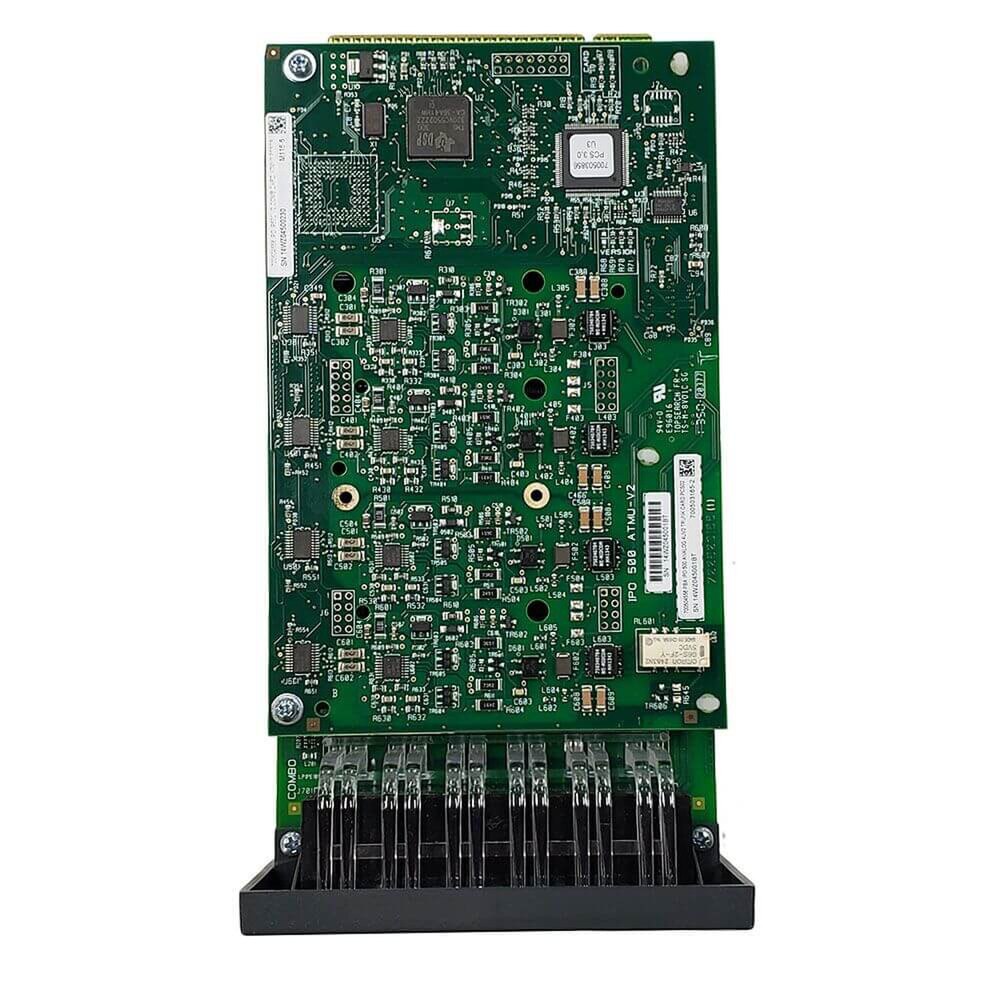

The Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556) is a versatile extension card built for the IP500 V2 management unit, providing a complete solution for organizations wishing to improve their communication capabilities. This robust combination card consolidates many communication ports into a single, cost-effective solution. It has six digital station ports, two analog extension ports, four analog trunk ports, and ten voice compression channels, making it an excellent solution for small to medium-sized enterprises looking to improve their IP Office system.


Key Features of Avaya IP500 Combination Card with 4 Analog Trunks V2

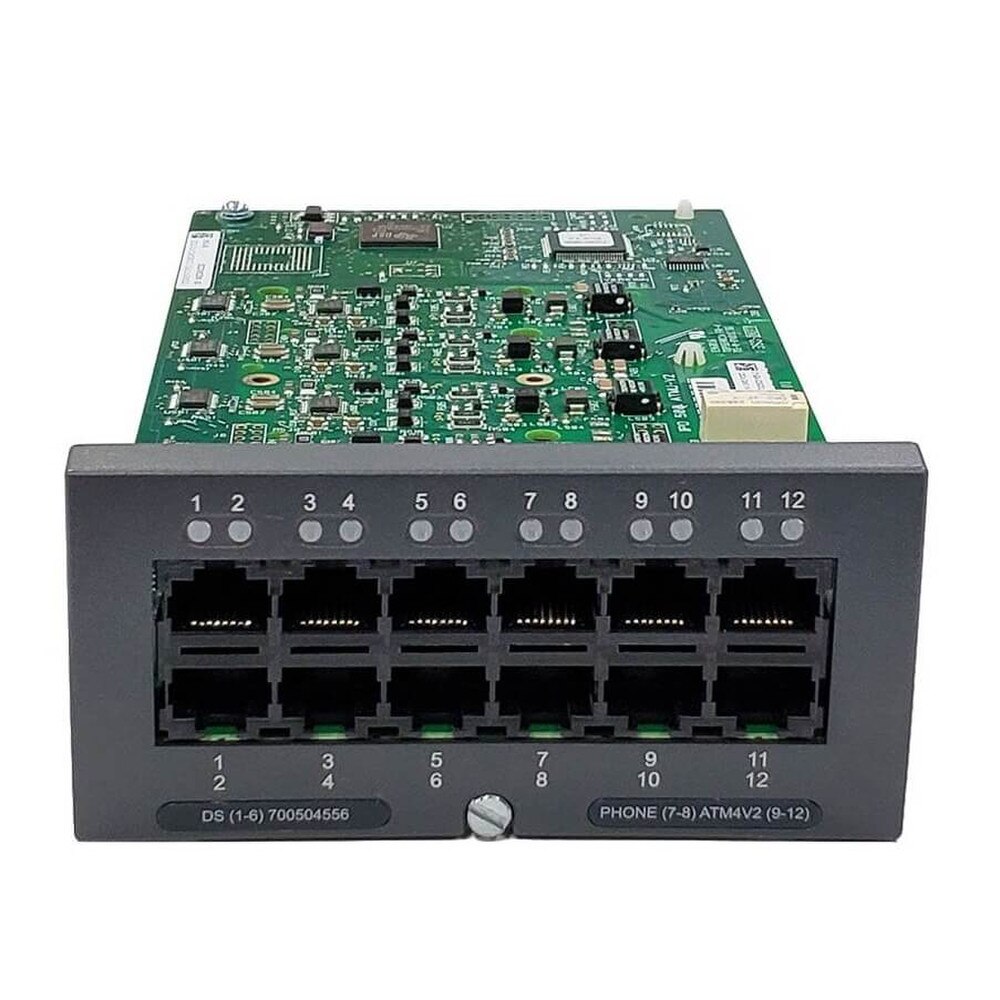

• Versatile Connectivity with 6 digital station ports, 2 analog extension ports, and 4 analog trunk ports.

• Voice Compression with 10 VCM channels supporting G.711, G.722, G.729a, and G.723 codecs.

• Digital Phone Compatibility supports Avaya 1400, 2400, 5400, 6400, and 9500 series digital phones.

• Analog Trunk Integration with pre-installed IP500 Analog Trunk 4 daughter card.

• Power Failure Support where phone port 8 connects to analog trunk port 12 during outages.

• Maximum of 2 combination cards per IP500 V2 control unit.

• Enhanced Performance that improves echo reduction and noise reduction.

• Flexible Installation that is compatible with IP Office 8.1 Feature Pack 1 or higher.

• DTMF and Loop Disconnect Dialing supports various dialing methods.

• Echo Cancellation with 64ms echo cancellation for improved call quality.

• Caller ID Support with DTMF, ICLID and busy tone detection.

• Overvoltage Protection with built-in protection against lightning and power surges.

• LED Indicators with visual status indicators for easy troubleshooting.

• Analog Extension Support with REN 2 (1 for external bell device) and 25mA off-hook current.

• Energy Efficient with ENERGY STAR certified for reduced operational costs.

Specifications

Specification for Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556) | New

ManufacturerAvaya
Manufacturer Part Number700504556
Product NameAvaya IP500 Combination Card with 4 Analog Trunks V2
Product TypeAccessory Card
Digital Station ports6
Analog Extension ports2
Analog Trunk ports4
VCM channels10

User Guides

Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556) Data Sheet

Frequently Asked Questions

Avaya IP500 Combination Card with 4 Analog Trunks V2 (700504556)
Frequently Asked Questions (FAQ's)

What is the Avaya IP500 Combination Card V2?
  • The Avaya IP500 Combination Card V2 is a hardware component for the Avaya IP Office system, providing a mix of digital and analog trunk ports.
    • How many analog trunks does the Avaya IP500 Combination Card V2 support?
  • The card supports 4 analog trunk ports.
    • What other types of ports are included on the Avaya IP500 Combination Card V2?
  • The card also includes 6 digital station ports for connecting digital phones and 2 analog extension ports for analog devices.
    • Is the Avaya IP500 Combination Card V2 compatible with all IP Office systems?
  • It is compatible with IP Office 500 V2 systems.
    • Can the Avaya IP500 Combination Card V2 be used in a mixed environment with other IP Office cards?
  • Yes, it can be used alongside other IP Office cards in the system.
    • What are the power requirements for the Avaya IP500 Combination Card V2?
  • It is powered by the IP Office 500 V2 system unit and does not require additional power.
    • Does the Avaya IP500 Combination Card V2 support caller ID?
  • Yes, it supports caller ID on the analog trunk ports.
    • Can I use the analog trunk ports for fax machines?
  • Yes, the analog trunk ports can be used for fax machines.
    • What type of cables are required to connect the analog trunks to the card?
  • Standard RJ11 cables are used to connect the analog trunks.
    • Is the installation of the Avaya IP500 Combination Card V2 a plug-and-play process?
  • While the card can be easily installed, configuration through the IP Office Manager software is required.
    • Can the digital station ports on the card support Avaya 1400 and 9500 series phones?
  • Yes, the digital station ports are compatible with Avaya 1400 and 9500 series phones.
    • Are there any software requirements for using the Avaya IP500 Combination Card V2?
  • It requires IP Office Release 6.1 or higher software.
    • How do I configure the analog trunk ports on the Avaya IP500 Combination Card V2?
  • Configuration is done through the IP Office Manager software, where you can set up each trunk port's properties.
    • Can I replace an existing IP500 Combination Card V2 with a new one without reconfiguring the system?
  • If replacing with the same model, the system should recognize the new card with the existing configuration, but it is advisable to check settings.
    • What is the maximum number of combination cards that can be installed in an IP Office 500 V2 system?
  • Up to four combination cards can be installed, depending on the chassis configuration and other installed cards.
    • Is there any special maintenance required for the Avaya IP500 Combination Card V2?
  • Regular maintenance includes checking connections and ensuring the card is securely seated in the chassis.
    • Does the Avaya IP500 Combination Card V2 have built-in diagnostics?
  • Yes, it includes diagnostics that can be accessed through the IP Office Manager software.
    • What should I do if the analog trunk ports are not functioning properly?
  • Check the connections, ensure the card is seated properly, and verify the configuration settings in the IP Office Manager software.
    • Can the Avaya IP500 Combination Card V2 be used in both primary and expansion chassis?
  • It is designed for use in the primary chassis of the IP Office 500 V2 system.
    • Where can I find the latest firmware and software updates for the Avaya IP500 Combination Card V2?
  • Firmware and software updates can be downloaded from the official Avaya support website.
