Ubiquiti UniFi Pro 48-Port Switch (USW-PRO-48) | Like New
SKU: USW-PRO-48-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

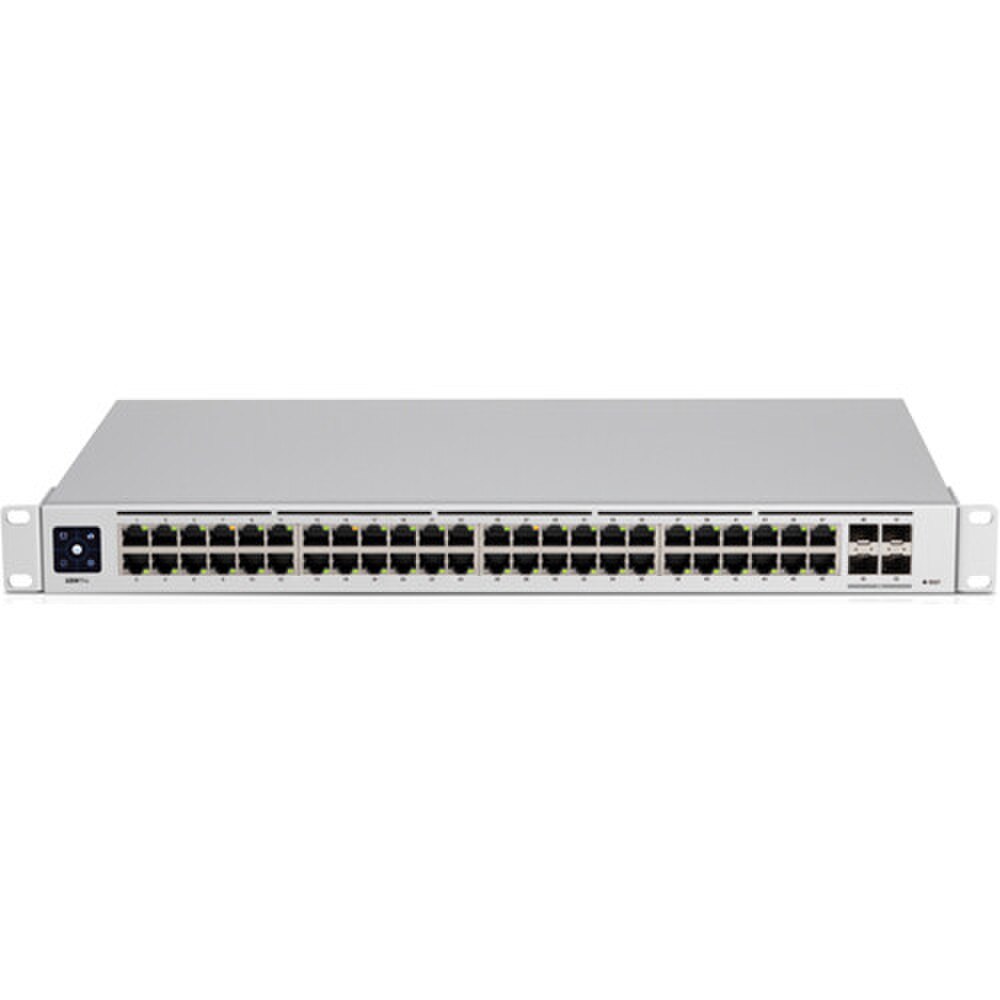

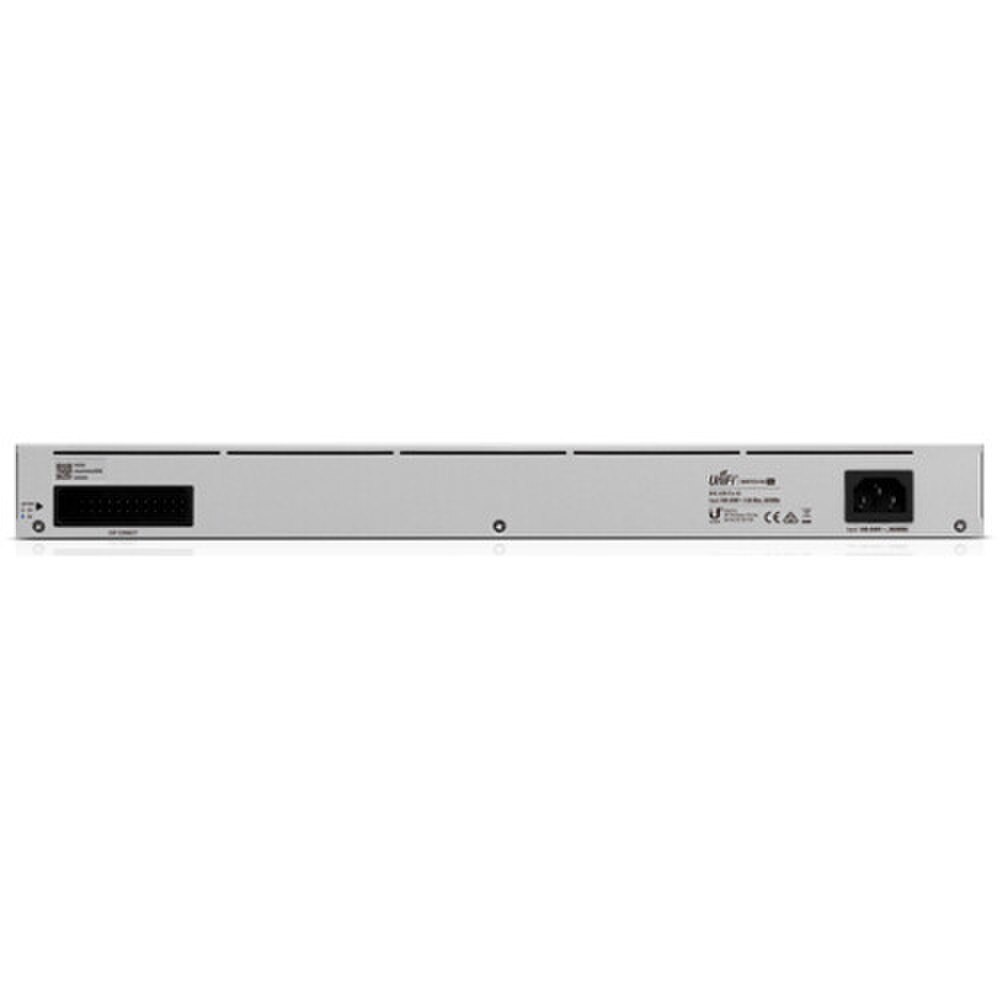

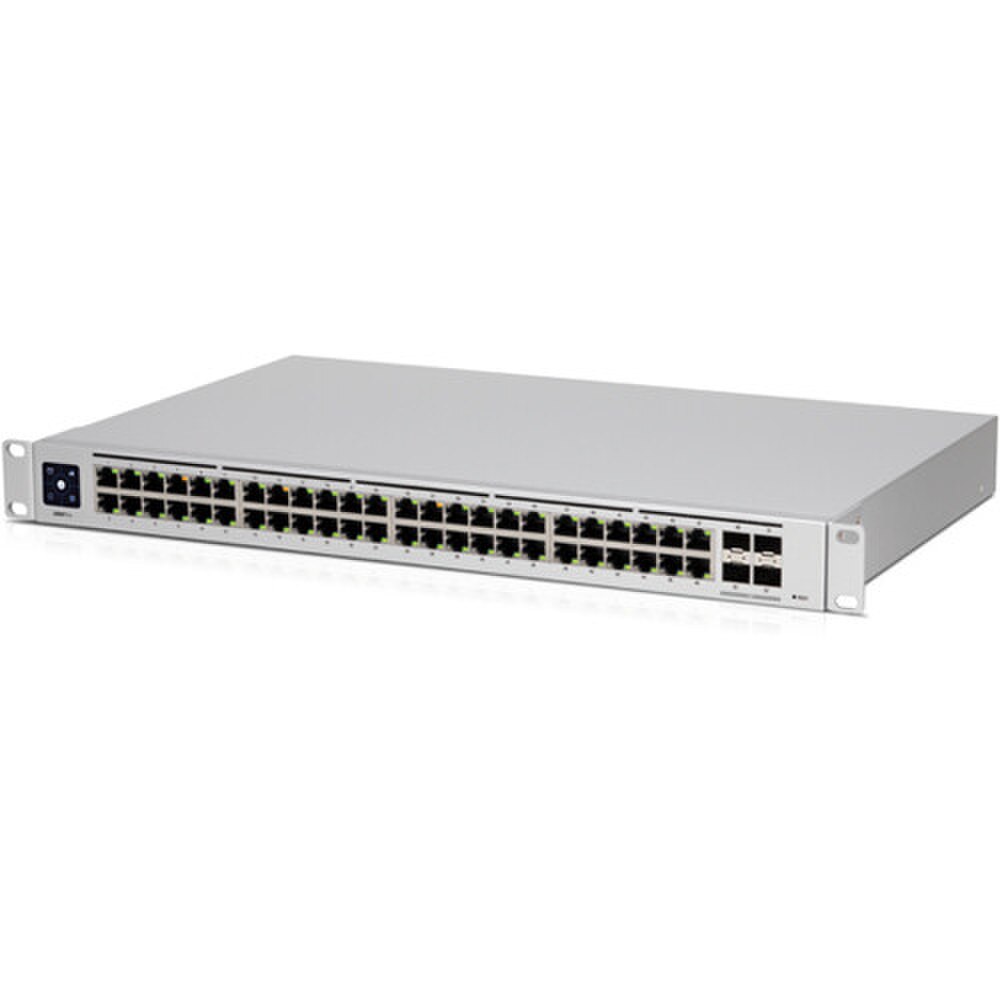

Overview of Ubiquiti UniFi Pro 48-Port Switch (USW-PRO-48) | Like New
The Ubiquiti UniFi Pro 48-Port Switch (USW-PRO-48) has four 10Gb SFP+ ports that enable high-speed fiber connections to compatible devices and uplinks. The UniFi Switch Pro 48 includes Layer 2 capabilities as well as integrated Layer 3 functions like inter-VLAN routing, static routing, and a DHCP server. The UniFi Switch Pro 48 can be configured and managed remotely via the UniFi Network Controller interface and mobile app. It also has a 1.3" touchscreen display that displays system information for easy monitoring. The switch is passively cooled for near-silent operation and supports an optional UniFi SmartPower redundant power system for added peace of mind during outages.
Features of the Ubiquiti UniFi Pro 48-Port Switch
Layer 3 Features
The UniFi Pro Switch provides Layer 3 capabilities, including inter-VLAN routing, static routing, and DHCP server functionality, in addition to Layer 2 switching protocols and features.
Near-Silent Cooling
The UniFi Pro Switch can be installed in any workspace. Its integrated fans include PWM (Power Management) control, air ducts and covers, and temperature sensors for an optimal user experience.
Fiber Connectivity
SFP+ ports support high-capacity uplinks of up to 10 Gbps, allowing you to connect directly to a high-performance storage server or establish a long-distance link to another switch.
Power Supply Redundancy
The UniFi Pro Switch works with our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power as backup.
Specifications
Specifications of Ubiquiti UniFi Pro 48-PortSwitch (USW-PRO-48) | Like New
| Manufacturer | Ubiquiti |
| Manufacturer Part Number | USW-PRO-48 |
| Product Name | Ubiquiti UniFi Pro 48-Port Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ |
Performance | Non-blocking bandwidth: 88 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.944 Mpps |
Authentication Method | RADIUS |
Features | Flow control, auto-uplink (auto MDI/MDI-X), port mirroring, Deep Packet Inspection (DPI), Jumbo Frames support, DHCP server, fanless, Dynamic VLAN Support (GVRP), 802.1x authentication, Storm Control, Link Aggregation, Inter-VLAN Routing, aggregation mode, 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge) |
Compliant Standards | IEEE 802.1x |
Built-in Devices | 1.3" touch screen display |
Status Indicators | Link/activity, link/activity/speed |
Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x management |
Power Device | Internal power supply |
Power Redundancy | Yes |
Voltage Required | AC 120/230 V / DC 11.5 V (50/60 Hz) |
Power Consumption Operational | 60 Watt |
Rack Mounting Kit | Included |
Compliant Standards | IC, FCC, ETSI 300 019-1-4 |
Width | 17.4 in |
Depth | 11.2 in |
Height | 1.7 in |
Weight | 8.82 lbs |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Ubiquiti UniFi Pro 48-Port Switch
Frequently Asked Questions (FAQ's)
What is the Ubiquiti UniFi Pro 48-Port Switch? It is a managed 48-port Gigabit Ethernet switch designed for use in enterprise and high-performance networks, offering advanced features like VLAN support, PoE, and high-speed connectivity.
How much PoE power does the UniFi Pro 48-Port Switch provide? The switch offers a total PoE power budget of 500W.
Does the UniFi Pro 48-Port Switch support 10GbE? No, it only supports Gigabit Ethernet (1GbE) on the 48 ports, but it includes 2 SFP+ 10GbE uplink ports.
What is the switching capacity of the UniFi Pro 48-Port Switch? The switch has a total switching capacity of 176 Gbps.
What is the maximum forwarding rate? The maximum forwarding rate is 130.95 Mpps (million packets per second).
What PoE standards are supported on the UniFi Pro 48-Port Switch? It supports both IEEE 802.3af and IEEE 802.3at PoE standards (PoE+).
How can I manage the PoE power distribution? PoE power can be managed through the UniFi Controller software, allowing you to monitor usage and adjust port configurations.
Can PoE be disabled on individual ports? Yes, you can enable or disable PoE on individual ports via the UniFi Controller.
Does the switch automatically detect PoE devices? Yes, the switch automatically detects PoE devices and provides the appropriate power based on their requirements.
What happens if the PoE budget is exceeded? If the total PoE power demand exceeds the available budget, lower-priority devices may not receive power or the switch may prioritize critical devices.
How many SFP/SFP+ ports does the UniFi Pro 48-Port Switch have? It includes 2 SFP+ ports for 10GbE fiber uplink connections.
Can the UniFi Pro 48-Port Switch be used for stacking? No, the UniFi Pro 48-Port Switch does not support stacking. However, it can connect to other UniFi devices using the SFP+ uplink ports.
What is the maximum cable length for Ethernet ports? The maximum recommended cable length for Gigabit Ethernet is 100 meters (328 feet) using Cat5e or higher cables.
Does the switch support link aggregation? Yes, it supports link aggregation (LACP) for combining multiple links for higher bandwidth and redundancy.
Can I use fiber for both uplinks and connections to devices? Yes, you can use fiber for uplinks or connect devices directly via SFP modules, as the switch has SFP+ ports for 10GbE connections. (RSTP).
How is the UniFi Pro 48-Port Switch managed? The switch is managed through the UniFi Controller software, which provides a centralized interface for configuring and monitoring the switch.
Does the UniFi Pro 48-Port Switch support SNMP? Yes, it supports SNMP for network monitoring and integration with third-party network management systems.
Can the switch be configured remotely? Yes, the UniFi Controller allows remote configuration and management of the switch over the internet.
Does the switch support VLANs? Yes, it supports VLAN tagging and management, allowing you to segment network traffic for enhanced performance and security.
Is there a mobile app for managing the UniFi Pro 48-Port Switch? Yes, the UniFi Network mobile app allows you to manage and monitor the switch on the go, using your smartphone or tablet.
