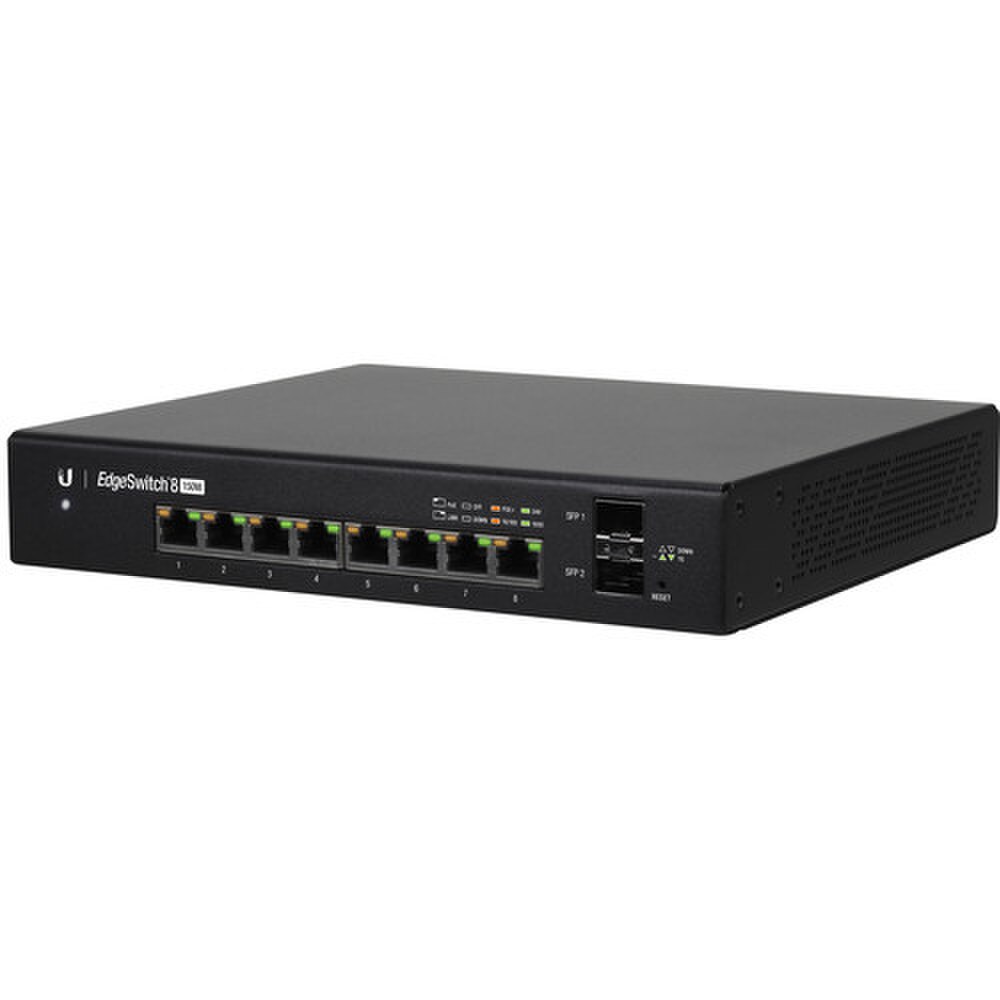

Overview of Ubiquiti EdgeSwitch 8 150W (ES-8-150W) | Like New
The EdgeSwitch 8 150W (ES-8-150W) from Ubiquiti is a full-featured networking solution. In addition to the two 1 Gbps SFP Ethernet connections, there are eight Gigabit Ethernet ports with a maximum power over Ethernet wattage of 34.2 watts per port. The voltage range is 50 to 57 volts, with a maximum passive power over Ethernet wattage of 17 watts per port. VLAN, private VLAN, voice VLAN, link aggregation, DHCP snooping, IGMP snooping, and many other networking technologies are available. Rack mount brackets are included with the unit.
Key Features of Ubiquiti EdgeSwitch 8 150W
Advanced Switching Technology
Ubiquiti Networks EdgeSwitch, part of the EdgeMAX product range, allows you to build and grow your network. The EdgeSwitch is a PoE+ Gigabit switch that provides robust performance and intelligent switching for increasing networks. The EdgeSwitch delivers a comprehensive set of advanced Layer-2 switching functions and protocols, as well as Layer-3 routing capability.
Switching Performance
The EdgeSwitch provides the forwarding capability to process traffic on all ports at line rate without packet loss. The 8-port variants have a total non-blocking throughput of up to 10 Gbps.
PoE+ Flexibility
This EdgeSwitch PoE Gigabit Ethernet switch has 8 auto-sensing IEEE 802.3af/at ports and customizable 24V Passive PoE to help you simplify your infrastructure. The EdgeSwitch identifies 802.3af/at devices by default and automatically connects them to PoE. Manually enable 24V passive PoE using the EdgeSwitch Configuration Interface for 24V passive PoE devices.
Fiber Connectivity
The EdgeSwitch expands your network's fiber connectivity possibilities. This 8-port device has two SFP ports and can support up to 1 Gbps uplinks.
Comprehensive User Interface
The EdgeSwitch Configuration Interface is a graphical user interface that administrators can use to configure and monitor switch features. For advanced users, telnet and SSH provide an industry-standard command-line interface (CLI).
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
Specifications
Specifications for Ubiquiti EdgeSwitch 8 150W (ES-8-150W) | Like New
| Manufacturer | Ubiquiti |
| Manufacturer Part Number | ES-8-150W |
| Product Name | Ubiquiti EdgeSwitch 8 150W |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
Performance | Non-blocking switching capacity: 10 Gbps ¦ Switching capacity: 20 Gbps ¦ Forwarding performance: 14.88 Mpps |
Capacity | VLANs supported: 255 ¦ ACL rules: 100 ¦ LAG groups: 6 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | Yes |
Routing Protocol | Static IP routing, policy-based routing (PBR) |
Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI |
Features | Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3at |
Status Indicators | Port transmission speed, PoE, link/activity |
Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 34.2 W ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 150 Watt |
Compliant Standards | IC, FCC, ETSI 300 019 |
Width | 9.3 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 3.79 lbs |
User Guides
Frequently Asked Questions
Ubiquiti ES-8-150W Edge Switch 8-port 150W (ES-8-150W)
What is the Ubiquiti ES-8-150W Edge Switch? It is a controlled PoE (Power over Ethernet) switch with 8 Gigabit Ethernet ports with a 150W power budget that can power connected devices such as IP cameras, access points, and VoIP phones.
How many PoE ports does the ES-8-150W have? All eight ports enable PoE, with adjustable choices for 802.3af/at and 24V passive PoE.
What is the power budget for the PoE on this switch? The entire power budget is 150W, which is shared by all PoE ports.
What is the switching capacity of the ES-8-150W? The switch has a total non-blocking throughput of 10 Gbps.
Does the ES-8-150W support VLANs? Yes, it supports 802.1Q VLAN tagging.
Is the Ubiquiti ES-8-150W rack-mountable? No, it is a tiny desktop form factor that is not intended for rack mounting.
Can this switch be managed via Ubiquiti’s UniFi Controller? No, it is administered by Ubiquiti's EdgeSwitch Configuration Interface or UNMS (Ubiquiti Network Management System).
What is the operating temperature range of the ES-8-150W? It operates between -25°C to 55°C (-13°F to 131°F).
Does the ES-8-150W support Layer 3 features? Yes, it can perform basic Layer 3 routing functions such as static routing.
How is the ES-8-150W powered? It has a built-in AC power supply and a standard power cable.
Can the ES-8-150W be used in a home network? Yes, it works for both home and small-to-medium corporate networks.
Does the switch support fiber connections? Yes, it includes two SFP ports for fiber connectivity.
What security features are available on the ES-8-150W? It supports features like port security, ACLs, and 802.1X authentication.
Is the ES-8-150W fanless? No, it features a cooling fan that may make some noise while operating.
Can I power the ES-8-150W using PoE? No, it requires an AC power source and cannot be powered through PoE.
Does the switch support QoS (Quality of Service)? Yes, it provides extensive QoS features for traffic prioritizing.
What is the maximum PoE output per port? Each port has the capacity to deliver up to 30W, depending on the power budget.
Is the firmware for the ES-8-150W upgradable? Yes, firmware updates can be conducted via the EdgeSwitch Configuration Interface or UNMS.
What type of devices can the ES-8-150W power? It can power IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices.
What is the maximum data rate per port on the ES-8-150W? Each Ethernet port supports up to 1 Gbps.
