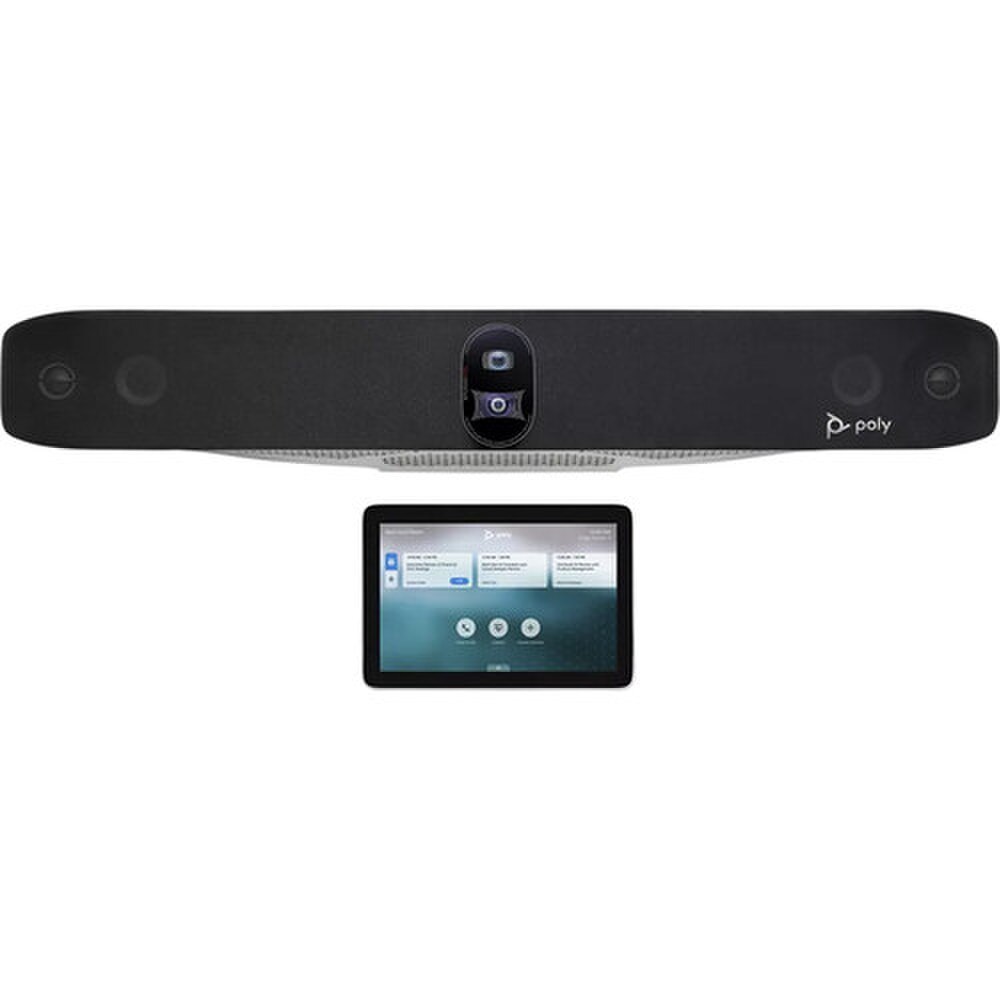

Overview of HP Poly Studio X70 All-In-One 4K Video Conferencing Bar with TC8 Controller Kit (842X9AA#ABA) | New

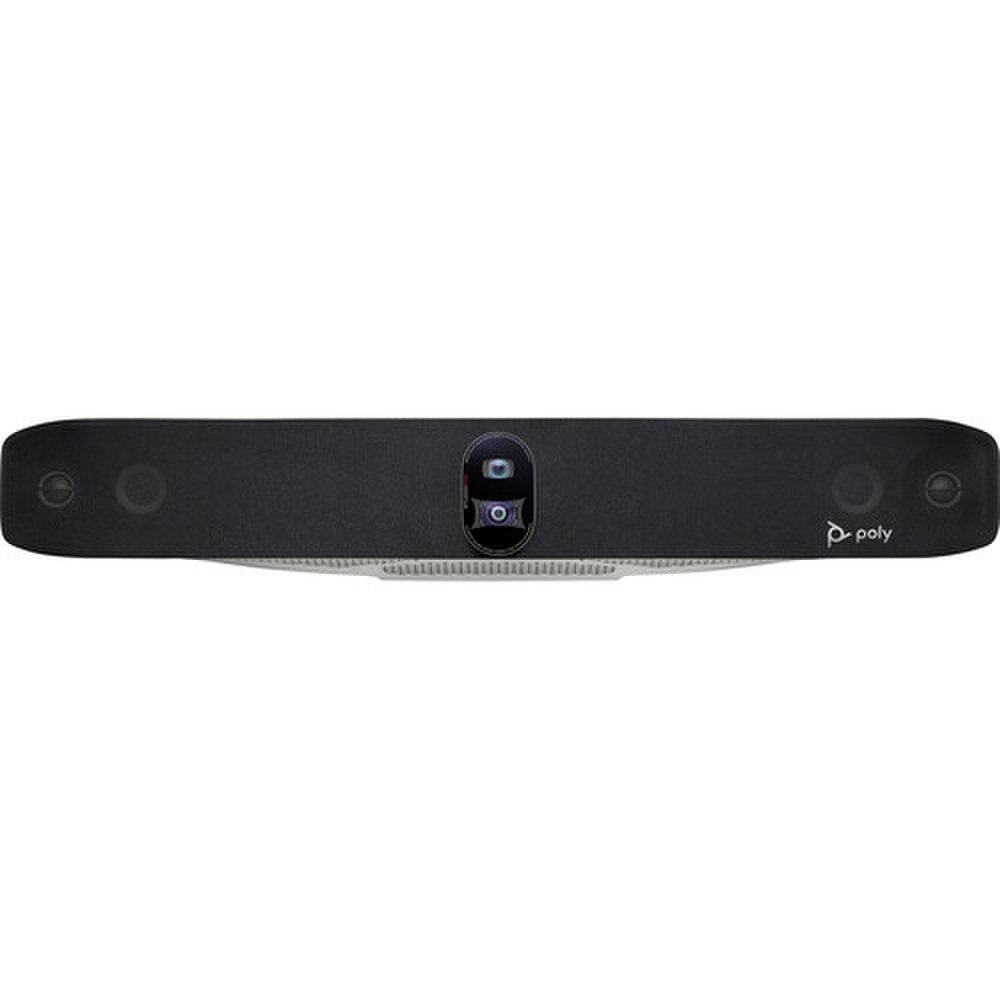

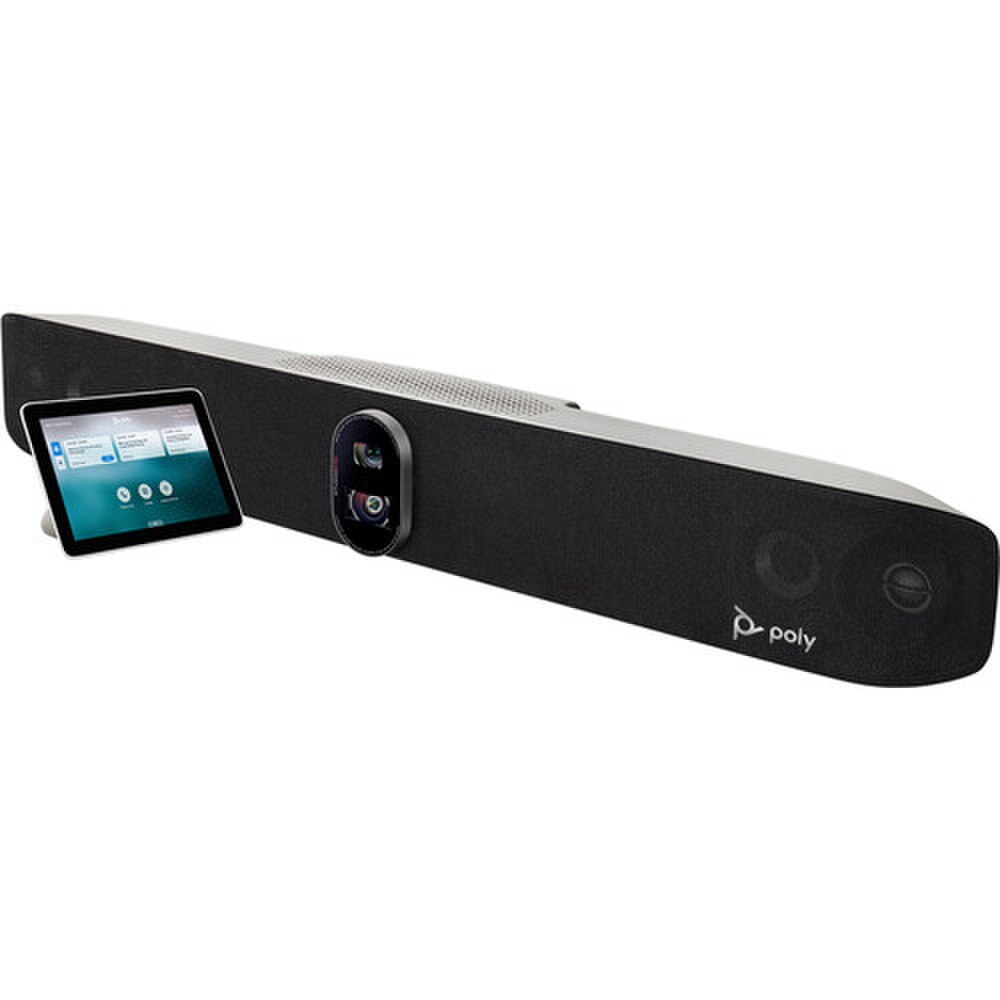

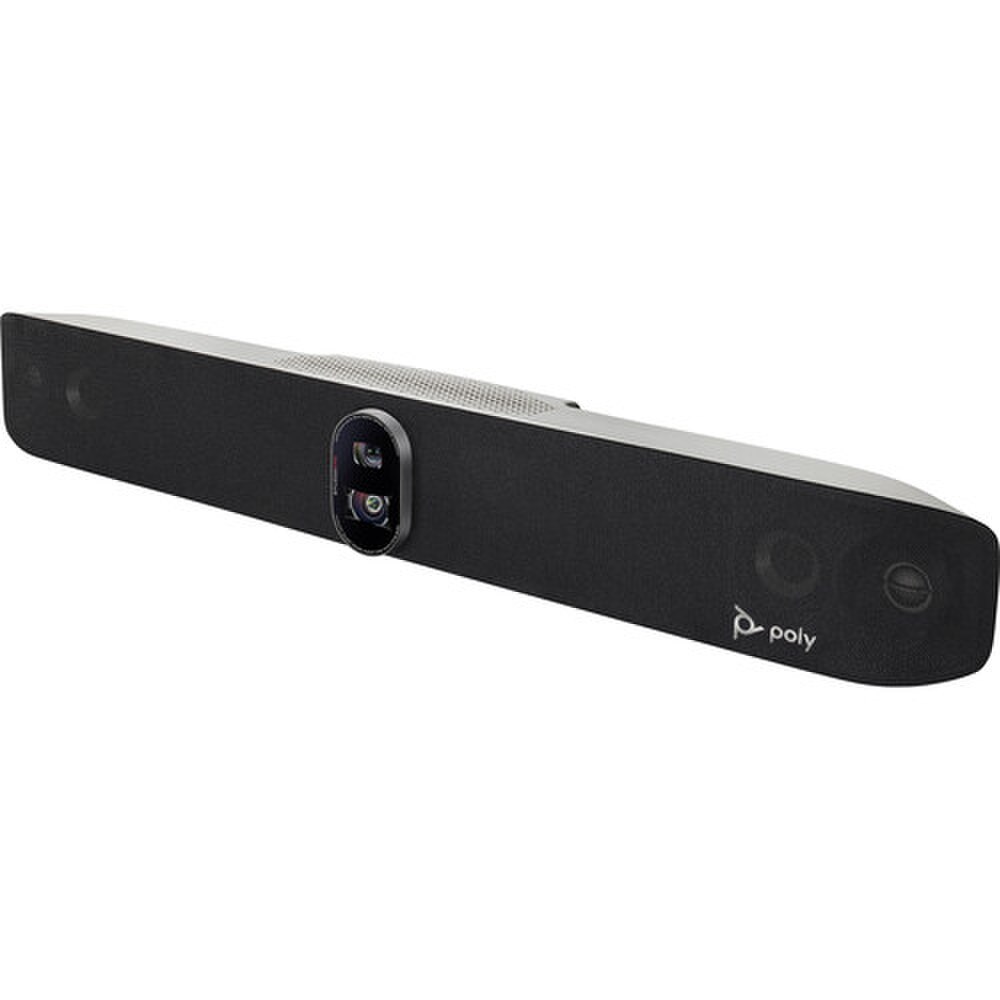

The HP Poly Studio X70 All-In-One 4K Video Conferencing Bar with TC8 Controller Kit (842X9AA#ABA) is a premium video collaboration solution ideal for large conference rooms and boardrooms. This sophisticated system combines two 4K cameras with powerful AI-powered capabilities to provide a fully immersive meeting experience for hybrid offices.
Key Features of HP Poly Studio X70 All-In-One 4K Video Conferencing Bar with TC8 Controller Kit
• Dual 4K Ultra HD cameras with automatic switching between wide and narrow angles
• Poly DirectorAI smart camera technology with intelligent tracking and framing
• Advanced beamforming microphone array with 25-foot pickup range
• NoiseBlockAI technology for superior background noise suppression
• TC8 touch controller with 8-inch high-resolution display
• Native support for major platforms including Zoom, Microsoft Teams, and Google Meet
• Built-in stereo speakers with rich, room-filling audio
• Wireless content sharing via Apple AirPlay and Miracast
• Cloud-managed through Poly Lens for easy deployment
• Dual display support for enhanced collaboration
• USB device mode for flexible connectivity options
• AI-powered speaker tracking and group framing
• Integrated security features with encryption support
• Easy installation with minimal cable management
• Comprehensive room coverage for up to 20 participants
Specifications
Specifications for HP Poly Studio X70 All-In-One 4K Video Conferencing Bar with TC8 Controller Kit (842X9AA#ABA) | New
| Manufacturer | HP |
| Manufacturer Part Number | 842X9AA#ABA |
| Product Name | HP Poly Studio X70 All-In-One 4K Video Conferencing Bar with TC8 Controller Kit |
| Product Type | Conference Camera |
| Audio | Poly NoiseBlockAI technology; Poly Acoustic Fence technology |
| Audio standards | 22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A |
| Camera resolution | 2160p, 4K UHD (3840 x 2160) |
| Camera type | Dual-lens |
| Certified collaboration software | Zoom; Microsoft Teams; Google Meet |
| Content sharing | Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input |
| Content video resolution (input) | UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600) |
| Content video resolution (output) | UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768) |
| Diagonal field of view (dFoV) | 140° (wide); 78° (narrow) |
| Digital signage | Appspace; Raydiant |

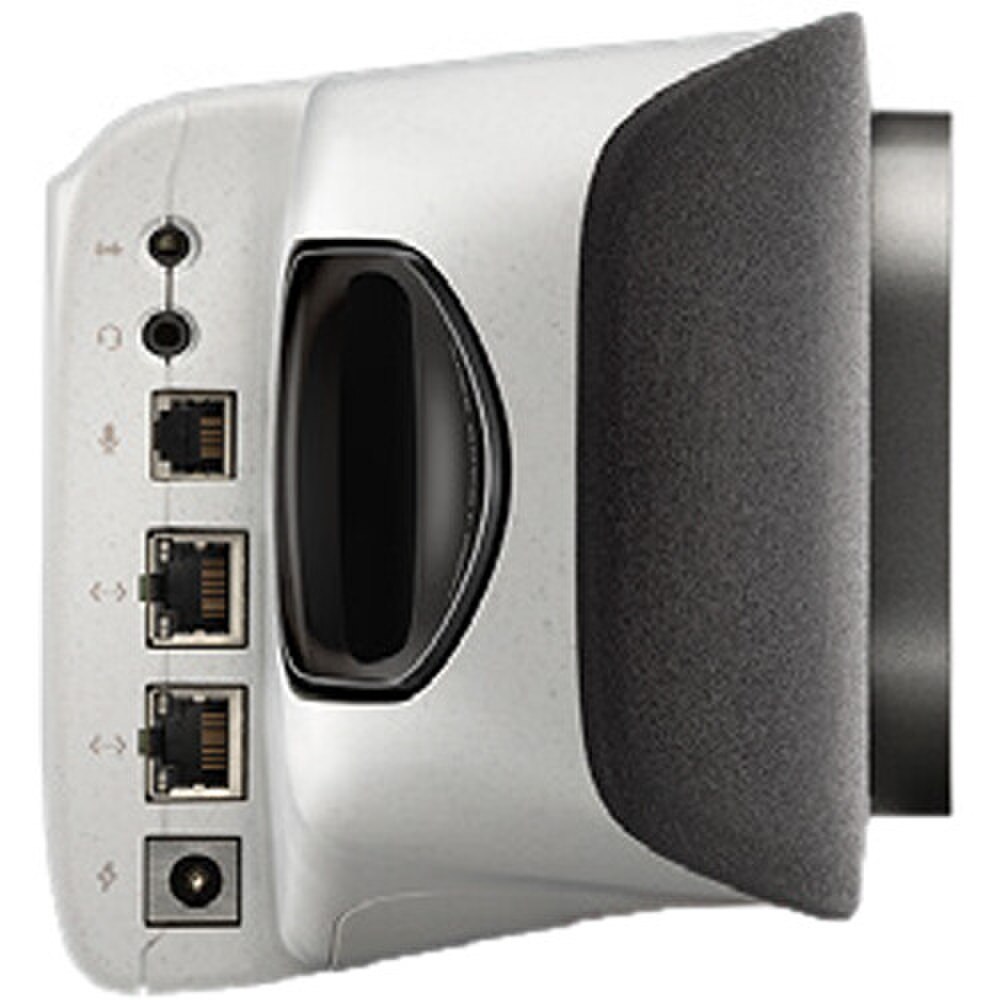

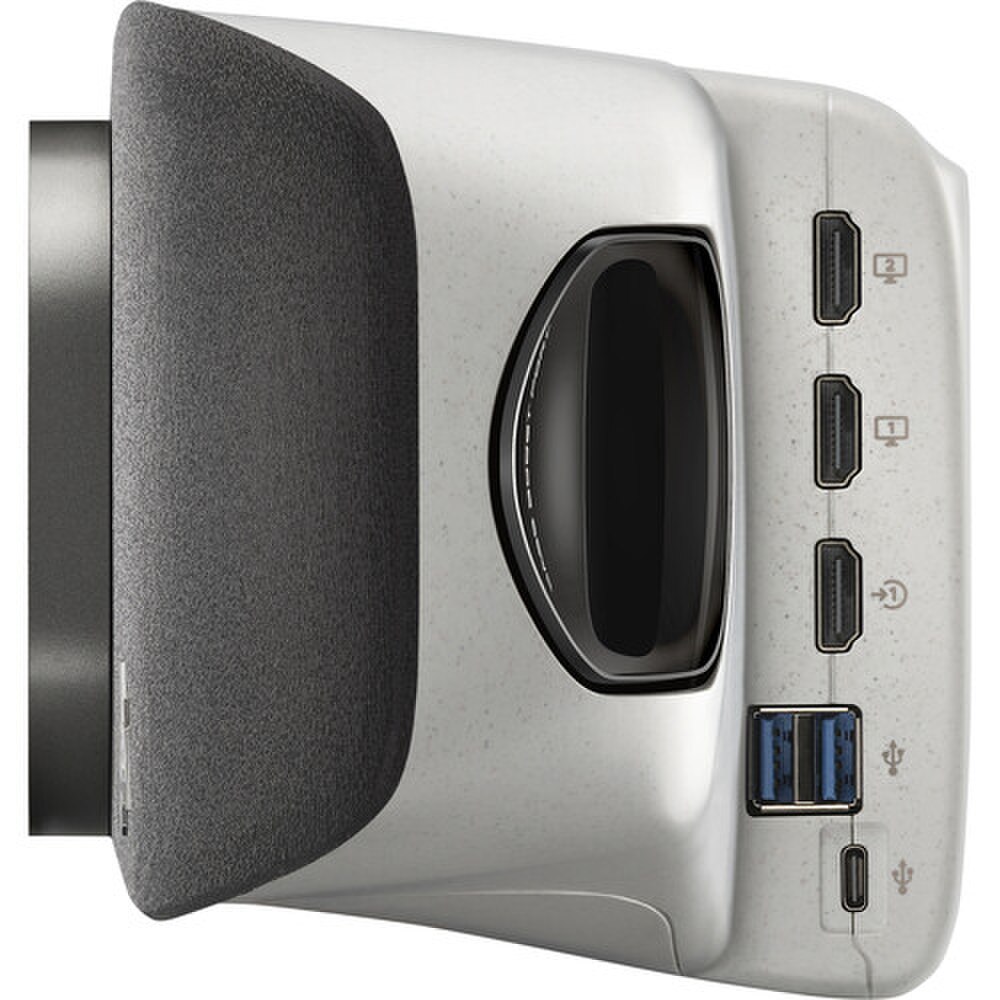

| Ports | 1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 2 RJ-45; 1 audio-in; 1 audio-out; 2 HDMI-out 1.4 (video); 1 HDMI-in 1.4 (audio) |

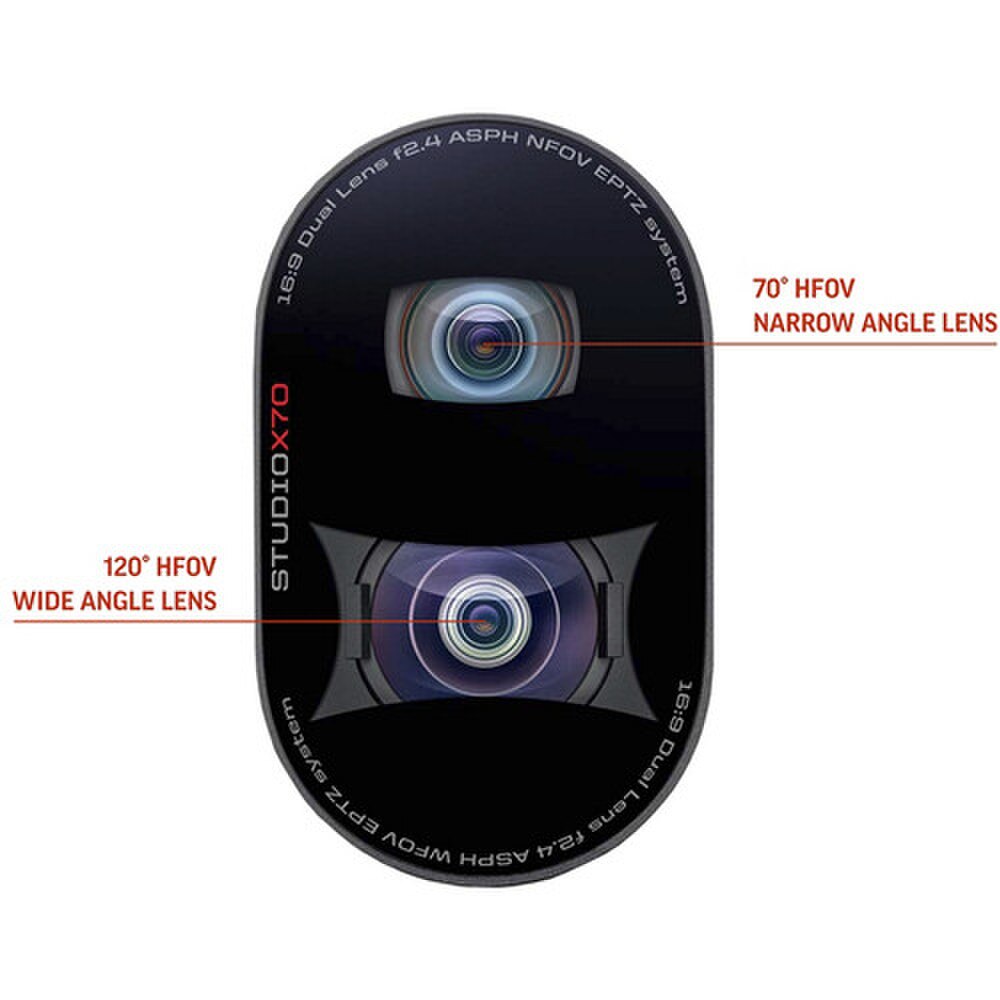

| Horizontal field of view (hFoV) | 120° (wide); 70° (narrow) |
| Interoperability | All cloud service providers through Poly Video App mode; USB Device mode; Support for native 3rd party applications including Zoom, Microsoft Teams, Dialpad, GoToRoom, RingCentral and StarLeaf |
| Lens cover capabilites | Integrated |
| Management Software | Poly Lens |
| Microphone pickup range (imperial) | Up to 25 ft |
| Microphone type | Two MEMS microphones; Two second-order microphones |
| Network capabilities | IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP) |
| People video resolution | 4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps |
| Physical security | Standard Kensington lock slot |
| Power supply type | External; Auto sensing |
| Sensitivity (speaker) | 83 dB (1 W/1 m) for mid speakers; 89 dB (1 W/1 m) for tweeter speakers |
| Speaker output power | 2 x 20 W (RMS for mid speakers); 2 x 30 W (maximum for mid speakers); 2 x 15 W (RMS for tweeter speakers); 2 x 20 W (maximum for tweeter speakers) |
| Speaker type | Two-way dual speakers |
| Video frame rate | 5–30 fps (up to 4K resolution at 15 fps in call) |
| Video standards | H.264 AVC; H.264 High Profile; H.265 |
| Operating temperature range | 32 to 104 °F |
| Non-operating temperature - fahrenheit | 40 to 158 °F |
| Manufacturer Warranty | Poly standard one-year limited warranty |
User Guides
Frequently Asked Questions
HP Poly Studio X70 All-In-One 4K Video Conferencing Bar with TC8 Controller Kit (842X9AA#ABA)
Frequently Asked Questions (FAQ's)
What is the HP Poly Studio X70? The HP Poly Studio X70 is an all-in-one 4K video conferencing bar for big meeting rooms that provides excellent audio and video performance.
What features does the TC8 Controller provide? The TC8 is an 8-inch high-resolution touchscreen controller with an easy interface for starting and managing meetings, operating the camera, customizing participant layouts, and sharing material.
Is the Poly Studio X70 compatible with Microsoft Teams and Zoom? Yes, the Poly Studio X70 supports native third-party applications, such as Microsoft Teams and Zoom, allowing for easy integration.
Does the Poly Studio X70 require an external PC or Mac to operate? No, the Poly Studio X70 is an all-in-one solution that eliminates the need for an external PC or Mac, simplifying setup and minimizing connection clutter.
What is Poly DirectorAI technology? Poly DirectorAI is an intelligent camera framing tool that employs AI to intelligently frame participants and track speakers, ensuring that everyone is seen throughout meetings.
How does the Poly Studio X70 handle background noise? The Poly Studio X70 uses NoiseBlockAI and Acoustic Fence technology to eliminate unwanted background noise, resulting in clean audio during meetings.
What are the camera specifications of the Poly Studio X70? The Poly Studio X70 has two 20MP 4K UltraHD cameras with 120-degree and 70-degree horizontal fields of view, resulting in clear and detailed video quality.

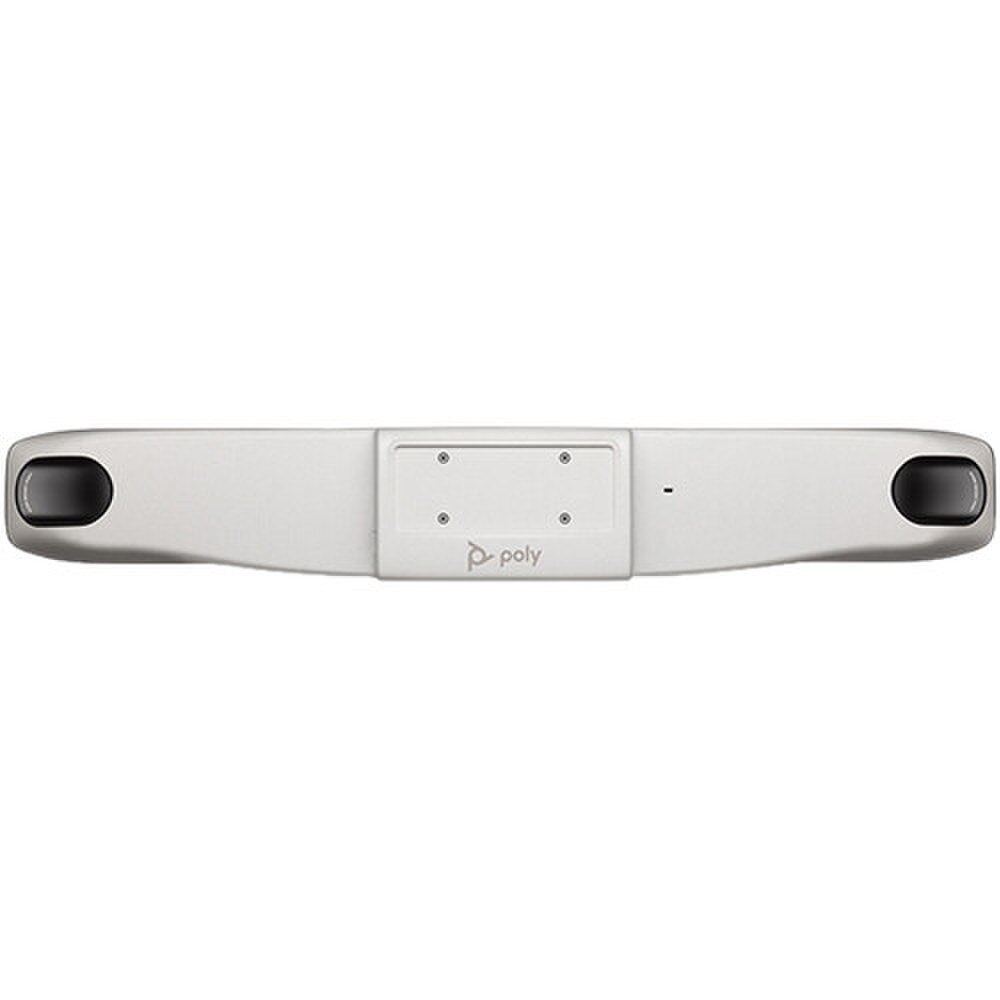

Can the Poly Studio X70 be mounted on a wall? Yes, the Poly Studio X70 has a wall mount kit, which allows for versatile installation options in meeting rooms.
What connectivity options are available on the Poly Studio X70?The Poly Studio X70 has many connectivity choices, including Wi-Fi, Bluetooth, HDMI, and USB, allowing for flexibility in a variety of meeting room configurations.
Is the Poly Studio X70 suitable for large meeting rooms? Yes, the Poly Studio X70 is specifically intended for large meeting rooms, providing superior audio and video performance to suit larger gatherings.
Does the Poly Studio X70 support content sharing during meetings? Yes, the Poly Studio X70 supports content sharing during meetings, allowing participants to share presentations and other documents effortlessly.
What is the audio quality of the Poly Studio X70? The Poly Studio X70 delivers boardroom-filling stereo sound with modern audio technologies, delivering clean and natural audio during meetings.
Can the Poly Studio X70 be used with other video conferencing platforms? Yes, the Poly Studio X70 supports a variety of cloud video services via Poly Video App mode and USB Device mode, providing versatility across multiple platforms.
What is included in the Poly Studio X70 package? The bundle contains the Poly Studio X70 video bar, TC8 touch controller, wall mount kit, AC power adapter, HDMI cable, power cable, and a CAT 5E LAN connection.
How does the Poly Studio X70 enhance the video conferencing experience? The Poly Studio X70 blends attractive design with razor-sharp 4K video, AI-driven camera framing, and powerful audio technology to provide an exceptional video conference experience.
Is the Poly Studio X70 easy to set up? Yes, the Poly Studio X70's all-in-one design eliminates the need for external PCs or complex cabling, making it simple to install and use.
Does the Poly Studio X70 support dual monitor setups? Yes, the Poly Studio X70 enables multi monitor setups, which improves viewing and communication during meetings.
What is the field of view of the Poly Studio X70's cameras? The Poly Studio X70's dual cameras provide horizontal fields of vision of 120 degrees and 70 degrees, ensuring complete coverage of the conference room.
Can the Poly Studio X70 be integrated with existing room control systems? Yes, the Poly Studio X70 may be linked with existing room control systems, resulting in a smooth experience within your present meeting room setup.
What security features does the Poly Studio X70 offer? The Poly Studio X70 provides enterprise-grade security measures to ensure that video conferencing are conducted safely and securely.
