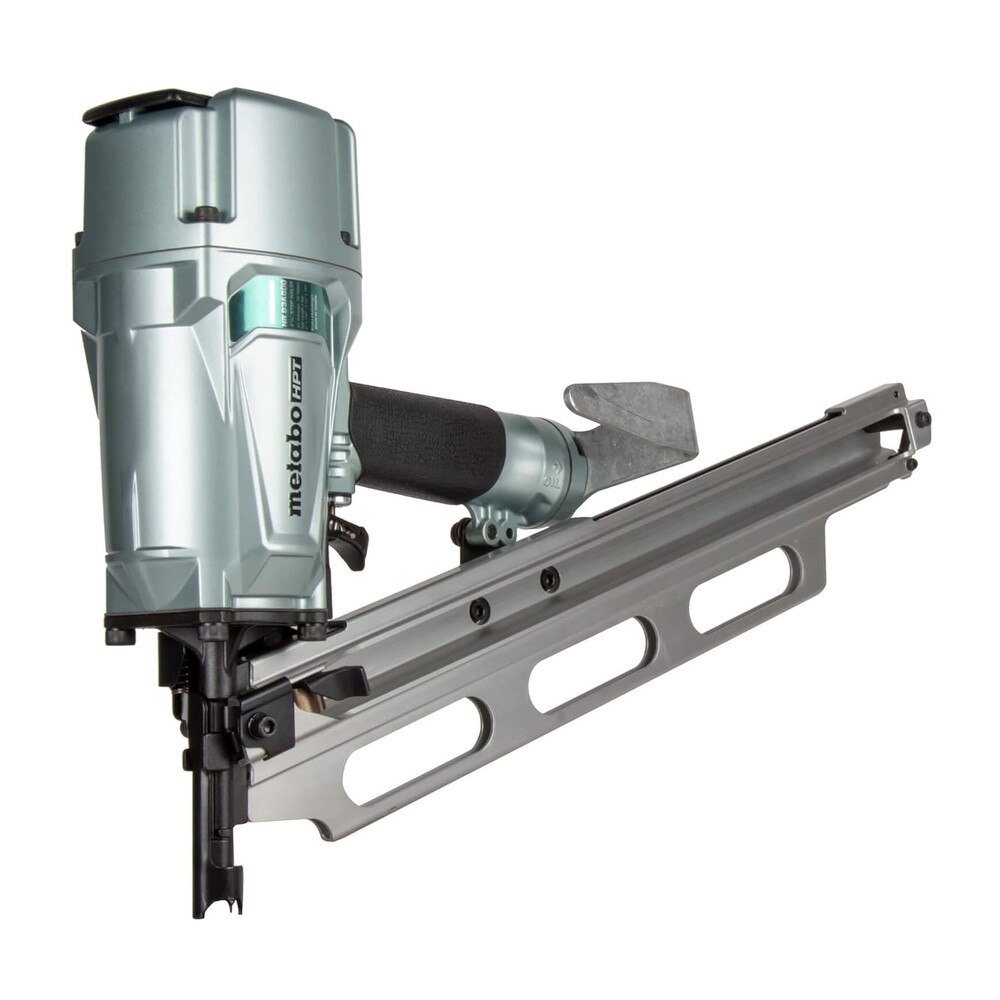

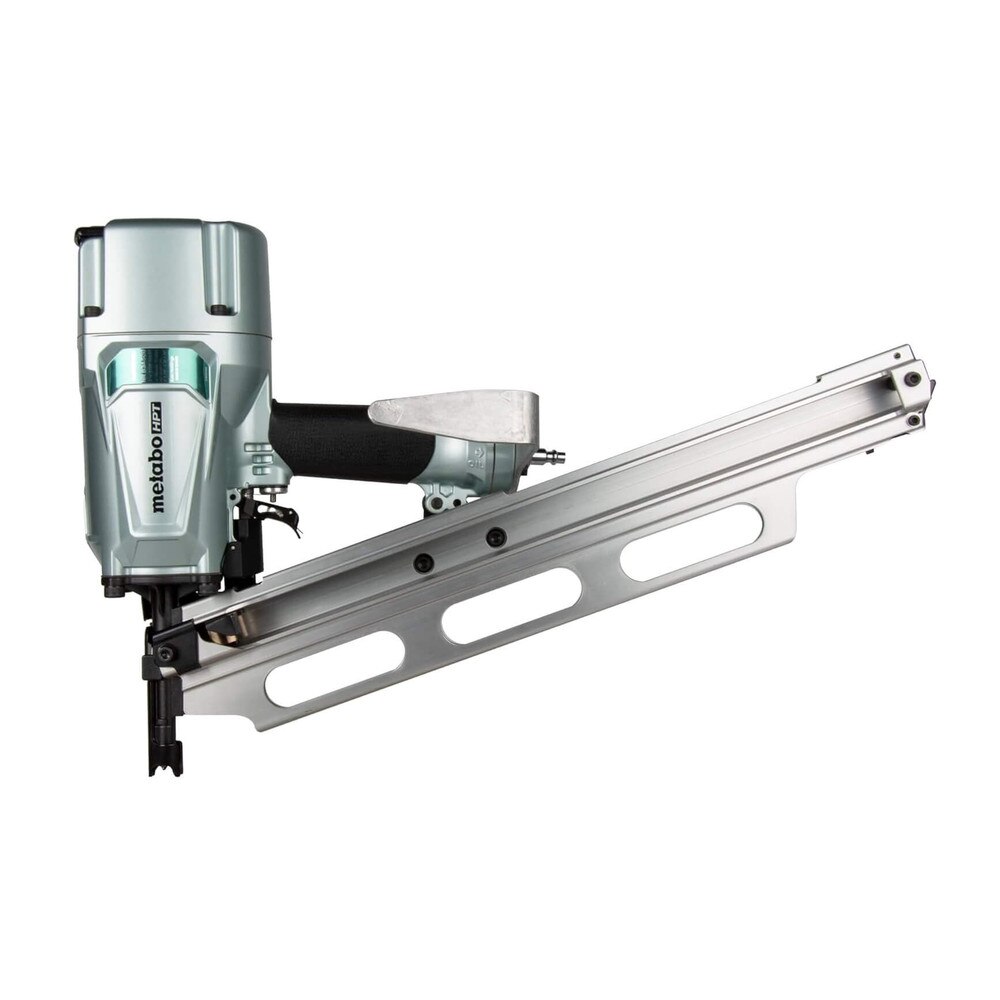

Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine (NR83A5-S1) | New
SKU: NR83A5-S1-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine (NR83A5-S1) | New

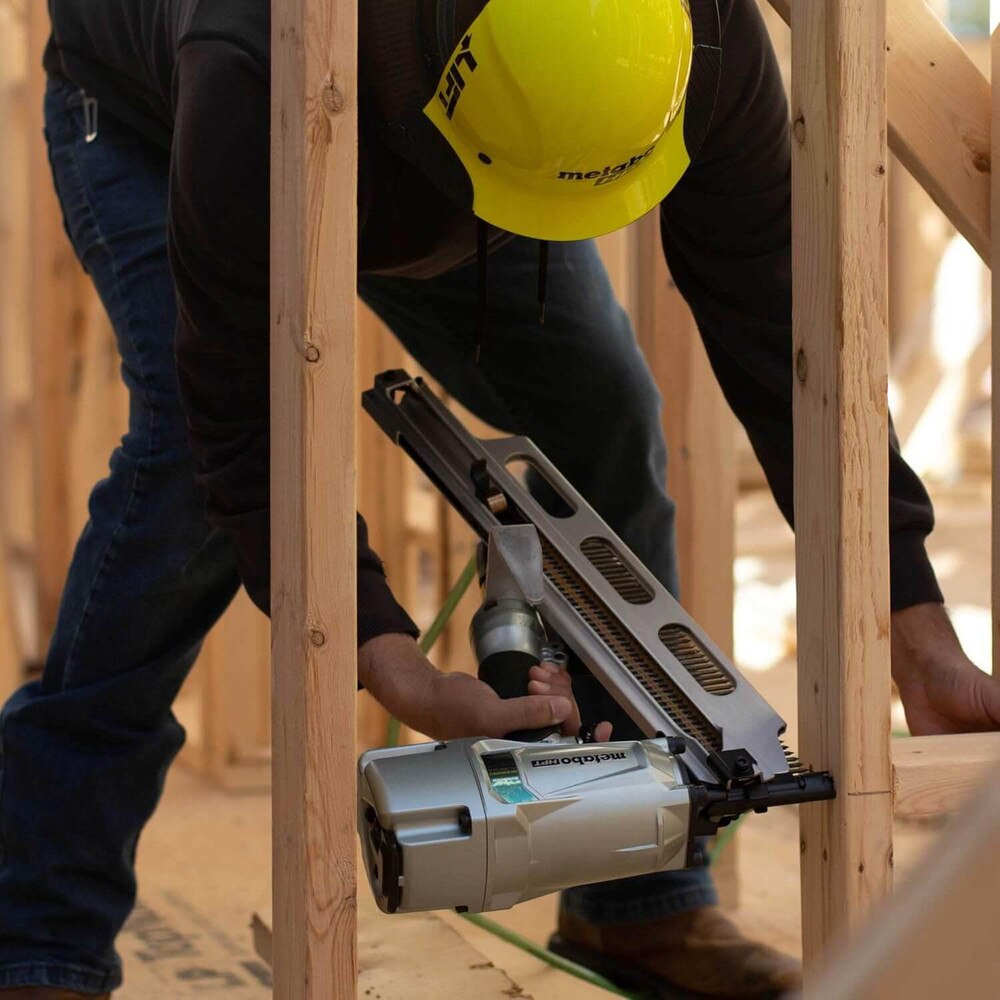

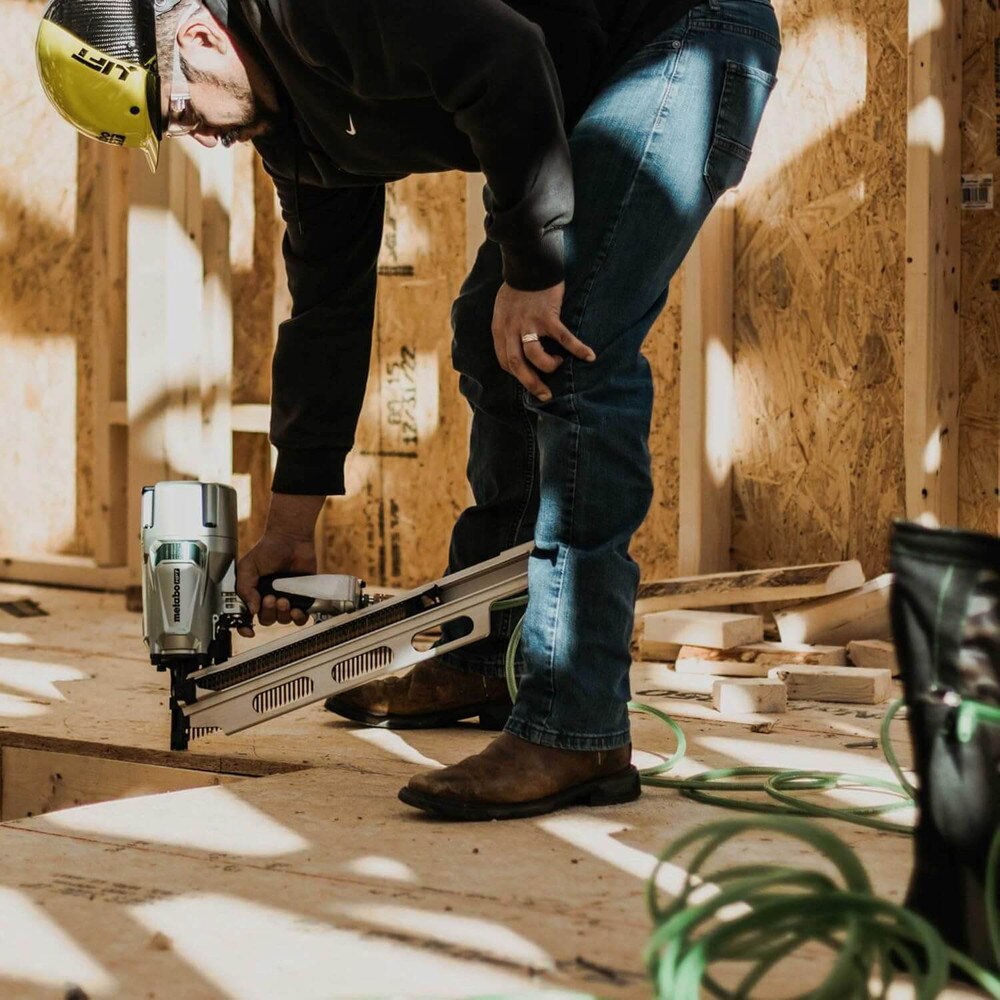

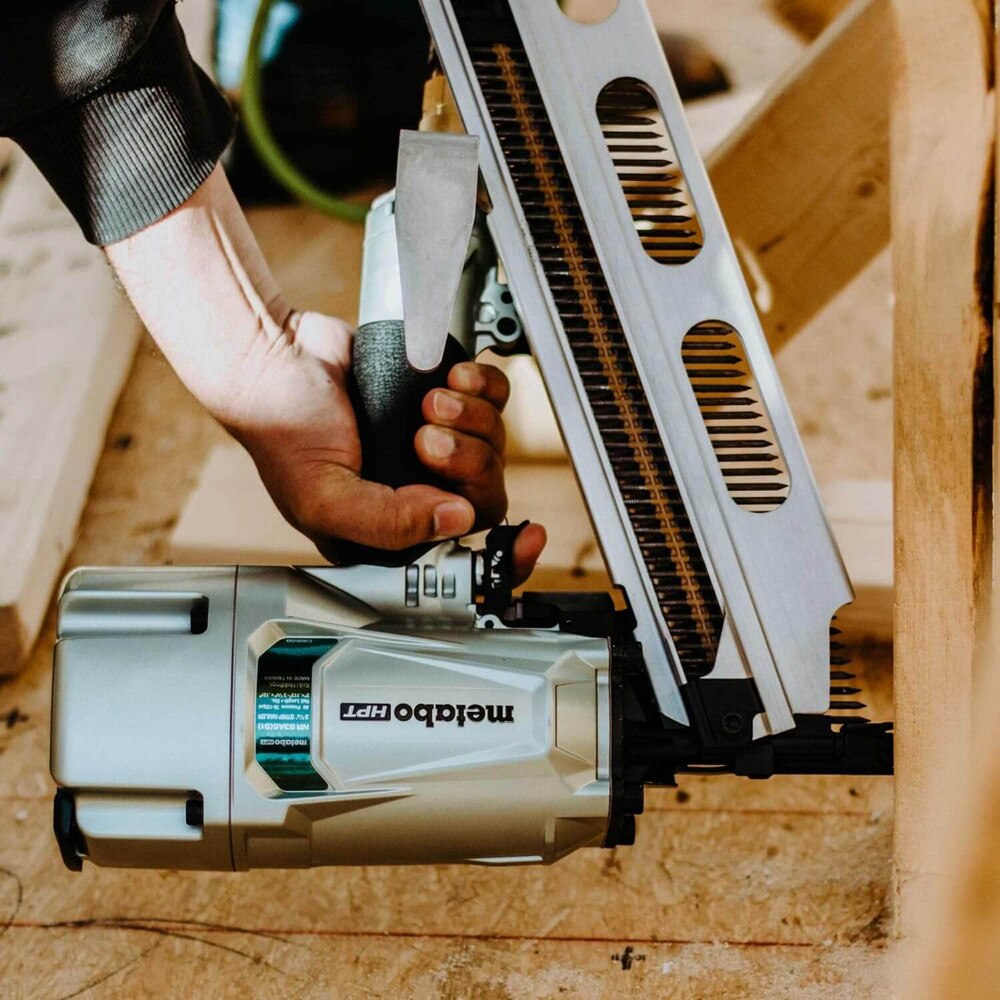

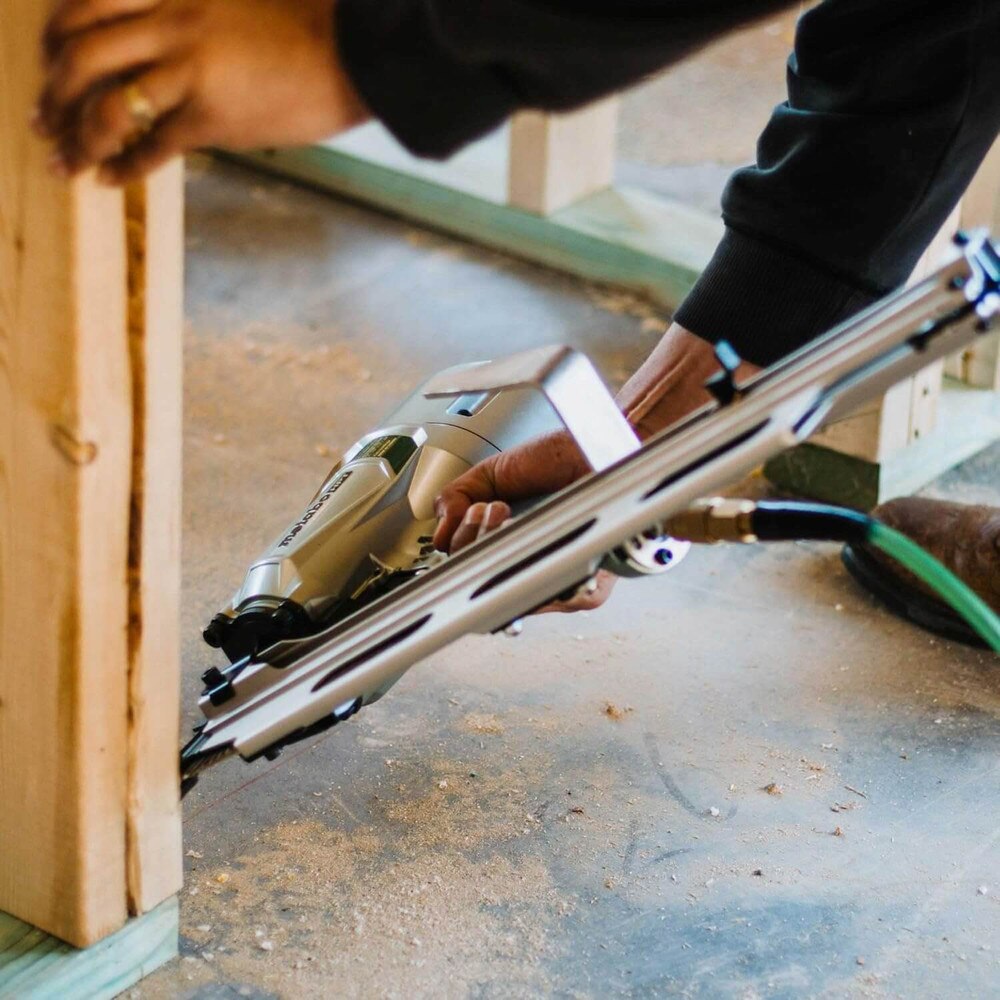

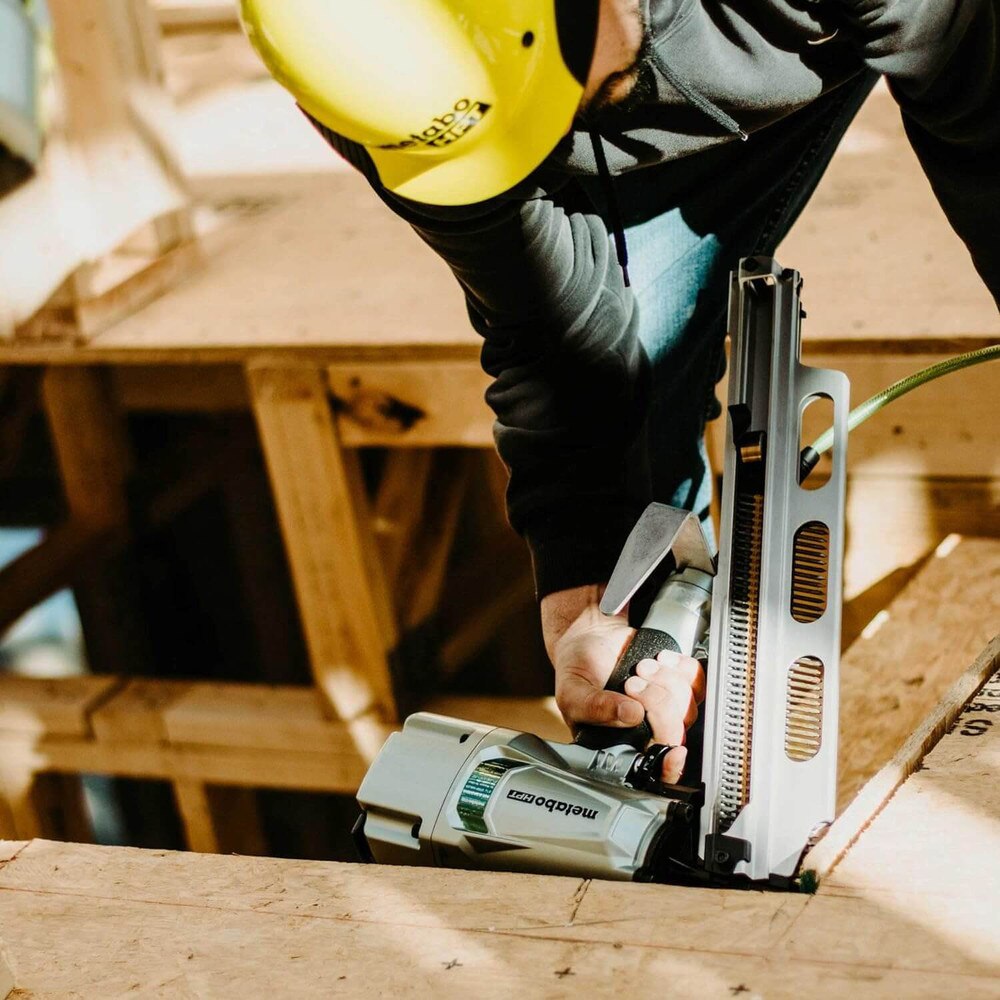

The Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine (NR83A5-S1) is a professional-grade pneumatic framing nailer that is efficient, durable, and versatile for a wide range of framing applications. This powerful frame nailer is based on the NR83 platform, which is renowned for its dependability and performance. The NR83A5-S1 blends lightweight design with strong construction, making it suited for extended usage in harsh job site situations. Its aluminum magazine and advanced features appeal to both professional contractors and serious DIY enthusiasts seeking a high-quality framing equipment. The Metabo HPT Framing Nailer NR83A5-S1 is a fantastic alternative for professionals and serious DIYers who expect dependability, performance, and versatility from their framing projects. Its advanced functionality, durability, and user-friendly design make it an excellent addition to any toolkit.
Key Features of Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine
• Versatile nail capacity accepts 2" to 3-1/4" plastic collated framing nails with diameters from 0.113" to 0.131".
• 21-Degree magazine angle optimal for reaching tight corners and awkward spaces.

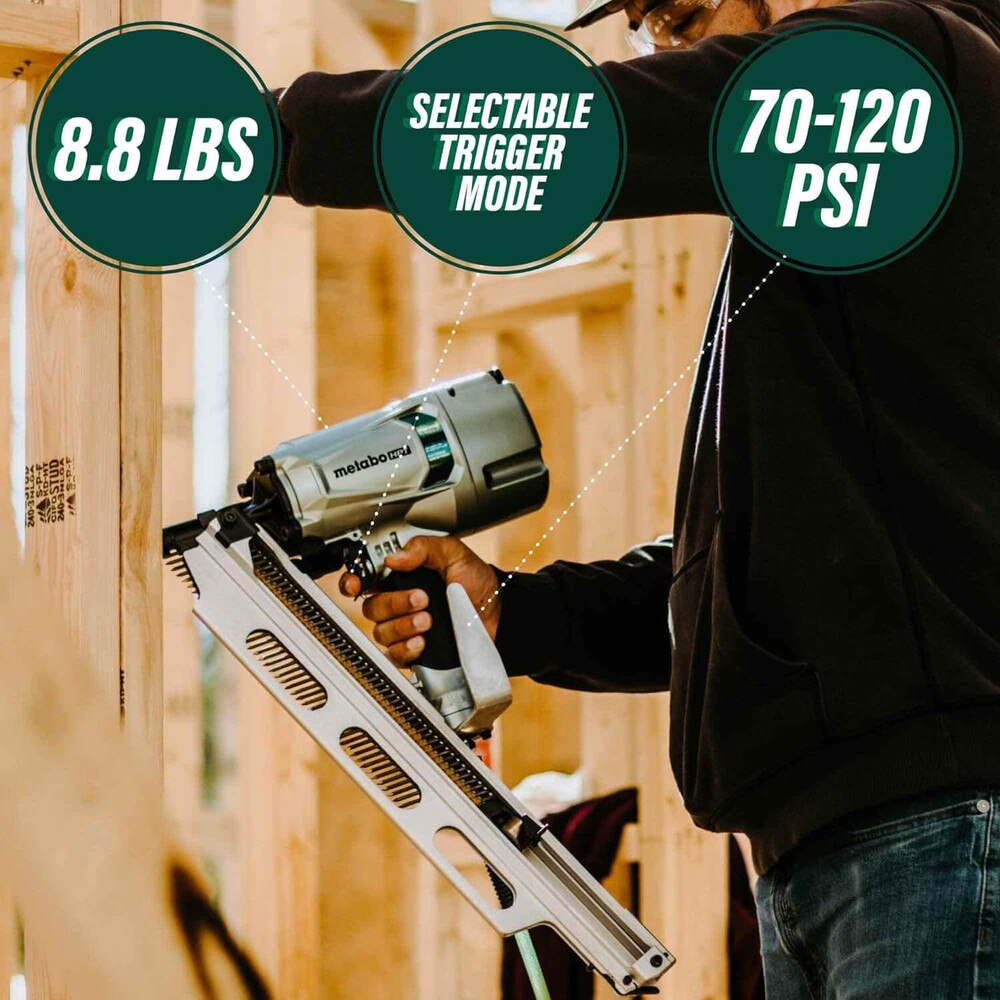

• Lightweight design that weighs only 8.8 lbs (9.1 lbs with rafter hook), reducing user fatigue during extended use.
• Selective actuation with easy switch between sequential and contact nailing modes for varied applications.
• Tool-less depth adjustment allows for precise control of nail depth for different materials and tasks.

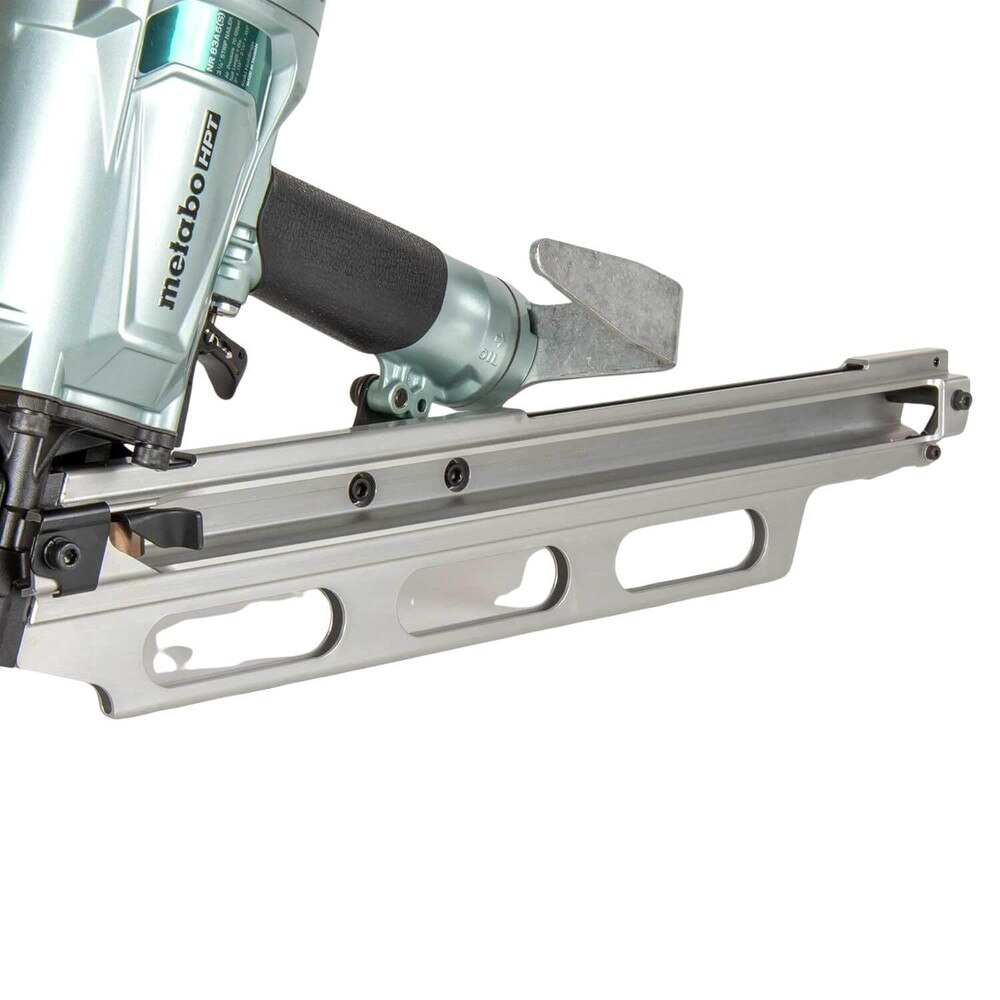

• Durable aluminum magazine holds up to 64 nails for fewer reloads and increased productivity.
• Drop-Sleeve cylinder valve system ensures quick firing and recharging with minimal air pressure loss.
• Hardened steel claw tip enhances durability and provides excellent grip for accurate toenailing.
• Tool-Free nose opening enables quick and easy clearing of nail jams.
• Ergonomic rubber grip provides comfort and reduces slippage during use.
• Adjustable exhaust directs air away from the user for a cleaner work environment.

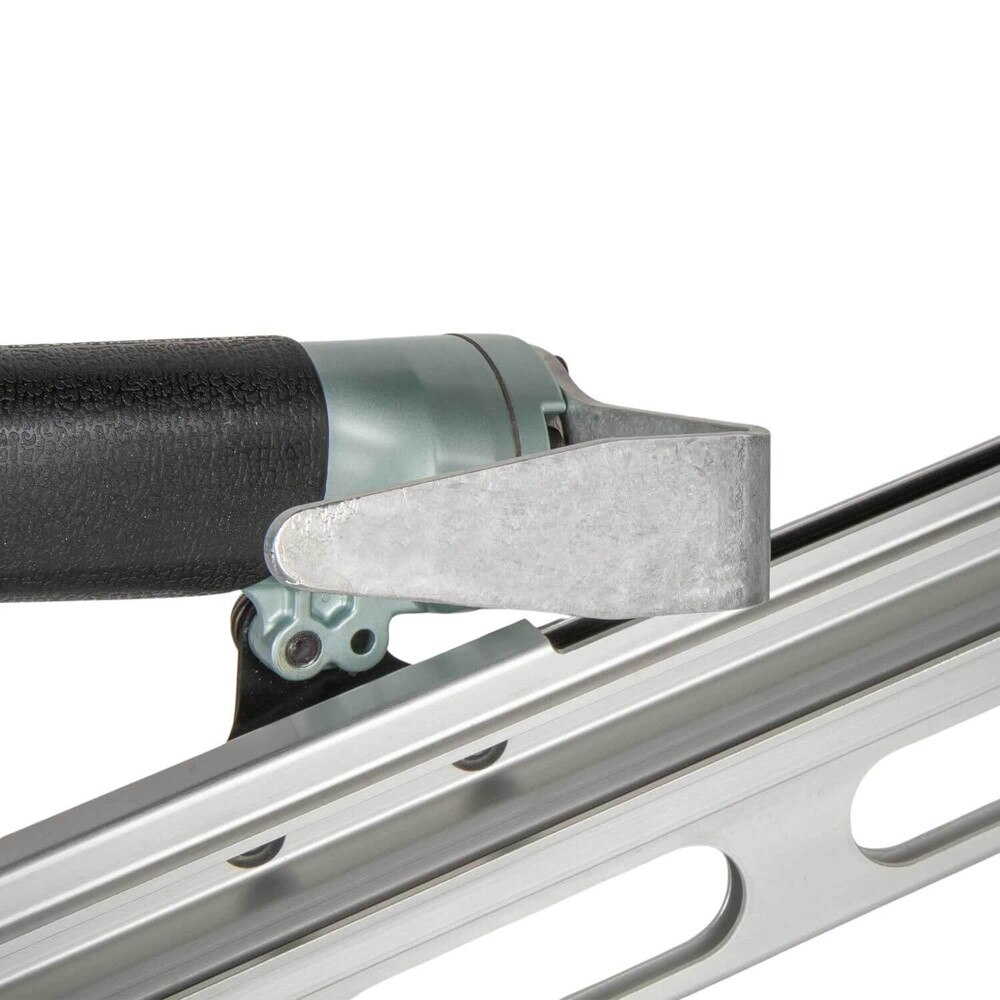

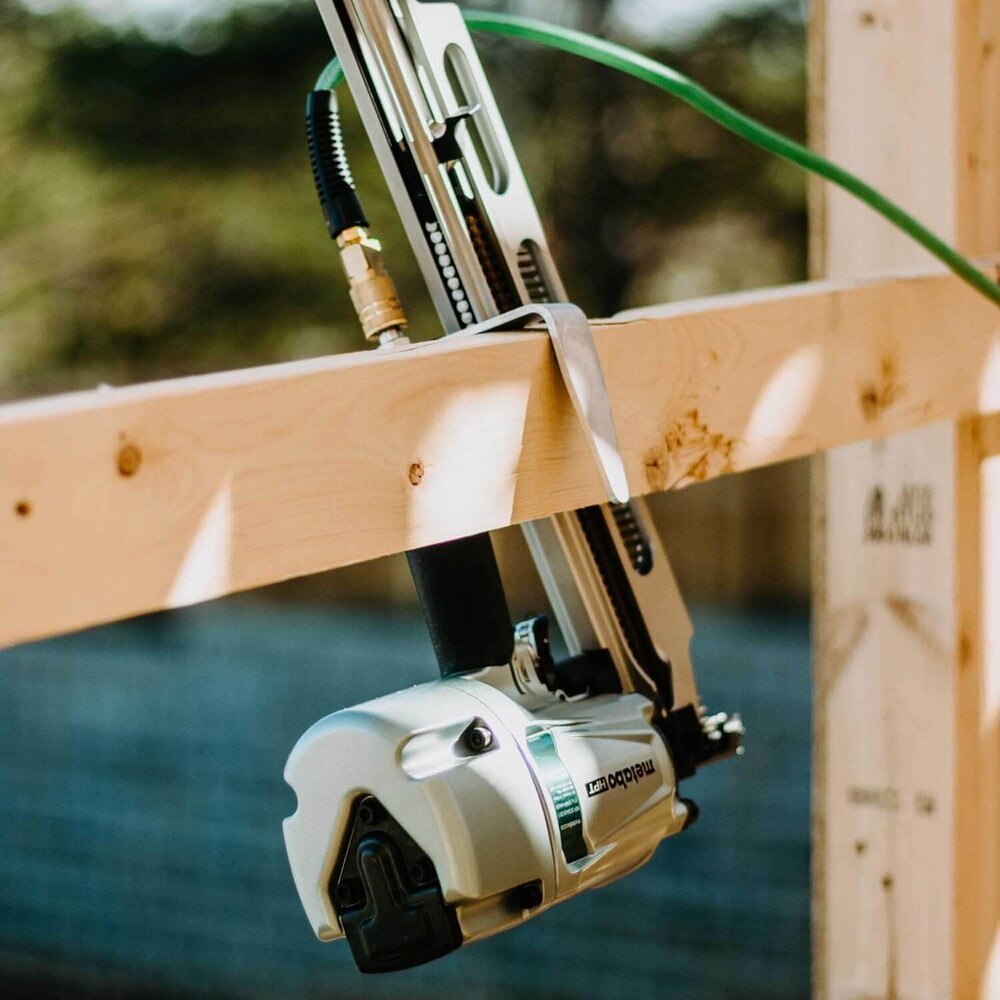

• Rafter hook is convenient for hanging the tool when not in use.
• High operating pressure range with 70-120 PSI for versatility across different job requirements.
• 5-Year warranty demonstrates Metabo HPT's confidence in the tool's quality and durability.
Specifications
Specifications for Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine (NR83A5-S1) | New
| Manufacturer | Metabo HPT |
| Manufacturer Part Number | NR83A5-S1 |
| Product Name | Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine |
| Product Type | Framing Nailer |
| Power Type | Pneumatic |
| Collation Type | Plastic Strip |
| Application Type | Framing, Sheathing, Subfloor |
| Maximum Fastener Length | 3-1/4" |
| Fastener Compatibility | 21° Plastic Collated Nails |
| Color | Silver |
| Case/Bag Included | No |
| Fastener Head Type | Full Round Head |
| Included In Box | Rafter Hook & Safety Glasses |
| Manufacturer's Warranty | Five-Year Limited |
| Item Width | 4-1/4" |
| Special Features | Open Nose Design |
| Item Height | 13-3/8" |
| Item Length | 21-3/16" |
| Magazine Capacity | 50-70 |
| Item Weight | 8.8 lbs |
| Usage Type | Exterior |
| Minimum Fastener Length | 2" |
| Housing Material | Aluminum, Other Materials |
| Operating Pressure | 70 to 120 PSI |
| Firing Type | Selective |
| Air Inlet Size | 3/8" NPT |
| Air Consumption | .088ft^3/cycle at 100 psi |
| Depth Control | No |
| Power Source | Air |
| Diameter Range | .113" - .131" |
| Product Degree/Angle | 20-22 Degree |
| Magazine Type | Strip |
| Fastener Type | Framing Nail |
| Series | A5 |
User Guides
Frequently Asked Questions
Metabo HPT 3-1/4 Inch 21-Degree Framing Nailer with Aluminum Magazine (NR83A5-S1)
Frequently Asked Questions (FAQ's)
What type of nails does the NR83A5-S1 use?It employs 21-degree complete round-head plastic collated nails.
What is the maximum nail length the nailer can drive?It can drive nails up to 3-1/4 inches long.
What is the magazine capacity of this framing nailer?The magazine holds up to 64 nails.
Is the NR83A5-S1 suitable for heavy-duty applications?Yes, it is intended for heavy-duty applications such as framing, sheathing, and flooring.
Does this nailer feature a depth adjustment?Yes, it includes tool-free depth adjustment to ensure exact nail implantation.
What is the operating pressure range for the nailer?The recommended operating pressure is between 70 and 120 PSI.
Does it have a selective actuation switch?Yes, it has a switch for easily switching between sequential and contact nailing modes.
What material is the magazine made of?The magazine is constructed of strong, lightweight aluminum.
Is the NR83A5-S1 designed to reduce recoil?Yes, it boasts a low-recoil design for more controlled nailing.
Can this tool be used for roofing applications?No, it's intended for framing and structural uses, not roofing.
Is the NR83A5-S1 air-powered or cordless?It is air-powered and requires an air compressor to function.
How much does this framing nailer weigh?It weighs about 8.8 pounds, making it lightweight in its class.
Does it come with a carrying case?This model normally does not come with a carrying case.
What is the warranty period for the NR83A5-S1?Metabo HPT provides a 5-year limited warranty.
Can it be used for both indoor and outdoor framing?Yes, it is appropriate for indoor and outdoor framing applications.
Is the handle ergonomic?Yes, the nailer features a comfortable, ergonomic handle to decrease hand fatigue.
Can it handle different types of wood?Yes, it is designed to drive nails into a variety of woods, including hardwood.
Does the nailer require oiling for maintenance?Yes, regular oiling is recommended to keep it running smoothly.
What safety features does it have?It features a safety trigger system to avoid accidental fire.
Can it handle angled nailing?This type is designed for 21-degree applications and is best suited for straight or framing work rather than specific angled nailing requirements.
