Overview of Metabo HPT 21 Degree 36V Cordless Plastic Strip Framing Nailer (NR3690DR) | New
The Metabo HPT 21 Degree 36V Cordless Plastic Strip Framing Nailer (NR3690DR) is a powerful and flexible cordless framing nailer aimed for professional contractors and serious DIY enthusiasts. This unique tool combines the ease of cordless operation with the power of pneumatic nailers. The NR3690DR framing nailer has great power and speed, making it suitable for a variety of framing applications. The cordless design allows you freedom of mobility on the job site, and the 36V MultiVolt battery system offers long-lasting performance. With its air spring drive technology, this nailer provides a pneumatic-like feel and quick firing capability, increasing production and efficiency. The Metabo HPT Cordless Plastic Strip Framing Nailer is an ideal choice for professionals who want a high-performance, cordless framing solution. Its combination of power, speed, and versatility makes it appropriate for a wide range of framing activities, including home building and remodeling projects.
Key Features of Metabo HPT 21 Degree 36V Cordless Plastic Strip Framing Nailer
• Powerful 36V MultiVolt system that is compatible with Metabo HPT's MultiVolt batteries for extended runtime and consistent power output.
• Air Spring Drive system provides a pneumatic-like feel and performance, with minimal lag between trigger pull and nail fire.

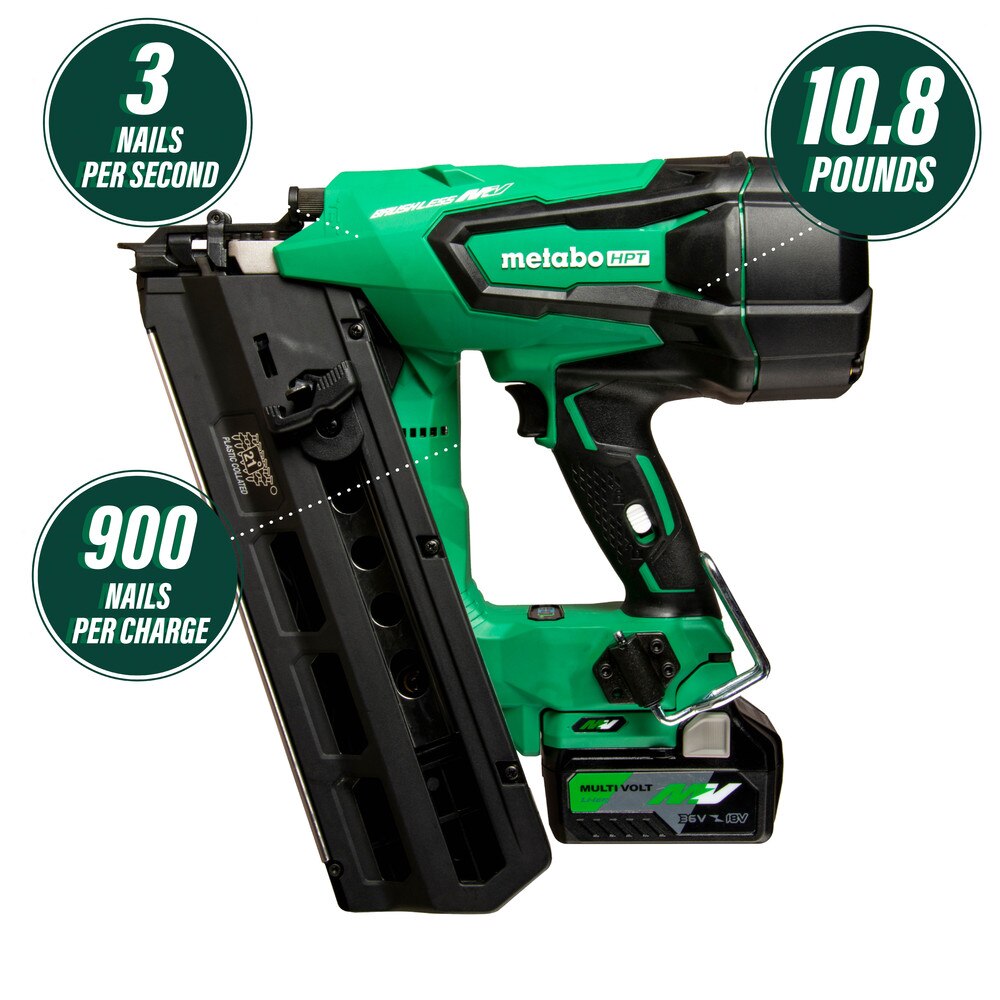

• Rapid Firing Speed that is capable of driving up to 3 nails per second for increased productivity.
• Versatile Nail capacity accepts 21-degree plastic collated framing nails from 2" to 3-1/2" in length and 0.113" to 0.131" in diameter.
• Selective actuation with easy switch between sequential and contact nailing modes for various applications.
• Tool-less Depth adjustment allows for precise control of nail depth in different materials.
• Compact and Lightweight design that weighs only 10.8 pounds with battery, enhancing maneuverability and reducing user fatigue.
• Brushless motor provides increased efficiency, longer runtime, and extended tool life.

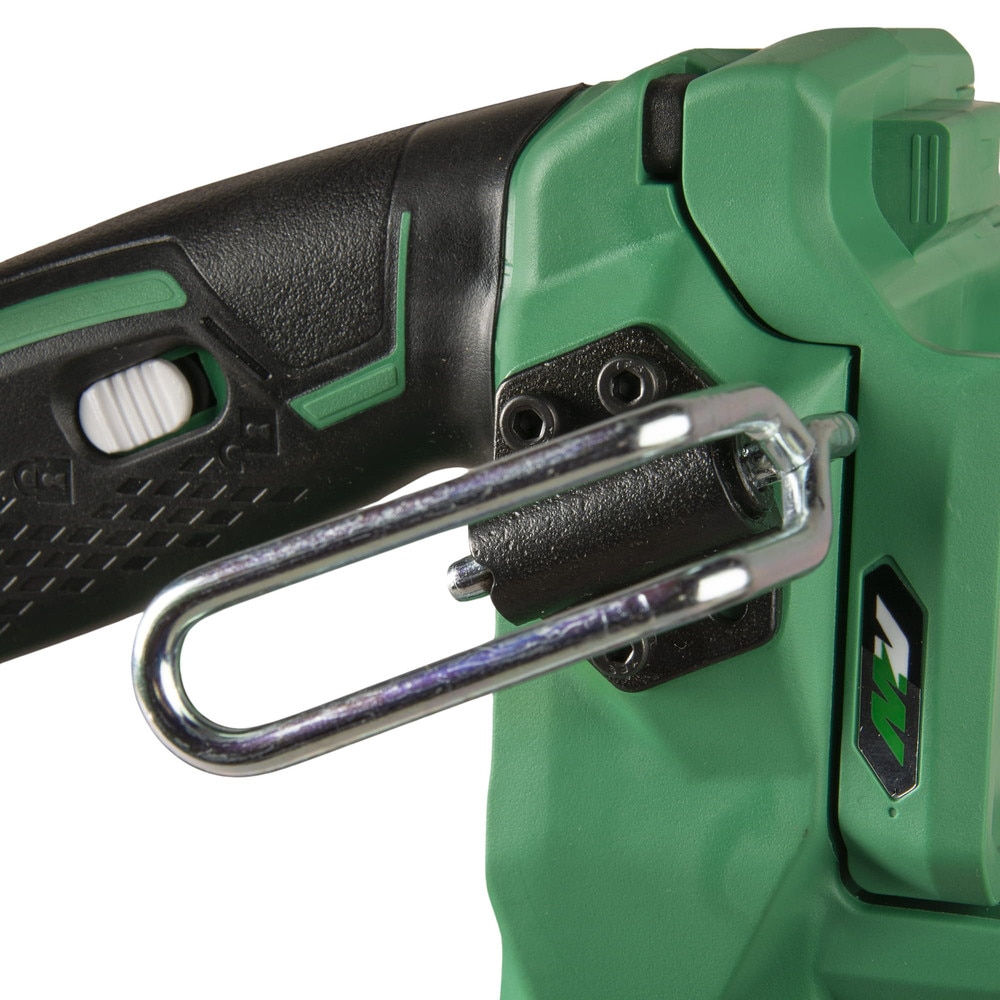

• Rafter hook that is convenient for hanging the tool when not in use.
• LED work light illuminates the work area for improved visibility in low-light conditions.
• Dry fire lockout prevents dry firing and extends the tool's lifespan.
• Ergonomic grip with comfortable rubber grip for reduced hand fatigue during extended use.

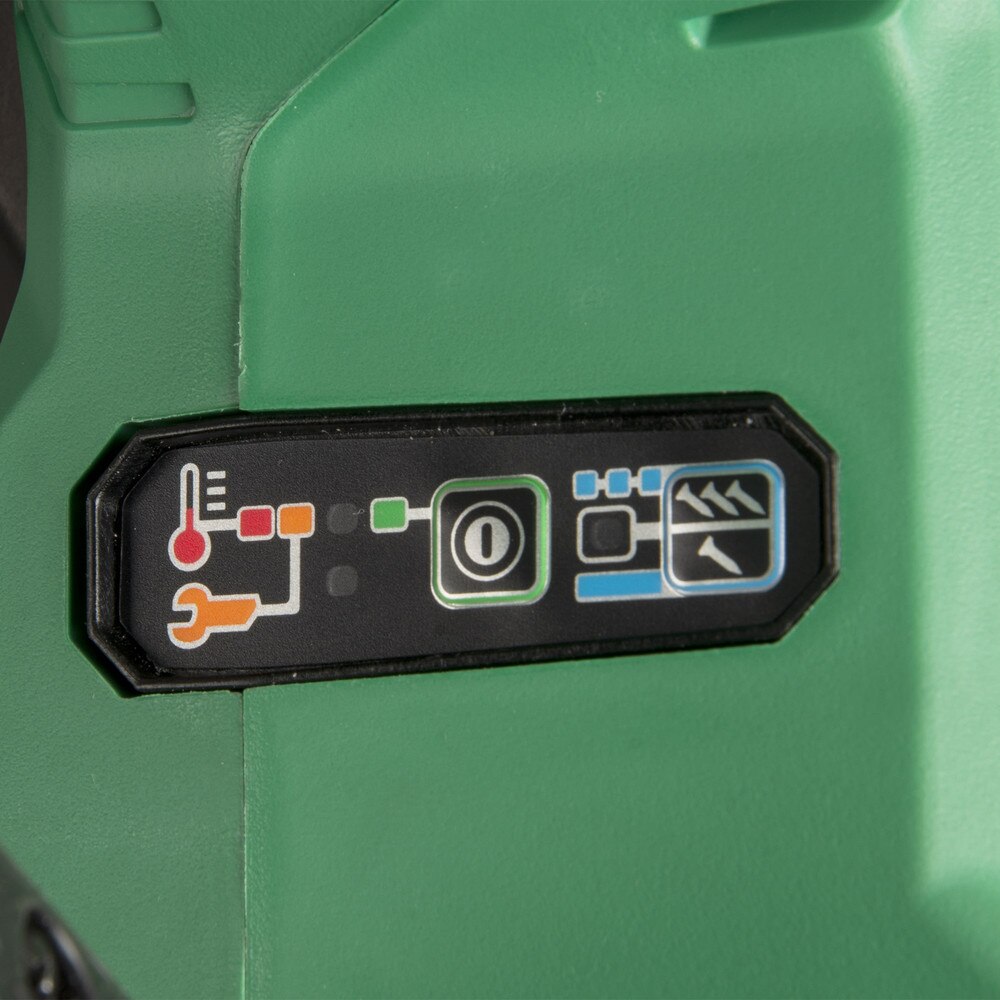

• Battery fuel gauge to easily monitor remaining battery life to plan work accordingly.
• Dual-Port charger that rapidly charges batteries for minimal downtime.
Specifications
Specifications for Metabo HPT 21 Degree 36V Cordless Plastic Strip Framing Nailer (NR3690DR) | New
| Manufacturer | Metabo HPT |
| Manufacturer Part Number | NR3690DR |
| Product Name | Metabo HPT 21 Degree 36V Cordless Plastic Strip Framing Nailer |
| Product Type | Framing Nailer |
| Fastener Type | Full Head Strip |
| Battery Type | Li-Ion |
| Motor Type | Brushless |
| Nail Capacity | 37 |
| Nails per Charge (w. 36V 2.5Ah Battery) | 900 |
| Magazine Angle | 21° |
| Driving Speed | 3 nails per second |
| Magazine Loading | Rear |
| Actuation | Selective |
| Dry-fire Lockout | Yes |
| Depth Adjustment | Tool-less |
| Jam Clearing | Open Nose |
| Battery Charge Indicator | On-Battery |
| Pivoting Hook | Yes |
| Battery Capacity | 2.5 Ah |
| Battery Voltage | 36 V |
| Collation Type | Straight |
| Fastener Type | Nail |
| Handle Type | Ergonomic, Soft Grip |
| Magazine Loading | Rear |
| Triggering Mode | Sequential |
| Fastener Size | 2 to 3-1/2 in |
User Guides
Frequently Asked Questions
Metabo HPT 21 Degree 36V Cordless Plastic Strip Framing Nailer (NR3690DR)
Frequently Asked Questions (FAQ's)
What type of battery does the NR3690DR use?It runs on a 36V MultiVolt battery that is compatible with other Metabo HPT MultiVolt tools.
What types of nails are compatible with the NR3690DR?The nailer accepts 21-degree plastic collated nails from 2 to 3.25 inches in length.
How many nails can the NR3690DR drive per charge?Depending on the application, the 4.0Ah MultiVolt battery can drive up to 900 nails each charge.
Can this nailer switch between single and bump fire modes?Yes, the quick-change selective actuation allows you to easily switch between single and bump firing modes.
Is the NR3690DR suitable for heavy-duty construction work?Yes, it's intended for heavy-duty applications including framing, sheathing, and decking.
How much does the tool weigh with the battery?The NR3690DR weighs roughly 10.8 pounds, including the battery.
Does it come with a depth adjustment feature?Yes, it offers a tool-free depth adjustment to ensure exact nail implantation.
Is the NR3690DR comparable to pneumatic nailers in power?Yes, its air spring drive technology produces power similar to a pneumatic nailer.
Does it include a belt hook?Yes, the NR3690DR includes an adjustable belt hook for convenience.
What is the runtime of the MultiVolt battery?The runtime varies based on usage, but the 4.0Ah battery provides ample power for lengthy nailing activities.
Does the NR3690DR require regular maintenance?The brushless motor requires less maintenance and has a long lifespan.
Is it compatible with Metabo HPT AC adapters?Yes, the MultiVolt battery system works with Metabo HPT's AC adaptor for corded use.
Does it include any safety features?Yes, it features a dry-fire lockout function that prevents firing without nails, hence boosting tool safety and durability.
How many nails does the magazine hold?The magazine can contain up to 47 nails at one time.
What applications is this framing nailer best suited for?It is perfect for framing, sheathing, decking, and other heavy-duty nailing applications.
Can this nailer be used for finish work?Yes, the NR3690DR is designed to work in a variety of weather conditions, while battery life may be reduced in extreme cold.
Can I use aftermarket batteries with this nailer?Metabo HPT MultiVolt batteries are suggested for optimum performance and warranty coverage.
How fast can the NR3690DR fire nails?The air spring driving technology allows it to shoot up to three nails each second.
Does the tool have a low-battery indicator?No, it doesn't feature a low battery indicator. However, the MultiVolt battery includes a charge status indicator.
Can this tool be used in cold weather?Yes, the NR3690DR is designed to work in a variety of weather conditions, while battery life may be reduced in extreme cold.
