Overview of Thermaltake Toughpower GF1 TTP-850AH3FCG 850W Power Supply (PS-TPD-0850FNFAGU-1) | New

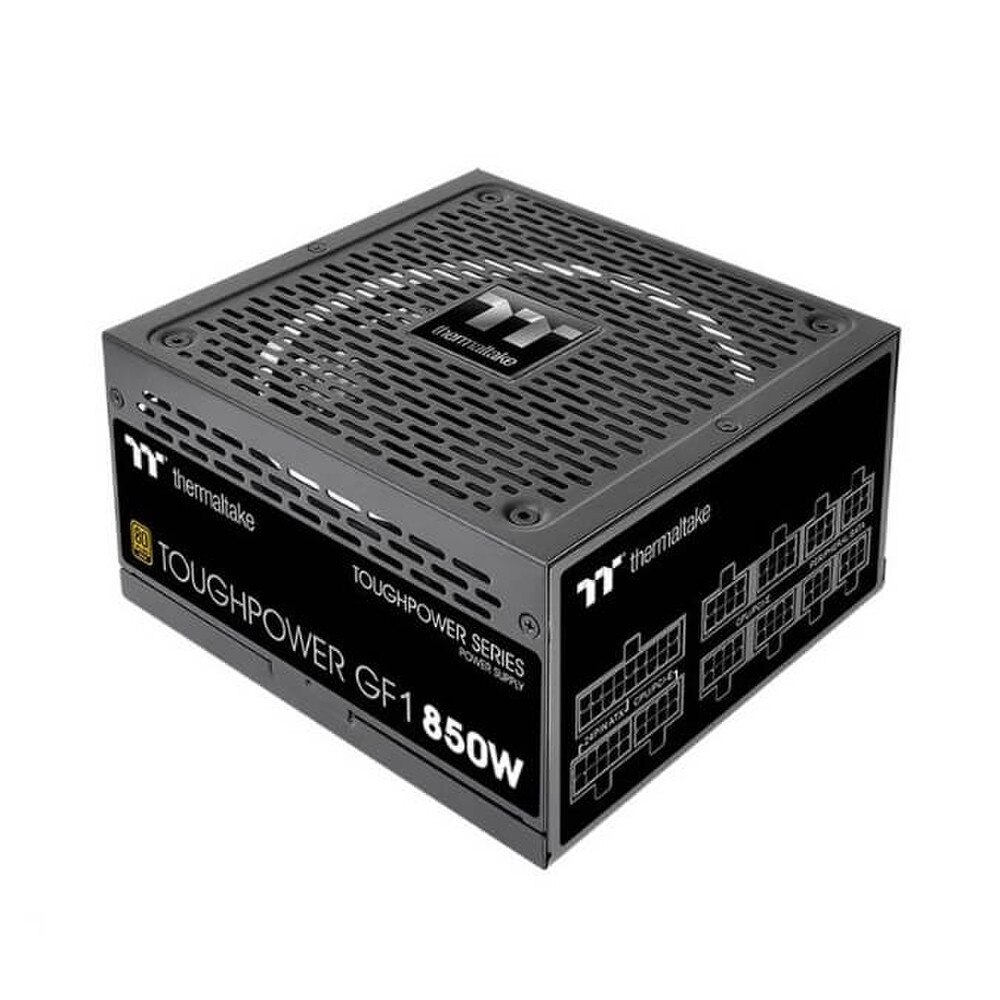

The Thermaltake Toughpower GF1 TTP-850AH3FCG 850W Power Supply (PS-TPD-0850FNFAGU-1) is a premium, completely modular power supply ideal for high-performance gaming and workstations. This 80 PLUS Gold-certified power supply combines efficiency and dependability, with Japanese capacitors and a 140mm hydraulic bearing fan for superior cooling and silent operation. With its fully modular cable design and extensive protective features, the Toughpower GF1 850W provides reliable power for demanding applications while maintaining outstanding thermal performance up to 50°C ambient temperature.
Key Features of Thermaltake Toughpower GF1 TTP-850AH3FCG 850W Power Supply
• 850W continuous power output with 1020W peak capacity
• 80 PLUS Gold certification with up to 90% efficiency
• Fully modular design with low-profile flat black cables

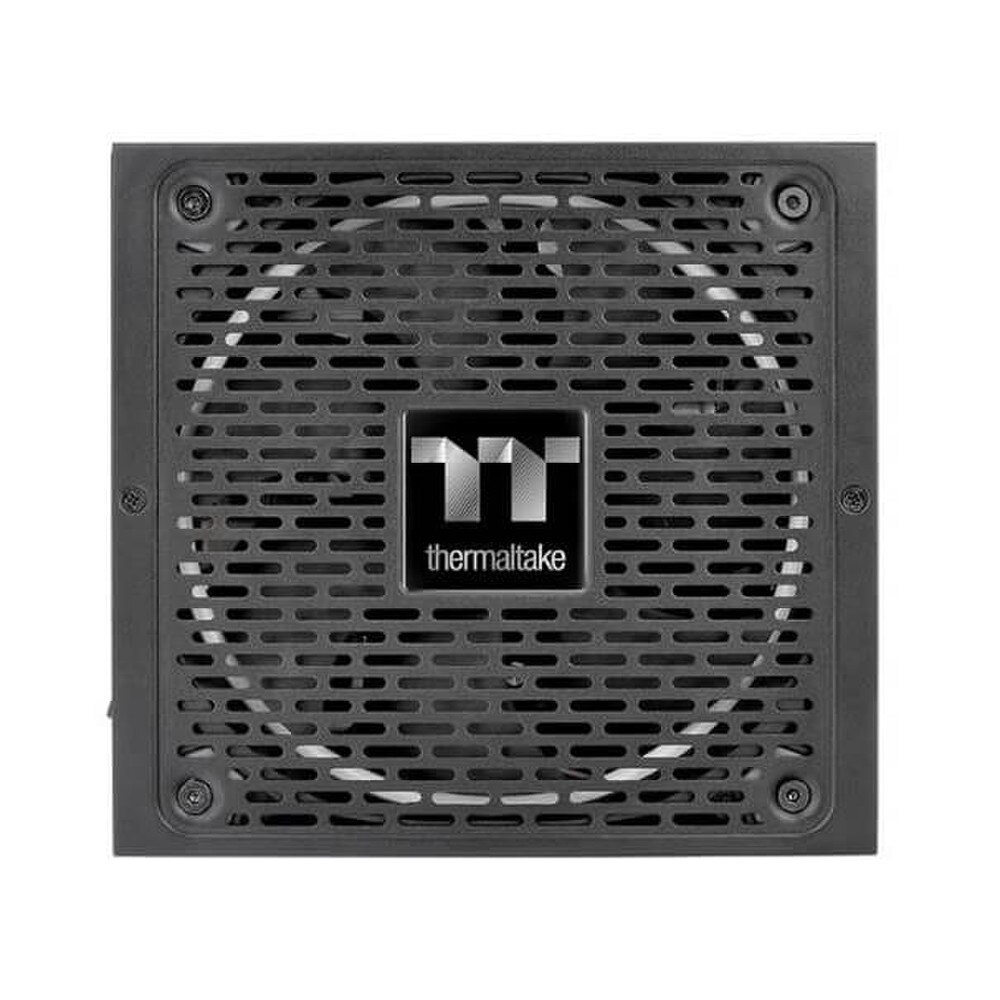

• 140mm hydraulic bearing fan with Smart Zero Fan function
• 100% high-quality Japanese 105°C/221°F capacitors
• Ultra-low ripple noise (less than 30mV)
• Strict voltage regulation (±2% for major rails)
• Single +12V rail design with 70.8A output
• Zero Cable Platform for improved heat dissipation
• Comprehensive protection features (OCP, OVP, UVP, OPP, SCP, OTP)
• 10-year warranty for long-term reliability
• Intel C6/C7 power state ready
• Active Power Factor Correction (PFC)
• Compact dimensions: 150mm(W) x 86mm(H) x 160mm(D)
• Six PCI-E 6+2 pin connectors for multi-GPU support
Specifications
Specifications for Thermaltake Toughpower GF1 TTP-850AH3FCG 850W Power Supply (PS-TPD-0850FNFAGU-1) | New
| Manufacturer | Thermaltake |
| Manufacturer Part Number | PS-TPD-0850FNFAGU-1 |
| Product Name | Thermaltake Toughpower GF1 TTP-850AH3FCG 850W Power Supply |
| Product Type | Power Supply |
| Model | TTP-850AH3FCG |
| Type | Analog |
| Form Factor | ATX |
| Watts | 850W |
| Max Output Capacity | 850W |
| Peak Output Capacity | 1020W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 12A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperture | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperture | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC |
| PCI-E 6+2PIN | 6 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
User Guides
Frequently Asked Questions
Thermaltake Toughpower GF1 TTP-850AH3FCG 850W Power Supply (PS-TPD-0850FNFAGU-1)
Frequently Asked Questions (FAQ's)
What is the efficiency rating of the Thermaltake Toughpower GF1 850W?It has an 80 PLUS Gold certification, ensuring high energy efficiency.
Is the Toughpower GF1 850W fully modular?Yes, it has a completely modular design for easier wire management.
What type of fan does this power supply use?It uses a 140mm hydraulic bearing fan to provide quiet operation.
Does the GF1 850W support high-end gaming systems?Yes, its 850W output is sufficient for high-performance gaming configurations.
What kind of capacitors are used in this PSU?It employs high-quality Japanese capacitors to improve reliability.
What protections are included in the Toughpower GF1 850W?It incorporates features such as Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP).
Can this power supply support multiple GPUs?Yes, it is SLI/CrossFire compatible and supports multi-GPU systems.
Is the Toughpower GF1 850W suitable for overclocking?Yes, its consistent power delivery makes it ideal for overclocking.
Does this PSU have RGB lighting?No, the regular GF1 850W model does not include RGB lighting.
Can I use third-party modular cables with the Toughpower GF1 850W?No, third-party cables are not advised and may void your warranty.
Can this power supply support multiple GPUs?Yes, it is SLI/CrossFire compatible and supports multi-GPU systems.
What is the operating temperature range for this PSU?It can function efficiently in temperatures as high as 50°C.
Does the GF1 850W have a Zero RPM fan mode?Yes, it has a Smart Zero Fan mode for quiet operation under low loads.
Is this power supply compatible with the latest Intel and AMD processors?Yes, it is compatible with the latest Intel and AMD processors.
What safety certifications does this PSU have?It meets multiple safety standards, including CE, TUV, and UL certifications.
Does the Toughpower GF1 850W come with all necessary cables?Yes, it includes all of the necessary cables for normal PC installations.
What is the input voltage range for this power supply?It accepts a universal input voltage range of 100V to 240V.
How does the GF1 850W compare to the GF series?The GF1 series outperforms the ordinary GF series in terms of efficiency and component quality.
Is the Toughpower GF1 850W suitable for use in compact cases?Its dimensions are standard ATX size; make sure your case can accommodate ATX PSUs with a length of 160mm.
What is the difference between the Toughpower GF and GF1 series?The GF1 series is an updated version of the GF series that features more efficiency and better components.
