Fortinet FortiGate 40F Network Security/Firewall Appliance (FG-40F) | New
SKU: FG-40F-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

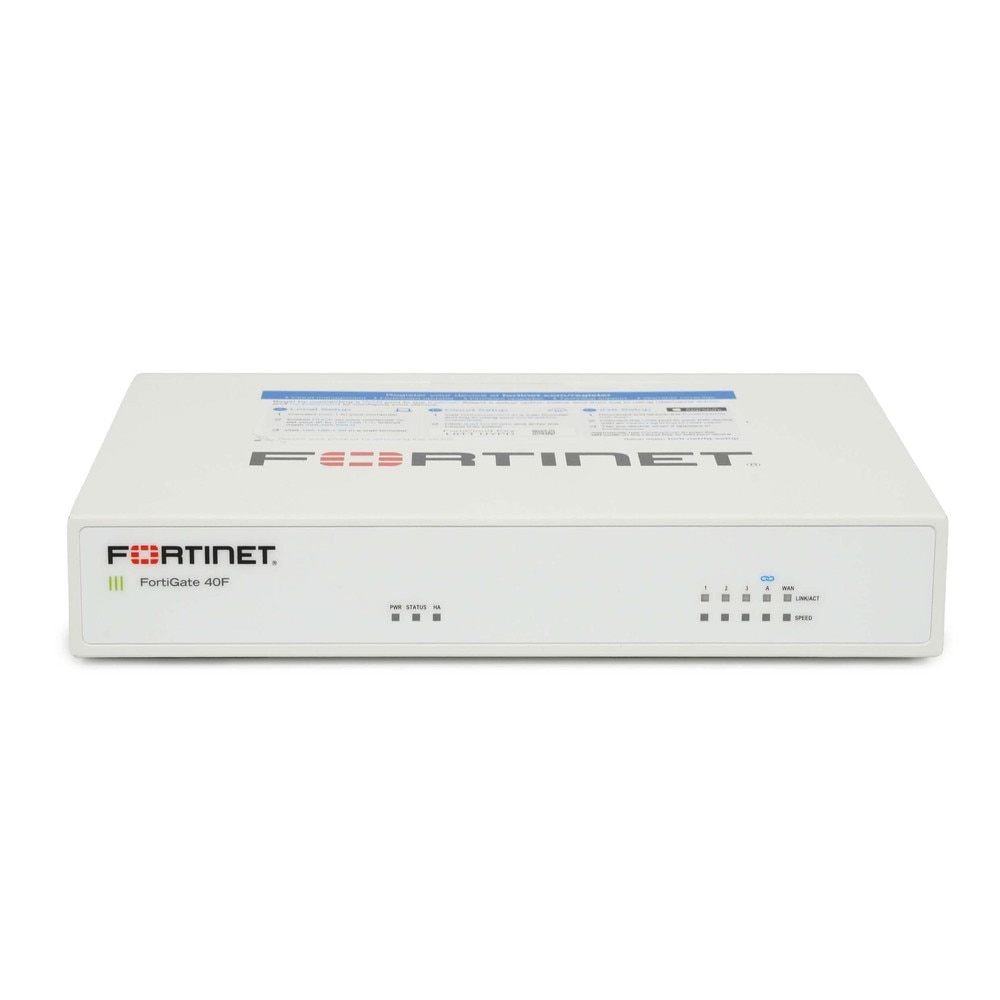

Overview of Fortinet FortiGate 40F Network Security/Firewall Appliance (FG-40F) | New
The Fortinet FortiGate 40F Network Security/Firewall Appliance (FG-40F) is a next-generation firewall and network security appliance designed to provide reliable protection and performance for small and medium-sized organizations and enterprise branch offices. The FG-40F's tiny, fanless design combines strong security features with secure SD-WAN capabilities, making it a great solution for enterprises seeking to improve their cybersecurity posture. The FortiGate 40F has 5 GE RJ45 connections, including 1 WAN port and 4 internal ports, which provide crucial connectivity options for a variety of network topologies. It delivers exceptional performance, with up to 1 Gbps IPS throughput and 600 Mbps threat prevention throughput, thanks to Fortinet's purpose-built Security Processing Unit (SPU). This ensures strong defense against advanced attacks while maintaining high network speeds. When combined with FortiGuard Labs' AI-powered security services, the FG-40F enables full threat detection and mitigation for both known and undisclosed vulnerabilities. The appliance offers SSL inspection, allowing enterprises to see encrypted traffic while maintaining performance.
The FG-40F also includes secure SD-WAN capabilities, allowing businesses to improve WAN performance while increasing security. This is especially helpful for firms that use cloud apps or remote work models, as it assures consistent connectivity and a better user experience. The FortiGate 40F may be managed more easily thanks to a user-friendly console that allows automation and provides extensive visibility into network operations. The device also supports Zero Touch Deployment, which enables rapid and easy setup in a variety of situations. The FortiGate 40F is a great alternative for enterprises looking for a robust yet affordable security solution. Its advanced features, fast performance, and ease of use make it an excellent choice for securing modern networks.
Key Features of Fortinet FortiGate 40F Network Security/Firewall Appliance
• High performance up to 1 Gbps IPS throughput and 600 Mbps threat protection throughput.
• Compact design has fanless desktop form factor suitable for small office environments.

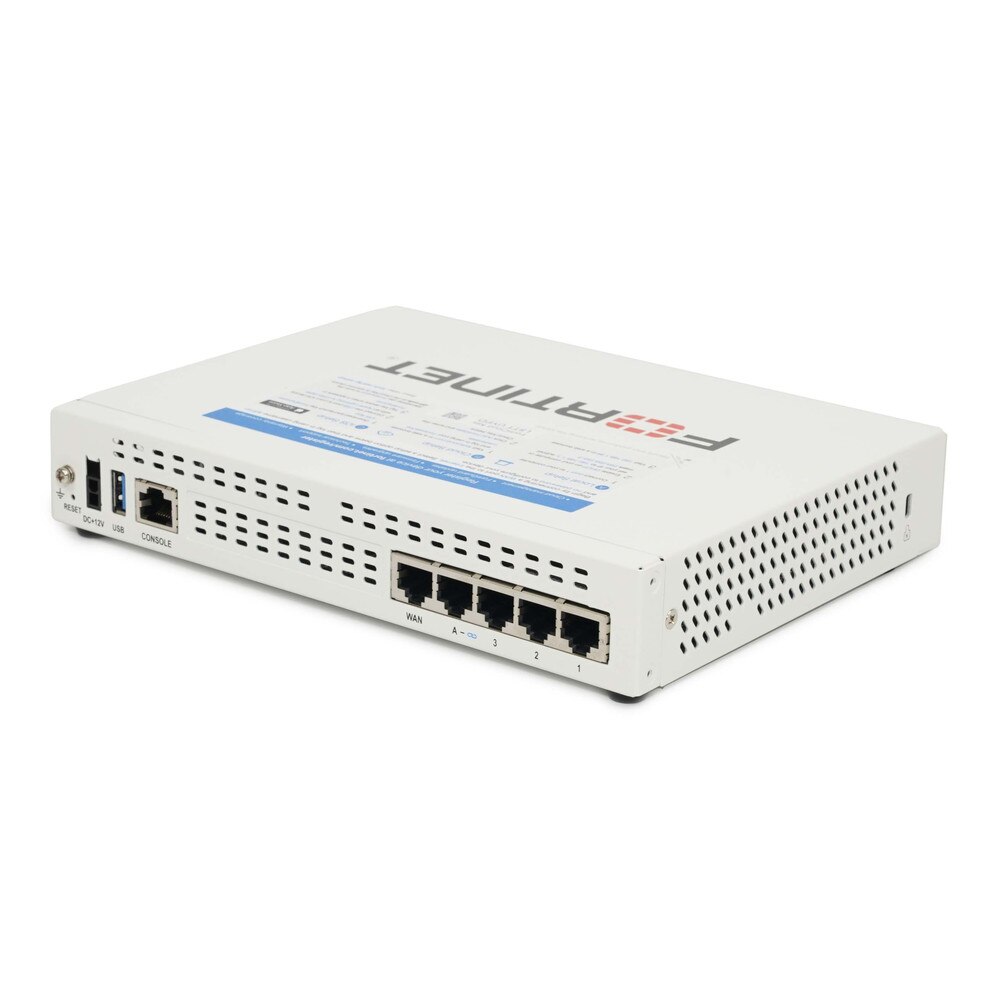

• Robust connectivity with 5 GE RJ45 ports for flexible network configurations.
• Advanced threat protection integrated with AI-powered FortiGuard services for real-time threat detection.
• SSL inspection maintains visibility into encrypted traffic without compromising performance.
• Secure SD-WAN capabilities optimizes WAN performance while enhancing security.
• User-Friendly management simplifies network management with automation and Zero Touch Deployment.
Specifications
Specifications for Fortinet FortiGate 40F Network Security/Firewall Appliance (FG-40F) | New
| Manufacturer | Fortinet |
| Manufacturer Part Number | FG-40F |
| Product Name | Fortinet FortiGate 40F Network Security/Firewall Appliance |
| Product Type | Security and Firewall |
Width | 8.5 in |
Depth | 5.5 in |
Height | 1.4 in |
Processors Installed | 1 x Fortinet FortiASIC SOC4 |
Form Factor | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec |
Performance | IPS throughput: 1 Gbps ¦ NGFW throughput: 800 Mbps ¦ Threat protection throughput: 600 Mbps ¦ VPN throughput (512-bit IPSec): 4.4 Gbps ¦ SSL inspection throughput: 310 Mbps ¦ SSL inspection throughput: 320 connections per second ¦ Firewall throughput (1518-byte UDP): 5 Gbps ¦ Firewall throughput (512-byte UDP): 5 Gbps ¦ Firewall throughput (64-byte UDP): 5 Gbps ¦ Firewall throughput: 7.5 Mpps ¦ Application control (HTTP 64K): 990 Mbps ¦ VPN throughput (SSL): 490 Mbps ¦ CAPWAP throughput: 3.5 Gbps |
Capacity | Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 250 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 8 ¦ Number of FortiAP devices: 10 ¦ Number of FortiToken devices: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 55000 ¦ Number of FortiClient devices: 200 |
Features | Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection, FortiLink Mode |
Encryption Algorithm | SSL, TLS 1.3 |

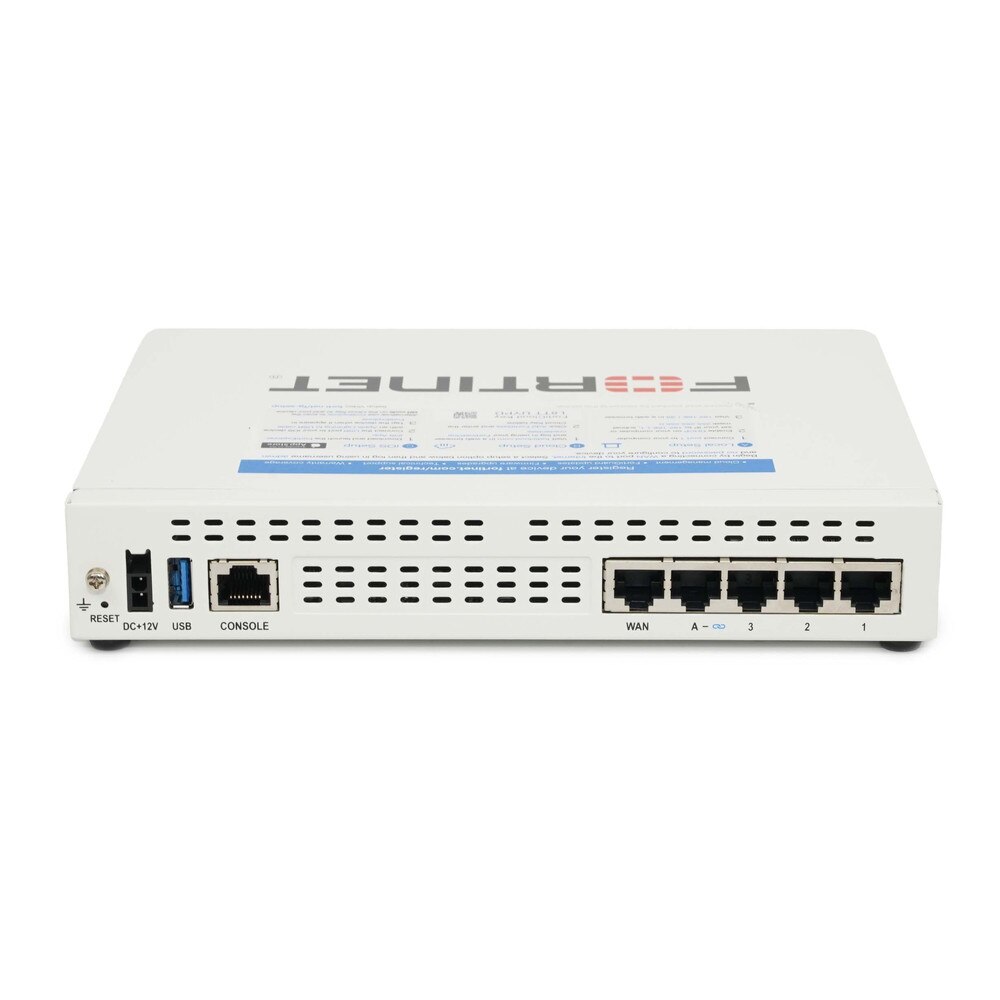

Interfaces | 3 x 1000Base-T - RJ-45 ¦ 1 x FortiLink - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A |
Compliant Standards | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B |

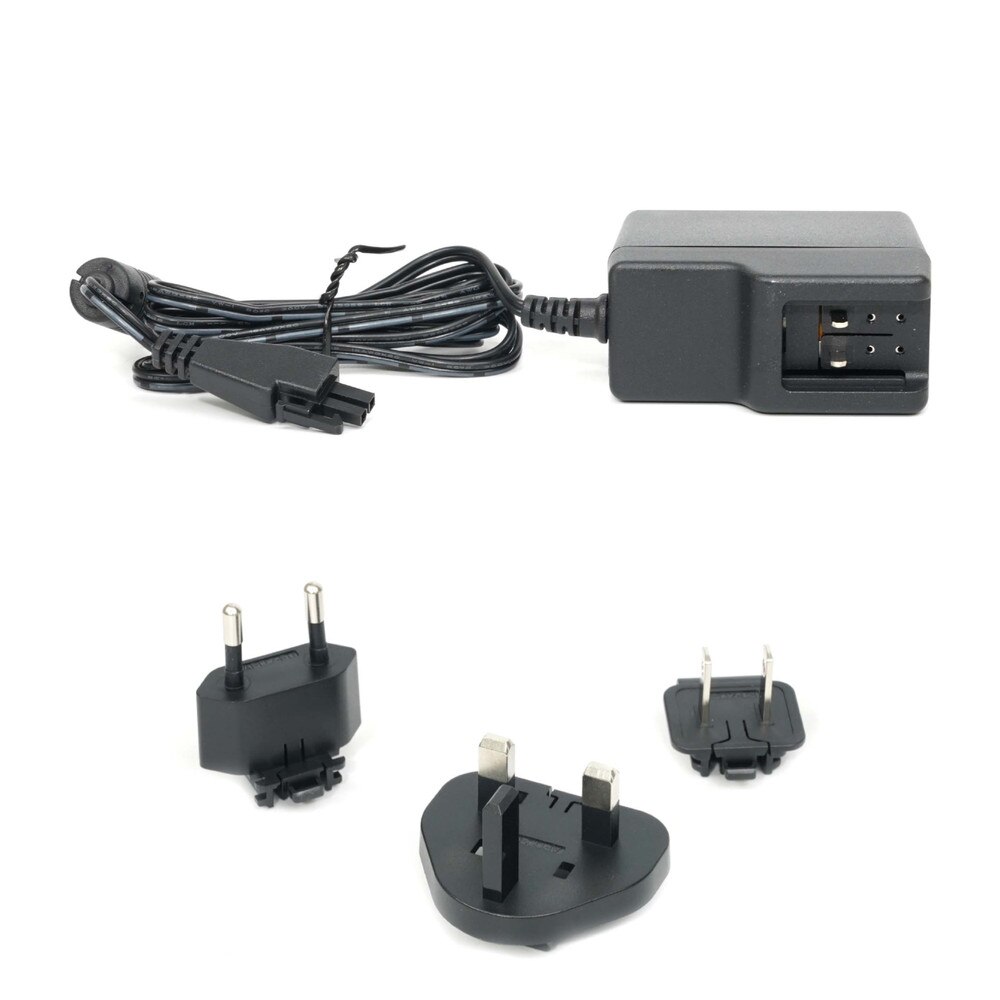

Power Device | External power adapter |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational | 16.6 Watt |
OS Provided | FortiOS |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Fortinet FortiGate 40F Network Security/Firewall Appliance (FG-40F)
Frequently Asked Questions (FAQ's)
What is the maximum firewall throughput of the FortiGate 40F?The FortiGate 40F offers up to 5 Gbps firewall throughput.
Does the FortiGate 40F support secure SD-WAN?Yes, the FortiGate 40F offers secure SD-WAN to improve application performance.
How many VPN connections can the FortiGate 40F handle?Up to 200 IPsec VPN tunnels can be established concurrently on the FortiGate 40F.
What is the VPN throughput for the FortiGate 40F?It can provide up to 4.4 Gbps of VPN throughput.
Can the FortiGate 40F be managed through the Fortinet Security Fabric?Yes, it works flawlessly with Fortinet's Security Fabric, providing centralized control and network-wide visibility.
Does the FortiGate 40F have intrusion prevention (IPS)?Yes, the FortiGate 40F has an Intrusion Prevention System (IPS) to provide advanced threat prevention.
Does the FortiGate 40F support cloud management?Yes, it can be administered using the FortiCloud platform, which simplifies management and visibility.
How many Ethernet ports does the FortiGate 40F have?It contains five GE RJ45 ports.
Is the FortiGate 40F suitable for small offices?Yes, the FortiGate 40F is suitable for small organizations, branch offices, and home offices due to its compact size and comprehensive security capabilities.
Can the FortiGate 40F handle SSL inspection?Yes, it provides deep SSL inspection of encrypted traffic.
What security features does the FortiGate 40F offer?It includes NGFW (Next-Generation Firewall), IPS, antivirus, web filtering, application control, and more.
Does the FortiGate 40F support high availability (HA)?Yes, it allows for high availability in both active-active and active-passive modes.
How much storage is available on the FortiGate 40F?The FortiGate 40F contains 4 GB of internal storage.
Is the FortiGate 40F capable of URL filtering?Yes, it contains URL filtering, which prevents access to malicious or inappropriate websites.
How is the FortiGate 40F powered?It's powered by an external power adapter.
What type of user authentication methods are supported?The FortiGate 40F supports a variety of user authentication techniques, including local database, LDAP, RADIUS, and two-factor authentication.
What is the SSL VPN throughput of the FortiGate 40F?The SSL VPN provides a throughput of 450 Mbps.
Can the FortiGate 40F support virtual domains (VDOMs)?Yes, it can handle up to ten virtual domains (VDOMs).
Does the FortiGate 40F include a web-based management interface?Yes, it has a web-based management interface for simple configuration and monitoring.
Is there support for firmware updates on the FortiGate 40F?Yes, Fortinet offers regular firmware updates to improve features and security.
