Fortinet FortiAP 231F Wireless Access Point (FAP-231F-A) | New
SKU: FAP-231F-A-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Fortinet FortiAP 231F Wireless Access Point (FAP-231F-A) | New
The Fortinet FortiAP 231F Wireless Access Point (FAP-231F-A) is an enterprise-grade wireless access point that provides superior performance and security for modern networks. The FortiAP 231F, which uses the latest Wi-Fi 6 technology, offers robust connectivity and advanced features, making it ideal for businesses looking to improve their wireless infrastructure. The FortiAP 231F has tri-radio capabilities, allowing for dual-band operation on both the 2.4 and 5GHz bands. This access point employs 2x2 MU-MIMO technology, which allows multiple devices to connect simultaneously without sacrificing speed or performance. The FortiAP 231F, with a maximum throughput of 1.5 Gbps, provides reliable connectivity for high-density environments such as offices, schools, and retail spaces. The FortiAP 231F is designed for easy deployment and supports Power over Ethernet (PoE), which allows for flexible installation options without the need for additional power sources. The device has two Gigabit Ethernet ports for flexible connectivity and Bluetooth Low Energy (BLE) for location-based services and beacons.
Security is a top priority for the FortiAP 231F, which integrates seamlessly with Fortinet's security fabric. This enables centralized management via FortiGate appliances or the FortiAP Cloud, offering visibility and control over both wired and wireless networks. To protect against evolving threats, the access point incorporates advanced security features such as integrated firewall capabilities, intrusion prevention systems (IPS), and application control. The Fortinet FAP-231F-A is an excellent choice for organizations looking to upgrade their wireless network with dependable performance and strong security. Its cutting-edge technology, ease of use, and advanced features make it an excellent choice for modern business environments.
Key Features of Fortinet FortiAP 231F Wireless Access Point
• Wi-Fi 6 Technology: Delivers faster speeds and improved efficiency for multiple connected devices.
• Tri-Radio Design: Supports simultaneous connections on both 2.4 GHz and 5 GHz bands.
• High Throughput: Achieves up to 1.5 Gbps maximum throughput for seamless connectivity.
• Power over Ethernet (PoE): Simplifies installation by eliminating the need for separate power sources.
• Bluetooth Low Energy (BLE): Enables location-based services and beacons for enhanced user experiences.
• Centralized Management: Easily managed through FortiGate appliances or FortiAP Cloud.
• Advanced Security Features: Protects against threats with integrated firewall, IPS, and application control.
Specifications
Specifications for Fortinet FortiAP 231F Wireless Access Point (FAP-231F-A) | New
| Manufacturer | Fortinet |
| Manufacturer Part Number | FAP-231F-A |
| Product Name | Fortinet FortiAP 231F Wireless Access Point |
| Product Type | Wireless Access Point |
Ruggedized Design | Indoor |
Width | 6 in |
Depth | 6 in |
Height | 2.1 in |
Weight | 19.15 oz |
Form Factor | External |
Connectivity Technology | Wireless, wired |
Line Coding Format | 64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
Capacity | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
Features | Surge protection, Mesh networking, Wireless Intrusion Detection System (WIDS), reset button, Wireless Intrusion Prevention System (WIPS), Dynamic Frequency Selection (DFS), 2x2 MU-MIMO technology, spectrum analyzer, Packet Sniffer Mode, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support, Target Wait Time (TWT), dedicated 3rd scanning radio, Wi-Fi 6 technology, BSS Coloring |
Encryption Algorithm | TLS, PEAP, TTLS, WPA, WPA2, WEP, WPA3 |
Authentication Method | Radio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC |
Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Antenna | Internal |
Antenna Qty | 3 |

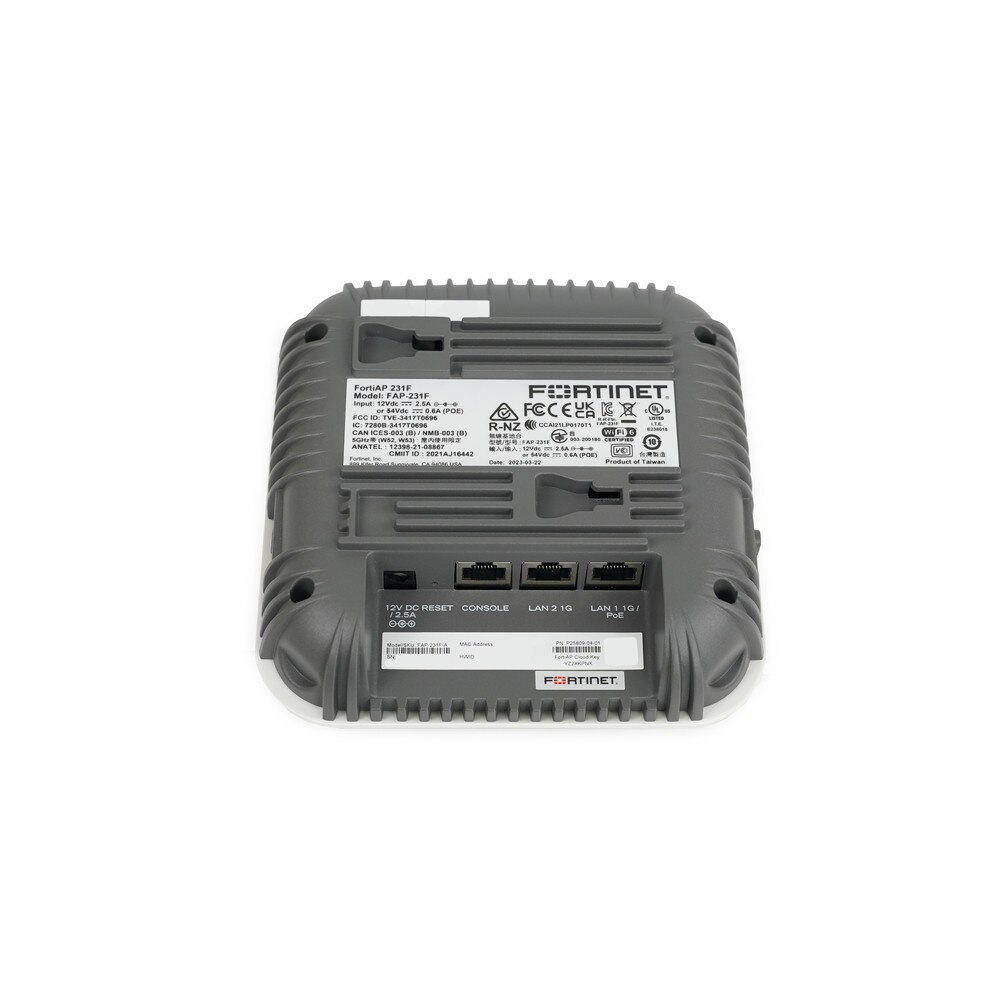

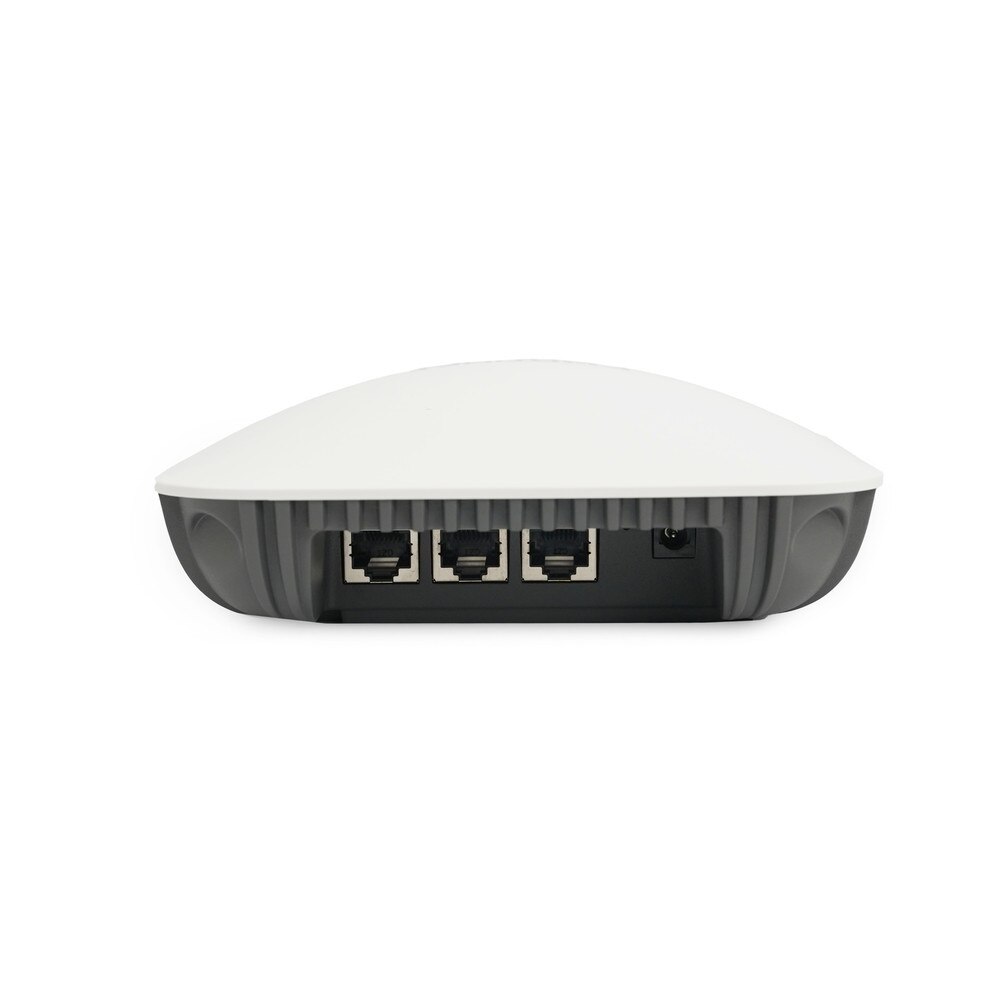

Interfaces | 2 x 1000Base-T (PoE) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x USB 2.0 - Type A |

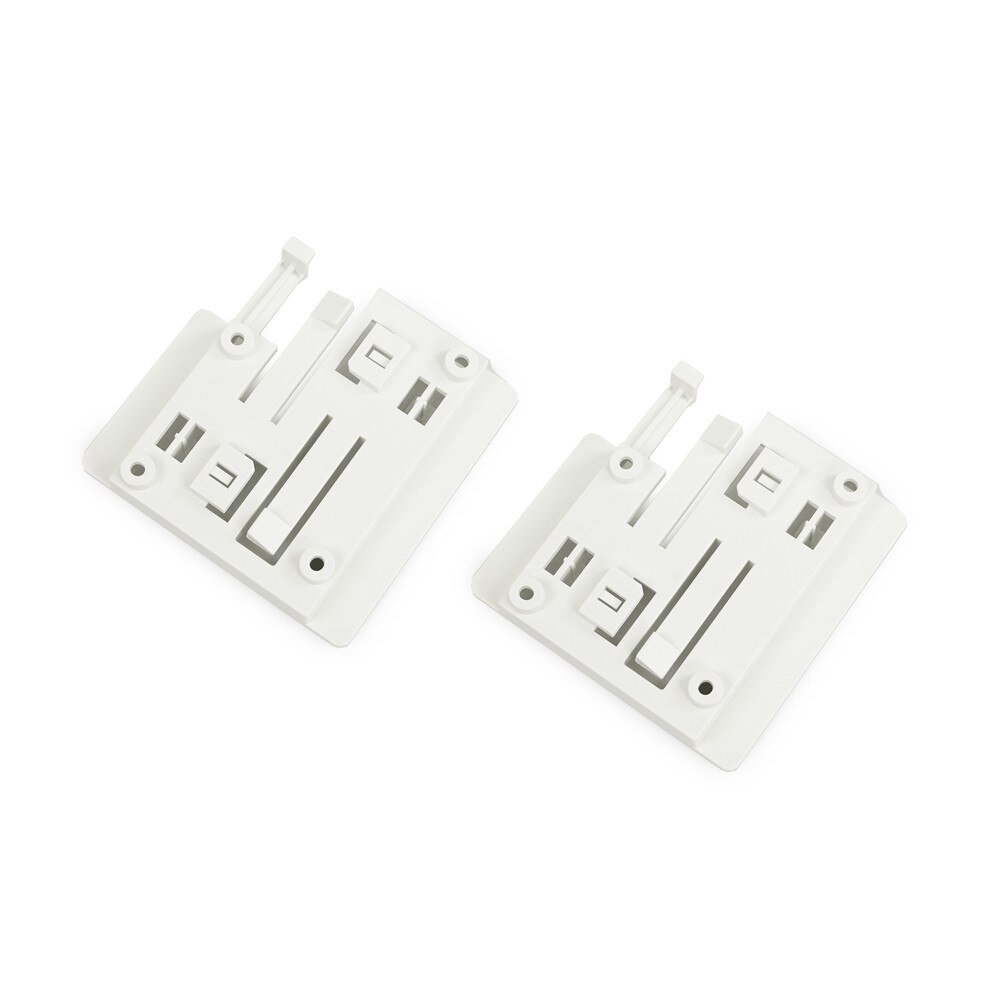

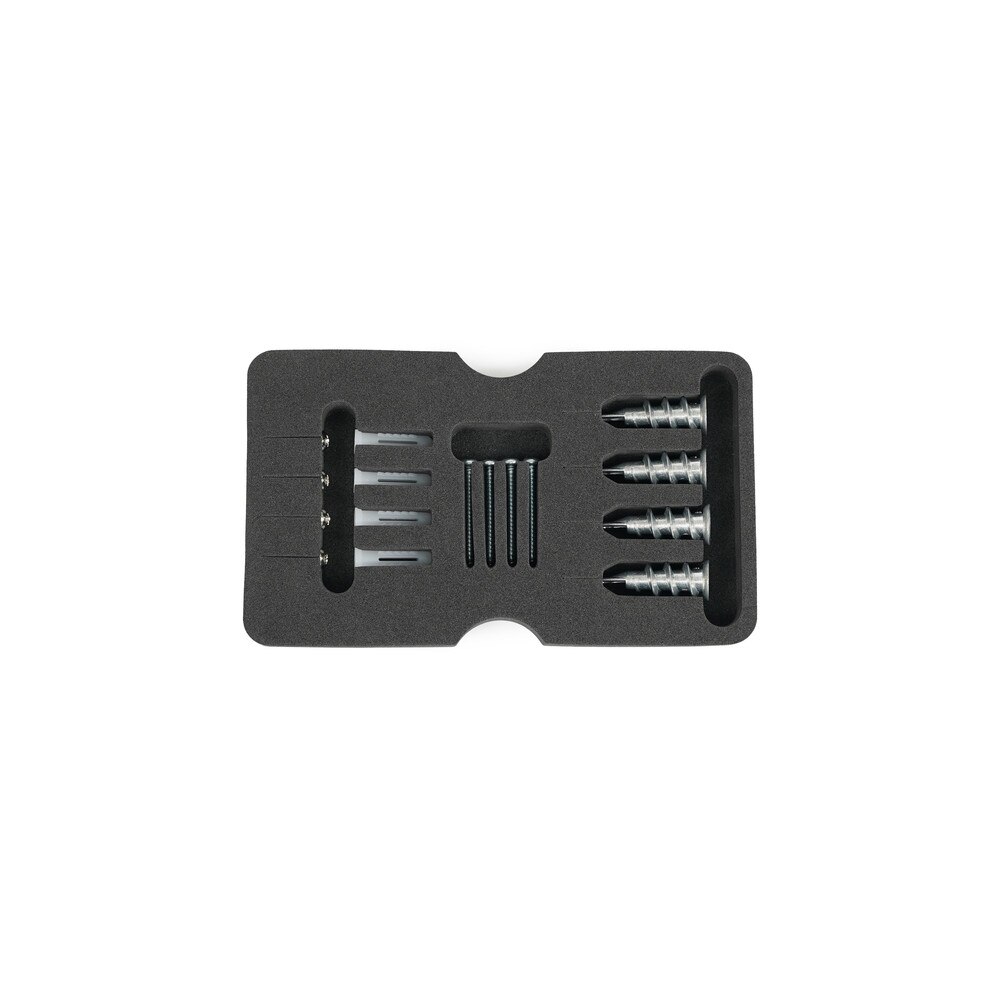

Included Accessories | Wall mounting kit, ceiling mounting kit, T-Rail mounting kit |
MTBF | 10 years |
Compliant Standards | RoHS |
Power Over Ethernet (PoE) Supported | PoE |
Power Consumption Operational | 17 Watt |
Shipping Weight | 33.51 oz |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Fortinet FortiAP 231F Wireless Access Point (FAP-231F-A)
Frequently Asked Questions (FAQ's)
What is the primary function of the FortiAP 231F?The FortiAP 231F provides high-speed wireless connectivity for a variety of networked devices via Wi-Fi 6.
What wireless standards does the FortiAP 231F support?It supports the 802.11ax (Wi-Fi 6) standard, which provides faster speeds and better performance in congested areas.
How many simultaneous users can the FortiAP 231F support?The FortiAP 231F supports up to 256 concurrent users, making it ideal for high-density deployments.
Is the FortiAP 231F suitable for outdoor use?While primarily intended for indoor use, it can be used in some sheltered outdoor environments; however, check the specific environmental ratings.
What are the key security features of the FortiAP 231F?It has integrated security features like encryption, secure guest access, and seamless integration with Fortinet's Security Fabric.
Does the FortiAP 231F support multiple SSIDs?Yes, it supports multiple SSIDs for different user groups, which allows for network segmentation and secure access.
Can the FortiAP 231F be managed remotely?Yes, it can be managed remotely via FortiCloud or FortiManager, providing centralized control over the wireless network.
What is the maximum data rate of the FortiAP 231F?No, the FortiAP 231F does not require a license to function; however, additional security features may necessitate a FortiCare subscription.
What power options are available for the FortiAP 231F?It supports Power over Ethernet (PoE), which makes installation easier by allowing it to receive power via an Ethernet cable.
Can the FortiAP 231F be deployed in mesh networking?Yes, it supports mesh networking, which enables flexible deployment without the need for wired connections.
What is the range of the FortiAP 231F?The range varies depending on the environment, but it typically covers areas of up to 200 feet indoors and 300 feet outside.
Is the FortiAP 231F backward compatible with older Wi-Fi standards?Yes, it is backward compatible with previous standards, including 802.11ac, 802.11n, and 802.11a/b/g.
Can the FortiAP 231F be mounted on a wall or ceiling?Yes, it can be easily mounted to walls or ceilings with the proper mounting hardware.
Does the FortiAP 231F support guest access?Yes, it offers secure guest access features such as captive portals and voucher management.
Can the FortiAP 231F be integrated with existing Fortinet products?Yes, it integrates seamlessly with other Fortinet products to improve overall network security and management.
What are the deployment options for the FortiAP 231F?It can be used as a stand-alone device or as part of a larger network managed by FortiManager.
What types of antennas does the FortiAP 231F use?It makes use of internal antennas that are optimized for performance and aesthetics in a variety of environments.
How can I update the firmware on the FortiAP 231F?Firmware updates can be performed via the web interface or remotely using FortiCloud or FortiManager.
What should I do if I experience connectivity issues with the FortiAP 231F?Examine the device logs, restart the access point, and verify that the configuration settings are correct. For further assistance, please contact Fortinet support.
Does the FortiAP 231F require a license for operation?No, the FortiAP 231F does not require a license to function; however, additional security features may necessitate a FortiCare subscription.
