Fortinet FortiAP 431F Indoor Wireless Access Point (FAP-431F-A) | New
SKU: FAP-431F-A-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

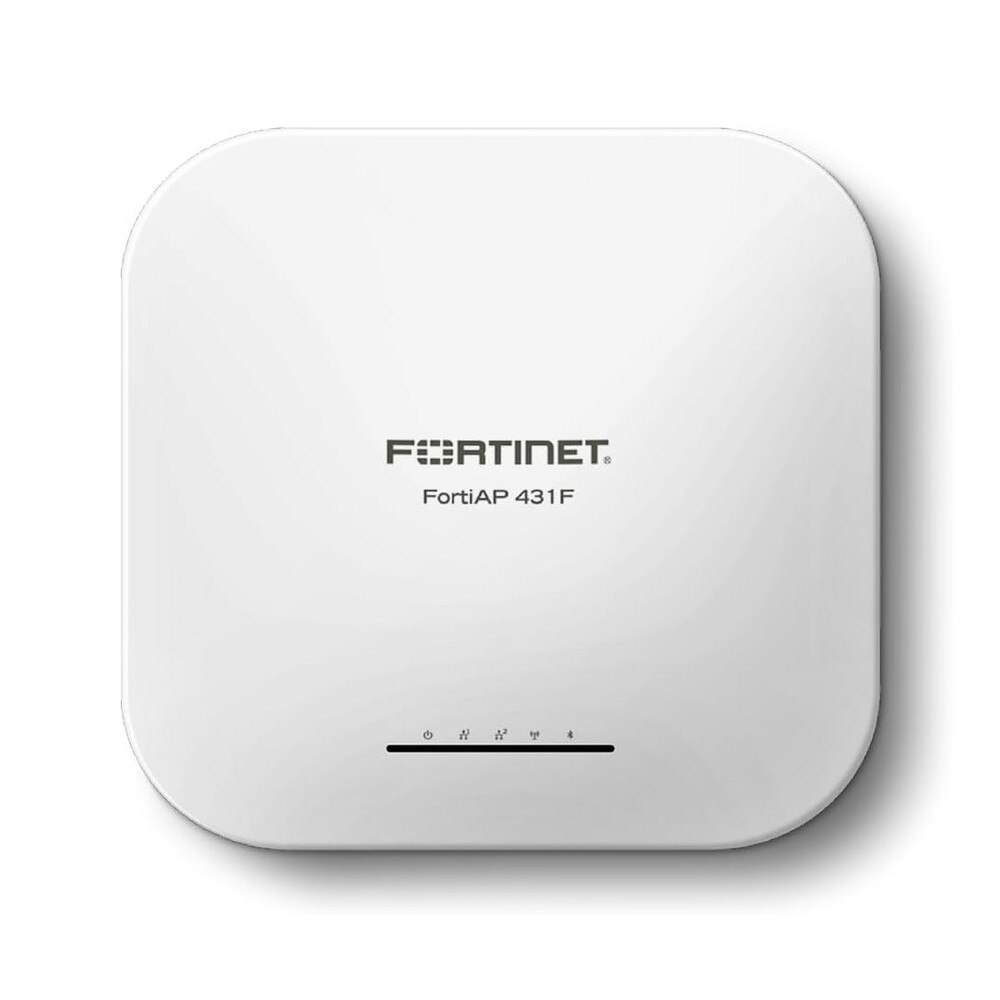

Overview of Fortinet FortiAP 431F Indoor Wireless Access Point (FAP-431F-A) | New
The Fortinet FortiAP 431F Indoor Wireless Access Point (FAP-431F-A) is a cutting-edge indoor wireless access point engineered to deliver exceptional performance and security to modern enterprise networks. The FortiAP 431F, which uses cutting-edge Wi-Fi 6 technology, is ideal for businesses that require dependable, high-speed connectivity in densely populated areas. The FortiAP 431F has a tri-radio design and 4x4 MU-MIMO capabilities, which allows it to handle multiple simultaneous connections efficiently. It can operate on both the 2.4 GHz and 5 GHz bands, with a maximum throughput of 2.4 Gbps on the 5 GHz band and 1.1 Gbps on the 2.4 GHz band. This provides seamless connectivity for a wide range of devices, including smartphones and laptop computers, making it ideal for busy offices, schools, and retail settings.
The FortiAP 431F supports Power over Ethernet (PoE), which simplifies installation by eliminating the need for separate power sources. It has two Ethernet ports, one 2.5 GE RJ45 and one GE RJ45. It also includes Bluetooth Low Energy (BLE) capabilities for location-based services and beacons, which increase user engagement and operational efficiency. With the FortiAP 431F, security is top priority, and it integrates seamlessly with Fortinet's security fabric. This enables centralized management via FortiGate appliances or the FortiAP Cloud, giving complete visibility and control over both wired and wireless networks. To protect against evolving threats, the access point includes advanced security features such as integrated firewall capabilities, intrusion prevention systems (IPS), and application control. The Fortinet FortiAP 431F is an excellent choice for businesses looking to improve their wireless network with high-performance capabilities and strong security. Its combination of advanced technology, simplicity of management, and dependability makes it an excellent choice for modern business environments.
Key Features of Fortinet FortiAP 431F Indoor Wireless Access Point
• Wi-Fi 6 technology delivers faster speeds and improved efficiency for multiple connected devices.
• Tri-Radio design supports simultaneous connections on both 2.4 GHz and 5 GHz bands.
• High throughput is up to 2.4 Gbps on the 5 GHz band and 1.1 Gbps on the 2.4 GHz band.

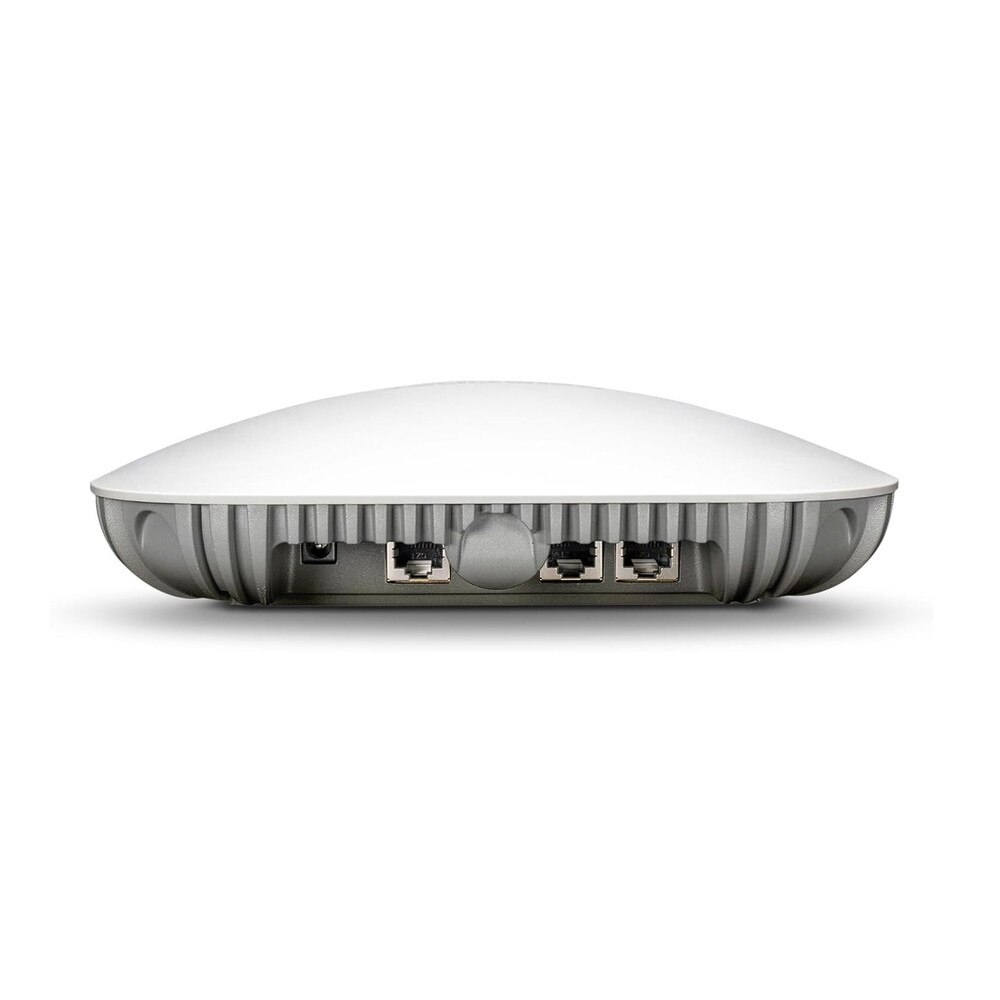

• Dual ethernet ports includes one 2.5 GE RJ45 port and one GE RJ45 port for flexible connectivity.
• Power over Ethernet (PoE) simplifies installation by eliminating separate power requirements.
• Bluetooth Low Energy (BLE) enables location-based services and beacons for enhanced user experiences.
• Centralized management through FortiGate appliances or FortiAP Cloud.
Specifications
Specifications for Fortinet FortiAP 431F Indoor Wireless Access Point (FAP-431F-A) | New
| Manufacturer | Fortinet |
| Manufacturer Part Number | FAP-431F-A |
| Product Name | Fortinet FortiAP 431F Indoor Wireless Access Point |
| Product Type | Wireless Access Point |
Ruggedized Design | Indoor |
Width | 8.3 in |
Depth | 8.3 in |
Height | 2.2 in |
Weight | 34.56 oz |
Localization | Americas |
Form Factor | External |
Connectivity Technology | Wireless |
Line Coding Format | 64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM, OFDMA |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax |
Spread Spectrum Method | OFDMA |
Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
Capacity | Maximum number of configured SSIDs: 16 |
Status Indicators | Status |
Features | Firewall protection, DFS support, surge protection, wall mountable, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, iBeacon technology, MU-MIMO technology, T-Rail mountable, spectrum analyzer, Packet Sniffer Mode, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support, Target Wait Time (TWT) |
Encryption Algorithm | TLS, PEAP, TTLS, WPA, WPA2, WEP, EAP-AKA, WPA3, EAP-FAST |
Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Antenna | Internal |
Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x USB - Type A |
Included Accessories | Wall mounting kit, T-Rail mounting kit |
MTBF | 10 years |
Compliant Standards | RoHS |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Consumption Operational | 24.5 Watt |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Fortinet FortiAP 431F Indoor Wireless Access Point (FAP-431F-A)
Frequently Asked Questions (FAQ's)
Does the FortiAP 431F support load balancing?Yes, it supports load balancing, which ensures that users are distributed efficiently across multiple access points for optimal performance.
What wireless standards does the FortiAP 431F support?It supports the most recent Wi-Fi 6 (802.11ax) standard and is backward compatible with 802.11ac, 802.11n, and previous technologies.
What is the maximum data rate of the FortiAP 431F?The maximum total data rate for both the 2.4 GHz and 5 GHz bands is 5.4 Gbps.
How many users can the FortiAP 431F support?The FortiAP 431F can handle hundreds of concurrent users, making it perfect for high-density settings such as offices, campuses, and public events.
Is the FortiAP 431F suitable for high-density environments?Yes, the FortiAP 431F is specifically built for high-density environments, where multiple connections can be handled easily without sacrificing performance.
Does the FortiAP 431F support mesh networking?Yes, it supports mesh networking, which allows many access points to communicate wirelessly and enhance coverage without the need for additional cable.
What security features are included with the FortiAP 431F?It includes strong security features including WPA3 encryption, secure guest access, rogue AP identification, and seamless interaction with Fortinet's Security Fabric.
Can the FortiAP 431F be managed remotely?Yes, it can be centrally managed using FortiCloud for cloud administration or FortiManager for on-premises management.
Does the FortiAP 431F support multiple SSIDs?Yes, it supports various SSIDs, allowing you to segment your network based on user groups and applications.
What is the power source for the FortiAP 431F?It supports Power over Ethernet (PoE+), which enables it to accept both power and data over a single Ethernet cable.
What is the range of the FortiAP 431F?The range varies depending on the situation, but it can often cover large indoor rooms of up to 200 feet and more in open regions.
Does the FortiAP 431F support seamless roaming?Yes, it allows seamless roaming, which ensures that users keep uninterrupted connections while moving between access points.
Is the FortiAP 431F compatible with existing Fortinet products?Yes, it works seamlessly with other Fortinet products to improve security and network performance as part of the Fortinet Security Fabric.
Can the FortiAP 431F handle high-bandwidth applications like video conferencing?Yes, Wi-Fi 6 technology can effectively manage high-bandwidth applications like HD video streaming, conferencing, and gaming.
How do I update the firmware on the FortiAP 431F?Firmware upgrades can be performed using the FortiCloud management portal, FortiManager, or the local web interface.
Does the FortiAP 431F require a subscription?While the FortiAP does not require a membership, certain advanced security features and cloud administration options may necessitate a FortiCare or FortiGuard subscription.
Can I create guest Wi-Fi networks with the FortiAP 431F?Yes, it supports guest Wi-Fi networks, which provide visitors with secure and isolated access.
What are the mounting options for the FortiAP 431F?The FortiAP 431F can be installed on ceilings or walls using the provided mounting kit, providing flexible deployment choices.
How do I monitor traffic and performance on the FortiAP 431F?You may monitor network traffic and performance using FortiCloud, FortiManager, or the device's local management interface.
Is the FortiAP 431F backward compatible with older Wi-Fi devices?Yes, it is entirely backward compatible with previous Wi-Fi standards, ensuring connectivity for older devices while providing better speeds for newer ones.
