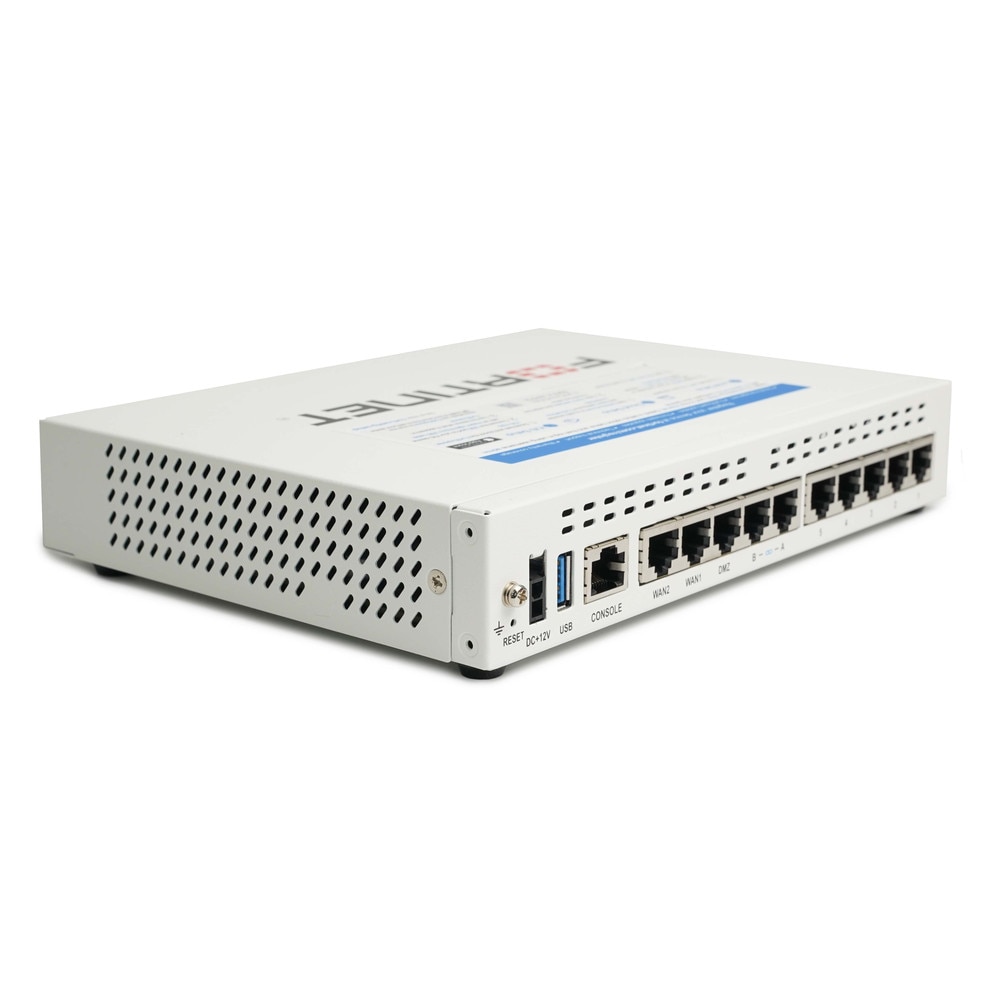

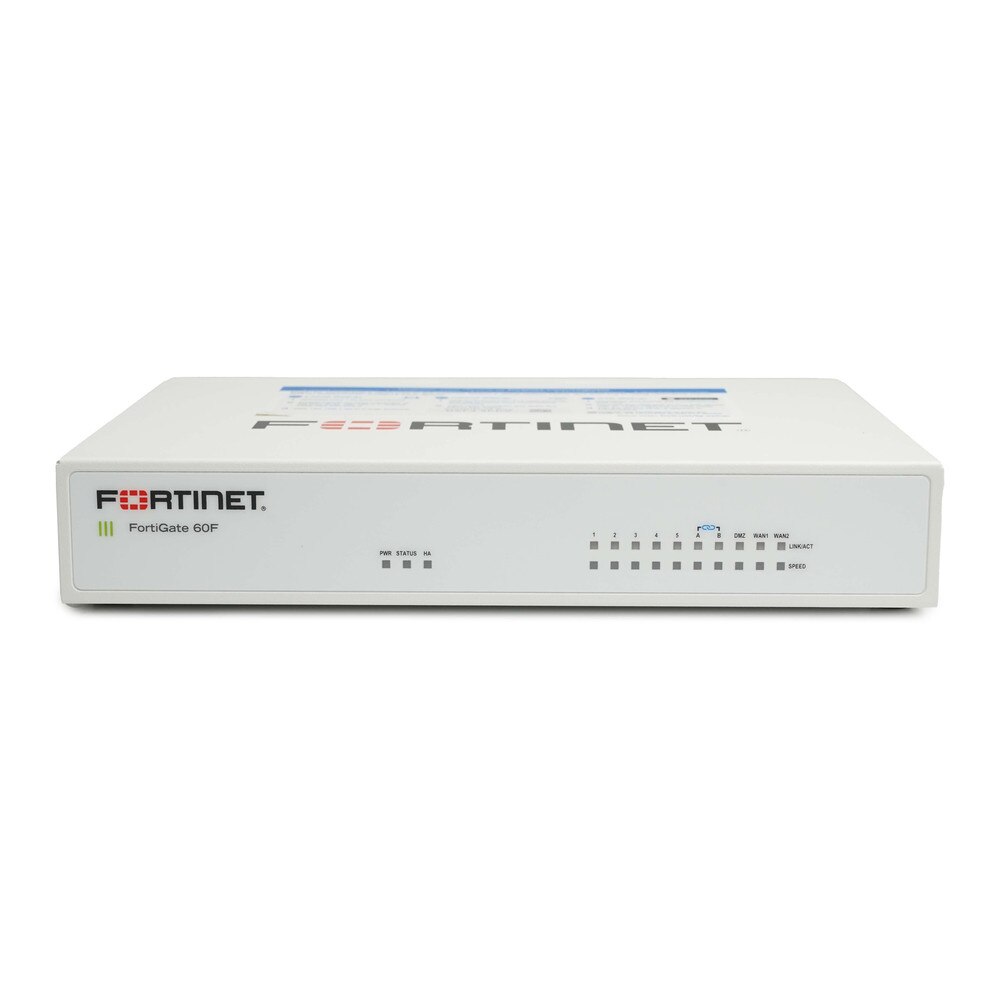

Fortinet Fortigate 60F Network Security/Firewall Appliance (FG-60F) | New
SKU: FG-60F-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview for Fortinet Fortigate 60F Network Security/Firewall Appliance (FG-60F) | New
The Fortinet Fortigate 60F Network Security/Firewall Appliance (FG-60F) is a next-generation firewall and network security appliance that offers strong protection against cyber threats while improving network performance. Ideal for small to medium-sized businesses, the FG-60F combines advanced security features with secure SD-WAN capabilities, making it a must-have for any organization looking to protect its digital assets. The FortiGate 60F's compact, fanless design makes it ideal for deployment in a variety of environments, including branch offices and remote locations. With 10 GE RJ45 ports, including 2 WAN ports, 1 DMZ port, and 7 internal ports, this appliance offers a wide range of connectivity options to meet a variety of networking requirements. The FG-60F, powered by Fortinet's purpose-built Security Processing Unit (SPU) technology, achieves impressive performance with 1.4 Gbps IPS throughput and 700 Mbps threat protection throughput. This ensures effective protection against advanced threats while maintaining low latency for high-speed network operations.
The appliance has improved SSL inspection capabilities, allowing organizations to inspect encrypted traffic while preserving performance. The FortiGate 60F includes SD-WAN functionality, which allows for secure, high-speed connections across multiple sites while optimizing bandwidth usage and improving application performance. A user-friendly console simplifies management and allows for comprehensive network automation and visibility. The device also works seamlessly with Fortinet's Security Fabric, allowing for quick and easy setup via Zero Touch Deployment. The Fortinet FortiGate 60F is an excellent choice for businesses looking for a powerful yet manageable security appliance. Its advanced features, high performance, and ease of use make it an excellent choice for securing modern networks.
Key Features of Fortinet Fortigate 60F Network Security/Firewall Appliance
• High performance delivers up to 1.4 Gbps IPS throughput and 700 Mbps threat protection throughput.
• Extensive connectivity equipped with 10 GE RJ45 ports for flexible networking options.
• Advanced security protects against malware, exploits, and malicious websites in both encrypted and unencrypted traffic.
• Industry-leading SSL inspection performance for secure traffic management.
• SD-WAN capabilities optimizes bandwidth and enhances application performance across multiple locations.
• User-Friendly management simplifies network management with a comprehensive console and Zero Touch Deployment.
Specifications
Specification for Fortinet Fortigate 60F Network Security/Firewall Appliance (FG-60F) | New
| Manufacturer | Fortinet |
| Manufacturer Part Number | FG-60F |
| Product Name | Fortinet Fortigate 60F Network Security/Firewall Appliance |
| Product Type | Stacking Cable |
Processors Installed | 1 x Fortinet FortiASIC SOC4 |
Form Factor | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
Network / Transport Protocol | IPSec |
Performance | VPN throughput (512-bit IPSec): 6.5 Gbps ¦ NGFW throughput: 1 Gbps ¦ SSL inspection throughput: 900 Mbps ¦ IPS throughput: 1.4 Gbps ¦ Firewall throughput: 10 Gbps ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 Gbps ¦ Firewall throughput: 9 Mpps ¦ Application control (AVC) throughput: 1.8 Gbps |
Capacity | Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ IPSec VPN tunnels: 200 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 16 ¦ Number of FortiToken devices: 500 |
Features | Firewall protection, antivirus analysis, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection |
Encryption Algorithm | SSL, TLS 1.3 |

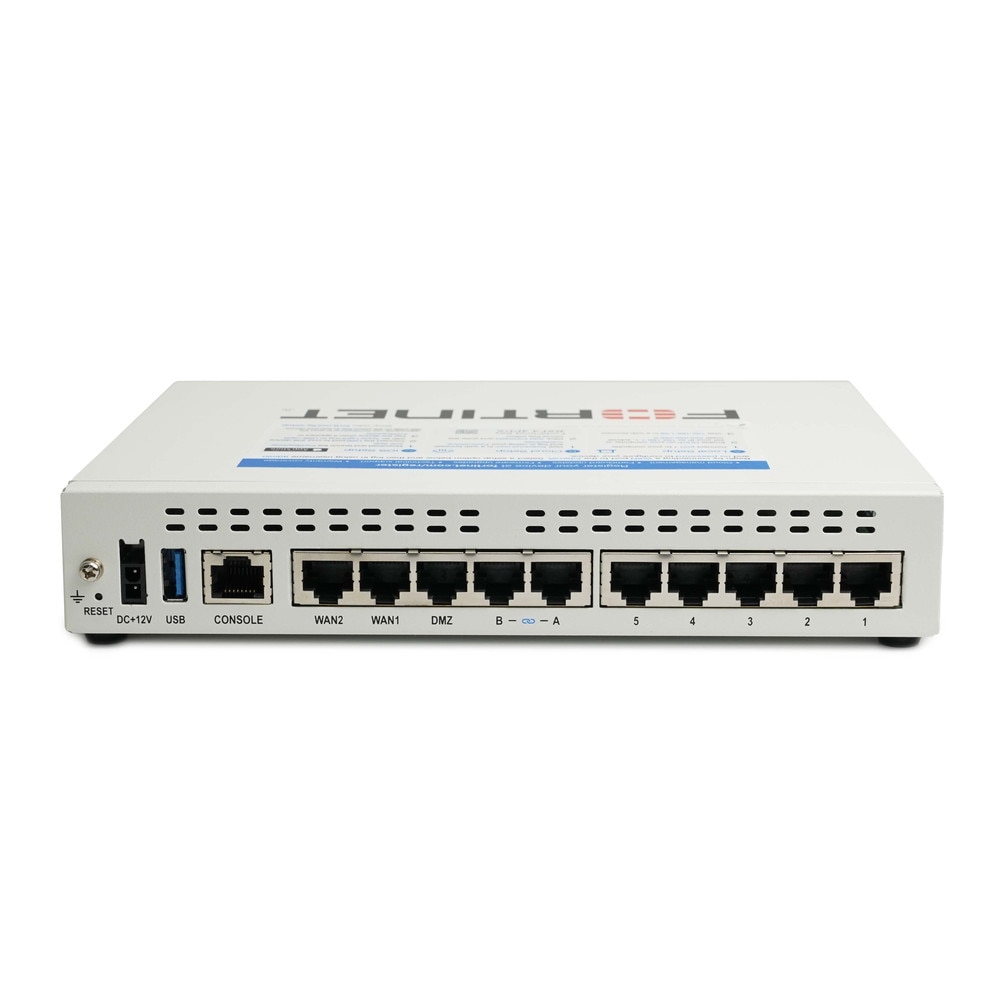

Interfaces | 5 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A |
Compliant Standards | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B |

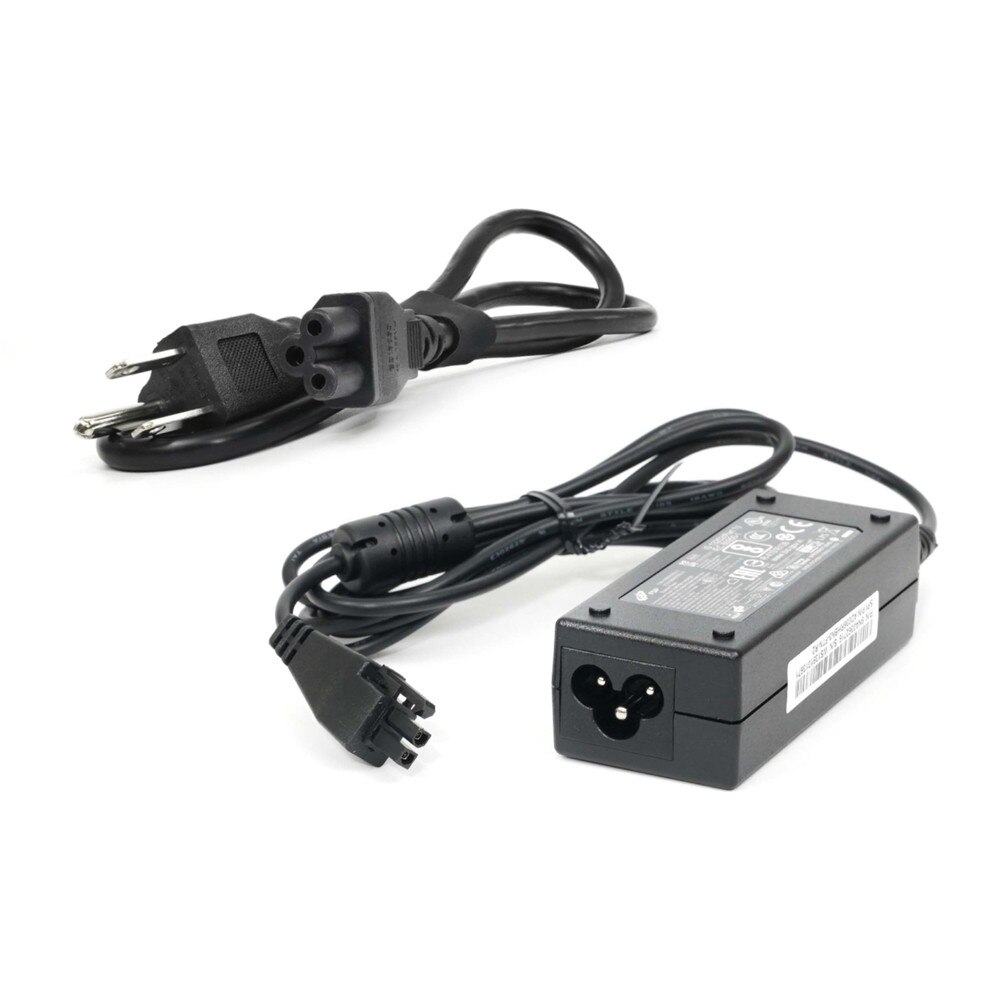

Power Device | External power adapter |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational | 18.5 Watt |
OS Provided | FortiOS |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Width | 8.5 in |
Depth | 6.3 in |
Height | 1.5 in |
Weight | 31.74 oz |
User Guides
Frequently Asked Questions
Fortinet Fortigate 60F Network Security/Firewall Appliance (FG-60F)
Frequently Asked Questions (FAQ's)
What is the primary function of the FortiGate 60F?The FortiGate 60F is primarily a network security appliance, offering firewall protection, VPN capabilities, and intrusion prevention.
What is the maximum throughput of the FG-60F?The FortiGate 60F can provide a throughput of up to 10 Gbps, ensuring fast data processing.
How many users can the FortiGate 60F support?The device can efficiently support up to 250 users, making it ideal for small to medium-sized businesses.
Does the FortiGate 60F support virtual private networks (VPNs)?Yes, it allows for secure remote network access via IPsec and SSL VPNs.
What kind of protection does the FG-60F provide against malware?The appliance includes advanced anti-malware protection, such as antivirus scanning and threat intelligence.
Is the FortiGate 60F easy to set up?Yes, it is intended for simple deployment and has a user-friendly interface for configuration and management.
What types of reporting and logging features does the FG-60F offer?The device generates detailed logs and reports on traffic, threats, and user activity, assisting with network visibility and compliance.
Can the FortiGate 60F be integrated with other Fortinet products?Yes, it can be combined with other Fortinet solutions to improve security and management, such as FortiAnalyzer and FortiManager.
Does the FG-60F offer application control?Yes, it includes application control, which identifies and manages application traffic across the network.
What types of licenses are required for the FG-60F?Yes, it includes application control, which identifies and manages application traffic across the network.
Is it possible to update the firmware on the FG-60F?Yes, firmware updates can be performed via the Fortinet support portal to ensure the appliance has the most recent security features.
Can the FortiGate 60F be managed remotely?Yes, it supports remote management via the FortiCloud and FortiManager platforms.
What is the power consumption of the FortiGate 60F?The FG-60F is energy efficient, with a power consumption of about 12 watts.
How many ports does the FortiGate 60F have?It has several ports, including 10 GE RJ45 ports, 2 GE SFP slots, and an optional WAN interface.
Does the FG-60F support high availability configurations?Yes, it provides active-active and active-passive high availability for redundancy and failover.
What is the size of the FortiGate 60F appliance?The device is small, measuring about 1U in height, making it ideal for rack-mounted configurations.
Can I use the FG-60F for guest network access?Yes, it can be configured to provide secure guest access while isolating from the main network.
What types of security protocols does the FortiGate 60F support?It supports a variety of security protocols, including HTTPS, SSL, IPsec, and more.
How does the FG-60F protect against denial-of-service (DoS) attacks?It has built-in DoS protection features that detect and mitigate unusual traffic patterns.
Does the FortiGate 60F support IPv6?Yes, the FG-60F supports IPv6 addressing and features, making it ideal for modern network environments.
