Cisco Meraki MX67W Wireless Network Security/Firewall (MX67W-HW) (Unclaimed) | New
SKU: MX67W-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Meraki MX67W Wireless Network Security/Firewall (MX67W-HW) | New
The Cisco Meraki MX67W Wireless Network Security/Firewall (MX67W-HW) is a powerful, cloud-managed solution for secure and dependable networking in small branch offices. This all-in-one appliance combines advanced security features with high-speed wireless connectivity, making it an excellent choice for businesses looking to upgrade their network infrastructure. The MX67W-HW has a stateful firewall throughput of 450 Mbps, which ensures fast and secure data transfer. Its dual-band 802.11ac Wave 2 wireless offers dependable coverage for up to 50 users and a maximum throughput of 1.3 Gbps. The appliance has four Gigabit Ethernet ports for connecting wired devices and a USB port for cellular failover, which ensures business continuity in the event of a wired internet outage. The MX67W-HW is intended to provide a comprehensive network and security solution for small branch offices. Its advanced features, wireless connectivity, and cloud management make it an excellent choice for businesses looking to improve the efficiency of their network infrastructure.
Key Features of Cisco Meraki MX67W Wireless Network Security/Firewall
• Stateful Firewall Throughput delivers a throughput of up to 450 Mbps, providing robust security for small branch networks.
• Dual-Band 802.11ac Wave 2 Wireless offers fast and reliable wireless connectivity with a maximum throughput of 1.3 Gbps.
• Comprehensive Security Suite includes advanced security features such as content filtering, intrusion detection and prevention, and Cisco Advanced Malware Protection (AMP), all managed through the Meraki cloud.
• VPN Capabilities supports auto VPN for intelligent site-to-site VPN connectivity and client VPN, enabling secure remote access to company resources.
• The built-in 4G/LTE cellular modem provides failover connectivity in case of a wired internet outage, ensuring business continuity.
• The Meraki cloud-based dashboard allows for zero-touch provisioning, simplified administration, and centralized control of the network.
Specifications
Specification for Cisco Meraki MX67W Network Security Appliance (MX67W-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MX67W-HW |
| Product Name | Cisco Meraki MX67W Wireless Network Security/Firewall |
| Product Type | Security and Firewall |
Device Type | Security appliance |
Width | 9.4 in |
Depth | 6.5 in |
Height | 1.1 in |
Weight | 29.27 oz |
Form Factor | Desktop |
Connectivity Technology | Wireless, wired |
Data Transfer Rate | 1.3 Gbps |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Network / Transport Protocol | IPSec, DHCP |
Routing Protocol | Static IP routing, MPLS |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps |
Capacity | Maximum number of users: 50 |
Features | Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Antenna | External |
Antenna Qty | 2 |

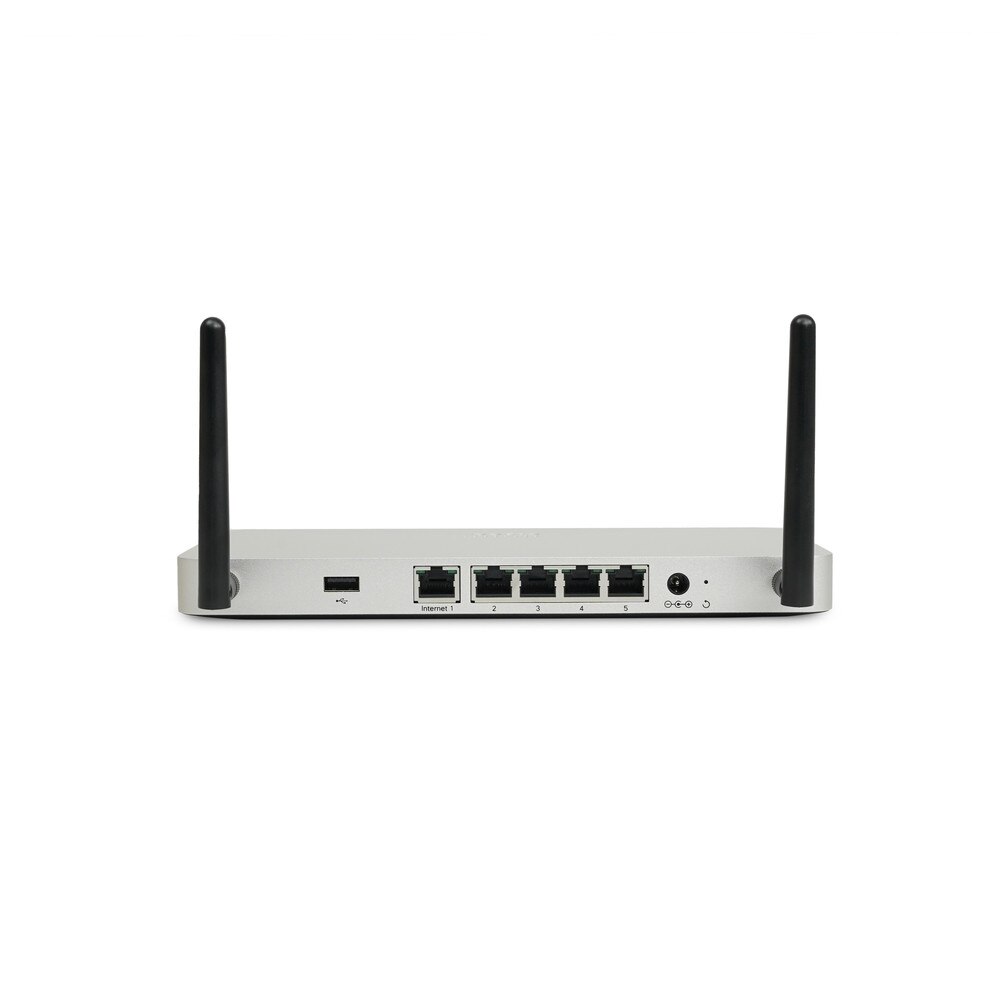

Interfaces | 4 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x USB 2.0 - Type A |

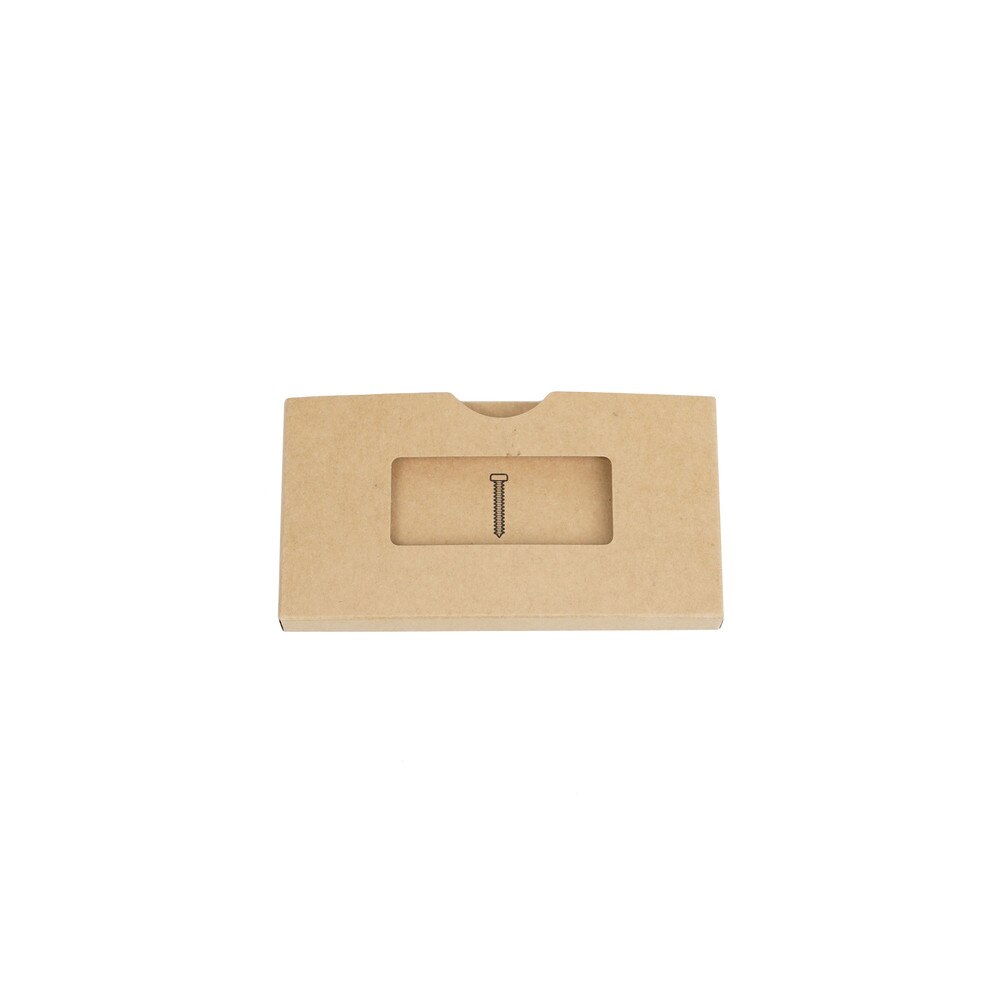

Included Accessories | Mounting kit |

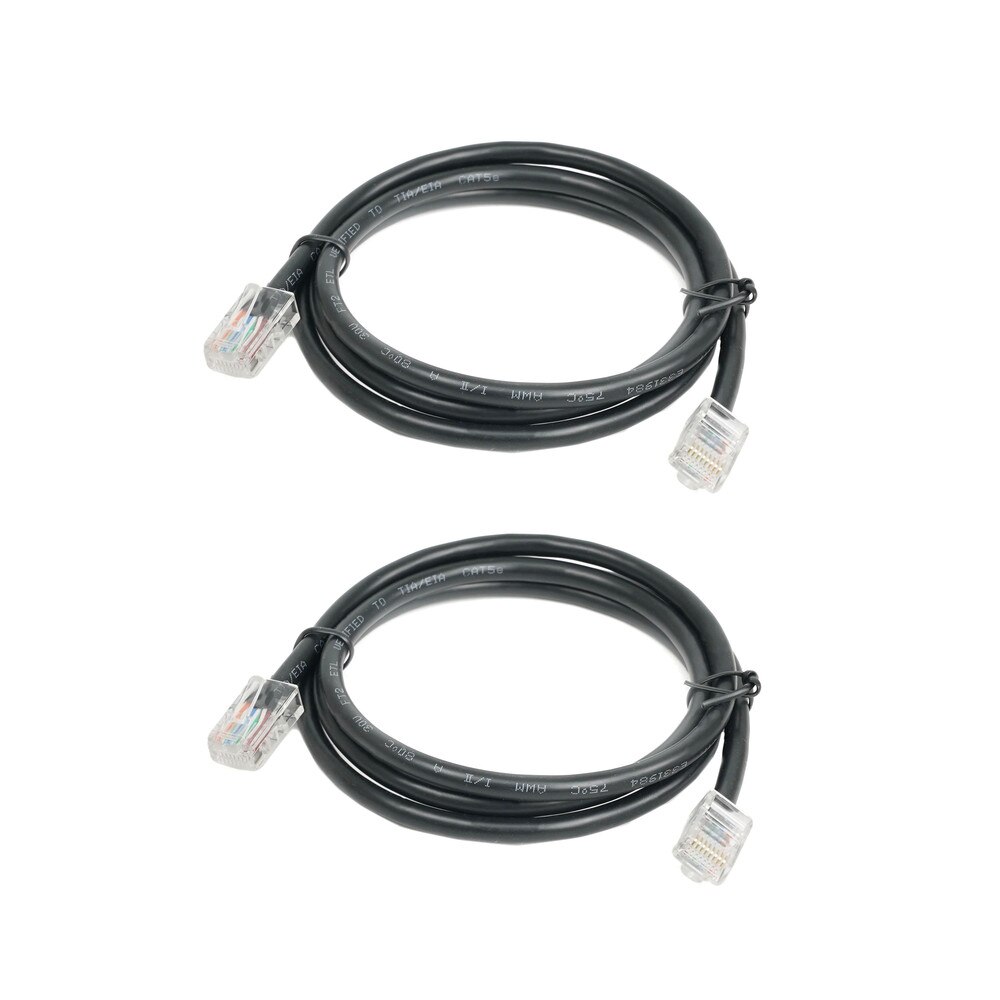

Cables Included | 2 x network cable |

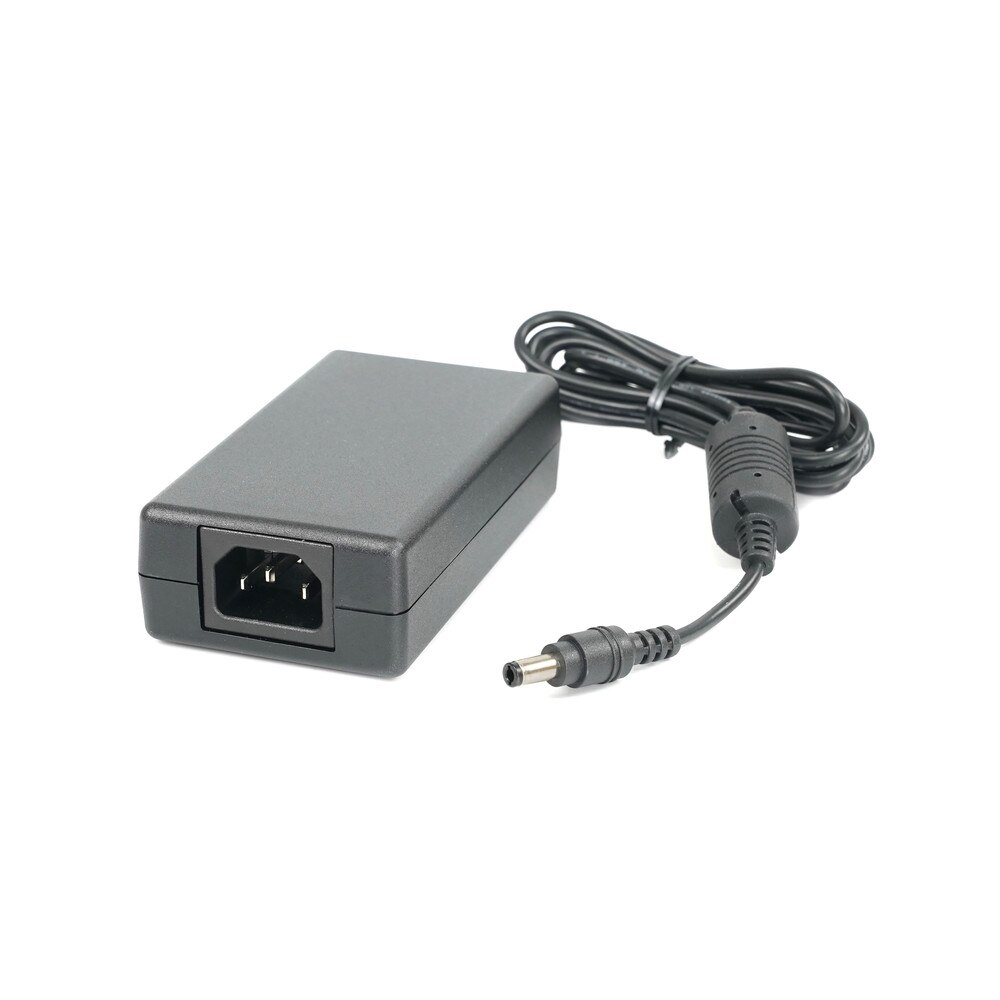

Power Device | External power adapter |
Installed Qty | 1 |
Max Supported Qty | 1 |
Power Provided | 18 Watt |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: next day |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Meraki MX67W Wireless Network Security/Firewall (MX67W-HW)
Frequently Asked Questions (FAQ's)
Can the MX67W-HW be used with a 4G LTE modem for backup connectivity?Yes, while the MX67W-HW lacks a built-in 4G LTE modem, it can be used with a Meraki MG cellular gateway to provide cellular backup connectivity.
What wireless capabilities does the MX67W-HW offer?The MX67W-HW features built-in Wi-Fi with dual-band 802.11ac Wave 2, ensuring fast wireless coverage.
How many users can the MX67W-HW support?The MX67W-HW can support up to 50 users, making it ideal for small businesses and branch offices.
What security features are included in the MX67W-HW?The device includes advanced security features such as a next-generation firewall, intrusion prevention system (IPS), content filtering, malware protection, and auto VPN.
How is the MX67W-HW managed?The MX67W-HW is managed using the Meraki Dashboard, a cloud-based platform that enables centralized configuration, monitoring, and management of all Meraki devices.
Does the MX67W-HW support VPN connections?Yes, it supports Auto VPN technology, which enables secure site-to-site VPN connections from multiple locations.
What internet speeds can the MX67W-HW handle?The MX67W-HW provides WAN throughput of up to 450 Mbps, ensuring fast and dependable internet performance.
How many WAN ports does the MX67W-HW have?The MX67W-HW has one dedicated WAN port and one additional port that can be set to either WAN or LAN.
Can the MX67W-HW be used for content filtering?Yes, the MX67W-HW has content filtering capabilities to block inappropriate websites and restrict access to online content.
Is the MX67W-HW suitable for branch offices?Yes, the MX67W-HW is ideal for branch offices because it offers secure internet connectivity, wireless access, and centralized management.
What are the power options for the MX67W-HW?The device is powered by an external power adapter and supports Power over Ethernet (PoE) for increased deployment flexibility.
Does the MX67W-HW support multiple SSIDs?Yes, the MX67W-HW supports multiple SSIDs, which allows you to set up separate networks for different user groups, such as employees and guests.
How is firmware updated on the MX67W-HW?Firmware updates are automatically managed via the Meraki Dashboard, ensuring that the device is always running the most recent security patches and features.
What kind of reporting does the MX67W-HW provide?The Meraki Dashboard offers detailed reporting on network usage, security events, and device performance, allowing you to monitor and optimize your network.
Can the MX67W-HW be integrated with other Meraki devices?Yes, the MX67W-HW is easily integrated with other Meraki devices, such as switches and access points, to provide a unified network experience.
What is the maximum number of VPN peers supported by the MX67W-HW?The MX67W-HW can connect up to 50 VPN peers for site-to-site VPN connections.
Does the MX67W-HW support guest Wi-Fi networks?Yes, the MX67W-HW lets you set up a separate guest Wi-Fi network with custom access policies.
How does the MX67W-HW handle bandwidth management?The MX67W-HW includes traffic shaping and Quality of Service (QoS) features for prioritizing critical applications and controlling bandwidth usage.
What are the dimensions of the MX67W-HW?The device's dimensions are 9.45 x 5.08 x 1.06 inches (240 x 129 x 27 mm), making it compact and easy to install in a variety of environments.
Is there an option for cellular backup on the MX67W-HW?The MX67W-HW lacks a built-in cellular modem, but it can be used with a separate Meraki MG cellular gateway for 4G LTE backup.
