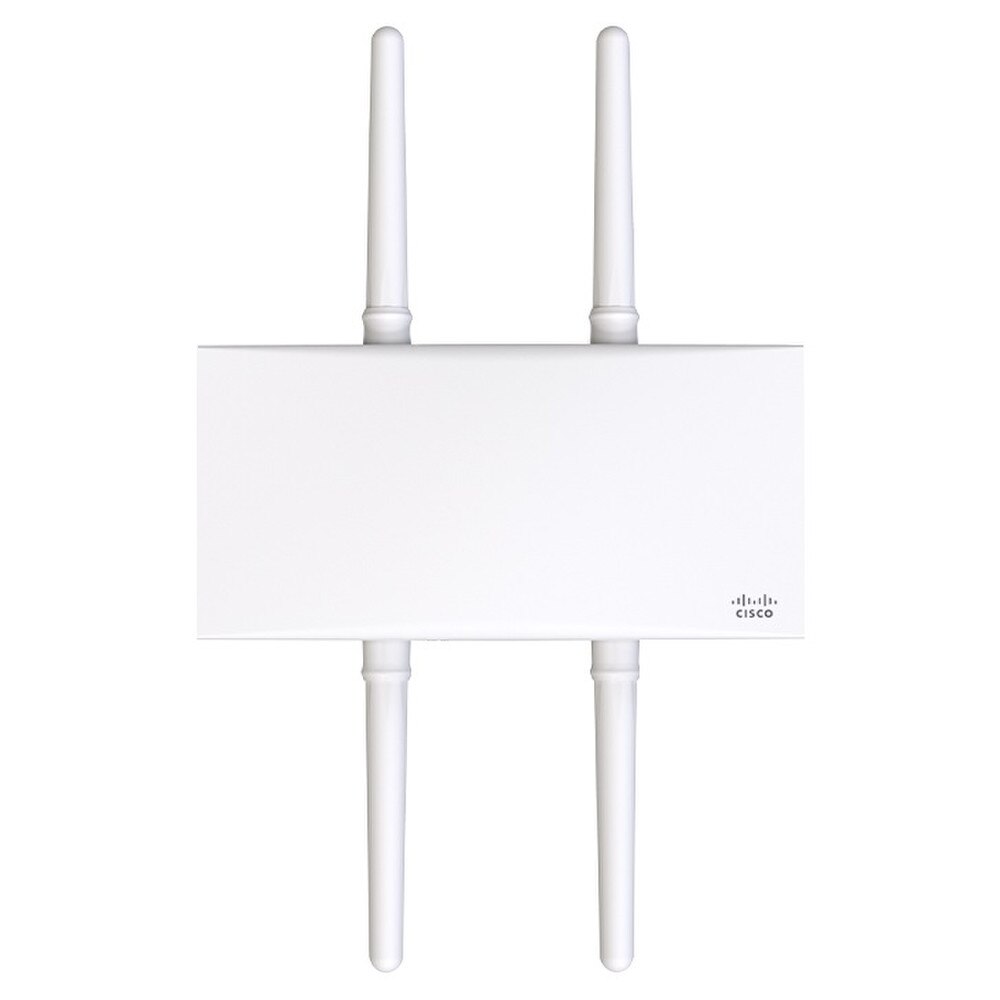

Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6 (MR86-HW) (Unclaimed) | New

Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6 (MR86-HW) (Unclaimed) | New

SKU: MR86-HW-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$849.99 $849.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6 (MR86-HW) | New

The Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6 (MR86-HW) is a high-performance, cloud-managed Wi-Fi 6 access point intended for demanding outdoor and industrial interior settings. This rugged device has excellent wireless connectivity and extensive security features, making it perfect for high-density deployments in stadiums, arenas, and other difficult RF situations. The MR86 uses cutting-edge Wi-Fi 6 (802.11ax) technology to provide lightning-fast speeds and increased efficiency for a variety of devices. With a maximum aggregate frame rate of 3.55 Gbps, it can handle even the most bandwidth-intensive applications. The device has four radios: a dual-band 2.4 GHz and 5 GHz radio for client access, a specialized security radio for real-time WIDS/WIPS, and an integrated Bluetooth Low Energy radio for location-specific services.


Key Features of Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6


• 4x4:4 MU-MIMO capabilities for enhanced performance in high-density environments.

• IP67-rated enclosure, tested for dust, shock, vibration, and moisture resistance.

• Up to 3.55 Gbps dual-aggregate throughput.

• One multigigabit port with 802.3at PoE support.

• Dedicated radio for WIDS/WIPS and RF optimization.

• Easy deployment and management through the Meraki dashboard.

• Ability to classify and prioritize hundreds of applications.

• Compatible with various omni- and directional antennas.

• Integrated BLE radio for location tracking and beaconing.

• Cloud-based tools for optimal wireless performance.

• Features include Air Marshal, built-in antivirus, and Umbrella DNS security.

• Self-healing, zero-configuration mesh capabilities.

• One-click secure guest access with customizable splash pages.

• Designed for operation in harsh environments.

• Multigigabit uplink support for emerging network technologies

Specifications

Specification for Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6 (MR86-HW) | New

ManufacturerCisco
Manufacturer Part NumberMR86-HW
Product NameCisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6
Product TypeAccess Point
Ruggedized DesignOutdoor
Width11.8 in
Depth6 in
Height2.2 in
Weight3.31 lbs
Form FactorExternal
Connectivity TechnologyWireless
Line Coding Format1024 QAM, OFDMA
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax
Spread Spectrum MethodOFDMA
Network / Transport ProtocolIPSec
Cloud-ManagedYes
Frequency Band2.4 GHz, 5 GHz
Status IndicatorsPower, boot state, status
FeaturesFirewall protection, VPN support, firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, opportunistic key caching (OKC), 4x4:4 MU-MIMO technology, packet aggregation, Target Wait Time (TWT)
Encryption AlgorithmAES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open
Authentication MethodMS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-SIM
Compliant StandardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax
AntennaExternal
Interfaces1 x 1/2.5GBase-T (PoE+) - RJ-45
Included AccessoriesMounting kit
Compliant StandardsCSA, VCCI, ICES-003, EN55024, CISPR 22, RSS-102, FCC Part 15 C, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, IP67, EN 62311, NCC, EN 300 328, EN 50385, LP0002, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208
Power Over Ethernet (PoE) SupportedPoE+
Power Consumption Operational18 Watt
Service & SupportLimited warranty - advance hardware replacement - lifetime
Min Operating Temperature-40 °F
Max Operating Temperature131 °F
Humidity Range Operating5 - 95% (non-condensing)

User Guides

Frequently Asked Questions

Cisco Meraki MR86 Cloud Managed Wireless Access Point Wi-Fi 6 (MR86-HW)

Frequently Asked Questions (FAQ's)



What are the key differences between the MR86 and other Meraki outdoor access points?
  • The MR86 boasts Wi-Fi 6 technology, increased capacity, and improved performance over older Meraki outdoor access points, as well as a rugged IP67-rated enclosure designed for demanding environments.
  • Can the Cisco Meraki MR86 operate in extremely cold or hot temperatures?
  • Yes, the MR86 is designed to operate in temperatures ranging from -40°C to 65°C (-40°F to 149°F), making it appropriate for a variety of outdoor environments.
  • Does the MR86 support multi-gigabit Ethernet?
  • Yes, the MR86 has a 2.5 Gbps Ethernet port, which enables multi-gigabit connectivity to support higher data rates.
  • Is the MR86 compatible with existing Cisco Meraki infrastructure?
  • Yes, the MR86 is fully compatible with the Meraki ecosystem, allowing for easy integration with other Meraki devices.
  • What type of security features are available on the MR46?
  • The MR46 has advanced security features like WPA3 encryption, an integrated Layer 7 application firewall, and automatic firmware updates for security patches.
  • What are the mounting options available for the MR86?
  • The included mounting hardware allows the MR86 to be mounted on walls, poles, or other outdoor structures, giving it greater deployment flexibility.
  • Does the MR86 support external antennas?
  • Yes, the MR86 has connectors for external antennas, allowing for customized coverage patterns based on deployment requirements.
  • How does the MR86 handle extreme weather conditions like rain or snow?
  • The MR86 is IP67-rated, which means it is dust-tight and water-resistant, making it suitable for harsh weather conditions such as rain, snow, and dust storms.
  • Can the MR86 be used for point-to-point or point-to-multipoint wireless links?
  • Yes, the MR86 supports wireless mesh networking and can operate in point-to-point or point-to-multipoint mode.
  • Does the Cisco Meraki MR86 support wireless client isolation?
  • Yes, the MR86 supports wireless client isolation, which prevents clients from communicating directly with each other, thereby increasing security.
  • Is there a mobile app available to manage the MR86?
  • Yes, the Meraki dashboard can be accessed using the Meraki mobile app, allowing for network management and monitoring while on the go.
  • How does the MR86 ensure network reliability during power outages?
  • While the MR86 does not have a battery backup, it can be connected to a power supply with a UPS (Uninterruptible Power Supply) to continue operating during power outages.
  • Can the MR86 be deployed in a mesh network with other Meraki access points?
  • Yes, the MR86 can be deployed in a mesh network alongside other Meraki access points to provide coverage over large outdoor areas.
  • How does the MR86 handle high client densities?
  • The MR86 employs Wi-Fi 6 technologies such as MU-MIMO and OFDMA to effectively manage high client densities, ensuring peak performance even in congested environments.
  • Can the Cisco Meraki MR86 be used in a bridge mode?
  • Yes, the MR86 supports bridge mode, which allows it to connect wired and wireless networks.
  • Does the MR86 support location-based services?
  • Yes, the MR86 includes a Bluetooth Low Energy (BLE) radio, which enables location-based services and IoT connectivity.
  • How does the MR86 integrate with security cameras or other IoT devices?
  • The MR86 can be integrated with Meraki security cameras and other IoT devices via the Meraki dashboard, allowing for centralized management and monitoring.
  • Can I prioritize traffic for specific applications on the MR86?
  • Yes, the MR86 supports Quality of Service (QoS) settings, which enable you to prioritize traffic for critical applications such as VoIP, video, and more.
  • Is there any special maintenance required for the MR86 in outdoor environments?
  • The MR86 is designed to be low-maintenance, with its rugged enclosure protecting it from the elements. Regular visual inspections and cleaning may be necessary depending on the deployment environment.
  • Does the MR86 support Zero-Touch provisioning?
  • Yes, the MR86 supports Zero-Touch provisioning, allowing for quick and easy deployment without the need for on-site configuration.
