Overview

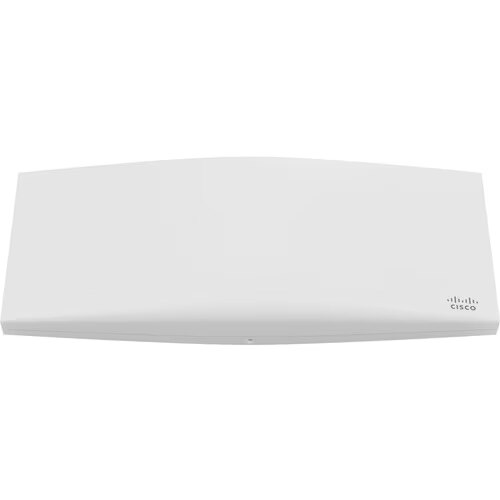

Overview of Cisco Meraki MR46 Wireless Access Point (MR46-HW) | New
The Cisco Meraki MR46 Wi-Fi 6 Indoor Access Point (MR46-HW) is a cutting-edge, cloud-managed wireless system made to provide outstanding performance, security and scalability for high-density office settings, modern businesses and educational institutions. For environments with high device densities and bandwidth-intensive applications, the MR46 offers ultra-fast wireless speeds, expanded capacity and enhanced efficiency by utilizing the most recent Wi-Fi 6 (802.11ax) technology.
The MR46's 4x4:4 MU-MIMO design and OFDMA capabilities allow for simultaneous multi-user connectivity, guaranteeing hundreds of users a flawless experience. Your network is shielded from changing threats by advanced security features including identity-based access, integrated wireless intrusion prevention (WIDS/WIPS) and automatic firmware updates. Zero-touch deployment, real-time analytics and simple remote troubleshooting are all made possible with the MR46's complete management via the user-friendly Meraki cloud interface. It is perfect for discreet installation in any indoor environment because to its elegant, low-profile design.
Key Features of Cisco Meraki MR46 Wi-Fi 6 Indoor Access Point
• Wi-Fi 6 (802.11ax) Technology delivers up to 3.5 Gbps aggregate frame rate for high-speed, reliable wireless connectivity.
• 4x4:4 MU-MIMO & OFDMA supports efficient multi-user access and maximizes network capacity in high-density environments.
• Cloud-Managed Simplicity with centralized management, monitoring and troubleshooting via the Meraki cloud dashboard.
• Integrated Security with built-in WIDS/WIPS, identity-based policies and automatic firmware updates for robust protection.
• Seamless Roaming with fast handoff and roaming for uninterrupted user experiences in large or multi-floor deployments.
• Flexible Mounting with low-profile design with versatile mounting options for easy installation in any indoor space.
• IoT Ready with integrated Bluetooth Low Energy (BLE) radio for asset tracking and IoT device connectivity.
• Energy Efficient with advanced power-saving features and support for 802.3at PoE+.
Benefits of Cisco Meraki MR46 Wi-Fi 6 Indoor Access Point
🗹 Wi-Fi 6 technology ensures your wireless network is ready for today’s and tomorrow’s devices and applications.
🗹 Cloud management makes it easy to deploy, monitor and scale across multiple sites or campuses.
🗹 High throughput, low latency and seamless roaming deliver superior performance for every user.
🗹 Protects your network from threats with automated updates and advanced security features.
🗹 Zero-touch provisioning and centralized management minimize installation and maintenance time.
🗹 Easily connect and manage IoT devices for smart office, education or enterprise applications.
🗹 Backed by Cisco’s global support, reliability and innovation in networking.
Specifications
Specifications for Cisco Meraki MR46 Wireless Access Point (MR46-HW) | New
Manufacturer | Cisco |
Manufacturer Part Number | MR46-HW |
Product Name | Cisco Meraki MR46 Wireless Access Point |
Product Type | Access Point |
Width | 12 in |
Depth | 5.1 in |
Height | 1.7 in |
Weight | 28.22 oz |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 3.5 Gbps |
Line Coding Format | 1024 QAM, OFDMA |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Power, boot state, status |
Features | Firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, AES encryption, guest access, opportunistic key caching (OKC), 4x4:4 MU-MIMO technology, packet aggregation, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT) |
Encryption Algorithm | AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open |
Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP) |
Compliant Standards | IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax |
Antenna | Internal |
Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 |

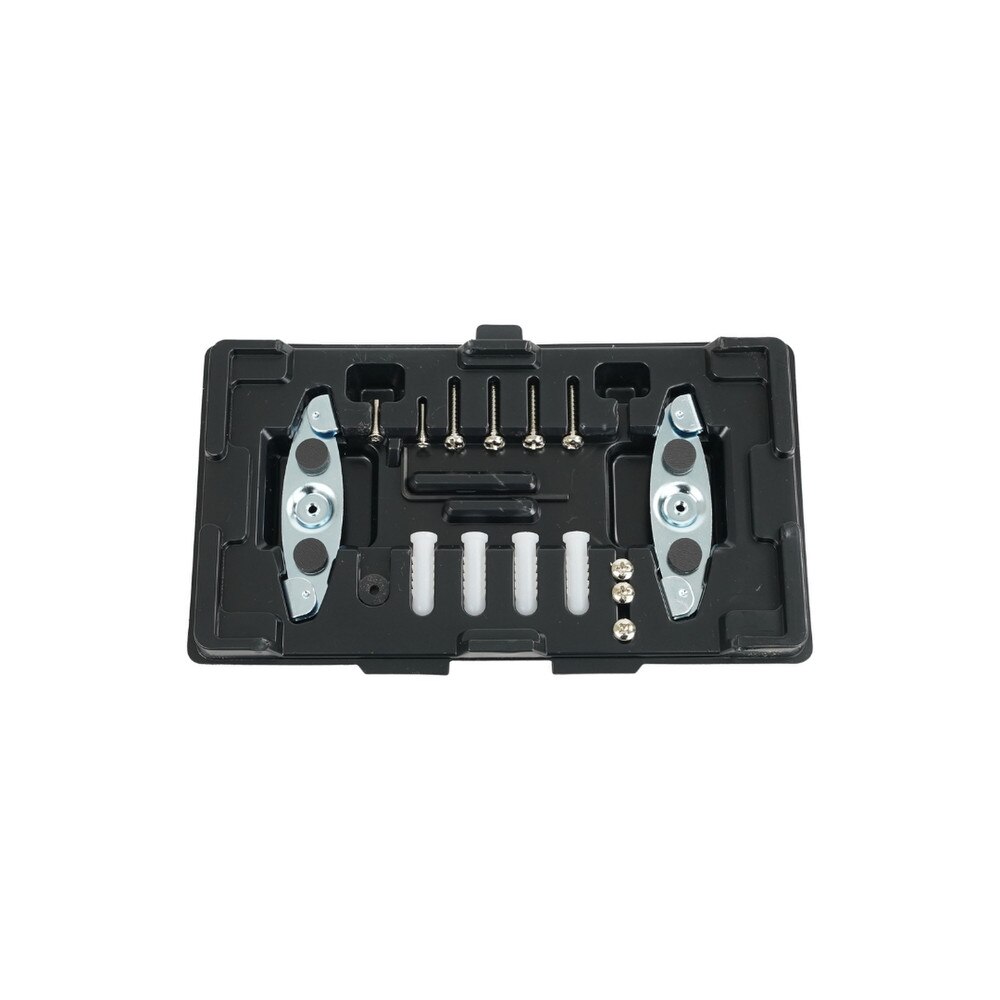

Included Accessories | Mounting kit |
Compliant Standards | CSA, VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RSS-102, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, FCC CFR47 Part 15 C, EN 62311, EN 300 328, EN 50385, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208, NCC LP0002 |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Device | External power adapter |
Voltage Required | DC 12 V (non-PoE) / 42.5 - 57 V (PoE+) |
Power Consumption Operational | 18 Watt |
Service & Support | Limited warranty - replacement - lifetime |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
