  • Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) (Unclaimed) | New

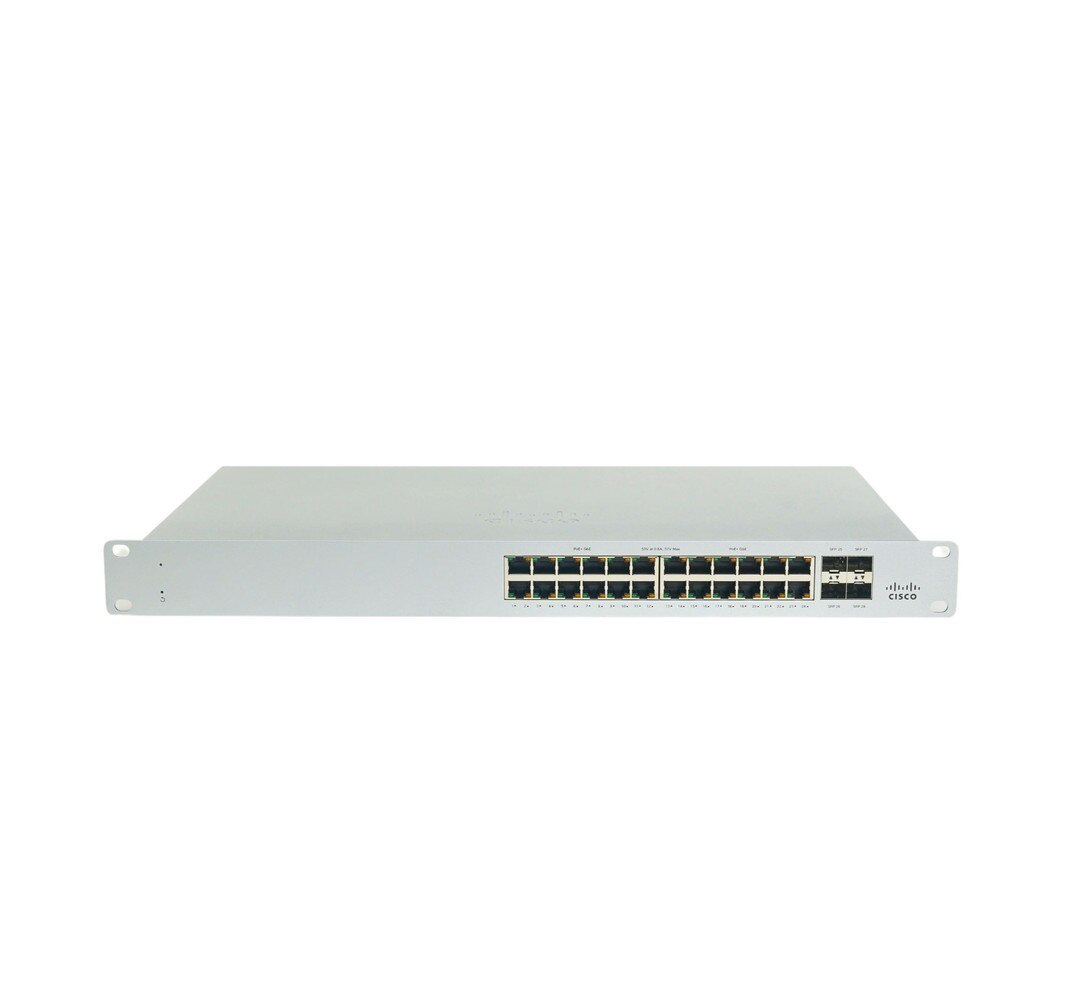

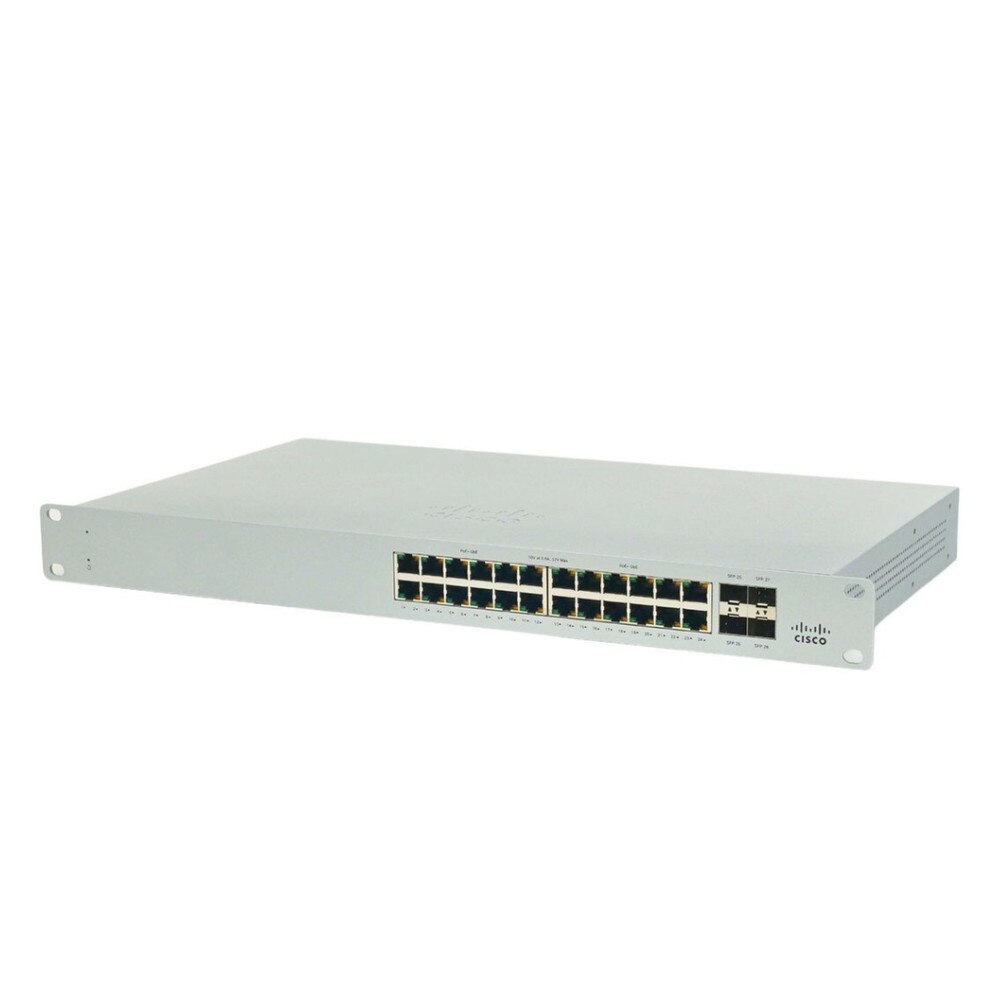

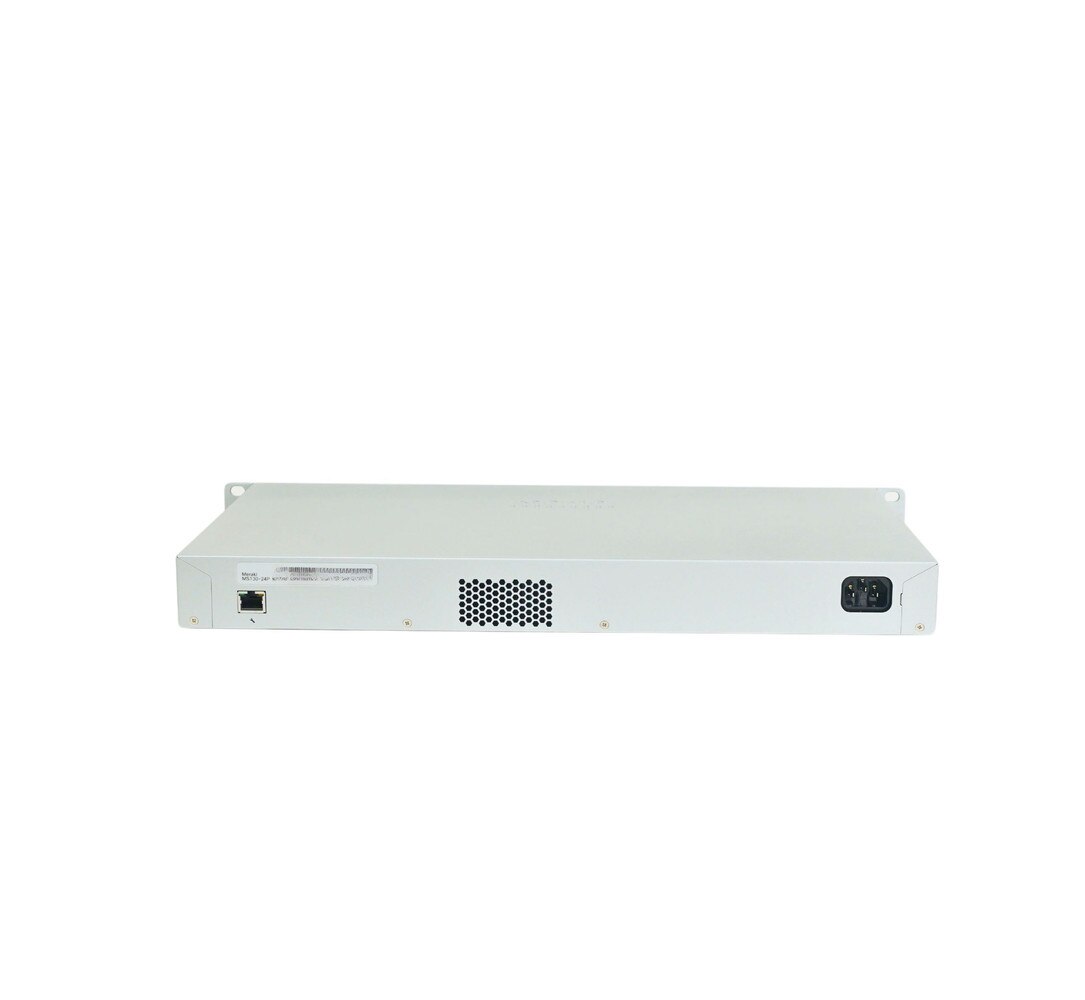

Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) (Unclaimed) | New

Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) (Unclaimed) | New

SKU: MS130-24P-HW-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$949.99 $949.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) | New

The Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) is a powerful cloud-managed switch intended for modern enterprise and branch networks. This 24-port Gigabit Ethernet switch provides solid connectivity and extensive capabilities, making it ideal for enterprises looking to simplify network management without sacrificing speed. The MS130-24P provides high-speed connectivity through 24 Gigabit Ethernet ports and 4 SFP uplink ports, making it ideal for small to medium-sized companies, retail venues, and educational institutions. With a big 370W PoE+ budget, it easily powers devices such as IP phones, security cameras, and wireless access points. Meraki's cloud-based dashboard allows for zero-touch provisioning, remote troubleshooting, and centralized management, dramatically lowering IT costs.


Key Features of Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch


• 24 Gigabit Ethernet ports with PoE+ support (up to 30W per port)

• 370W PoE+ budget for powering a wide range of devices

• 4 SFP uplink ports for flexible network expansion

• Cloud-managed through intuitive Meraki dashboard

• Zero-touch provisioning for rapid deployment

• Layer 2 switching capabilities with advanced VLAN support

• Built-in security features including 802.1X authentication

• Quality of Service (QoS) for traffic prioritization

• Automatic firmware updates and security patches

• Real-time network visibility and analytics

• Virtual stacking for unified management of multiple switches

• Energy-efficient design with optimized power consumption

• DHCP snooping and port security features

• Voice VLAN support for VoIP deployments

Specifications

Specifications for Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) | New

Manufacturer Cisco
Manufacturer Part Number MS130-24P-HW
Product Name Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch
Product Type Networking Switch
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000Base-T + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Switching capacity: 56 Gbps
Remote Management Protocol
SNMP, DHCP, IPv4, IPv6, Syslog
Features
DHCP snooping, Quality of Service (QoS), DHCP relay, 802.1x authentication, cloud managed, Zero-touch provisioning (ZTP), non-blocking architecture, remote firmware upgrade
Compliant Standards
IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at
Status Indicators
Power, status, link/activity
Interfaces
24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 1 x management (Gigabit LAN) RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Electric Current Required
0.333333333
Power Consumption Stand by
32 Watt
Width
17.3 in
Depth
9.8 in
Height
1.7 in
Weight
8.91 lbs
Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F

User Guides

Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW) Data Sheet

Frequently Asked Questions

Cisco Meraki MS130-24P Cloud Managed 24GE 370W PoE Switch (MS130-24P-HW)
Frequently Asked Questions (FAQ's)



Can the MS130-24P-HW be integrated with non-Meraki devices?
  • Yes, it can be integrated with non-Meraki devices, but full functionality and management features are best realized within the Meraki ecosystem.
    • Does the MS130-24P-HW support Power over Ethernet (PoE)?
  • Yes, the switch supports PoE+ on all 24 ports, which powers compatible devices such as IP phones and wireless access points.
    • What is the maximum PoE power budget of the MS130-24P-HW?
  • Depending on the model and configuration, this switch has a maximum PoE power budget of around 370W.
    • What are the uplink options for the MS130-24P-HW?
  • The switch has four SFP uplink ports for fiber connectivity, which allows for flexible network expansion.
    • Is the Cisco Meraki license required for the MS130-24P-HW?
  • Yes, a current Meraki license is required for operation, which includes access to the Meraki Dashboard and support services.
    • What security features are available on the MS130-24P-HW?
  • It includes port security, 802.1X authentication, MAC-based access control, and integration with Cisco Umbrella to improve network security.
    • Can the MS130-24P-HW be used in a stackable configuration?
  • No, the MS130 series does not allow physical stacking. However, the Meraki Dashboard allows you to manage multiple switches as a single logical unit.
    • How do I configure the Cisco Meraki MS130-24P-HW?
  • Configuration is done through the Meraki Dashboard, a web-based platform that makes it simple to set up, monitor, and manage switches.
    • What types of devices can be connected to the MS130-24P-HW?
  • You can connect computers, IP phones, wireless access points, and IP cameras.
    • Does the MS130-24P-HW support Layer 3 routing?
  • The MS130 series is primarily a Layer 2 switch that offers basic Layer 3 routing capabilities via static routing.
    • Is there any fan noise associated with the MS130-24P-HW?
  • The switch is designed for quiet operation, making it ideal for use in office settings.
    • How do I update the firmware on the MS130-24P-HW?
  • Firmware updates are automatically managed via the Meraki Dashboard, ensuring that the switch is always up to date.
    • What are the dimensions of the Cisco Meraki MS130-24P-HW?
  • The switch measures approximately 19.1 x 10.4 x 1.8 inches (48.4 x 26.4 x 4.5 cm).
    • How much power does the MS130-24P-HW consume?
  • The power consumption varies depending on the load, but it is typically between 30-40W without PoE and more when PoE is enabled.
    • Can the MS130-24P-HW be mounted in a rack?
  • Yes, the switch is rack-mountable and includes mounting brackets for simple installation in a standard 19-inch rack.
    • What is the maximum throughput of the MS130-24P-HW?
  • The switch offers non-blocking, line-rate switching at a maximum throughput of 52 Gbps.
    • Does the MS130-24P-HW support VLANs?
  • Yes, the Meraki Dashboard can be used to manage the switch, including VLAN tagging and trunking.
    • Is the MS130-24P-HW compatible with other Meraki products?
  • Yes, it works seamlessly with other Meraki products such as wireless access points, security appliances, and more.
    • What type of power supply does the MS130-24P-HW use?
  • The switch typically has an internal AC power supply, but exact specifications vary depending on the model and region.
    • Can the MS130-24P-HW be managed remotely?
  • Yes, the switch can be managed remotely using the Meraki Dashboard, which is a cloud-based management platform.
