Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW) (Unclaimed) | New

Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW) (Unclaimed) | New

SKU: MS130-8X-HW-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$669.99 $669.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW) | New

The Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW) is a powerful cloud-managed switch built for small and medium-sized enterprises who want high-performance networking with easy management. The MS130-8X provides diverse connection with 6 Gigabit Ethernet ports, 2 multigigabit (mGig) ports capable of up to 2.5 Gbps and 2 10G SFP+ uplink ports. This tiny switch delivers 120W of PoE+ power, making it suitable for powering IP phones, security cameras and wireless access points. The cloud-based Meraki dashboard simplifies deployment, monitoring and management, lowering IT complexity and overhead.


Key Features of Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch


• 6 Gigabit Ethernet ports for standard connectivity

• 2 multigigabit (mGig) ports supporting up to 2.5 Gbps

• 2 10G SFP+ uplink ports for high-speed connections

• 120W PoE+ budget for powering connected devices

• Cloud-managed through intuitive Meraki dashboard

• Zero-touch provisioning for rapid deployment

• Layer 2 switching capabilities with advanced VLAN support

• Built-in security features including 802.1X authentication

• Quality of Service (QoS) for traffic prioritization

• Automatic firmware updates and security patches

• Real-time network visibility and analytics

• Virtual stacking for unified management

• Energy-efficient design with fanless operation

• Compact form factor (1.75 x 9 x 8.58 inches)

Specifications

Specifications for Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW) | New

Manufacturer Cisco
Manufacturer Part Number MS130-8X-HW
Product Name Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch
Product Type Networking Switch
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
6 x 10/100/1000Base-T + 2 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 62 Gbps
Remote Management Protocol
SNMP, DHCP, IPv4, IPv6, Syslog
Features
DHCP snooping, Quality of Service (QoS), fanless, DHCP relay, 802.1x authentication, cloud managed, Zero-touch provisioning (ZTP), non-blocking architecture, remote firmware upgrade
Compliant Standards
IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at
Status Indicators
Power, status, link/activity
Interfaces
6 x 1000Base-T RJ-45 PoE+ ¦ 2 x 2.5GBase-T RJ-45 PoE+ ¦ 2 x 10GBase-X SFP+ uplink

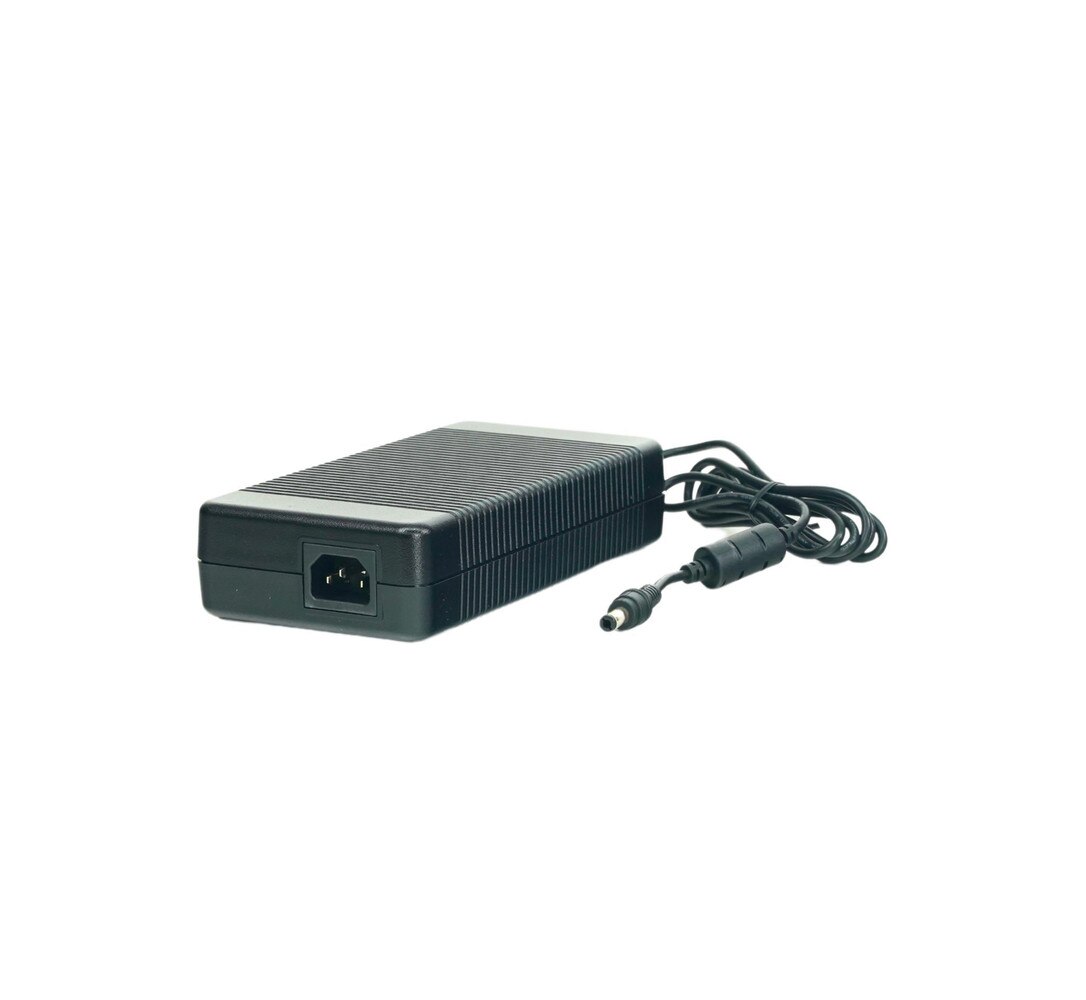

Power Device
External power adapter
Voltage Required
DC 54 V
Electric Current Required
2.78 A
Power Consumption Stand by
16 Watt
Width
8.7 in
Depth
5.9 in
Height
1.1 in
Weight
1.94 lbs
Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F

User Guides

Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW) Data Sheet

Frequently Asked Questions

Cisco Meraki MS130-8X Cloud-Managed 6GE + 2x(2.5GE) 120W PoE Switch (MS130-8X-HW)
Frequently Asked Questions (FAQ's)



Does the switch support cloud management?
  • Yes, it is fully managed via the Cisco Meraki cloud dashboard, which allows for simple configuration and monitoring.
    • How many ports does the MS130-8X-HW have?
  • It has a total of eight ports, including six Gigabit Ethernet ports and two multigigabit (mGig).
    • What is the maximum power output for PoE on this switch?
  • The MS130-8X-HW can deliver up to 120W of power over Ethernet (PoE+).
    • Does the switch support cloud management?
  • Yes, it is fully managed via the Cisco Meraki cloud dashboard, which allows for simple configuration and monitoring.
    • What types of uplink ports are available on the MS130-8X?
  • The switch has two SFP+ uplink ports for high-speed connectivity to other network devices.
    • Can I use this switch in a fanless environment?
  • Yes, the MS130-8X has a fanless design, making it ideal for quiet office environments.
    • What types of uplink ports are available on the MS130-8X
  • The switch includes 2 SFP+ uplink ports for high-speed connections to other network devices.
    • What is the switching capacity of the MS130-8X?
  • The switch features a non-blocking backplane and a switching capacity of up to 62 Gbps.
    • How do I manage firmware updates for this switch?
  • Firmware updates are automatically handled by the Meraki cloud management platform.
    • Does it support VLAN tagging?
  • Yes, the MS130-8X supports 802.1Q VLAN tagging to segment the network.
    • What security features are included?
  • It has features such as DHCP snooping, 802.1X authentication, and Access Control Lists (ACLs).
    • Can I use this switch for IoT deployments?
  • Yes, it is suitable for IoT applications and can power IoT devices using PoE.
    • Is zero-touch provisioning supported?
  • Yes, zero-touch provisioning enables quick and easy deployment without requiring manual configuration.
    • What is the form factor of this switch?
  • The MS130-8X is compact and can be mounted on a rack or on a wall.
    • Does it support IPv6?
  • Yes, the switch supports both IPv4 and IPv6 addresses.
    • Can I monitor network performance remotely?
  • Yes, you can monitor network performance and status remotely using the Meraki dashboard.
    • What type of businesses is this switch best suited for?
  • It is best suited for small and medium-sized businesses, retail environments and branch offices.
    • Are there any additional licensing requirements?
  • Yes, each device requires a Meraki cloud license to operate and use cloud management features.
    • How does PoE+ work on this switch?
  • PoE+ enables the switch to send power and data over Ethernet cables to connected devices such as IP phones and cameras.
    • What kind of support is available for this product?
  • Cisco Meraki's licensing agreement includes 24/7 support, which provides assistance whenever needed.
