Overview of Cisco Meraki MS130-24X 24-Port Cloud Managed Network Switch (MS130-24X-HW) | New

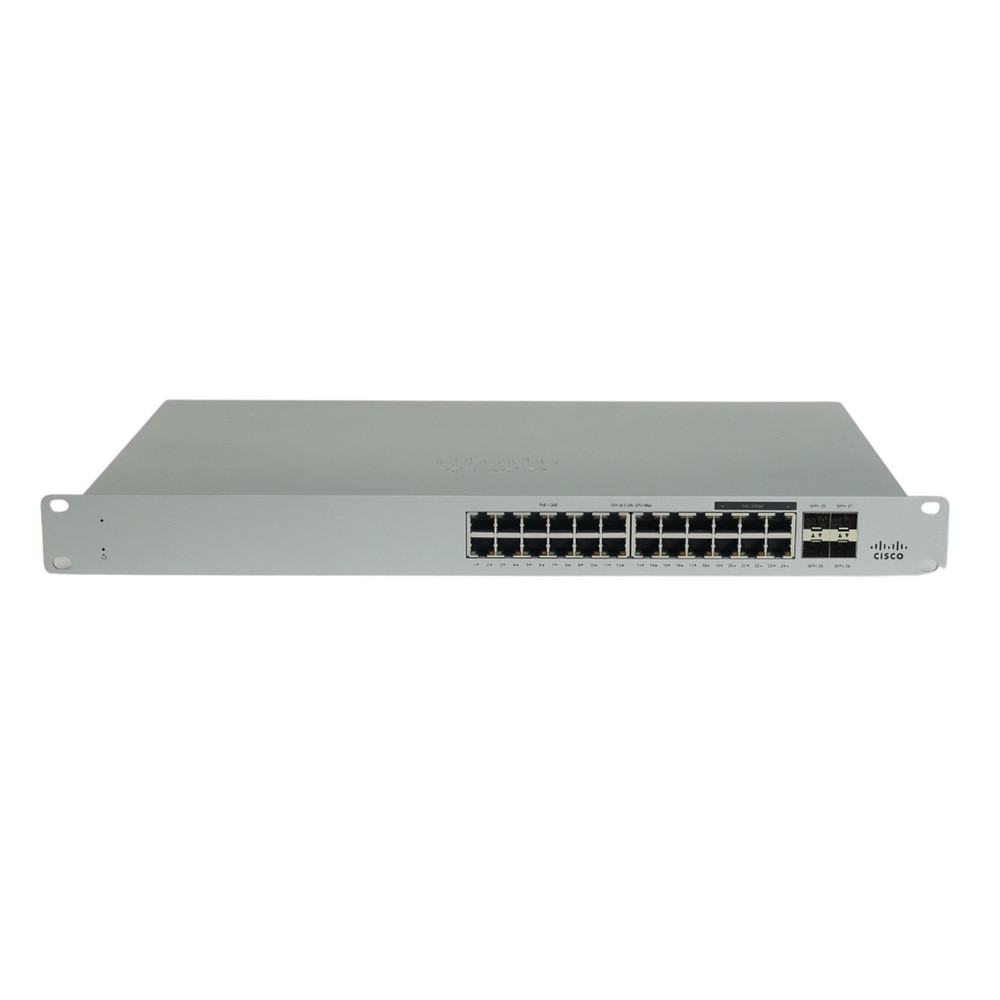

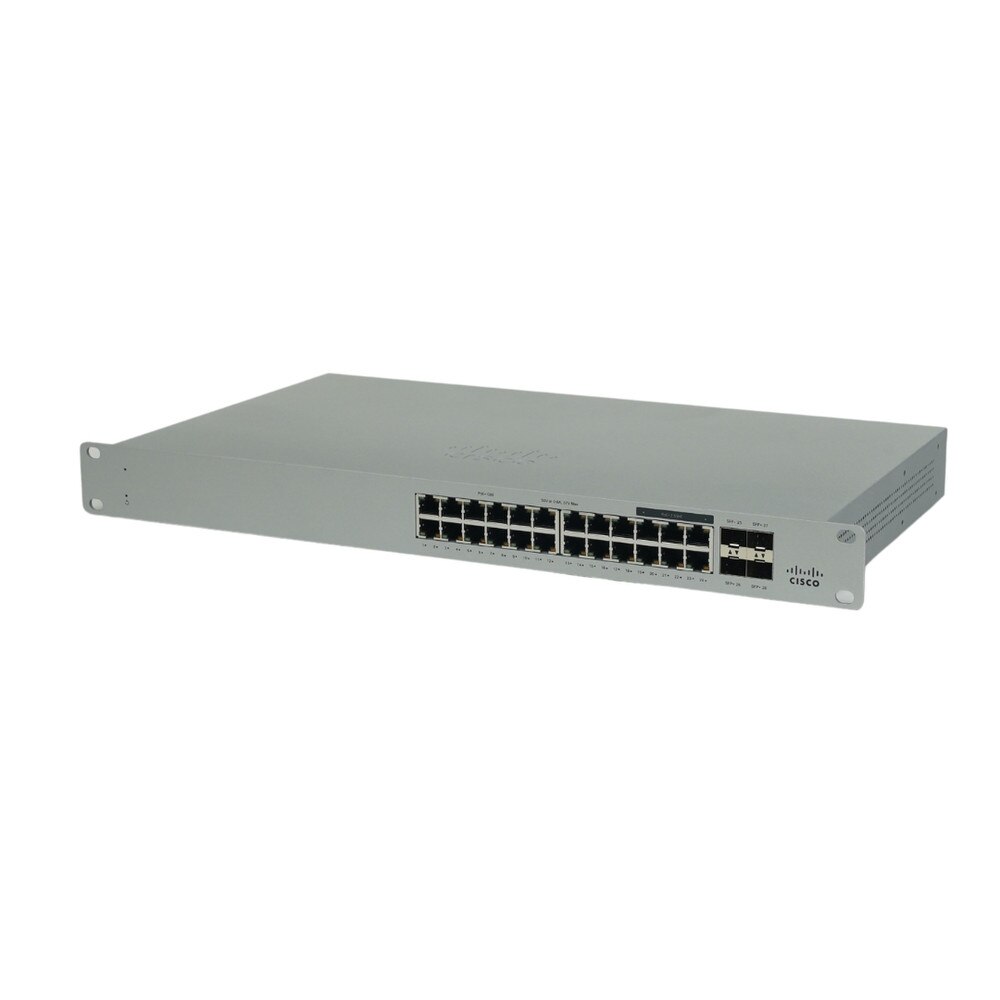

The Cisco Meraki MS130-24X Cloud Managed Network Switch (MS130-24X-HW) is a versatile Layer 2 switch intended for branch and small business installations that require a dependable and easy-to-manage network architecture. This enterprise-grade switch combines robust networking features with Meraki's simple cloud management platform, making it ideal for businesses looking to streamline network operations. The MS130-24X has 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, offering versatile connectivity options while keeping Meraki's well-known simplicity of use via cloud-based management.
Key Features of Cisco Meraki MS130-24X 24-Port Cloud Managed Network Switch:
• 24 Gigabit Ethernet ports for high-speed connectivity
• 4 SFP+ uplink ports supporting up to 10G connections
• Cloud-managed through intuitive Meraki dashboard
• Virtual stacking capability for unified management
• Layer 2 switching capabilities with advanced VLAN support
• Energy-efficient design with fanless operation
• Zero-touch provisioning for rapid deployment
• Built-in monitoring and alerting features
• Automatic firmware updates and security patches
• Quality of Service (QoS) for traffic prioritization
• Voice VLAN support for VoIP deployments
• DHCP snooping and port security features
• Link aggregation (LACP) support
• Remote packet capture for troubleshooting
• Lifetime hardware warranty with advanced replacement
Specifications
Specifications for Cisco Meraki MS130-24X 24-Port Cloud Managed Network Switch (MS130-24X-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MS130-24X-HW |
| Product Name | Cisco Meraki MS130-24X 24-Port Cloud Managed Network Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000Base-T + 4 x Gigabit SFP |
Performance | Switching capacity: 56 Gbps |
Remote Management Protocol | SNMP, DHCP, IPv4, IPv6, Syslog |
Features | DHCP snooping, Quality of Service (QoS), DHCP relay, 802.1x authentication, cloud managed, Zero-touch provisioning (ZTP), non-blocking architecture, remote firmware upgrade |
Compliant Standards | IEEE 802.1Q, IEEE 802.1x |
Status Indicators | Power, status, link/activity |
Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x management (Gigabit LAN) RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
Electric Current Required | 1.5 A |
Power Consumption Stand by | 15 Watt |
Width | 17.3 in |
Depth | 9.8 in |
Height | 1.7 in |
Weight | 7.19 lbs |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 95% |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
User Guides
Frequently Asked Questions
Cisco Meraki MS130-24X 24-Port Cloud Managed Network Switch (MS130-24X-HW)
Frequently Asked Questions (FAQ's)
What is the port configuration of the MS130-24? The MS130-24 has 24x 1 GbE ports and 4x 1G SFP uplink ports.
Does the MS130-24 support PoE? Yes, the MS130-24P model includes 370W PoE+ capability.
What is the management interface for the MS130-24? It is cloud-managed using the Meraki dashboard, which provides network-wide visibility and control.
Does the MS130-24 support Layer 3 switching? No, it is a Layer 2 switch.
What is the maximum PoE budget for the MS130-24P? The MS130-24P has a 370W PoE+ budget.
Are there any fanless options available? Yes, the MS130-24 series has low-noise, fanless solutions.
Does the MS130-24 support stacking? The MS130-24 provides increased physical stacking capabilities.
What mounting options are available for the MS130-24? It is U-rack mountable with integrated ears on the front pane.
Does the MS130-24 support Quality of Service (QoS)? Yes, it supports voice and video QoS.
What security features does the MS130-24 offer? It has 802.1X authentication, DHCP snooping, and wired security capabilities.
How is firmware updated on the MS130-24? Firmware updates are seamless and managed through the cloud dashboard.
Does the MS130-24 support remote troubleshooting? Yes, it provides remote troubleshooting capabilities via the Meraki dashboard.
What is the switch fabric performance of the MS130-24? It features a non-blocking switch fabric.
Does the MS130-24 support DHCP relay? Yes, it supports DHCP relay functionality.
How is the initial configuration of the MS130-24 performed? It supports zero-touch provisioning for easy deployment.
Are there any models with multi-gigabit (mGig) ports? Yes, the MS130-24X model features 18x 1 GbE ports, 6x 2.5 GbE ports, and 4x 10G SFP+ uplinks.
How can I reset the MS130-24 to factory settings? There is a factory reset button on the front panel. Pressing and holding it for at least five seconds restores factory settings.
What do the LED indicators on the MS130-24 signify? The LEDs show power status, cloud connectivity, firmware updates, and port activity.
Does the MS130-24 support SFP+ modules? The MS130-24X model supports 4x 10G SFP+ uplinks, while the standard MS130-24 supports 4x 1G SFP uplinks
What is the maximum switching capacity of the MS130-24? The MS130-24 features a non-blocking switch fabric, but the exact capacity is not specified in the provided information.
