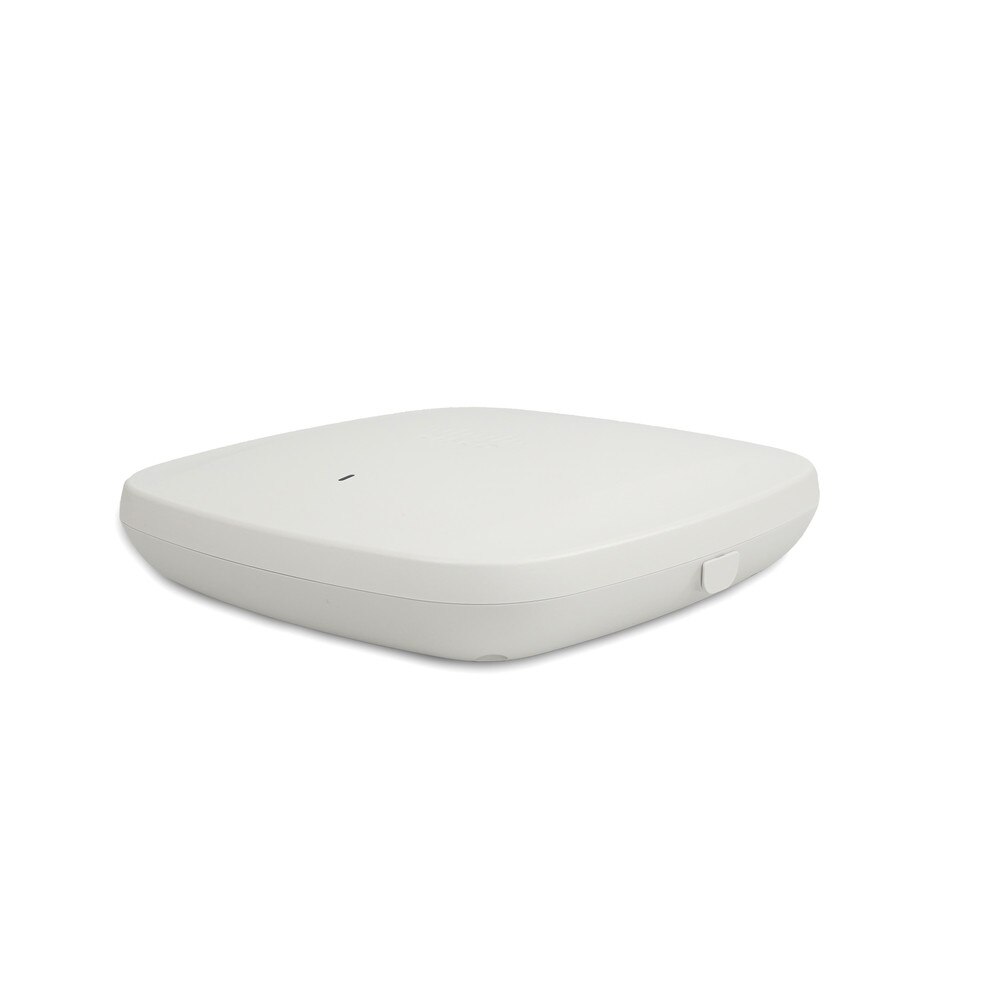

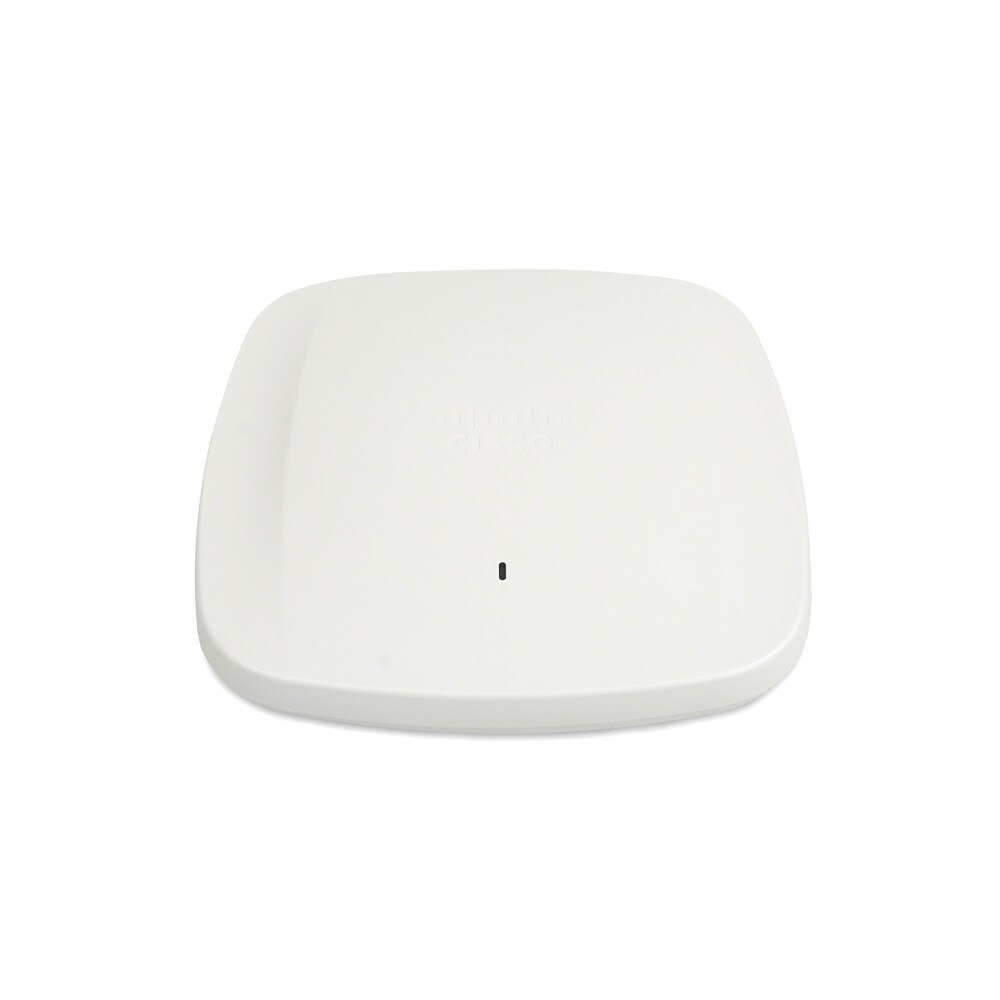

Cisco Meraki CW9166 Wireless Access Point (CW9166I-MR) (Unclaimed) | New
SKU: CW9166I-MR-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Meraki CW9166 Wireless Access Point (CW9166I-MR) | New
The Cisco Meraki CW9166 Wireless Access Point (CW9166I-MR) is an ultra-high-performance indoor access point that provides excellent wireless connectivity in high-density environments. The CW9166, with its advanced features and cloud-managed capabilities, is ideal for businesses looking to improve their network infrastructure and provide users with reliable connectivity. The CW9166 has tri-band radios, including support for the new 6 GHz band, and can achieve an aggregate frame rate of up to 7.78 Gbps. This access point uses 4x4 MU-MIMO technology, which allows it to serve multiple clients at the same time, significantly improving network efficiency and user experience. The device operates at 2.4 GHz, 5 GHz, and 6 GHz frequencies, ensuring optimal performance with minimal interference.
The Cisco Meraki CW9166 is designed for flexibility and supports Power over Ethernet (PoE), allowing for easy installation without the need for additional power sources. It includes a dedicated fourth radio for real-time wireless intrusion detection and prevention (WIDS/WIPS), which improves network security and management. Additionally, the built-in Bluetooth Low Energy (BLE) radio allows for IoT applications and location tracking. The Meraki cloud management platform enables simple deployment, monitoring, and management of the access point from anywhere. IT teams can quickly and efficiently set up the CW9166 thanks to its self-provisioning capabilities, while automatic firmware updates keep the device secure and up to date. The Cisco Meraki CW9166 is a critical component for organizations looking to build a strong wireless network that can handle high user density while also providing exceptional performance and security.
Key Features of Cisco Meraki CW9166 Wireless Access Point
• Tri-Band Support operates on 2.4 GHz, 5 GHz, and 6 GHz bands for enhanced performance and capacity.
• 7.78 Gbps Aggregate Frame Rate with high throughput to support bandwidth-intensive applications like video conferencing.
• 4x4 MU-MIMO technology serves multiple clients simultaneously for improved network efficiency.
• Real-time WIDS/WIPS capabilities for enhanced security management.
• Intuitive Meraki dashboard for simplified deployment, monitoring, and management.
• Bluetooth Low Energy Radio supports IoT applications and location services.
• Power over Ethernet (PoE) simplifies installation by delivering power through the Ethernet cable.
Specifications
Specification for Cisco Meraki CW9166 Wireless Access Point (CW9166I-MR) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | CW9166I-MR |
| Product Name | Cisco Meraki CW9166 Wireless Access Point |
| Product Type | Access Point |
Ruggedized Design | Indoor |
Width | 9.5 in |
Depth | 9.5 in |
Height | 2.2 in |
Weight | 3.53 lbs |
RAM | 2 GB |
Flash Memory | 1 GB |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 7.78 Gbps |
Line Coding Format | OFDMA |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.1 LE, IEEE 802.11ax (Wi-Fi 6E) |
Spread Spectrum Method | OFDMA |
Remote Management Protocol | HTTP |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Status Indicators | Status |
Features | DFS support, WLAN controller mode, LLDP support, Maximum Ratio Combining (MRC), universal power over Ethernet (UPOE), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, band steering, Tri-Band, Dynamic Frequency Selection (DFS), secure boot, 4x4:4 MU-MIMO technology, image signing, Cisco Trust Anchor module, BSS Coloring, Cisco Meraki compatible, Target Wake Time (TWT) |
Encryption Algorithm | AES, PEAP, WPA2-Enterprise, EAP-SIM, WPA3-Enterprise, WPA3-Personal, EAP-FAST, WPA3-Enhanced Open, WPA2-Personal, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-GTC, PEAPv1 |
Authentication Method | MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
Antenna | Internal |
Directivity | Omni-directional |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE) |

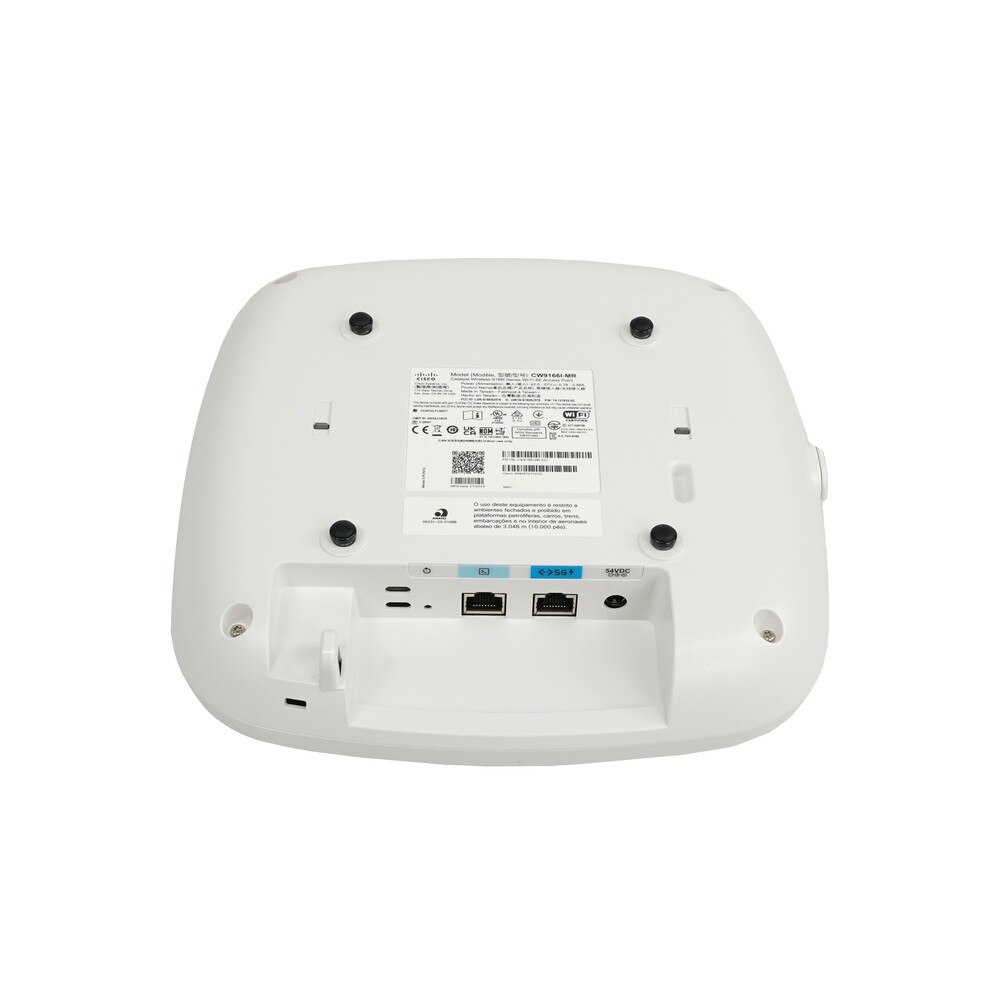

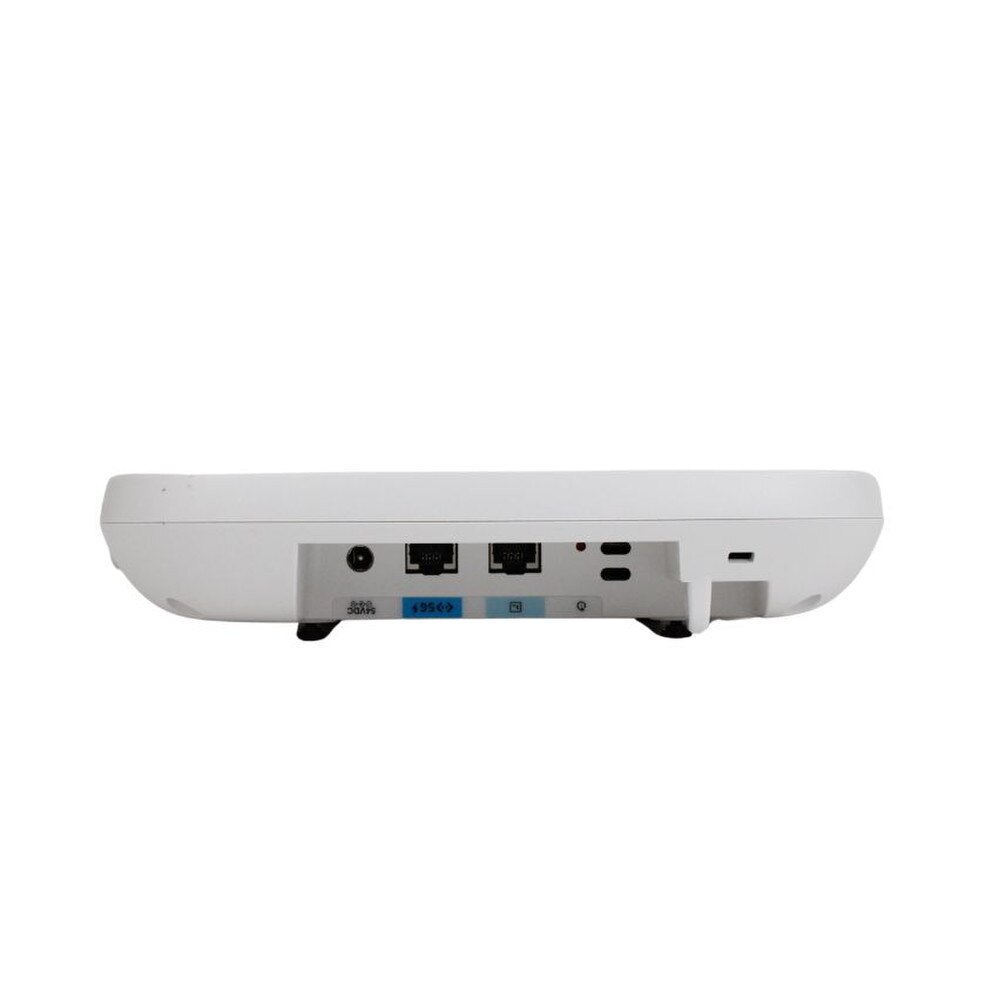

Interfaces | 1 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |
Compliant Standards | FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, UL Class III, CNS13438:2006, RSS-247, AS/NZS 2772.2, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017, EN 300 328 V2.2.2, EN 50385:2017, 47 CFR Part 2.1091, QCVN 112:2017, Japan Std. 66, Japan Std. 71, EN 55032:2015/A11:2020, EN 61000-3-3:2013+A1:2019, IEC 61000-3-2:2019, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, EN 301 489-17 V3.2.4 (2020-09), EN 301 489-1 V2.2.3 (2019-11), KS C 9832, EN 62311:2020, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, Draft EN 303 687 V0.0.14, EN55035:2017+A11:2020, AS/NZS 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, AS/NZS CISPR32:2015+AMD1:2020, ICES-003 issue 7 Class B, KS C 9835:2019, LP002 |
Power Over Ethernet (PoE) Supported | UPOE |
Software Included | Meraki Dashboard |
OS Required | Cisco IOS XE 17.9.1 or later |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: 5 days |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Meraki CW9166 Wireless Access Point (CW9166I-MR)
Frequently Asked Questions (FAQ's)
Does the CW9166 support MU-MIMO and OFDMA?Yes, it supports both MU-MIMO (Multi-User Multiple Input Multiple Output) and OFDMA (Orthogonal Frequency-Division Multiple Access) to improve efficiency when handling multiple devices at the same time.
What wireless standards does the CW9166 support?It supports Wi-Fi 6E (802.11ax) on the 2.4 GHz, 5 GHz, and 6 GHz bands and is backward compatible with Wi-Fi 5 (802.11ac) and previous standards.
What are the main benefits of Wi-Fi 6E in the CW9166?Wi-Fi 6E provides more spectrum with the 6 GHz band, resulting in faster speeds, less interference, and greater capacity for more devices.
How fast is the Cisco Meraki CW9166?The CW9166's tri-band radios enable aggregate data rates of up to 7.8 Gbps.
Is the CW9166 cloud-managed?Yes, it is managed using the Meraki Dashboard, which offers centralized cloud management, visibility, and control.
What security features does the CW9166 offer?It features WPA3 encryption, built-in malware protection, automatic firmware updates, and rogue device detection.
Can the CW9166 be deployed in high-density environments?Yes, the CW9166 is best suited for high-density environments such as schools, offices, stadiums, and public spaces.
What are the supported frequency bands on the CW9166?For better performance, the access point supports frequency bands 2.4 GHz, 5 GHz, and 6 GHz.
Does the CW9166 support PoE (Power over Ethernet)?Yes, it supports PoE+ (802.3at), making deployment easier without the need for separate power sources.

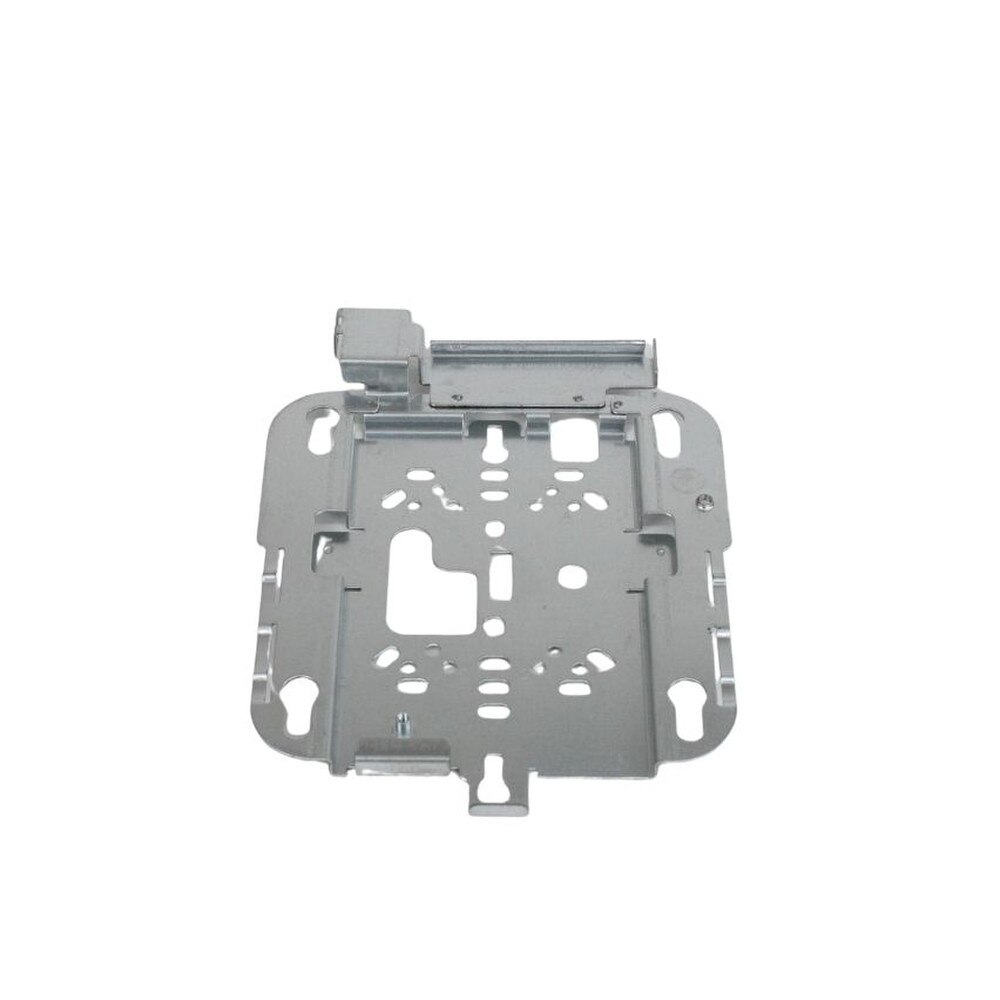

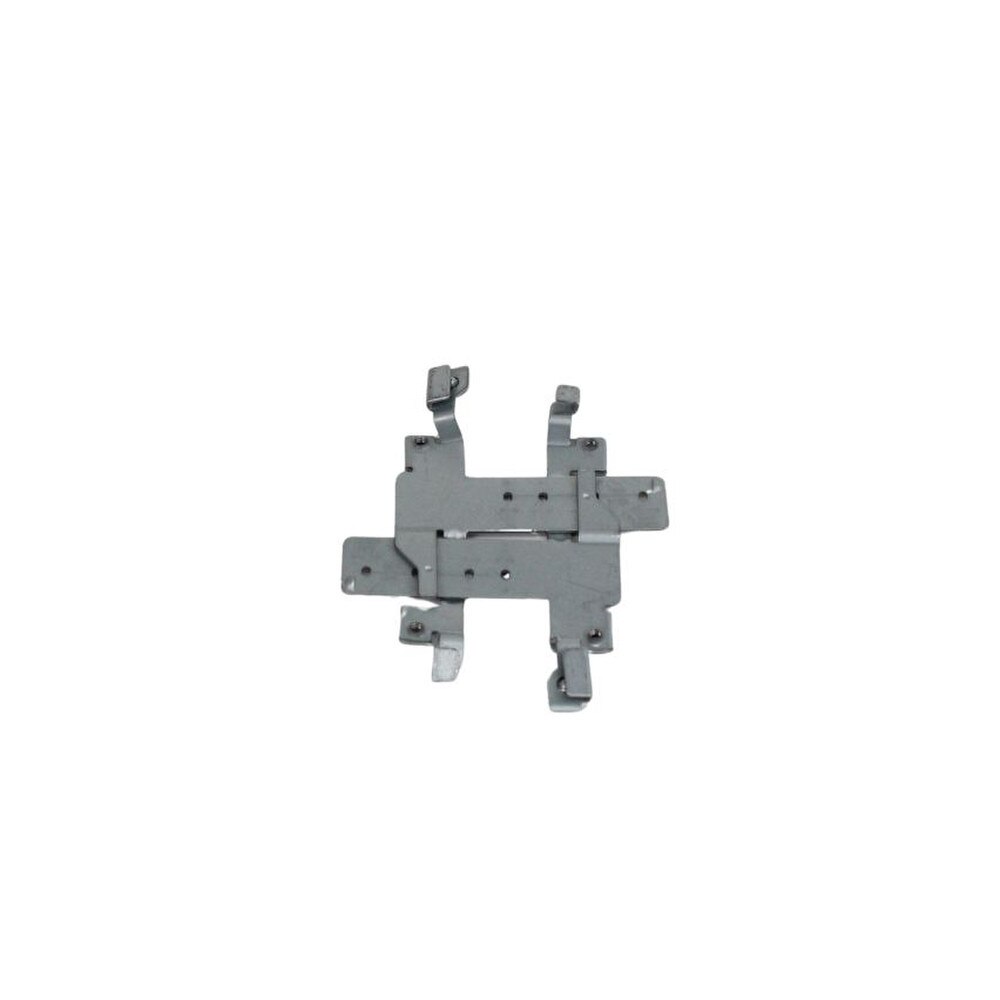

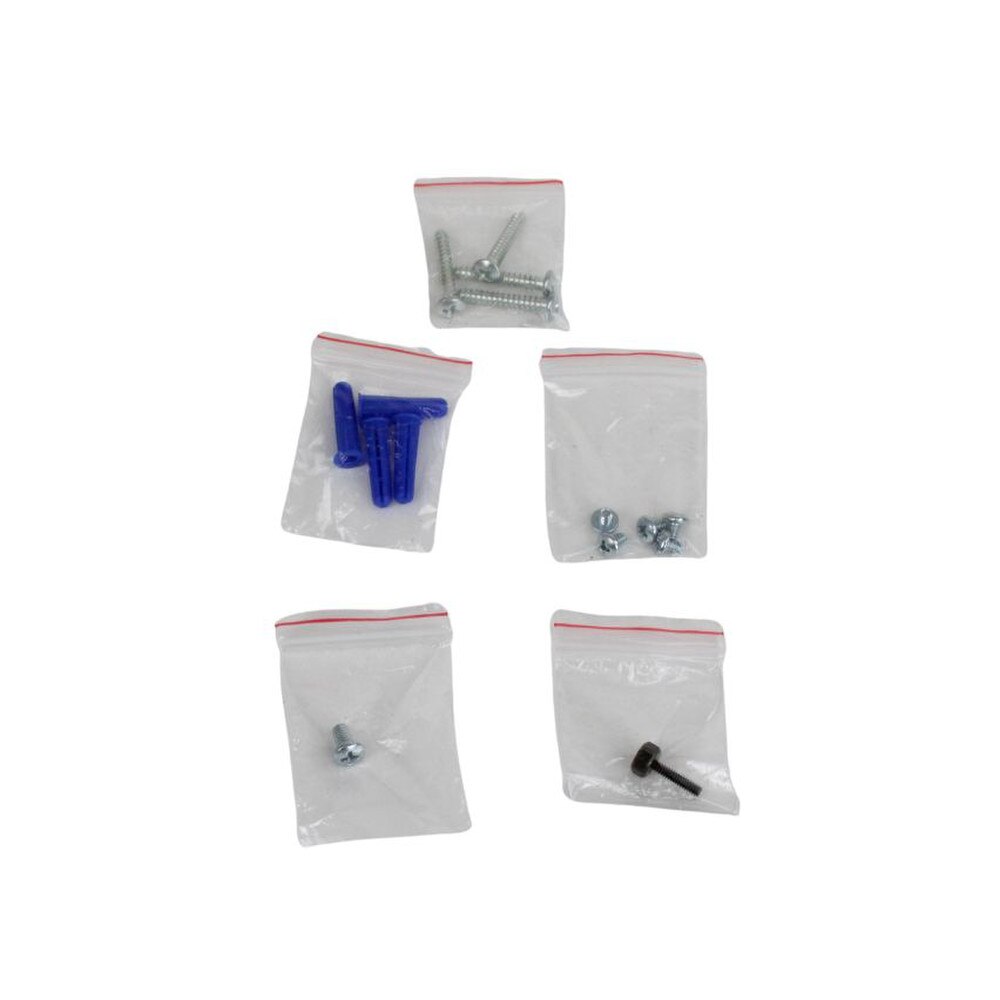

What mounting options are available for the CW9166?It can be mounted on the ceiling or wall using the included hardware, and there are additional mounting kit options.
How does the CW9166 handle firmware updates?Firmware updates are automatically delivered via the Meraki cloud platform, ensuring the device is always up to date.
What are the management features of the Meraki Dashboard for CW9166?The dashboard provides remote monitoring, network health checks, security configurations, troubleshooting tools, and detailed reporting.
What types of environments are suitable for the CW9166?The CW9166 is adaptable to both indoor and outdoor environments, making it ideal for business, education, and public spaces.
Does the CW9166 support IoT devices?Yes, the CW9166 is intended to support IoT devices with low latency and high reliability across the 6 GHz spectrum.
What is the range of the Cisco Meraki CW9166?The range is determined by environmental factors, but it typically covers large areas with fewer access points due to its high-performance radios.
Can the CW9166 work in mesh mode?Yes, the CW9166 supports mesh networking, which enables seamless coverage across large areas without the need for extensive cabling.
Is the CW9166 backward-compatible with older devices?Yes, the CW9166 supports older devices that use Wi-Fi 5 and earlier standards, but newer devices will reap the full benefits of Wi-Fi 6E.
What is the maximum number of client devices the CW9166 can support?The CW9166 can support hundreds of client devices, making it ideal for high-density environments like large offices, schools, and stadiums.
How does the CW9166 handle multiple SSIDs?The CW9166 is capable of broadcasting multiple SSIDs and assigning different policies, access controls, and bandwidth limits to each.
What type of antenna does the CW9166 have?The CW9166 has internal, omnidirectional antennas that provide wide coverage across all three supported bands.
