Overview

Overview of Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera (MV72-HW) | New

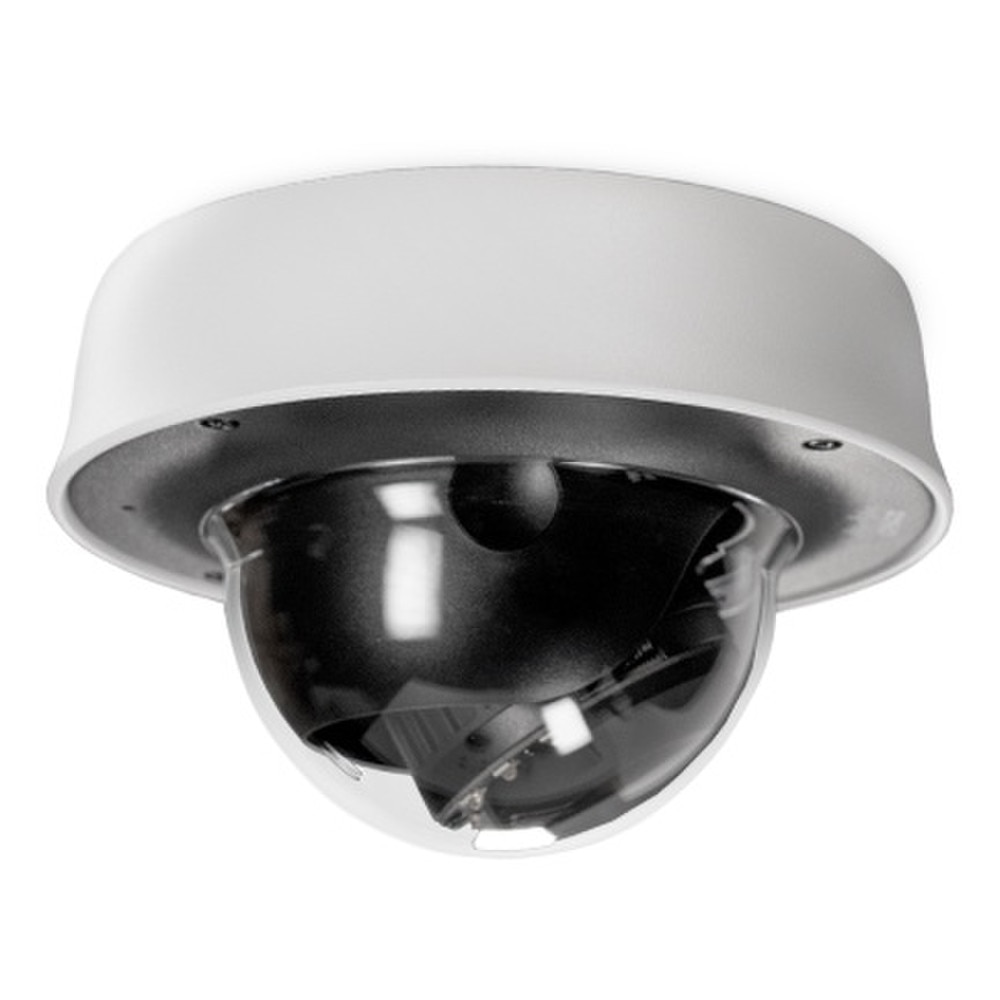

The Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera (MV72-HW) is a high-performance, cloud-managed smart camera intended for harsh outdoor conditions. This powerful security camera combines advanced capabilities with simple management, making it excellent for a variety of outdoor applications. The MV72 has a 3-9mm varifocal lens, which allows for a variety of field-of-view options. With 1080p HD video recording capability and 256GB of onboard storage, it allows for high-quality footage retention without the need for additional network video recorders. The camera's IP67 weather protection and IK10+ impact certification make it appropriate for use in tough outdoor environments.


Key Features of Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera


• 1080p HD video recording with H.264 encoding

• 256GB high-endurance solid-state onboard storage

• 3-9mm varifocal lens with 36-112° horizontal field of view

• IP67 weather resistance and IK10+ impact resistance

• Built-in IR illuminators effective up to 30 meters (98 ft)

• 802.11ac wireless capability for flexible deployment

• Cloud-augmented edge storage for simplified infrastructure

• Integrated microphone for audio recording

• Advanced motion-based analytics and search capabilities

• Person detection powered by machine learning technology

• Meraki dashboard for intuitive cloud management

• Granular user access controls for enhanced security

• Compatible with MV Sense licenses for business intelligence

• No special software or browser plugins required

Specifications

Specification for Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera (MV72-HW) | New

Manufacturer Cisco
Manufacturer Part Number MV72-HW
Product Name Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera
Product Type Camera
Device Type
Network surveillance camera
Form Factor
Dome
Connectivity Technology
Wired, wireless
Width
6.5 in
Depth
6.5 in
Height
4.1 in
Weight
2.75 lbs
Type
Color - Day&Night - fixed - outdoor - vandal / weatherproof
Digital Video Format
H.264
Max Digital Video Resolution
1920 x 1080
Video Modes
1080p
Exposure Range
1/30 sec - 1/32000 sec
Minimum Illumination
0.18 lux - color ¦ 0.01 lux - IR
Infrared LEDs
Yes
Infrared Distance
98 ft
Digital Video Capture Resolution
1920 x 1080
Frame Rate (max)
20 frames per second
Features
Heater, LED indicator, High Dynamic Range (HDR)
Type
4 MP CMOS 1/3"
Total Pixels
1520 x 2688
Type
Vari-focal
Optical Zoom
3 x
Focal Length
3 mm - 9 mm
Lens Iris
F/1.2-2.3
Horizontal Field of View (degree)
36 - 122
Vertical Field of View (degree)
20 - 57
Range (degree)
354
Range (degree)
65
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DSCP
Ports
LAN/power - RJ-45
Included Accessories
Ceiling mount kits, wall mount kit
Compliant Standards
AES-256, IK10, IP66, TLS, IEEE 802.3af
Power Requirements
PoE
Power Device
23.4 Watt
Service & Support
Limited warranty - advance parts replacement - 3 years
Min Operating Temperature
-40 °F
Max Operating Temperature
122 °F

User Guides

Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera (MV72-HW) Data Sheet

Frequently Asked Questions

Cisco Meraki MV72 Varifocal Dome Outdoor Security Camera (MV72-HW)
Frequently Asked Questions (FAQ's)



Does the MV72-HW support digital zoom?
  • Yes, the camera supports digital zoom, which allows you to focus on specific areas of recorded video using the Meraki Dashboard
    • Is the MV72-HW weatherproof?
  • Yes, the MV72-HW is IP67-rated, which means it is dust and water resistant and can be used outdoors in a variety of weather conditions.
    • Does the MV72-HW support night vision?
  • Yes, the camera has infrared (IR) LEDs for night vision, which allows it to capture clear video in low light or complete darkness.
    • What is the video resolution of the MV72-HW?
  • The camera captures video in high definition, up to 1080p (1920x1080).
    • How is the MV72-HW managed?
  • The MV72-HW is managed using the Meraki Dashboard, a cloud-based platform that allows for centralized control and monitoring of all connected cameras.
    • Does the MV72-HW support Power over Ethernet (PoE)?
  • Yes, the MV72-HW supports PoE, which allows power and data to be delivered over the same Ethernet cable.
    • What is the field of view of the MV72-HW?
  • The camera has a varifocal lens with a field of view that ranges from 31° to 75°, allowing for variable zoom and focus.
    • Does the MV72-HW have onboard storage?
  • Yes, the camera has up to 256 GB of solid-state storage, allowing local recording without the need for an external NVR or DVR.
    • Is the MV72-HW compatible with third-party video management systems (VMS)?
  • The MV72-HW is intended to be used with the Meraki Dashboard and does not natively integrate with other VMS solutions.
    • Can the MV72-HW be used indoors?
  • While intended for outdoor use, the MV72-HW can be deployed indoors if necessary, providing versatile installation options.
    • What analytics features are available on the MV72-HW?
  • The camera includes advanced analytics features such as motion detection, object detection, and people counting, which are all managed via the Meraki Dashboard.
    • How is video footage stored and accessed on the MV72-HW?
  • Video footage is saved locally on the camera's onboard storage and can be accessed remotely using the Meraki Dashboard.
    • Does the MV72-HW support cloud archiving?
  • Yes, video footage can be archived to the cloud, allowing for long-term storage and convenient retrieval of historical footage.
    • How is the MV72-HW powered?
  • The camera is powered via Power over Ethernet (PoE), which makes installation easier by eliminating the need for separate power cables.
    • What are the mounting options for the MV72-HW?
  • The MV72-HW includes a number of mounting accessories, allowing it to be installed on walls, poles, or ceilings.
    • Can the MV72-HW be accessed remotely?
  • Yes, the camera can be accessed remotely via the Meraki Dashboard, allowing live viewing, playback, and management from any location with an internet connection.
    • How does the MV72-HW handle motion detection?
  • The camera detects and alerts on motion events using built-in motion analytics, which can be adjusted for sensitivity and region of interest.
    • What is the operating temperature range for the MV72-HW?
  • The MV72-HW is designed to operate in temperatures ranging from -40°C to 50°C (-40°F to 122°F).
    • Does the MV72-HW support two-way audio?
  • No, the MV72-HW does not support two-way audio; it is primarily intended for video surveillance.
    • How is the MV72-HW secured against tampering?
  • The camera has tamper-resistant housing and secure data encryption, which protects recorded footage and camera settings from unauthorized access.
