Cisco Meraki MV32 Indoor Smart Security Fisheye Camera (MV32-HW) (Unclaimed) | New
SKU: MV32-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Meraki MV32 Indoor Smart Security Fisheye Camera (MV32-HW) | New

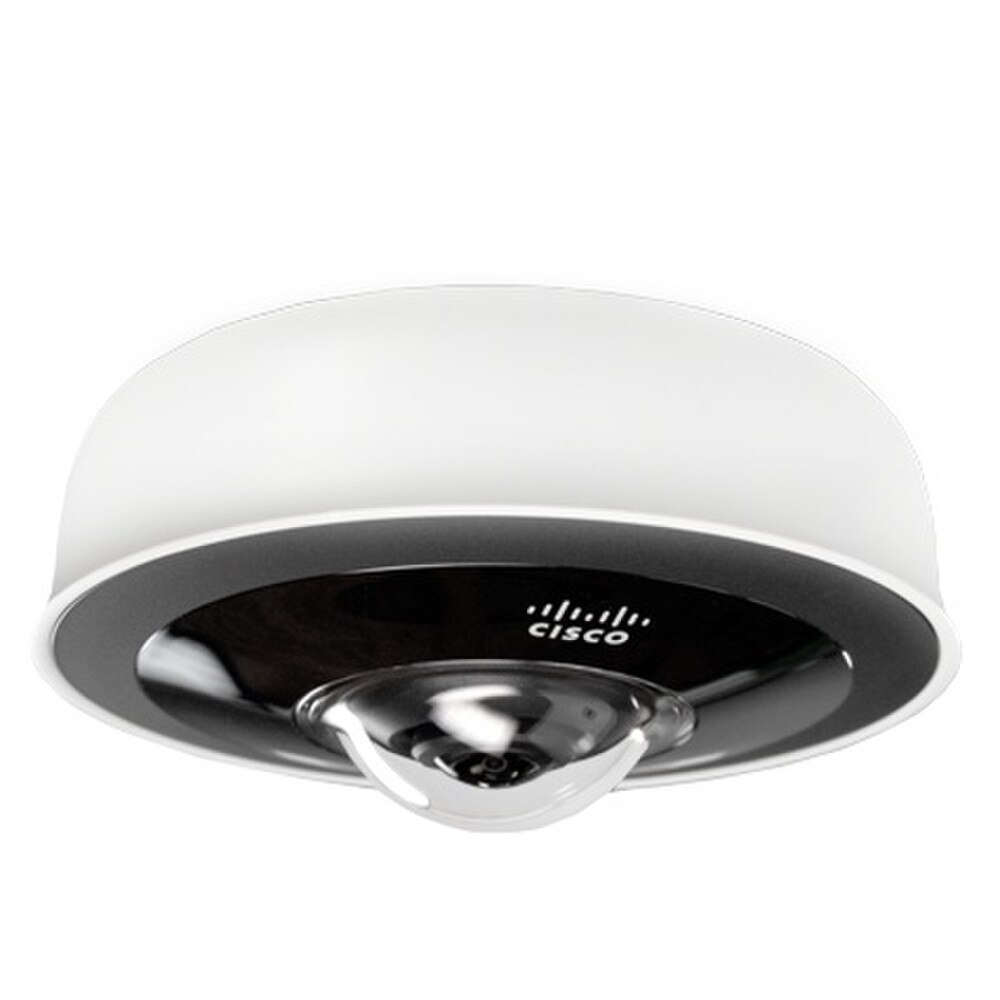

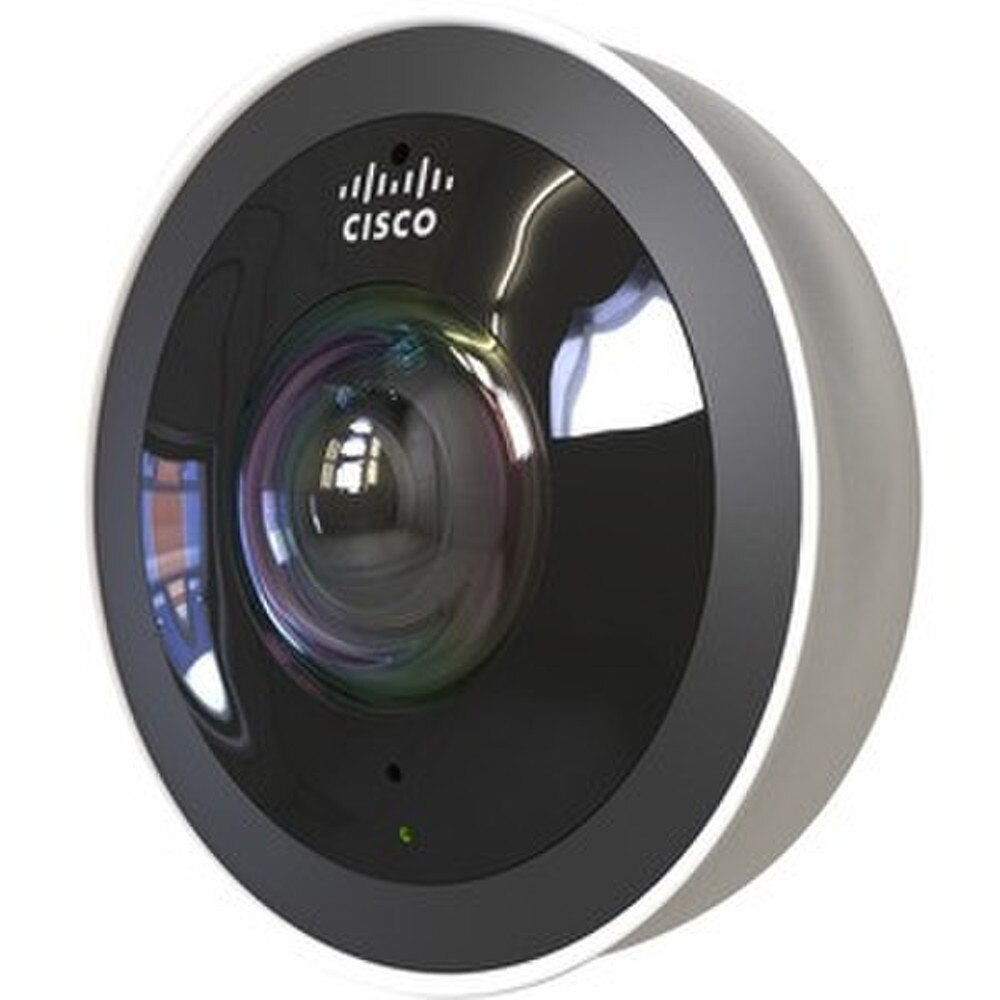

The Cisco Meraki MV32 Indoor Smart Security Fisheye Camera (MV32-HW) is a sophisticated surveillance solution that combines 360-degree visibility with extensive analytics capabilities in a small package. This cloud-managed smart camera transforms indoor monitoring by combining extensive coverage and business intelligence in one device. With its powerful 8.4MP sensor and advanced machine learning capabilities, the MV32-HW offers both security surveillance and significant analytical insights. The camera has integrated storage and cloud management via the Meraki dashboard, removing the need for traditional Network Video Recorders (NVR) and simplifying deployment and management.
Key Features of Cisco Meraki MV32 Indoor Smart Security Fisheye Camera
• 360-degree field of view with 180° horizontal and vertical coverage
• 8.4MP sensor with up to 2058 x 2058 resolution recording
• 256GB integrated high-endurance solid-state storage
• Advanced analytics powered by machine learning for object detection and tracking
• Cloud-managed through intuitive Meraki dashboard interface
• Built-in motion analytics including motion search and heatmaps
• Wireless capability with 802.11ac support
• Integrated microphone for audio recording
• Full disk encryption with AES 256-bit security
• Power over Ethernet (PoE) support with 12.95W consumption
• Compact design with 106mm x 45.86mm dimensions
• Real-time object detection and classification capabilities
• Client-side dewarping with virtual pan, tilt, and zoom
• Operating temperature range of 0°C to 40°C
• Compatible with MV Sense licenses for enhanced analytics
Specifications
Specification for Cisco Meraki MV32 Indoor Smart Security Fisheye Camera (MV32-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MV32-HW |
| Product Name | Cisco Meraki MV32 Indoor Smart Security Fisheye Camera |
| Product Type | Camera |
Device Type | Network Surveillance Camera |
Audio Support | Yes: built-in microphone |
Form Factor | Dome |
Connectivity Technology | Wired, wireless |
Width | 4.2 in |
Depth | 4.2 in |
Height | 1.8 in |
Weight | 7.58 oz |
Type | Color - fixed - indoor |
Digital Video Format | H.264 |
Max Digital Video Resolution | 2058 x 2058 |
Exposure Range | 1/30 sec - 1/32000 sec |
Minimum Illumination | 0.18 lux |
Video Capture | 2058 x 2058 @ 15 fps ¦ 1080 x 1080 @ 8 fps |
Flash Memory | 256 GB |
Features | LED indicator, reset button, High Dynamic Range (HDR), WPA, WPA2-PSK, WPA2-Enterprise |
Type | 8.4 MP CMOS 1/2.5" |
Type | Fixed focal |
Focal Length | 1.19 mm |
Lens Iris | F/2.0 |
Horizontal Field of View (degree) | 180 |
Vertical Field of View (degree) | 180 |
Network Interface | IEEE 802.11b, IEEE 802.11g, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac |
Network Protocols | DSCP |
Ports | LAN/power - RJ-45 |
Included Accessories | Wall mount kit |
Compliant Standards | AES-256, TLS, IEEE 802.3af, IEEE 802.1x |
Power Requirements | PoE |
Power Device | 12.95 Watt |
Service & Support | Limited warranty - advance parts replacement - 3 years |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
User Guides
Frequently Asked Questions
Cisco Meraki MV32 Indoor Smart Security Fisheye Camera (MV32-HW)
Frequently Asked Questions (FAQ's)
What is the field of view of the Cisco Meraki MV32? The MV32 has a 180-degree horizontal and vertical field of view, giving you a full 360-degree view of the monitored space.
What is the video resolution of the MV32? The MV32 has an 8.4MP sensor capable of recording video at a resolution of 2058 x 2058.
What analytics capabilities does the MV32 have? The MV32 employs machine learning and computer vision technology to perform real-time object detection, classification, and tracking, allowing for features such as people counting and journey pathing.
Does the MV32 have integrated storage? Yes, the MV32 includes 256GB of high-density solid-state storage, eliminating the need for a separate Network Video Recorder (NVR) or Video Management System.
How is the MV32 managed? The MV32 is managed using Meraki's cloud-based dashboard, which provides centralized control and visibility across an organization's security infrastructure.
What is the power consumption of the MV32? The MV32 consumes a maximum of 12.95W via 802.3af PoE.
What is the operating temperature range of the MV32? The MV32 can operate in temperatures ranging from 0°C to 40°C (32°F to 104°F).
What are the dimensions of the MV32? The MV32 measures 106mm in diameter and 45.86mm in height.
What is the weight of the MV32? The MV32 weighs 215 grams.
What type of connectivity does the MV32 have? The MV32 features a female RJ45 Ethernet connector.
What accessories are available for the MV32? A Meraki 802.3at Power over Ethernet injector and a low voltage PoE injector with 12VDC/24VAC input are included as accessories.
How many cameras can be deployed with the MV32? The MV32 is suitable for deployments of any size, ranging from 1 to 10,000+ cameras.
What are the key features of the MV32? 360-degree visibility, high-quality video, advanced analytics, integrated storage, cloud management, and a compact design are some of the key features.
How does the MV32 integrate with other systems? The MV32 can be combined with Kisi access control technology to improve the administrative experience and add security features.
What are some use cases for the MV32? The MV32 can be used for security, safety, and business intelligence applications in a wide range of settings, including offices, retail stores, and manufacturing facilities.
