Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor (MT20-HW) (Unclaimed) | New
SKU: MT20-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

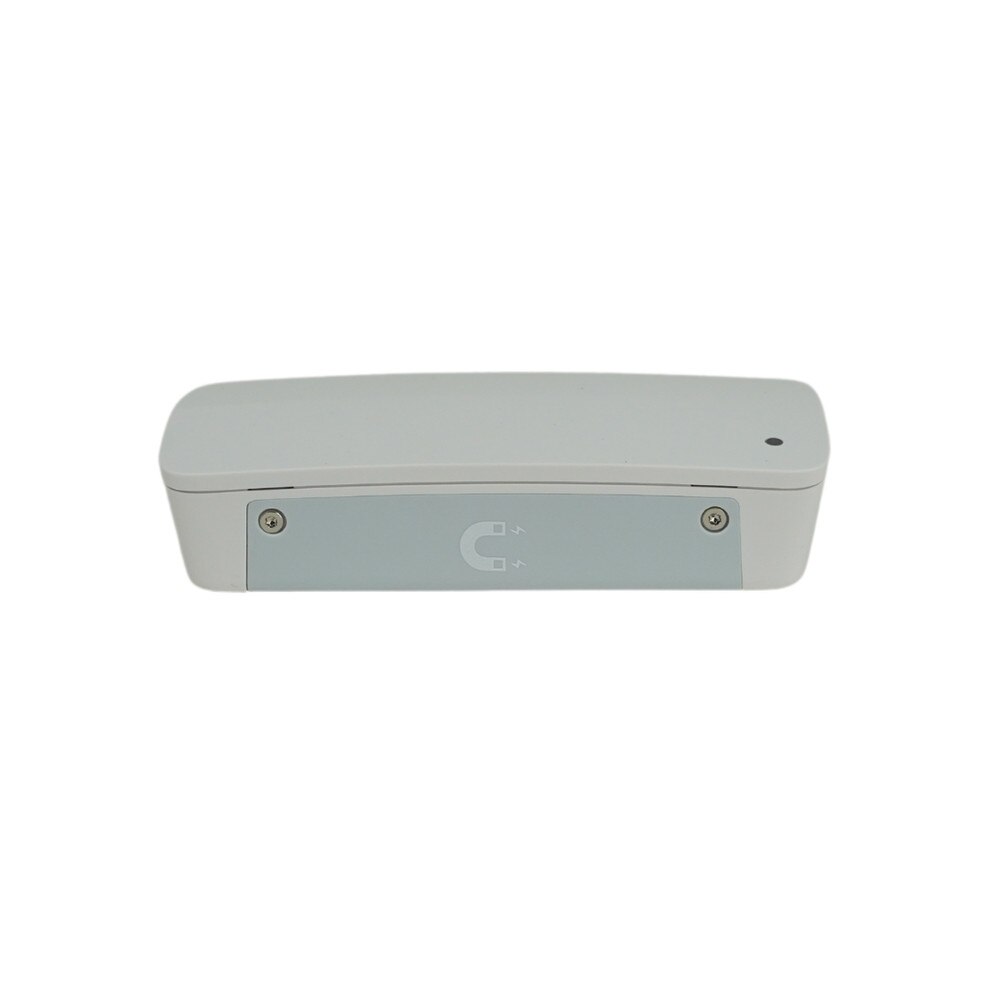

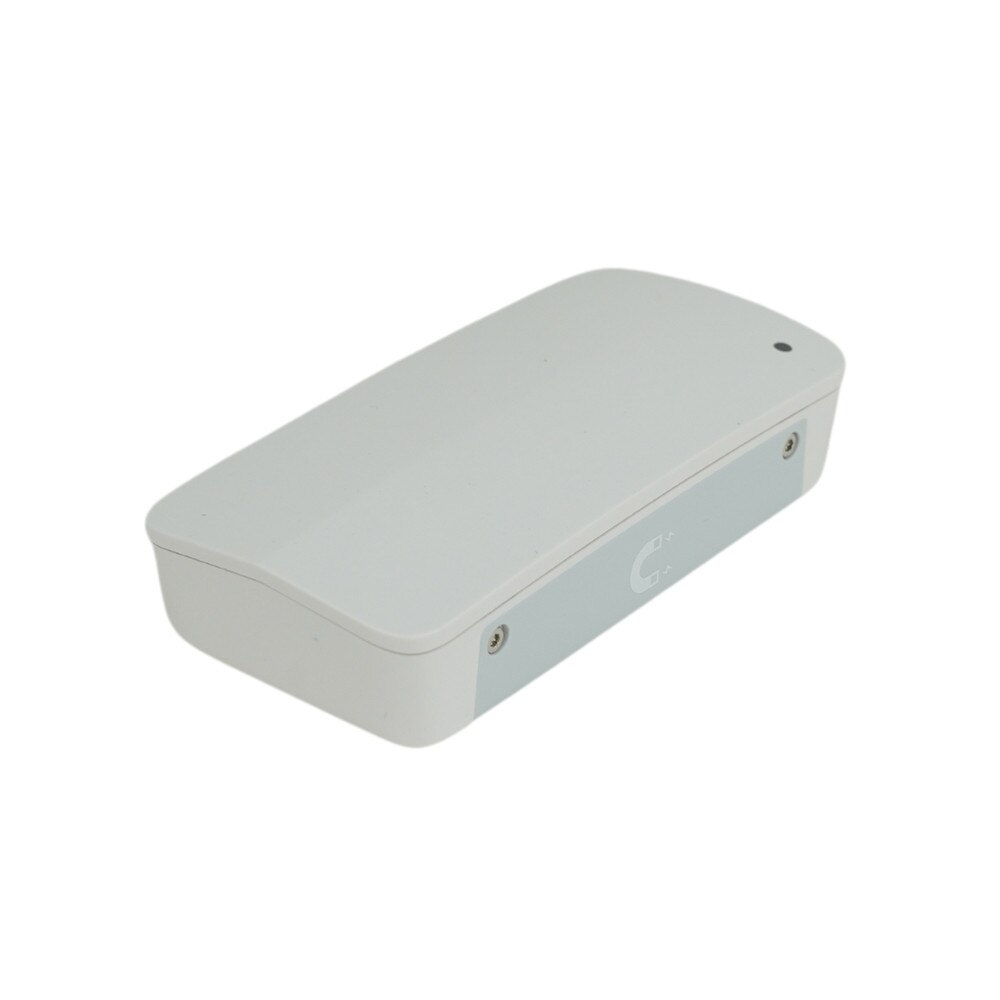

Overview of Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor (MT20-HW) | New
The Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor (MT20-HW) is an advanced IoT device that monitors and manages physical access to critical infrastructure and assets. This innovative sensor provides real-time insights into door and gate usage, allowing businesses to detect intrusions, avoid disruptions, and optimize operations. The MT20 uses magnetic field sensor technology to accurately detect when doors open or close, resulting in precise and reliable data. This advanced technology ensures that organizations can rely on the data they receive to make informed decisions about security and access control.
The MT20 integrates seamlessly with the Meraki platform, automatically connecting to Meraki MR access points or MV smart cameras over Bluetooth. This eliminates the need for a separate gateway, which simplifies setup and management. The Meraki cloud dashboard enables centralized monitoring and management, allowing organizations to easily track and analyze access trends. The MT20 includes strong security features like tamper detection reporting and automatic firmware updates, ensuring that the device is secure and up to date. The Trust Anchor module (TAm) securely authenticates the device and encrypts all communications, adding another layer of security.

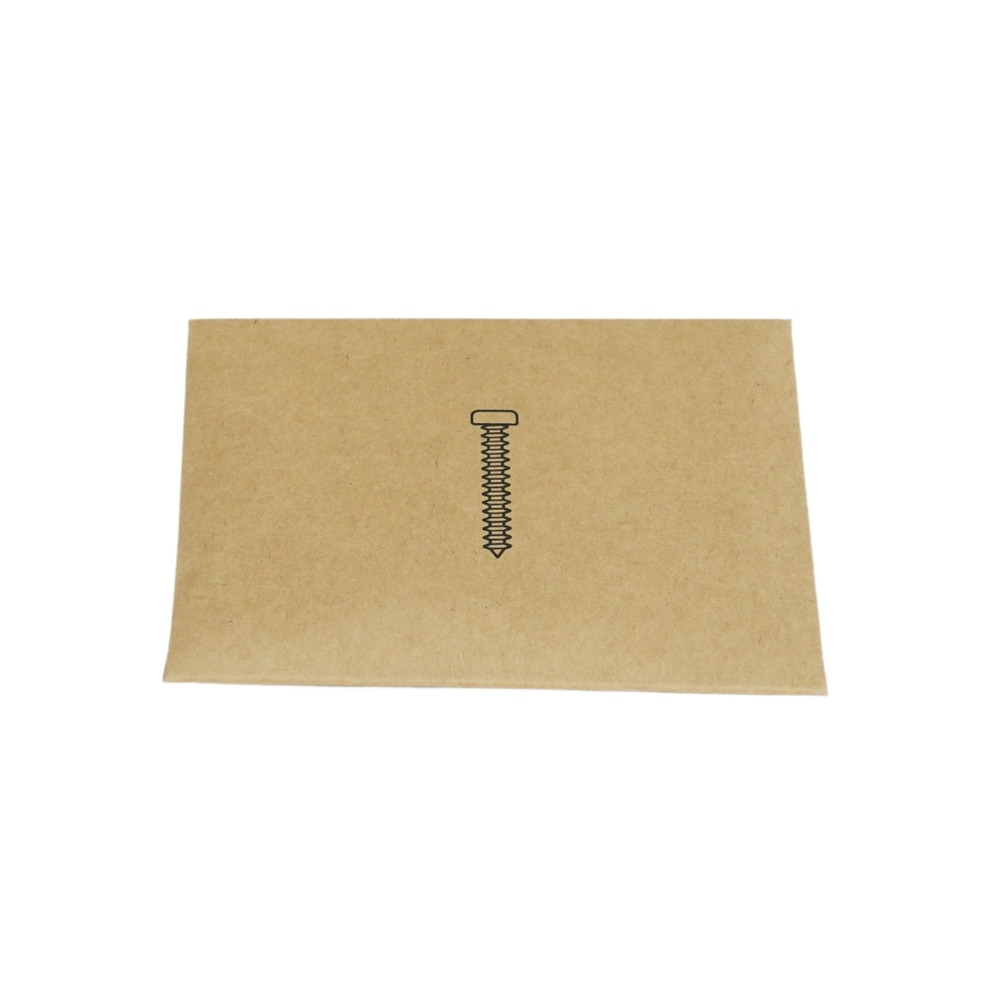

The MT20 has a long battery life of up to five years, which reduces maintenance and replacement costs. It also comes with versatile mounting options, such as VHB tape, mounting screws, and spacers, making it simple to install on doors, gates, cabinets, and more. The MT20 supports real-time monitoring and alerting, allowing organizations to respond quickly to security breaches or unauthorized access. Customizable thresholds and alerts can be set using SMS, push notifications, email, or webhooks to ensure that organizations receive timely notifications.
The MT20 is designed for scalability, with simple setup and deployment options. It is easily provisioned and managed, making it ideal for large-scale deployments. The modern mobile app enables on-the-go monitoring and troubleshooting, ensuring that organizations remain connected and informed. The Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor is an effective tool for organizations looking to improve physical security and access control. With advanced magnetic field sensor technology, seamless integration with the Meraki platform, and robust security features, this sensor provides real-time insights and alerts, allowing organizations to make informed decisions and optimize their operations.
Key Features of Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor
• Magnetic Field Sensor Technology uses magnetic fields to determine positioning and detect when doors are opened or closed.
• Cloud-Managed automatically connects via Bluetooth to Meraki MR access points or MV smart cameras, eliminating the need for a separate gateway.
• Provides real-time monitoring and alerting, allowing organizations to detect intrusions and understand access and usage trends.
• Includes tamper detection reporting to ensure the sensor remains secure and tamper-free.

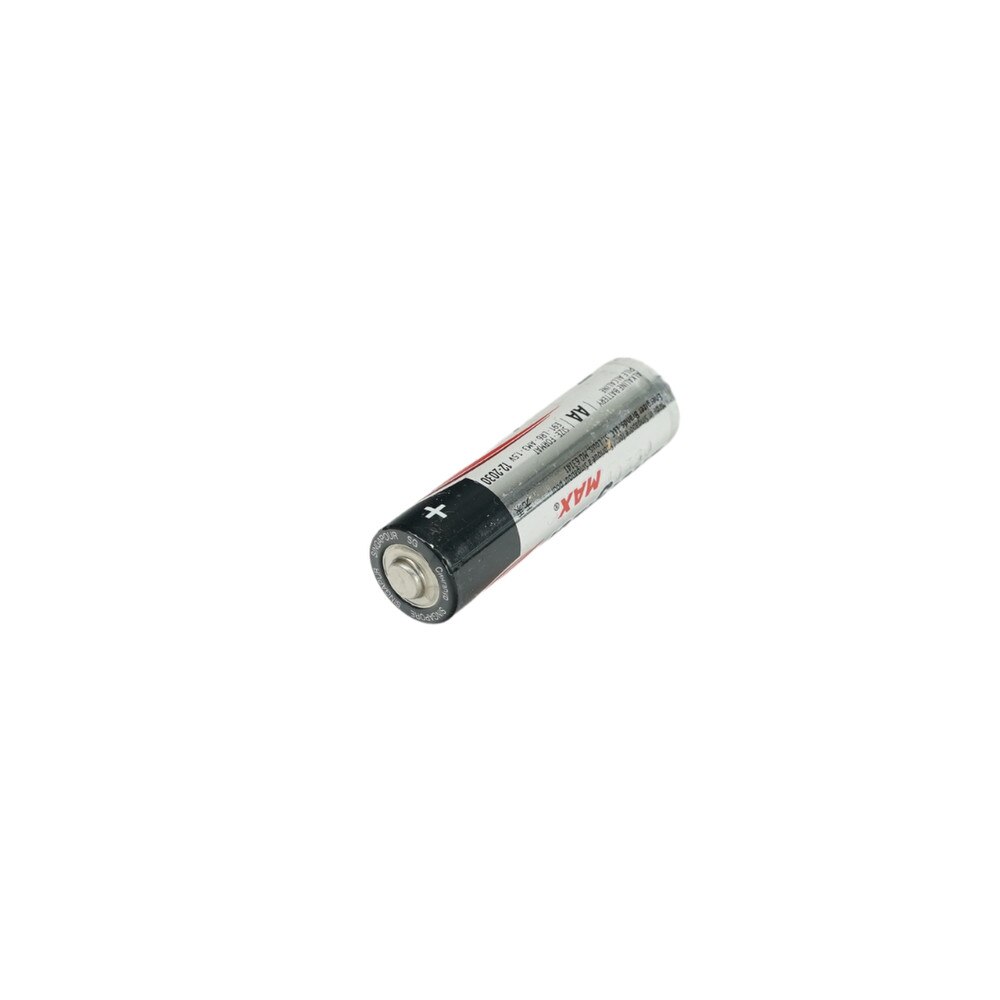

• Five-year battery life with two user-replaceable AA batteries.
• Wireless Connectivity uses Bluetooth Low Energy (BLE) for wireless connectivity.
• Includes a Trust Anchor module (TAm) that securely authenticates the device and encrypts all communications.
• Provides advanced telemetry data for smarter decision-making.
• Supports APIs and webhook alerts for third-party alerting and data analysis.
• Part of a vast ecosystem partner community building apps on top of the Meraki platform.
• Easy to set up and deploy, with a modern mobile app for on-the-go monitoring and troubleshooting.
• Offers flexible alerting with email, SMS, and push notifications.
• Scales easily to support large-scale deployments.
Specifications
Specifications for Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor (MT20-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MT20-HW |
| Product Name | Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor |
| Product Type | Door sensor |
Environment | Indoor |
Connectivity Technology | Wireless |
| Open/Close sensor | Intrusion detection using magnetic field via a Hall-effect senso |
| Bluetooth only via MV/MR as gateway | Compatible with second-generation MV smart cameras and Wi-Fi 6 MR access points |
| Operating frequency | 2.400–2.4835 GHz IEEE standard 802.15.1 (Bluetooth 4.2 Low Energy BLE) |
| IEEE standard | 802.15.1 (Bluetooth Low Energy 4.2) |
| Data Polling Frequency | Every 20 minutes, or immediately upon state change |
| Onboard data storage | 4,000 data points (5 days of data at the default sampling rate) |
| Security | Bluetooth Low Energy messages encrypted and authenticated using Cisco Trust Anchor technology |
| Power | One AA battery Battery life up to five (5) years |
| Operating Temperature | 0°C - 55°C (32F° - 131F°) |
| Operating humidity | 0-95% |
| Main device Dimensions | 81.2mm x 39.7mm x 19.5mm |

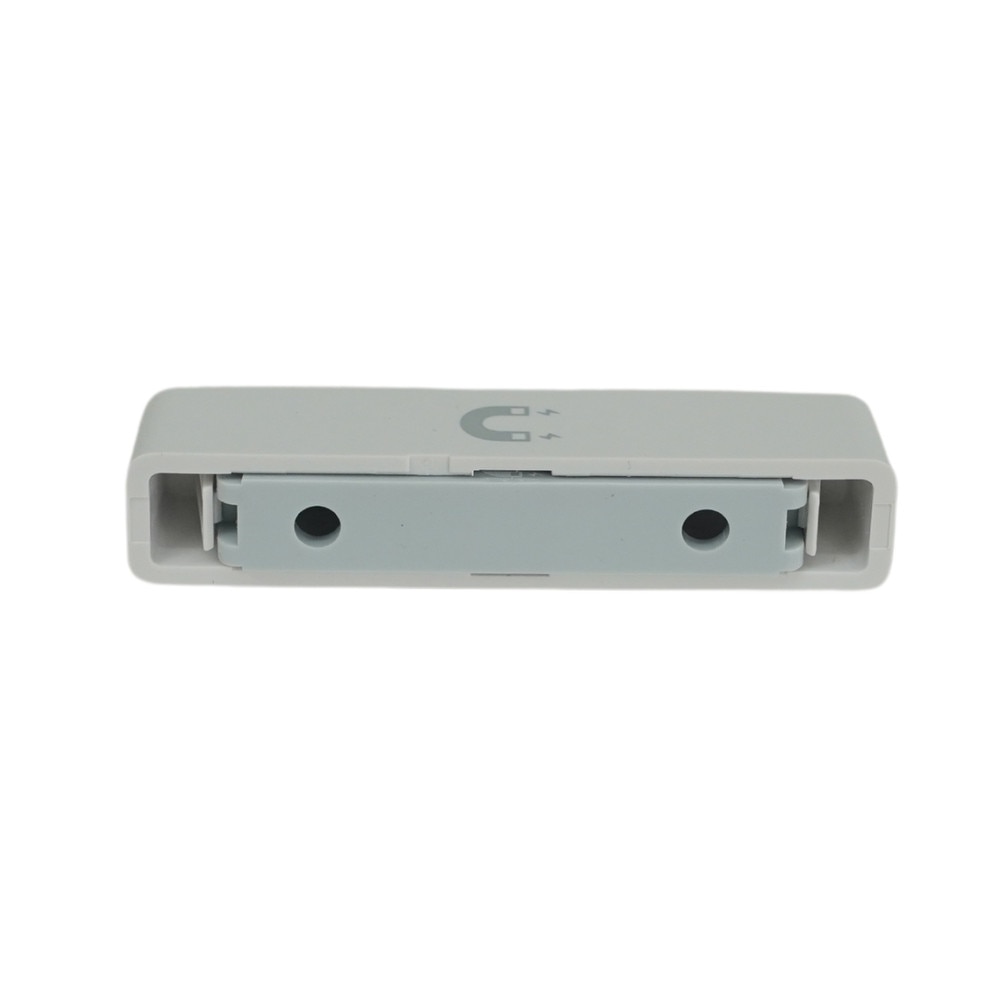

| Magnet cover Dimensions | 59.5mm x 12mm x 13.35mm |
| Physical characteristics | Battery compartment Multicolor, multifunction status LED General purpose button Reset button |
Designed For | Cisco Meraki MR36, MR45, MR46, MR46E, MR55, MR56, MV22, MV32, MV72, Narrow Angle MV12 Mini Dome HD Camera, Varifocal MV22 Indoor HD Dome Camera With 256GB Storage, Varifocal MV72 Outdoor HD Dome Camera With 256GB Storage, Wide Angle MV12 Mini Dome HD Camera |
User Guides
Frequently Asked Questions
Cisco Meraki MT20 Cloud-Managed Indoor Open/Close Sensor (MT20-HW)
Frequently Asked Questions (FAQ's)
What is the Cisco Meraki MT20? The Cisco Meraki MT20 is a cloud-managed indoor open/close sensor that monitors the status of doors, windows, and other access points.
How does the MT20 sensor work? The MT20 detects and reports the open or closed status of doors and windows via a magnetic reed switch.
What environments is the MT20 suitable for? It is appropriate for indoor settings like offices, retail stores, and warehouses.
How is the MT20 powered? The MT20 is battery-powered, allowing for easy installation without the need for wiring.
What kind of battery does the MT20 use? The MT20 runs on a CR123A lithium battery.
How long does the battery last in the MT20? The battery can last for up to 5 years, depending on usage.
How does the MT20 communicate with the Meraki cloud? The MT20 communicates with Meraki MR access points or MV smart cameras using Bluetooth Low Energy (BLE), which then send data to the Meraki cloud.
Do I need a Meraki access point to use the MT20? Yes, the MT20 requires a Meraki MR access point or an MV smart camera to function.
How is the MT20 managed? The MT20 is managed via the Meraki cloud dashboard, which enables centralized monitoring and configuration.
Can I receive alerts from the MT20? Yes, you can set up alerts for open/close events and receive them via email or SMS.
Is the MT20 compatible with other Meraki sensors? Yes, it seamlessly integrates with other Meraki MT sensors to provide comprehensive environmental monitoring.
What is included in the MT20 package? The package contains an MT20 sensor, a CR123A battery, mounting hardware, and a quick start guide.
How do I install the MT20 sensor? The MT20 is easily installed with the included adhesive tape or screws for more permanent mounting.
Can the MT20 be used outdoors? No, the MT20 is intended for indoor use only.
Does the MT20 support real-time monitoring? Yes, the MT20 delivers real-time status updates to the Meraki cloud dashboard.
What is the range of the MT20's Bluetooth communication? The typical range is up to 30 meters (100 feet) when connected to a Meraki MR access point or MV camera.
Can the MT20 be integrated with third-party systems? Yes, the MT20 can be integrated with third-party systems using the Meraki dashboard API.
What happens if the MT20 loses connectivity? If the MT20 loses connectivity, it will save event data locally and sync it with the Meraki cloud when connectivity is restored.
Is there a warranty for the MT20 sensor? Yes, the MT20 carries a one-year hardware warranty.
Where can I purchase the MT20? The MT20 can be purchased from authorized Cisco Meraki resellers, distributors, and online marketplaces.
