Cisco Meraki MR56 Wireless Access Point (MR56-HW) (Unclaimed) | New
SKU: MR56-HW-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

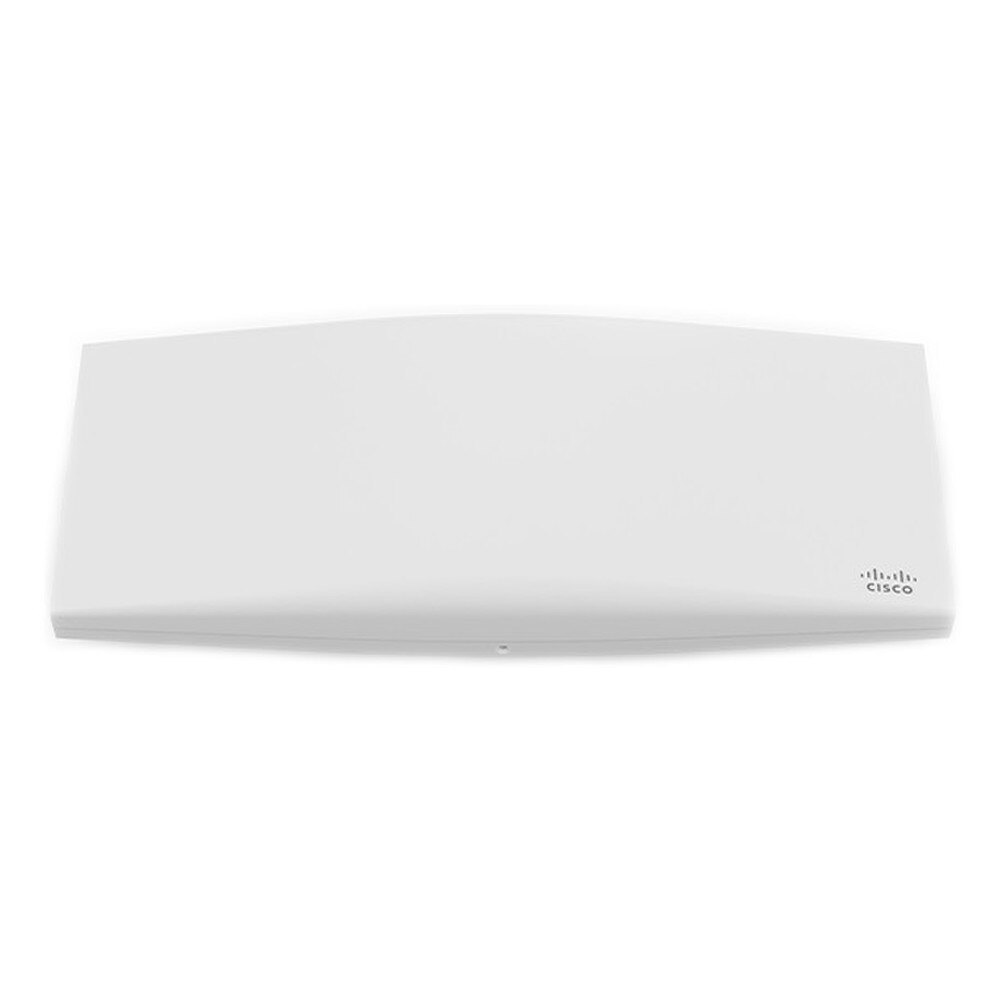

Overview of Cisco Meraki MR56 Wireless Access Point (MR56-HW) | New
The Cisco Meraki MR56 Wireless Access Point (MR56-HW) is a premium Wi-Fi 6 access point designed for high-density, demanding business settings including busy public spaces, colleges and businesses. With its industry-leading aggregate frame rate of up to 5.9 Gbps and state-of-the-art 8x8:8 MU-MIMO 802.11ax technology, the MR56 ensures uninterrupted connectivity for bandwidth-intensive applications and thousands of concurrent users. The user-friendly Meraki Dashboard, which offers centralized visibility, real-time analytics and automated firmware updates, makes network management easier with this cloud-managed access point. Its integrated environmental sensors, Bluetooth Low Energy (BLE) and advanced security features (including WPA3 and Air Marshal WIPS) further expand its potential for location services, threat prevention and the Internet of Things. Because of the MR56's quick deployment, low IT overhead and high uptime, businesses can easily scale wireless performance, security and dependability.
Key Features of Cisco Meraki MR56 Wireless Access Point
• Wi-Fi 6 (802.11ax) Support with 8x8:8 MU-MIMO and OFDMA maximize throughput, capacity and efficiency, accommodating mission-critical environments.
• Tri-Band Operation with simultaneously operates on 2.4 GHz and 5 GHz, with dedicated radios for security (WIDS/WIPS) and Bluetooth LE.
• 5.9 Gbps Aggregate Data Rate delivers exceptional wireless speeds for high-density and high-performance deployments.
• Cloud-Managed Simplicity that is centralized, real-time visibility and configuration using the Meraki Dashboard with zero-touch provisioning and automatic updates.
• Layer 7 Traffic Shaping with application-aware bandwidth and access control, including the ability to prioritize productivity tasks and restrict recreational traffic.
• Advanced Security Suite with WPA3 encryption, firewall, DNS security, antivirus scanning, Air Marshal WIPS and one-click guest access for robust network threat defense.
• Integrated BLE & Environmental Sensors that facilitate IoT integration, asset tracking and advanced analytics for business intelligence.
• Power over Ethernet (PoE+) that streamlined installation with support for 802.3at PoE+ and multigigabit Ethernet on a single RJ-45 port.
• Visitor Analytics & Location Services with real-time analytics for user presence and activity, supporting retail and event use cases.
Benefits of Cisco Meraki MR56 Wireless Access Point
🗹 Handles extreme client density, demanding applications and future-proof throughput for growing organizations.
🗹 Rapid deployment, centralized monitoring and automated maintenance reduce IT burden and ensure consistent uptime.
🗹 Industry-leading encryption, threat prevention and guest access protect sensitive data and users across the network.
🗹 BLE and environmental sensors support IoT devices, asset management and deliver actionable insights through location and usage analytics.
🗹 Designed for seamless growth—easily expand wireless coverage and manage multiple sites with a single dashboard.
🗹 Smart RF optimization, application shaping and automatic firmware ensure reliable and fast connections, every time.
🗹 PoE+, automatic self-provisioning help reduce installation and operational expenses.
Specifications
Specifications for Cisco Meraki MR56 Wireless Access Point (MR56-HW) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | MR56-HW |
| Product Name | Cisco Meraki MR56 Wireless Access Point |
| Product Type | Access Point |
Width | 12.8 in |
Depth | 5.5 in |
Height | 1.8 in |
Weight | 2.2 lbs |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 5.9 Gbps |
Line Coding Format | 1024 QAM, OFDMA |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Power, boot state, status |
Features | Firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, AES encryption, guest access, opportunistic key caching (OKC), packet aggregation, 8x8:8 streams, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT) |
Encryption Algorithm | AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open |
Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP) |
Compliant Standards | IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax |
Antenna | Internal |
Interfaces | 1 x 1/2.5/5GBase-T (PoE+) - RJ-45 |
Included Accessories | Mounting kit |
Compliant Standards | CSA, VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RSS-102, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, FCC CFR47 Part 15 C, EN 62311, EN 300 328, EN 50385, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208, NCC LP0002 |
Power Over Ethernet (PoE) Supported | PoE+ |
Power Device | External power adapter |
Voltage Required | DC 12 V (non-PoE) / 42.5 - 57 V (PoE+) |
Power Consumption Operational | 22 Watt |
Service & Support | Limited warranty - replacement - lifetime |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Meraki MR56 Wireless Access Point (MR56-HW)
Frequently Asked Questions (FAQ's)
What is the maximum wireless speed supported by the Cisco Meraki MR56? The MR56 supports speeds up to 3.5 Gbps with 802.11ax (Wi-Fi 6)
Does the Cisco Meraki MR56 support Wi-Fi 6 technology? Yes, the MR56 fully supports Wi-Fi 6 (802.11ax) technology.
How many devices can connect simultaneously to the Cisco Meraki MR56? The MR56 can support hundreds of devices depending on the network environment and configuration.
Is the Cisco Meraki MR56 suitable for high-density environments? Yes, the MR56 is designed for high-density environments such as offices, campuses, and conference centers.
What frequency bands does the Cisco Meraki MR56 operate on? The MR56 operates on both 2.4 GHz and 5 GHz frequency bands.
Does the Cisco Meraki MR56 have MU-MIMO capabilities? Yes, the MR56 supports MU-MIMO (Multi-User Multiple Input, Multiple Output) to improve performance in crowded environments.
What kind of security features does the Cisco Meraki MR56 offer? The MR56 offers WPA3 encryption, automatic firmware updates, and built-in intrusion detection and prevention.
Can the Cisco Meraki MR56 be managed through the Meraki cloud dashboard? Yes, the MR56 can be fully managed and monitored via the Cisco Meraki cloud dashboard.
What is the coverage range of the Cisco Meraki MR56? The coverage range varies based on the environment, but the MR56 can cover large areas such as auditoriums and open offices.
Does the Cisco Meraki MR56 support Power over Ethernet (PoE)? Yes, the MR56 supports PoE+ (802.3at), allowing it to be powered via Ethernet cable.
What type of Ethernet ports does the Cisco Meraki MR56 have? The MR56 features a 2.5 Gbps Ethernet port for high-speed connectivity.
Is the Cisco Meraki MR56 backward compatible with older Wi-Fi standards? Yes, the MR56 is backward compatible with 802.11a/b/g/n/ac Wi-Fi standards.
How does the Cisco Meraki MR56 handle interference in crowded wireless environments? The MR56 uses adaptive RF management and spectrum analysis to minimize interference and optimize performance.
Can I deploy multiple Cisco Meraki MR56 units for seamless roaming? Yes, the MR56 supports seamless client roaming across multiple access points.
What is the recommended installation environment for the Cisco Meraki MR56? The MR56 is ideal for large-scale indoor environments like schools, hospitals, and corporate offices.
Does the Cisco Meraki MR56 support mesh networking? Yes, the MR56 can be configured as part of a mesh network for extended coverage.
How do I configure and set up the Cisco Meraki MR56? The MR56 can be easily set up through the Meraki dashboard with minimal on-site configuration.
What kind of antennas are integrated with the Cisco Meraki MR56? The MR56 includes internal omnidirectional antennas designed for optimal indoor coverage.
Can the Cisco Meraki MR56 handle multiple SSIDs? Yes, the MR56 supports up to 16 SSIDs per network.
Does the Cisco Meraki MR56 support guest Wi-Fi networks? Yes, you can configure guest Wi-Fi networks with customizable access restrictions.
