Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New

Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New

SKU: IE-3300-8P2S-E-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$3,299.99 $3,299.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New

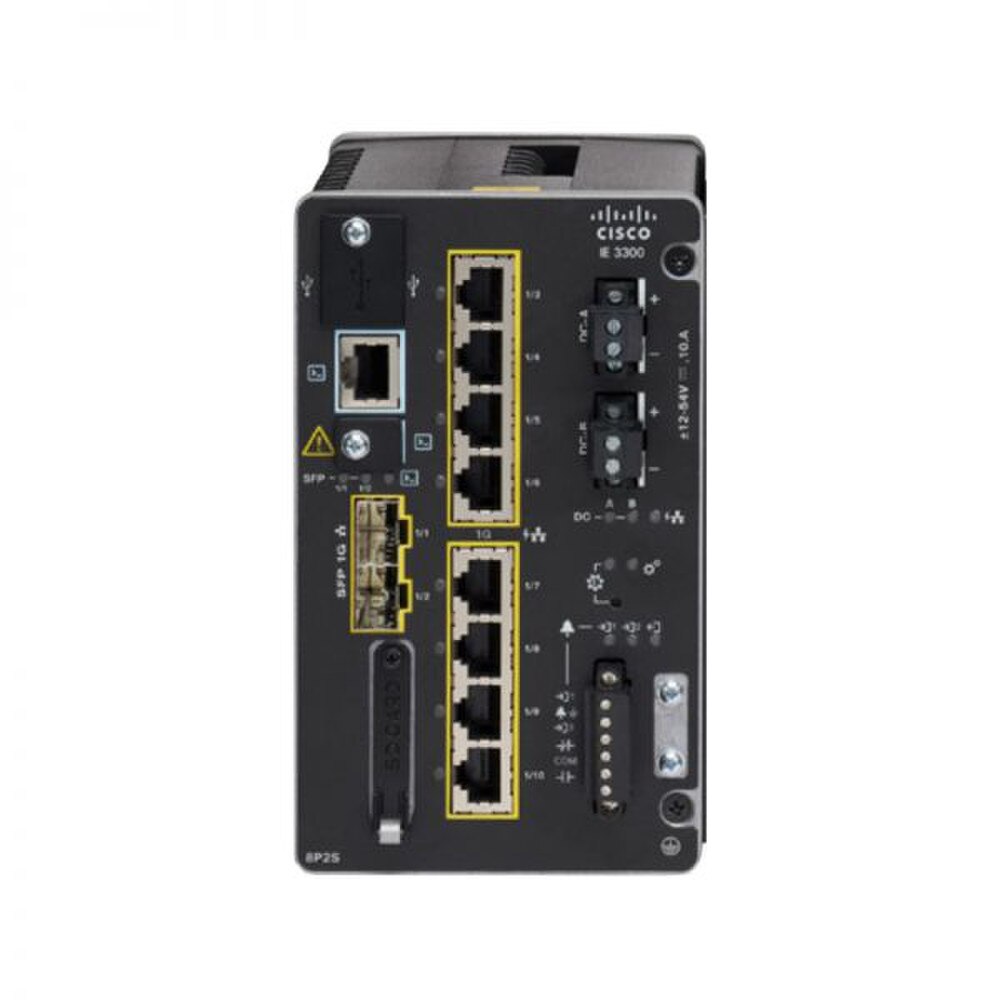

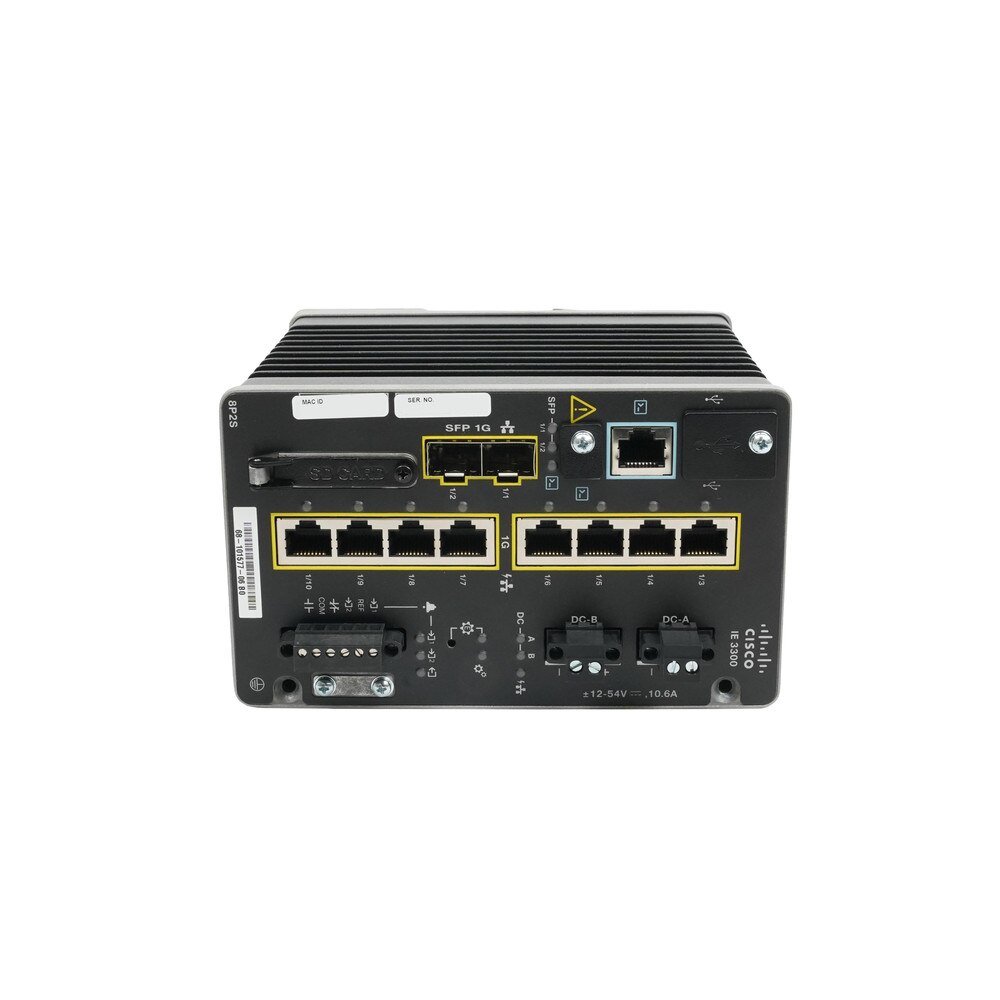

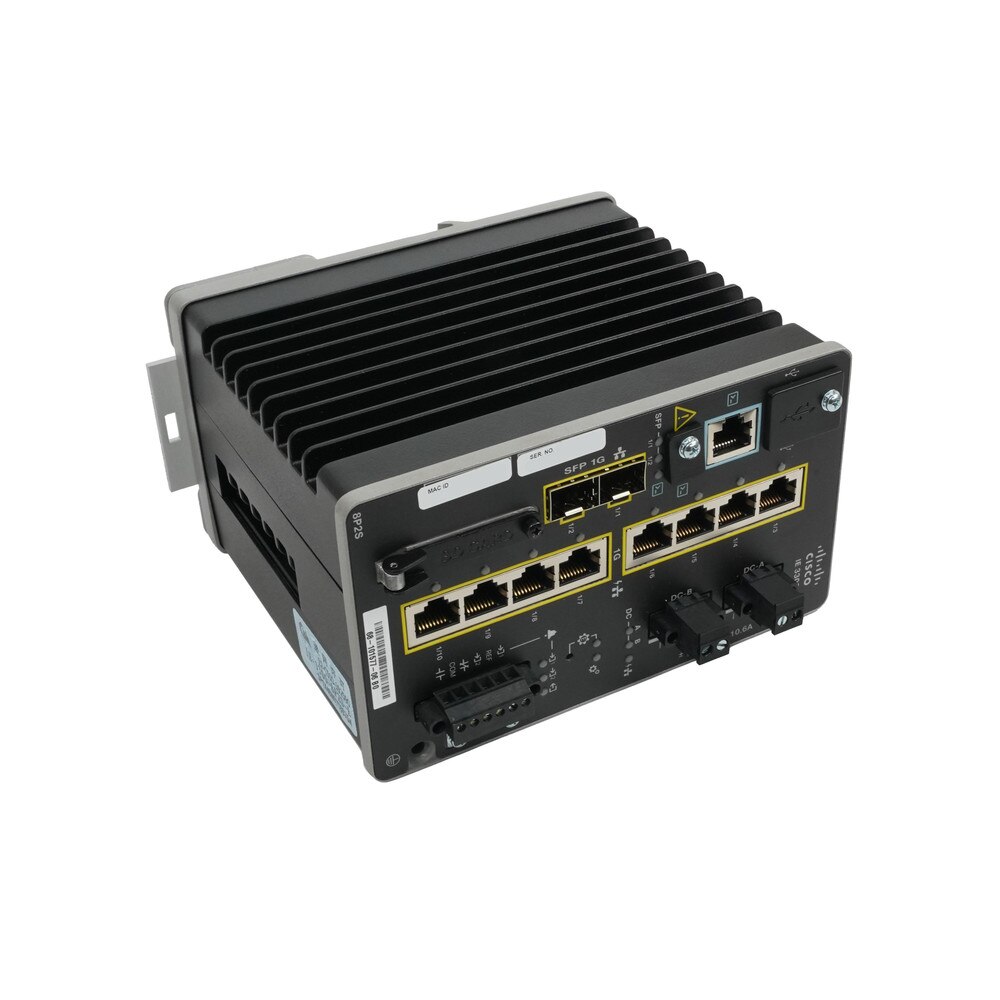

The Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch is a high-performance, next-generation industrial switch created to provide dependable, secure and scalable networking even in the most challenging environments. This switch, designed for sectors like manufacturing, energy, transportation, mining, smart cities and oil and gas, offers strong Gigabit Ethernet connectivity along with advanced Power over Ethernet (PoE/PoE+) features. With its compact size, modular design and lack of fans, this device is perfect for use in tight spaces, outdoor settings and critical missions where reliability and longevity are essential. With 8 Gigabit Ethernet PoE/PoE+ ports and 2 Gigabit SFP uplink ports, the Cisco Catalyst IE-3300-8P2S-E supports a total PoE power budget of up to 360W (including expansion modules). With its modular design, the system can be flexibly expanded to include up to 26 ports, making it suitable for future growth and a variety of industrial requirements. The switch, which can endure extreme temperatures ranging from -40°C to +75°C, as well as vibration, shock and electrical noise, is IP30-rated and designed for DIN rail mounting to facilitate its incorporation into industrial control panels. It is driven by Cisco IOS XE and offers advanced Layer 3 routing, strong security and automation capabilities. Management can be done via Cisco DNA Center, Industrial Network Director, or an easy-to-use WebUI to facilitate streamlined operations.


Key Features of Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch


• 8 x Gigabit PoE/PoE+ Ports deliver up to 360W total PoE power for IP cameras, wireless access points, sensors and other industrial devices.

• 2 x Gigabit SFP Uplink Ports with high-speed fiber uplinks for reliable backbone connections and network expansion.

• Modular, Expandable Design supports expansion modules to scale up to 26 ports, offering flexibility for growing networks.

• Rugged Construction with IP30-rated, fanless and DIN rail-mountable; built for harsh environments with temperature tolerance from -40°C to +75°C and immunity to vibration and electrical noise.

• Advanced Layer 3 Features supports routing, VLANs (up to 256), IGMP snooping, Spanning Tree Protocol and robust access control lists for secure and efficient traffic management.

• High Performance with line-rate forwarding for all ports and packet sizes; 16K MAC address table, 1K IGMP multicast groups and 128 STP instances.

• Managed via Cisco DNA Center, Industrial Network Director or WebUI for easy configuration, monitoring and troubleshooting.

• Comprehensive Security includes IEEE 802.1X, SSH/SSL, secure boot and image signing for enterprise-grade protection.

• Meets certifications for automation, ITS, substation and hazardous environments (C1D2, ATEX, IEEE 1613, EN/IEC 61850-3).


Benefits of Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch


🗹 Ensures stable, high-speed networking for mission-critical operations, minimizing downtime and maximizing productivity in industrial settings.

🗹 PoE/PoE+ support simplifies deployment by delivering both power and data over a single cable, reducing installation costs and complexity.

🗹 Modular expansion allows organizations to adapt to evolving networking needs without replacing the core switch.

🗹 Withstands extreme temperatures, vibration and electrical noise, making it ideal for factories, transportation systems and outdoor deployments.

🗹 User-friendly interfaces and centralized management tools empower both IT and OT teams for efficient deployment and maintenance.

🗹 Advanced security protocols protect against unauthorized access and cyber threats, supporting regulatory compliance.

🗹 Fanless, robust design and redundant power options ensure continuous operation and rapid fault detection in industrial processes.

Specifications

Specifications for Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New

ManufacturerCisco
Manufacturer Part NumberIE-3300-8P2S-E
Product NameCisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch
Product TypeSwitch
Enclosure Type
DIN rail mountable
Subtype
Gigabit Ethernet
Ports
10 x 10/100/1000 (8 PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
360 W
Capacity
Queues: 8 ¦ IGMP multicast groups: 1000 ¦ VLAN IDs: 256 ¦ STP instances: 128
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP, SNMP 3, SSH, SCP, NTP, DHCP
Authentication Method
RADIUS, TACACS+
Features
IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, RSTP support, MSTP support, DHCP snooping, DHCP server, DAI, PVST+, UDLD, LLDP support, RSPAN, FNF, IGMP filtering, Storm Control, IP source guard, REP, SmartPort technology, rate limit, IGMP querier, Voice VLAN, Guest VLAN, Inter-VLAN Routing, SPAN, VTP v.3, BPDU Guard, VTP v.2
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
RAM
2 GB
Flash Memory
1.5 GB
Built-in Devices
SD card reader
Interfaces
10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) ¦ 2 x SFP ¦ 3 x alarm ¦ 1 x serial (RS-232) RJ-45 console ¦ 1 x console mini-USB
Power Device
Internal power supply
Voltage Required
DC 9.6 - 60 V (non-PoE) / 54 V (PoE+) / 48 V (PoE)
Power Consumption Operational
35 Watt
MTBF
611,350 hours
Compliant Standards
EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, MIL-STD-810, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, UL 62368-1, EN 60079-15, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15
Width
3.6 in
Depth
5.3 in
Height
6 in
Weight
3.75 lbs
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-40 °F
Max Operating Temperature
140 °F
Min Storage Temperature
-40 °F
Max Storage Temperature
185 °F

User Guides

Cisco Catalyst IE3300 Rugged Series Data Sheet

Frequently Asked Questions

Cisco Catalyst IE-3300-8P2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch
Frequently Asked Questions (FAQ's)



What is the primary use of the Cisco IE-3300-8P2S-E switch?
  • It's ideal for industrial applications that require strong, dependable network connectivity and is built for harsh environments.
    • How many Ethernet ports does the IE-3300-8P2S-E have?
  • It includes 8 Gigabit Ethernet ports.
    • Does the IE-3300-8P2S-E support fiber optic connections?
  • Yes, it has 2 SFP slots for fiber-optic connectivity.
    • What are the power options for this switch?
  • It can accept both DC and AC power inputs.
    • Is the IE-3300-8P2S-E switch managed or unmanaged?
  • It is a managed switch that provides advanced network management capabilities.
    • Can the IE-3300-8P2S-E operate in extreme temperatures?
  • Yes, it is intended to operate reliably in extreme industrial environments over a wide temperature range.
    • What type of security features does the IE-3300-8P2S-E support?
  • It includes strong security features like threat defense, Advanced Malware Protection (AMP), and encryption.
    • Does this model support Power over Ethernet (PoE)?
  • Yes, it supports PoE, which allows you to power devices directly via Ethernet cables.
    • What certifications does the IE-3300-8P2S-E hold?
  • It complies with industrial standards such as IEC 61850-3 and IEEE 1613 for harsh environments.
    • Can the IE-3300-8P2S-E be mounted in a standard rack?
  • Yes, it can be installed in a rack or used in other industrial configurations.
    • Does the switch support network automation?
  • Yes, it supports automation features via the Cisco DNA Center integration.
    • What is the warranty for the Cisco IE-3300-8P2S-E?
  • Cisco typically provides a limited lifetime warranty, though specifics may vary.
    • How does the IE-3300-8P2S-E handle network traffic prioritization?
  • It supports Quality of Service (QoS) for traffic prioritization, ensuring that critical applications have sufficient bandwidth.
    • Is there an option for redundant power supply?
  • Yes, it has dual power inputs for added redundancy and reliability.
    • Can this switch integrate with IoT devices?
  • Yes, its extensive feature set and PoE support make it ideal for integrating and powering IoT devices in industrial settings.
    • What software does the IE-3300-8P2S-E run?
  • It runs Cisco's IOS-XE operating system, which is highly secure and robust.
    • How is the IE-3300-8P2S-E configured and managed?
  • It can be configured and managed using CLI, a web-based interface, or Cisco DNA Center for more advanced management capabilities.
    • What is the maximum data transfer rate of this switch?
  • It supports data rates of up to 1 Gbps per Ethernet port, with higher rates on SFP ports depending on the SFP module used.
    • Does the IE-3300-8P2S-E support VLANs?
  • Yes, it supports VLANs, which allow for network segmentation and increased security.
    • Where can I get technical support for the IE-3300-8P2S-E?
  • Technical support is available via Cisco's support hotline, online support portal, and authorized Cisco service providers.
