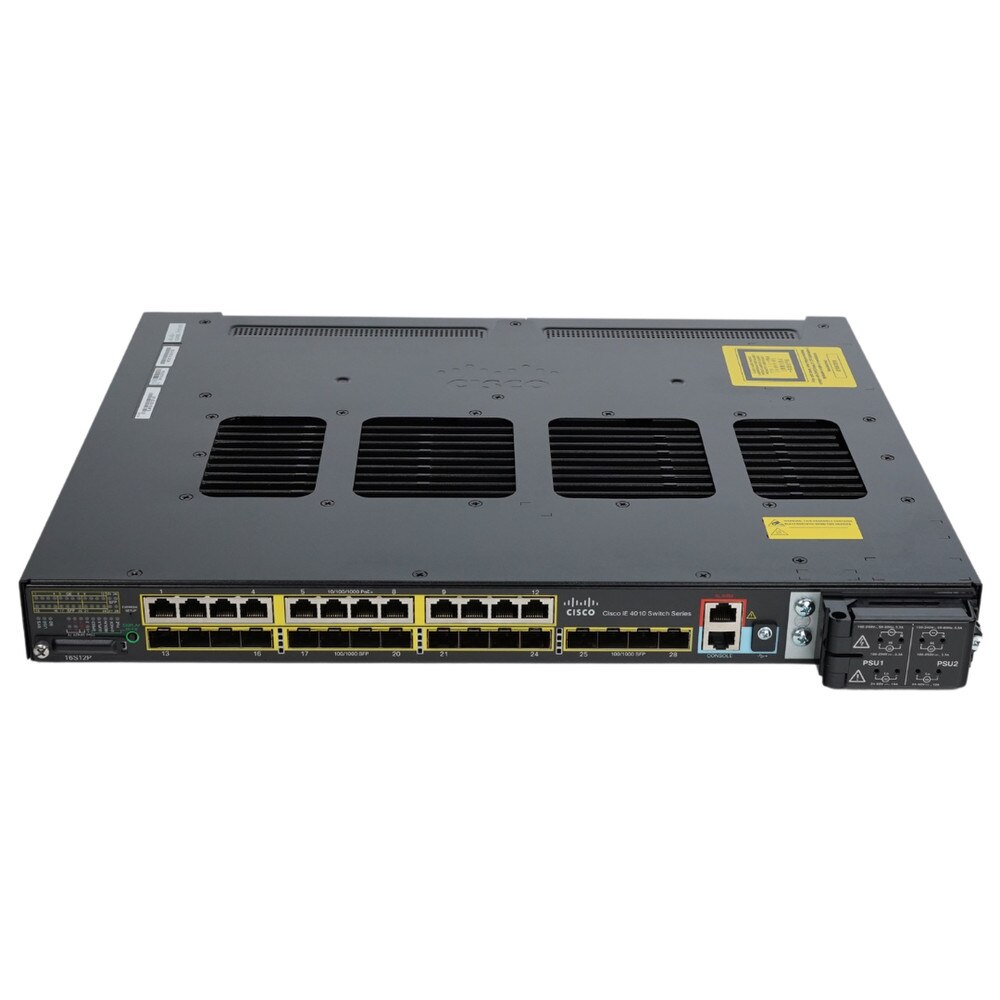

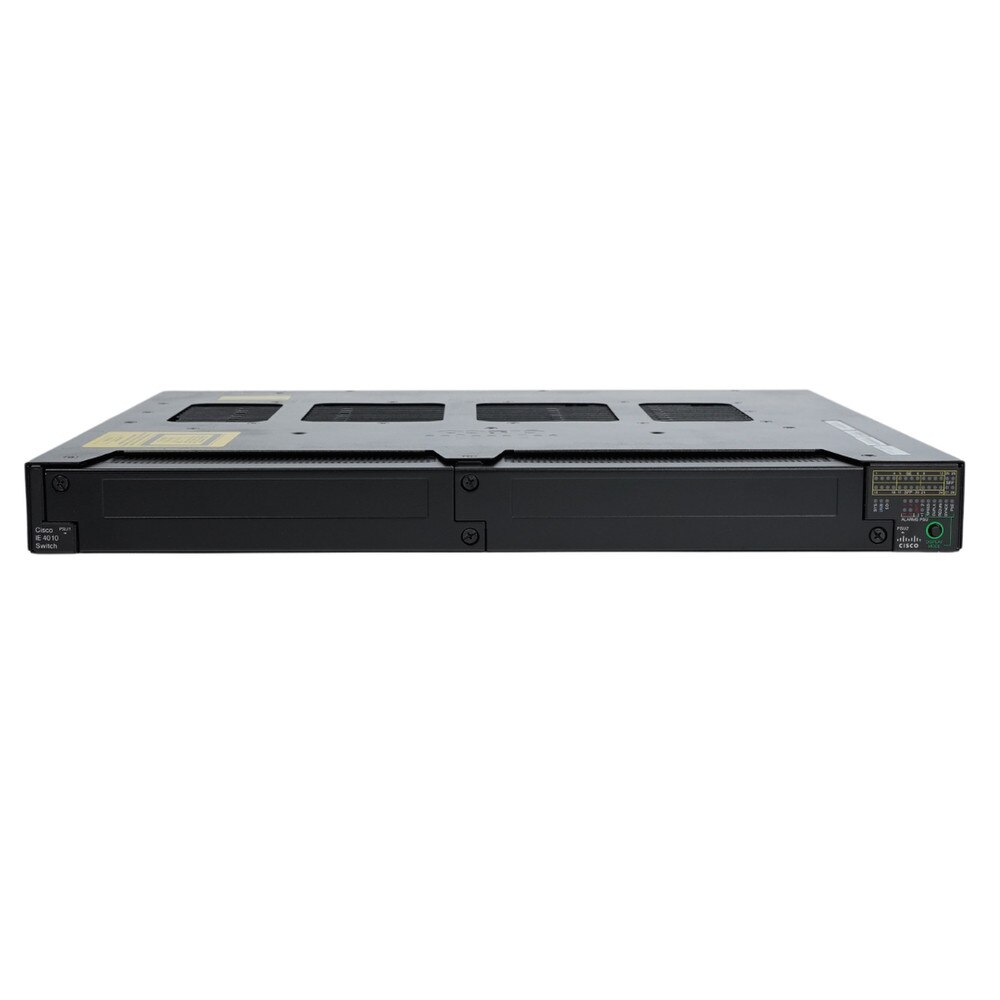

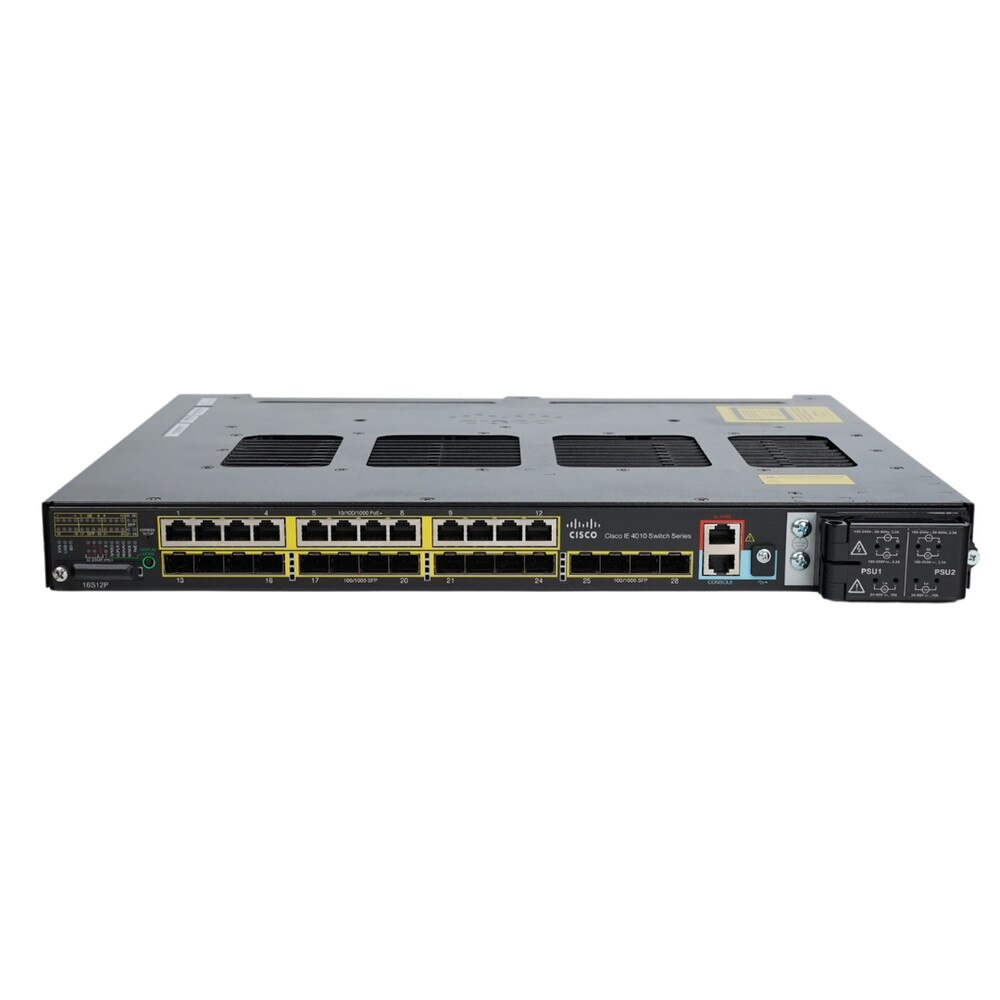

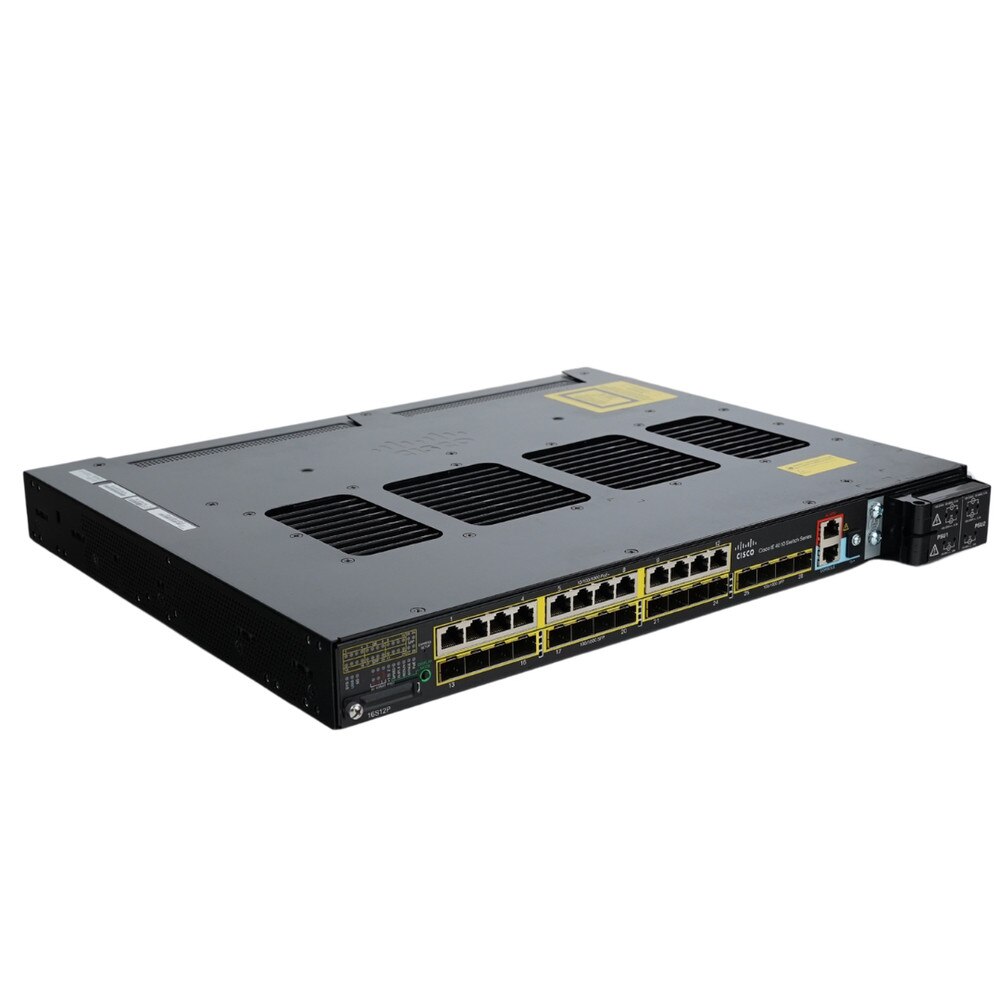

Overview of Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch | Refresh
The Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch is a robust, high-performance managed switch designed specifically for the challenges of industrial and outdoor settings. This switch provides outstanding network flexibility and high-density Power over Ethernet capabilities, making it perfect for connecting IP cameras, phones, badge readers and wireless access points in mission-critical applications. It features a total of 28 Gigabit Ethernet ports: 16 SFP fiber ports and 12 copper PoE/PoE+ ports. Designed to endure severe heat and cold, shock and vibration, the IE-4010-16S12P guarantees continuous function in environments like manufacturing facilities, transport terminals and utility substations. The switch, powered by Cisco IOS Software, offers advanced Layer 2/3 capabilities, strong security measures and smooth integration into IT systems. It features high-availability ring protocols, dual redundant power supply support and extensive management via the Cisco Catalyst Center and a GUI-based web interface for easy deployment and monitoring. With zero-touch replacement capabilities, the IE-4010-16S12P reduces both downtime and maintenance costs for extensive industrial networks. This switch is designed for high throughput and future scalability, with a switching bandwidth of 56 Gbps and a forwarding rate of 41.67 Mpps.
Key Features of Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch
• 28 Gigabit Ethernet Ports that includes 16 x 1G SFP fiber ports and 12 x 10/100/1000M copper PoE/PoE+ ports for flexible device connectivity.
• High-Density PoE/PoE+ Support up to 12 PoE/PoE+ ports for powering IP cameras, phones and wireless access points directly.
• 4 SFP Uplink Ports with dedicated uplinks for high-speed network backbone integration and redundancy.
• Rugged Industrial Design that operates in temperatures from -40°C to +74°C and resists shock, vibration and humidity for reliable deployment in harsh environments.
• Dual Redundant Power Supplies with field-replaceable AC/DC options ensure continuous operation and minimize downtime.
• Advanced Layer 2/3 Features that supports VLANs, QoS, IGMP snooping, OSPF, RIP and more for efficient traffic management and routing.
• Comprehensive Security with Cisco IOS Software provides robust security features including MAC security, ACLs and network segmentation.
• High Availability & Resiliency that supports ring protocols like REP, PRP, MRP, HSR, EtherChannel and Flexlink for network redundancy and seamless failover.
• Easy Management with GUI-based web interface, Cisco Catalyst Center integration and zero-touch replacement for simplified deployment and monitoring.
• TAA Compliant & Rackmountable that meets government and industrial compliance requirements and fits standard racks for easy installation.
Benefits of Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch
🗹 Industrial-grade build and wide temperature range ensure continuous operation in the most demanding environments.
🗹 High port density with a mix of fiber and copper, plus PoE+ support, accommodates a wide range of industrial devices and future expansion.
🗹 Intuitive web UI, Cisco Catalyst Center support and zero-touch replacement reduce IT workload and speed up troubleshooting.
🗹 Dual power supplies and advanced ring protocols provide network resilience and minimize downtime.
🗹 Protects sensitive industrial networks with advanced Cisco IOS security features and network segmentation.
🗹 High switching bandwidth and Layer 3 capabilities support bandwidth-intensive applications and evolving industrial needs.
🗹 PoE+ reduces the need for separate power infrastructure, lowering installation and maintenance costs.
Specifications
Specification for Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | IE-4010-16S12-RF |
| Product Name | Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch |
| Product Type | Networking Switch |
Enclosure Type | DIN rail mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
Capacity | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
MAC Address Table Size | 16K entries |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
Encryption Algorithm | FIPS 140-2 |
Authentication Method | RADIUS, TACACS |
Features | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613 |
RAM | 1 GB |
Flash Memory | 128 MB |
Interfaces | 12 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B ¦ 12 x 1000Base-TX SFP |
Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
Included Accessories | 1 GB SD card |
MTBF | 415,160 hours |
Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223, EN 55022 Class A, EN 50155 |
TAA Compliant | Yes |
Software Included | Cisco IOS LAN Base |
Width | 17.5 in |
Depth | 14 in |
Height | 1.8 in |
Weight | 12.74 lbs |
Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
Min Operating Temperature | -40 °F |
Max Operating Temperature | 167 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 185 °F |
User Guides
Frequently Asked Questions
Cisco IE-4010-16S12P IE 4010 Series Industrial Ethernet Switch
Frequently Asked Questions (FAQ's)
What is the Cisco IE-4010-16S12P?It is an industrial-grade Ethernet switch with 16 SFP fiber ports and 12 PoE+ ports.
What environments is the IE-4010-16S12P suitable for?Ideal for industrial applications like manufacturing, transportation, utilities, and smart cities.
What are the key features of the IE-4010-16S12P?Rugged design with 16 SFP fiber ports, 12 PoE+ ports, Layer 3 switching, advanced security, and Cisco IOS software.
What is the operating temperature range?Typically operates between -40°C and 75°C (-40°F to 167°F).
Does it support Power over Ethernet (PoE)?Yes, it features 12 PoE+ ports, each of which can provide up to 30W.
What is the total PoE power budget?The overall PoE power budget is 240 watts.
What types of ports are available?16 SFP fiber ports and 12 Gigabit Ethernet PoE+ ports.
Is the switch fanless?Yes, it has a fanless design for quiet operation.
What mounting options are available?Supports DIN-rail and wall mounting.
Does it support Layer 3 routing?Yes, it has Layer 3 switching capabilities.
What security features are included?Contains 802.1X authentication, MACsec encryption, and secure remote access.
Is the switch manageable via Cisco IOS?Yes, it uses Cisco IOS for advanced management.
Does it support redundant power inputs?Yes, it includes two power inputs for redundancy.
How does the Cisco IE-4010-16S12P improve network reliability?It has high availability thanks to redundant power supply, a fanless architecture, and strong security procedures.
Can it operate in high-vibration environments?Yes, it is intended to tolerate extreme vibrations.
What is the maximum switching capacity?Provides switching capacity of up to 28 Gbps.
Does it support IPv6?Yes, it supports both the IPv4 and IPv6 protocols.
Can the Cisco IE-4010-16S12P be used in outdoor environments?Yes, it may be utilized in outdoor environments due to its wide temperature range (-40°C to 75°C) and sturdy design.
Is the Cisco IE-4010-16S12P easy to manage?Yes, it supports Cisco IOS, which allows for straightforward and comprehensive management. You can configure it via the command line, the web interface, or SNMP.
What are the advantages of using industrial Ethernet switches like the Cisco IE-4010-16S12P?Industrial Ethernet switches are designed to withstand tough environments and deliver dependable performance during vital activities. They are appropriate for applications involving intense vibrations, harsh temperatures, and electrical noise.
