Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New
SKU: IE-3200-8T2S-E-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

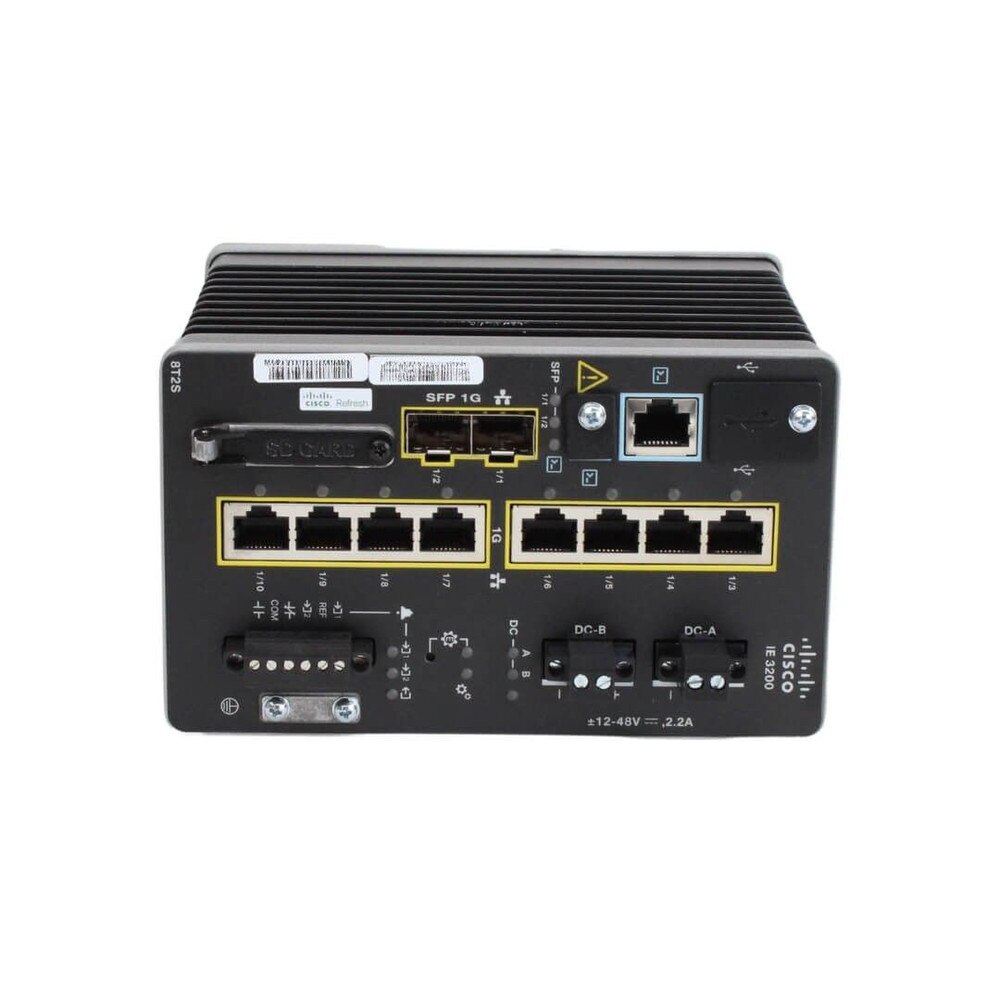

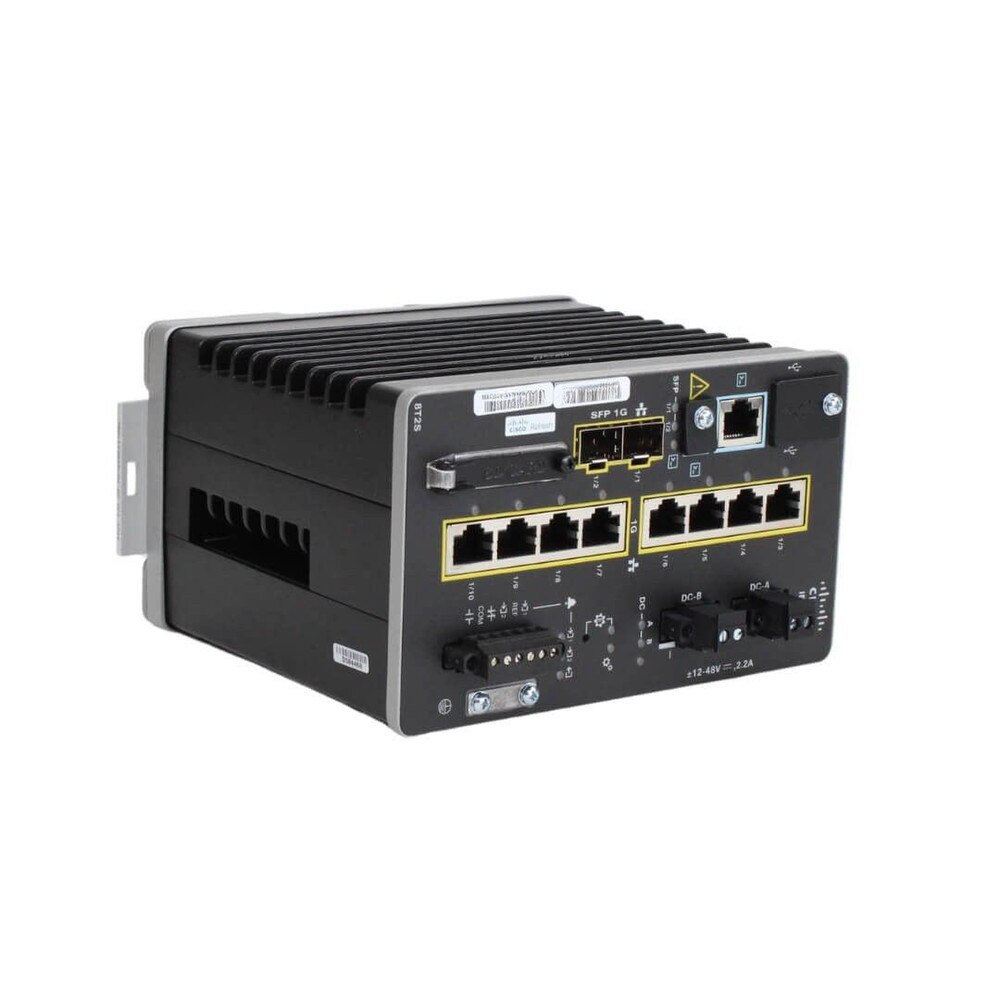

Overview of Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New
The Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch is a compact, high-performance and robust networking solution designed for the toughest industrial environments. This switch, which is intended for use in sectors including manufacturing, energy, transportation and smart cities, provides dependable Gigabit Ethernet connectivity in a robust design that can be mounted on a DIN rail. With its advanced features and Cisco’s proven security and management capabilities, it is ideally suited for digital transformation and industrial IoT deployments where uptime and resilience are essential. With 8 Gigabit Ethernet ports and 2 Gigabit SFP uplink ports, the Cisco Catalyst IE-3200-8T2S-E offers flexible, high-speed connectivity for various industrial devices and applications. The switch features a die-cast metal enclosure rated IP30 and is designed to endure extreme temperatures (from -40°C to +70°C), vibration and dust. It provides redundant DC power inputs (9.6–60V DC) to enhance reliability and offers line-rate forwarding for all ports and packet sizes. The switch, which operates on Cisco IOS XE, offers advanced security, automation and management features—including support for Cisco DNA Center, Industrial Network Director and an intuitive WebUI. The IE-3200-8T2S-E supports up to 256 VLANs, includes IGMP snooping and features robust access control lists, making it ideal for efficient, secure, and scalable network operations in mission-critical environments.
Key Features of Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch
• 8 x Gigabit Ethernet Ports with high-speed connectivity for industrial endpoints, supporting reliable data transfer and device integration.
• 2 x Gigabit SFP Uplink Ports with flexible fiber uplinks for network expansion and backbone connections.
• Rugged, Compact Design with IP30-rated, fanless and DIN rail-mountable, ideal for harsh and space-constrained environments.
• Wide Operating Temperature operates from -40°C to +70°C, ensuring reliability in extreme industrial conditions.
• Redundant Power Inputs with dual DC feeds (9.6–60V DC) for continuous operation and increased resilience.
• Advanced Security with robust ACLs, IEEE 802.1X, SSH/SSL encryption, secure boot and image signing for comprehensive protection.
• Layer 2 Switching & VLAN Support features up to 256 VLANs, IGMP snooping, Spanning Tree Protocol and QoS for optimized traffic management.
• High Performance with line-rate forwarding on all ports, 8K MAC address table and jumbo frame support up to 8996 bytes.
• Easy Management via Cisco DNA Center, Industrial Network Director or intuitive WebUI for streamlined setup and monitoring.
• Open APIs & Automation with Cisco IOS XE with open APIs for flexible automation and integration with industrial applications.
Benefits of Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch
🗹 Ensures stable, high-speed networking for mission-critical operations, reducing downtime and boosting productivity.
🗹 Compact, fanless design and DIN rail mounting allow installation in tight, harsh environments.
🗹 Advanced security protocols protect against unauthorized access and cyber threats, supporting compliance with industrial standards.
🗹 User-friendly interfaces and centralized management tools empower both IT and OT teams to deploy, monitor and maintain the network efficiently.
🗹 Open APIs, Cisco IOS XE, and automation capabilities enable ongoing innovation and adaptability for evolving industrial needs.
🗹 Redundant power feeds and alarm relay features ensure continuous operation and rapid fault detection.
🗹 Supports a wide range of industrial protocols, VLANs and uplink options, enabling seamless integration into expanding networks.
Specifications
Specifications for Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch | New
| Manufacturer | Cisco |
| Manufacturer Part Number | IE-3200-8T2S-E |
| Product Name | Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch |
| Product Type | Switch |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Capacity | SPAN sessions: 256 ¦ IGMP groups: 1000 ¦ STP instances: 128 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, DAI, PVST+, UDLD, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, 802.1x authentication, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, ICMP, CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, UDP, VTP v.3, BPDU Guard, Dying Gasp, VTP v.2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| RAM | 2 GB |
| Flash Memory | 1.5 GB |
| Built-in Devices | SD card reader |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 9.6 - 60 V |
| Electric Current Required | 3.2 A |
| Power Consumption Operational | 33 Watt |
| MTBF | 641,150 hours |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15 |
| Width | 3.6 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 3.75 lbs |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days ¦ Technical support - 90 days |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst IE-3200-8T2S-E Rugged 8-Port PoE Industrial Ethernet Network Essentials Switch
Frequently Asked Questions (FAQ's)
What is the primary function of the Cisco IE-3200-8T2S-E? It is a rugged industrial Gigabit Ethernet switch built for harsh environments and critical infrastructure.
How many ports does the IE-3200-8T2S-E have? It includes 8 Gigabit Ethernet ports as well as 2 SFP slots for fiber connectivity.
What types of networks is the IE-3200-8T2S-E suitable for? It's ideal for automation, transportation, and energy networks that require high performance.
Does the IE-3200-8T2S-E support Layer 3 functionality? Yes, it includes both Layer 2 and Layer 3 networking capabilities.
Is the IE-3200-8T2S-E designed for outdoor use? Yes, it is designed to withstand outdoor and harsh industrial environments.
What are the environmental tolerances of this switch? It complies with standards such as IEEE 1613 and IEC 61850-3, ensuring reliable operation even in extreme conditions.
Does the IE-3200-8T2S-E support Power over Ethernet (PoE)? This model does not support PoE and instead focuses on high-speed data connectivity.
What security features does the IE-3200-8T2S-E offer? It provides strong security features such as encryption, threat defense mechanisms, and advanced access control lists.
Can the IE-3200-8T2S-E be managed remotely? Yes, it allows remote management via Cisco DNA software and other network management tools.
What is Cisco DNA? Cisco DNA (Digital Network Architecture) software streamlines network management, automation, and assurance.
Is the switch fanless? Yes, the IE-3200-8T2S-E has a fanless design that minimizes mechanical failures and operates quietly.
What certifications does the switch hold? In addition to IEEE 1613 and IEC 61850-3, it meets a variety of industry-specific safety and durability standards.
Does it include any redundancy features? Yes, the switch has features such as dual power inputs for redundancy, ensuring continuous operation.
What type of power supply is required for the IE-3200-8T2S-E? It requires a direct current power supply, which typically ranges from 12 to 24 volts.
How is the physical durability of the switch? It has a tough metal casing that protects it from physical damage and electromagnetic interference.
Can the IE-3200-8T2S-E handle high temperatures? Yes, it works in temperatures ranging from -40°C to +75°C.
Does it support VLANs? Yes, it allows you to create VLANs for traffic segregation and improved network security.
How does the switch handle network traffic prioritization? It uses Quality of Service (QoS) features to prioritize critical network traffic.
Is there any specific software required to configure the switch? The switch can be configured using Cisco IOS software, which is accessible via a command-line interface.
What kind of warranty does Cisco provide for this switch? Cisco typically provides a limited lifetime warranty for its industrial switches, which covers defects and failures under normal operating conditions.
