Overview
Overview of Cisco IE-1000-8P2S-LM Industrial Ethernet Switch | New

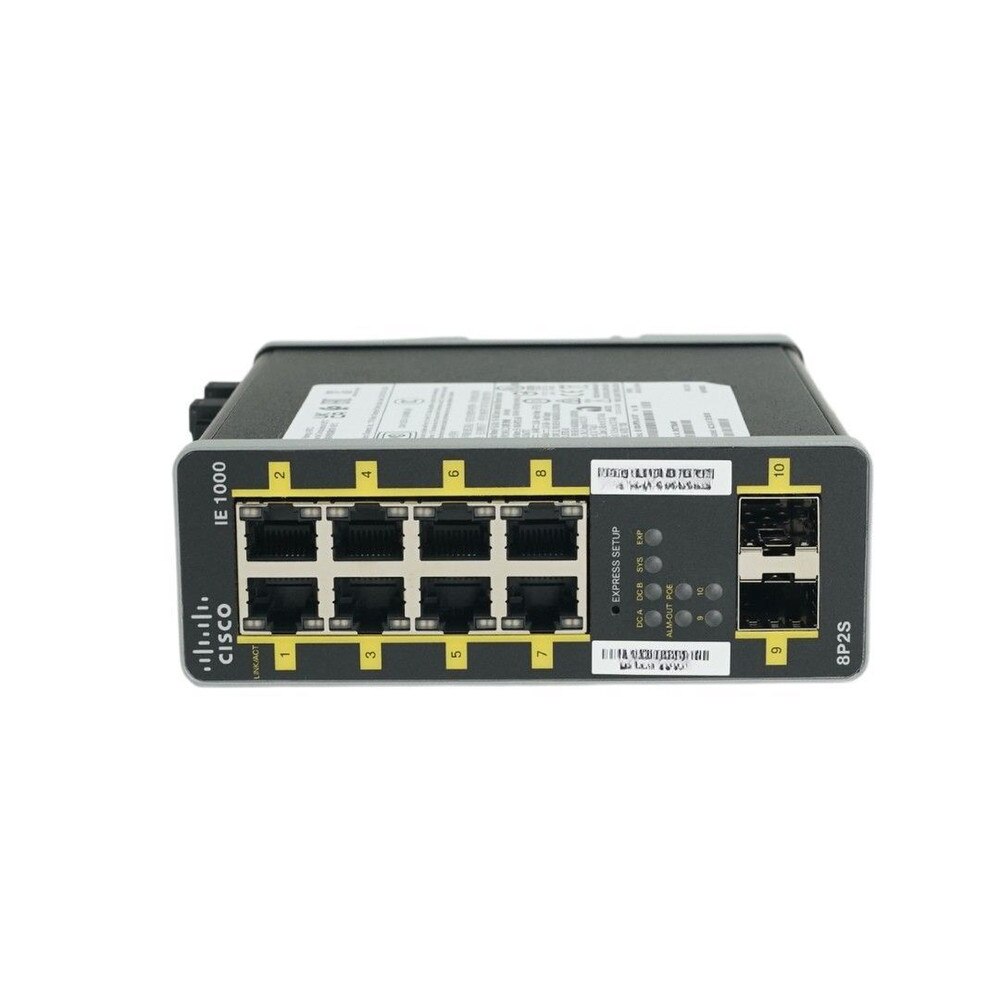

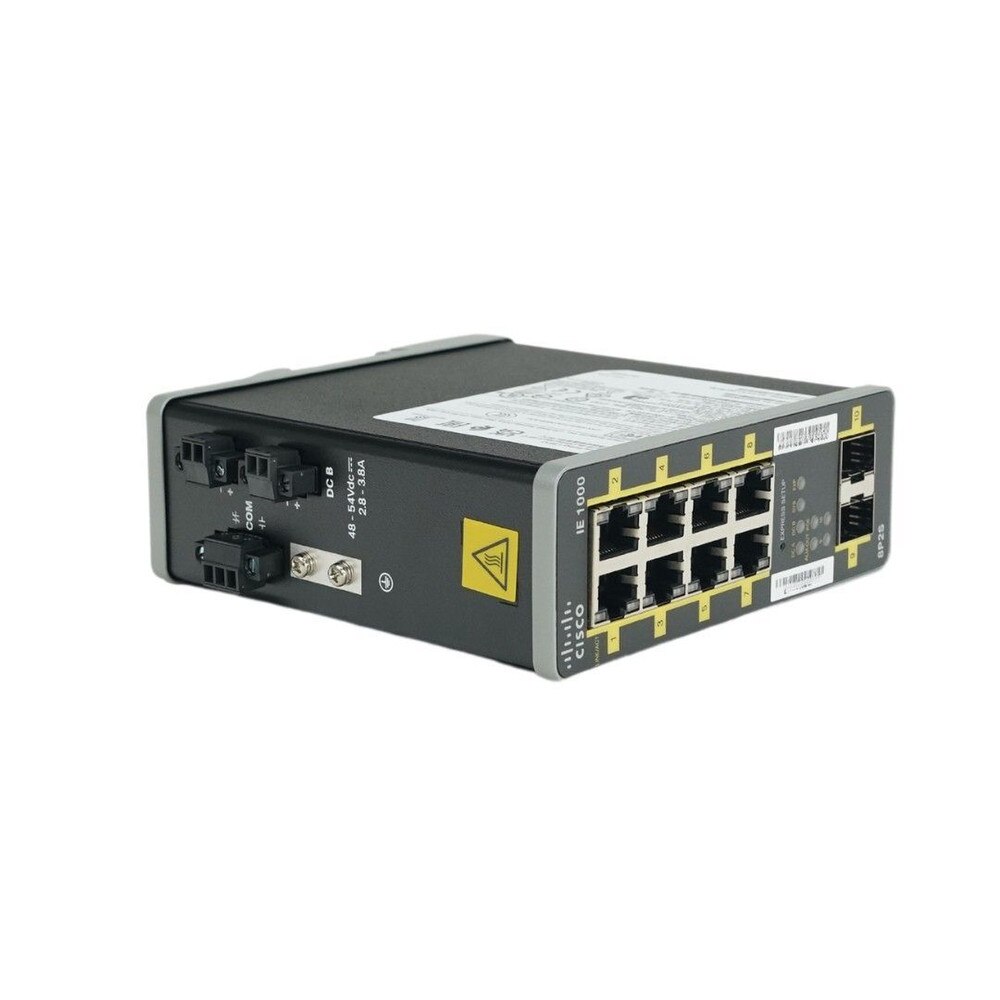

The Cisco IE-1000-8P2S-LM Industrial Ethernet Switch is a compact, robust and lightly managed network switch designed for challenging industrial settings like factory automation, intelligent transportation, city surveillance and building automation. This switch is intended for operational technology (OT) users who have limited IT knowledge. It offers strong performance, Power over Ethernet (PoE+) capabilities and an easy-to-use web-based management system. These features make it a suitable option for updating outdated industrial networks and facilitating digital transformation. With 8 Fast Ethernet (10/100Base-TX) ports that support PoE/PoE+ and 2 Gigabit SFP uplink ports (1000Base-X), the Cisco IE-1000-8P2S-LM offers flexible connectivity options for both copper and fiber networks. Its fanless, IP30-rated enclosure is designed for DIN rail mounting, guaranteeing dependable performance in severe industrial environments and temperatures ranging from -40°C to +70°C. With a PoE power budget of up to 205.2W, the switch is perfect for powering IP cameras, sensors, and wireless access points directly from itself. The IE-1000-8P2S-LM facilitates easy deployment, monitoring, and network segmentation for industrial IoT and machine-to-machine (M2M) applications with its user-friendly web device manager, VLAN support, IGMP snooping, and advanced security features such as port security and DHCP snooping.
Key Features of Cisco IE-1000-8P2S-LM Industrial Ethernet Switch
• 8 Fast Ethernet PoE/PoE+ Ports powers industrial devices such as cameras and sensors directly via Ethernet.
• 2 Gigabit SFP Uplink Ports with high-speed fiber uplinks for reliable backbone connectivity and network expansion.

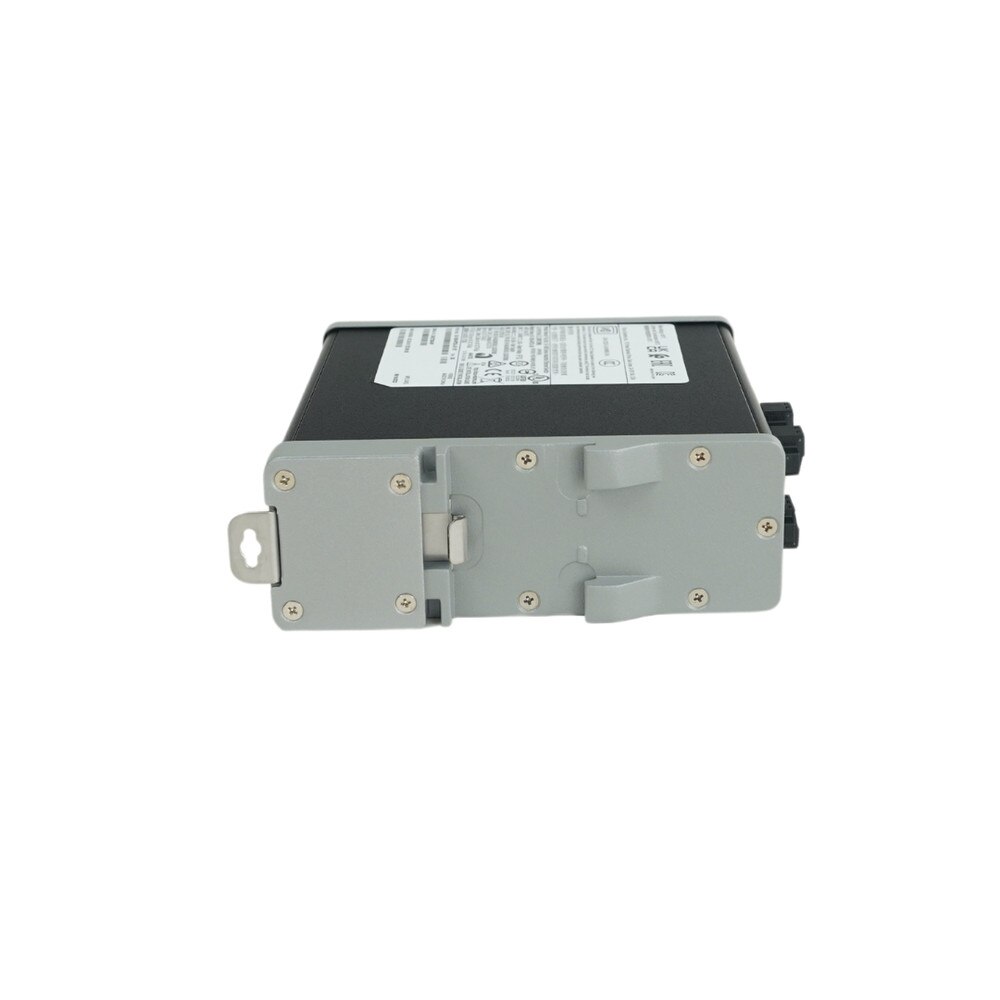

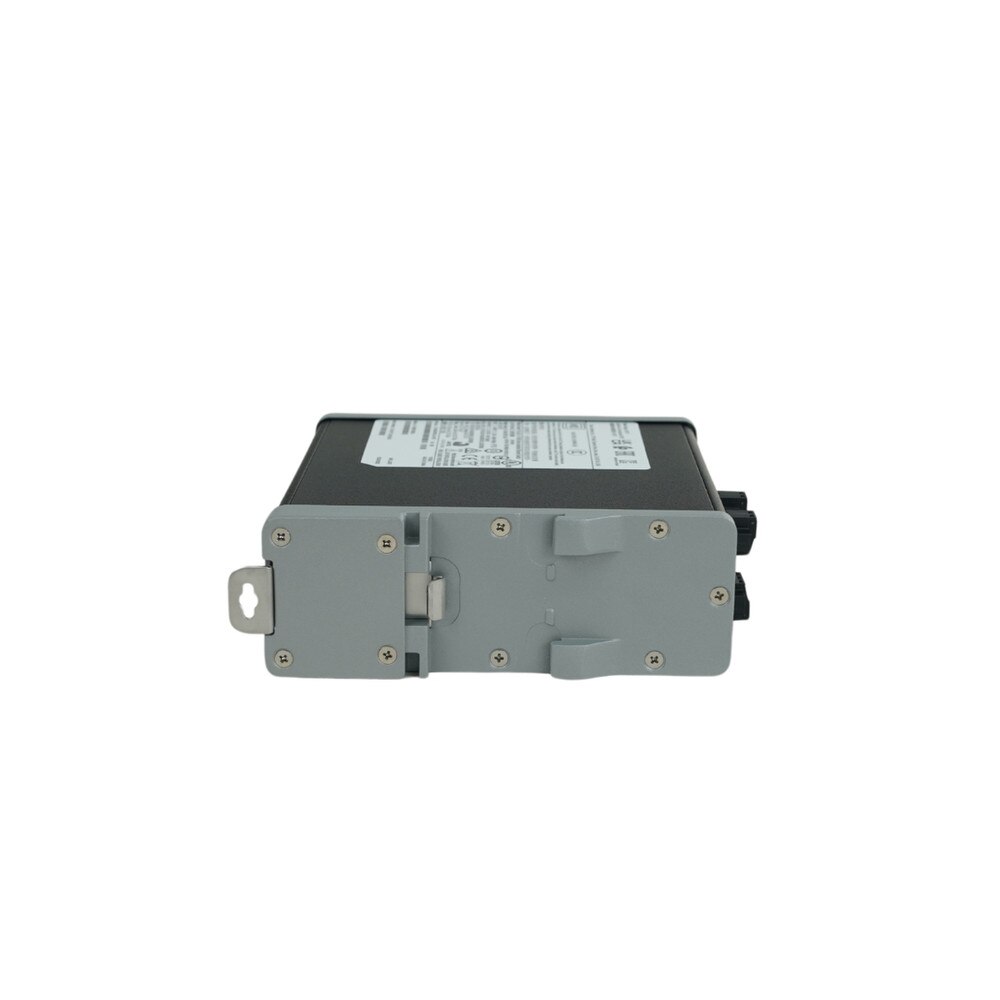

• Rugged, Compact Design with IP30-rated, fanless and DIN rail-mountable for operation in harsh, space-constrained environments.
• Wide Operating Temperature with reliable performance from -40°C to +70°C, suitable for extreme industrial conditions.
• PoE+ Support delivers up to 205.2W total PoE budget, supporting both IEEE 802.3af and 802.3at standards.
• Lightly Managed Layer 2 Switching with VLAN support, IGMP snooping, Spanning-Tree Protocol (STP) and port mirroring for efficient traffic management.
• Advanced Security with port security, DHCP snooping, Sticky MAC, IEEE 802.1X authentication and SSH/SSL encryption.
• Redundant Power Inputs & Alarm Relay with dual DC power feeds and alarm relay for maximum uptime and proactive fault notification.
• Web-Based Management with simple configuration, monitoring and troubleshooting through an intuitive web GUI—no advanced IT skills required.
• Industrial Compliance meets IEC 61850-3, IEEE 1613 and EtherNet/IP (CIP) standards for automation and mission-critical applications.
Benefits of Cisco IE-1000-8P2S-LM Industrial Ethernet Switch
🗹 Ensures stable, high-speed connectivity for mission-critical operations, reducing downtime and enhancing productivity.
🗹 PoE+ simplifies installation by delivering both data and power over a single cable, reducing infrastructure costs.
🗹 Operates reliably in extreme temperatures, vibration and dust, making it ideal for manufacturing, transportation and outdoor deployments.
🗹 Web-based interface allows OT staff to configure and monitor the network without deep IT expertise, accelerating time to value.
🗹 Advanced security features protect against unauthorized access and optimize traffic for critical applications.
🗹 Modular uplinks and compact form factor enable seamless integration into existing and expanding industrial networks.
🗹 Redundant power and alarm relay features ensure continuous operation and rapid fault detection.
Specifications
Specifications for Cisco IE-1000-8P2S-LM Industrial Ethernet Switch | New
Manufacturer | Cisco |
Manufacturer Part Number | IE-1000-8P2S-LM |
Product Name | Cisco IE-1000-8P2S-LM Industrial Ethernet Switch |
Product Type | Industrial Switch |
Enclosure Type | DIN rail mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
Routing Protocol | IGMPv2, IGMP |
Remote Management Protocol | SNMP 2, SNMP, RMON, SNMP 3, HTTP, SSH |
Authentication Method | Secure Shell (SSH), RADIUS |
Features | DHCP support, BOOTP support, IGMP snooping, Syslog support, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP server, static IP mode, LLDP support, Port Security, Management Information Base (MIB), Class of Service (CoS), DiffServ Code Point (DSCP) support, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Management Information Base (MIB) II |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
RAM | 128 MB |
Flash Memory | 160 MB |
Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP |
Voltage Required | DC 48 - 54 V |
Power Consumption Operational | 205.2 Watt |
MTBF | 374,052 hours |
Compliant Standards | CISPR 22 Class A, EN55022, NOM, CB, EMC, ICES-003 Class A, RoHS, IEC 60068-2-30, KCC, WEEE, IEC 60068-2-27, IEC 60068-2-6, ANATEL, EN 61131-2, EN 61326-1, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, CEM, EMI, IP30, IEC 60068-2-56, VCCI Class A, EN 50581, EAC, China RoHS, RCM, AS/NZS CISPR22:2004 Class A, NOM-001-SCFI-1993, CISPR 11 class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC60950-1, IEC 60068-2-3, FCC CFR47 Part 15 A, UL/CSA60950-1, UL/CSA/IEC/EN 61010-2-201, EN 55016-1-1 Class A, EN 55016-1-4 Class A, EN 55016-2-3 Class A, AS/NZS CISPR 24, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29, IEC 60068-2-47, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4 |
Width | 5.3 in |
Depth | 1.8 in |
Height | 5 in |
Weight | 29.63 oz |
Min Operating Temperature | -40 °F |
Max Operating Temperature | 158 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 185 °F |
Humidity Range Storage | 5 - 95% (non-condensing) |
