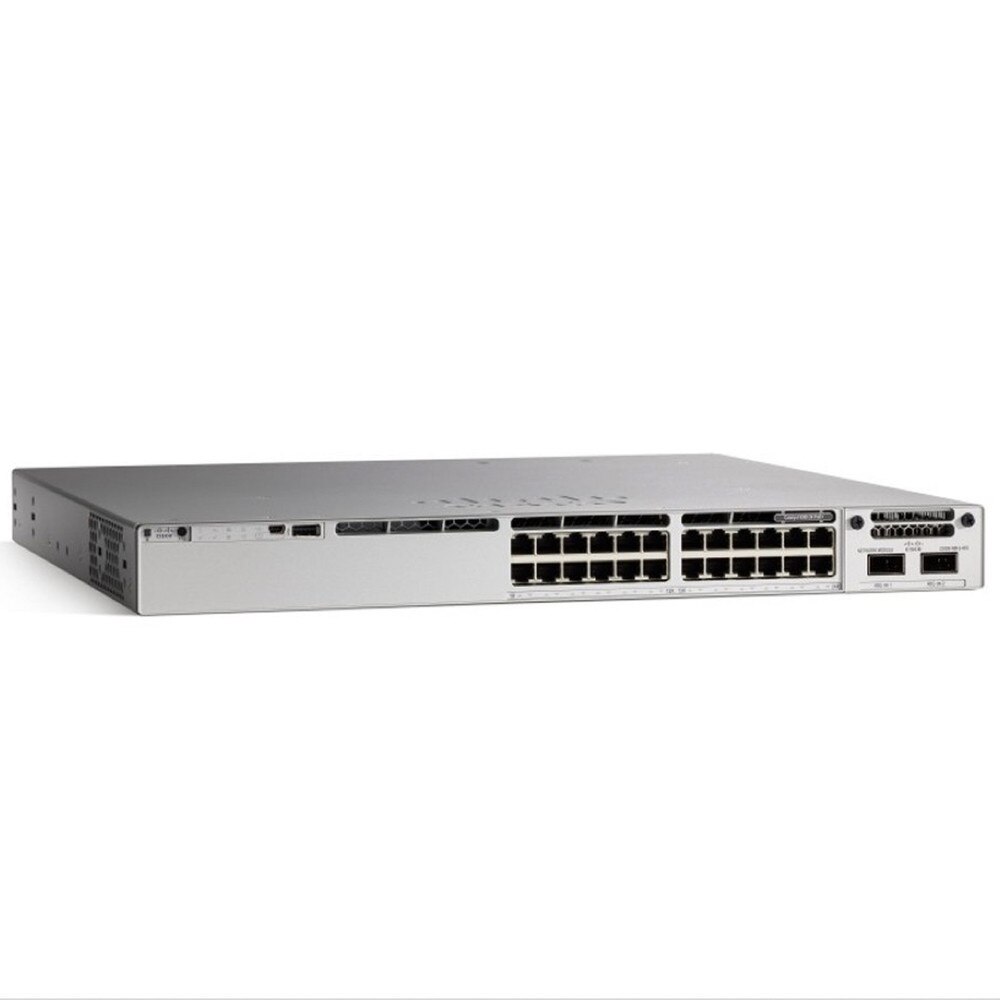

Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch | New
SKU: C9200-24P-E-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch | New
The Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch is a high-performance networking solution intended for modern enterprise situations. This versatile switch offers significant functionality while simplifying management, making it perfect for branch offices and small to medium-sized organizations. With 24 Gigabit Ethernet ports that support PoE+, it provides both data and power to connected devices. The C9200-24P-E has a switching capacity of 128 Gbps, ensuring smooth data transport throughout your network architecture.
Key Features of Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch
• 24 PoE+ Ports deliver power and data over a single Ethernet cable to devices like IP phones and wireless access points.
• High Performance with 128 Gbps switching capacity and 190.4 Mpps forwarding rate for fast, efficient data transfer.
• Stackable Design supports stacking bandwidth up to 160 Gbps for expanded network capabilities.
• Modular Uplinks with flexible connectivity options for network growth and adaptation.
• Advanced Security features like MACsec encryption and policy-based segmentation protect your network.
• Layer 3 Routing supports protocols like OSPF, EIGRP, and RIP for complex network topologies.
• Cisco IOS XE provides advanced software capabilities and simplified management.
• PoE+ Budget up to 370W with one power supply, expandable to 740W with redundant power.
• Energy Efficient with ENERGY STAR certified for reduced operational costs.
• Flexible NetFlow with advanced network monitoring and traffic analysis capabilities.
• Resiliency Features with redundant power supply and fan options for high availability.
• Programmability with Open APIs for customization and integration with network management tools.
• Scalability supports up to 32,000 MAC addresses and 4,000 VLANs.
• Quality of Service with advanced QoS features for optimized application performance.
• Limited Lifetime Warranty backed by Cisco's renowned support and service.
Specifications
Specifications for Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9200-24P-E |
| Product Name | Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
Performance | Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
Capacity | Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng |
Remote Management Protocol | NETCONF, RESTCONF |
Encryption Algorithm | 128-bit AES |
Features | Cisco StackWise Technology, EIGRP Stub Routing, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Blue Beacon LED, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
RAM | 4 GB |
Flash Memory | 4 GB |
Built-in Devices | RFID tag |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
Power Device | Internal power supply - hot-plug |
Max Supported Qty | 2 |
Power Redundancy | Optional |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
MTBF | 422,310 hours |
Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Software Included | Cisco Network Essentials |
Width | 1.7 in |
Depth | 17.5 in |
Height | 13.8 in |
Weight | 12.13 lbs |
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
Humidity Range Operating | 5 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C9200-24P-E 24-Port PoE+ Network Essentials Switch
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C9200-24P-E 24-Port switch? It is an enterprise-class access switch from the Catalyst 9200 Series with 24 PoE+ ports and flexible uplinks.
How many ports does the C9200-24P-E have? It has 24 1G Ethernet ports with PoE+ capability.
What type of Power over Ethernet (PoE) does it support? It supports full IEEE 802.3at PoE+.
Does it have modular uplink options? Yes, it supports modular uplink options.
What are the available uplink modules? It can accommodate 4x 1 Gigabit Ethernet and 4x 10 Gigabit Ethernet network modules.
Can it be stacked with Cisco Catalyst 2960-X/XR series switches? No, these switches cannot be stacked due to their differing architectures and functionality.
Are the network modules shared with Cisco Catalyst 9300 Series switches? No, Catalyst 9300 Series network modules cannot be used on Catalyst 9200 Series switches.
Does it support wireless connectivity? It connects wireless endpoints to wireless access points.
What management ports are available? It has a 10/100/1000 Ethernet dedicated management port on the back of the switch.
Can both console ports be used simultaneously? No, while utilizing the USB console, the RJ-45 console gets the same output.
Does it support auto-baud on the console port? No, it does not support auto-baud.
What type of airflow does it support? It has "front and sides" to back airflow.
What is the default power supply? It comes with a 600W AC power supply.
How much PoE power is available? It provides 370W of available PoE power.
Does it have redundant fans? Yes, it has dual field-replaceable unit (FRU) fans.
What software packages are available? It supports Essentials and Advantage feature packages.
What management capabilities are available? It can be administered using CLI, Cisco Prime Infrastructure, Cisco DNA Center, WebUI, SNMP, or NETCONF/RESTconf/YANG.
Is there an onboard web GUI? Yes, it has an onboard web GUI called WebUI.
What is the purpose of the blue beacon LED? It helps with chassis identification in racks and can be remotely activated to assist local operators.
How many VRF instances can be configured? The C9200-24P-E (modular model) supports up to 4 VRF instances.
