  • Cisco Catalyst C8200L-1N-4T Router | New
Cisco Catalyst C8200L-1N-4T Router | New

Cisco Catalyst C8200L-1N-4T Router | New

SKU: C8200L-1N-4T-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$749.99 $749.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C8200L-1N-4T Router | New

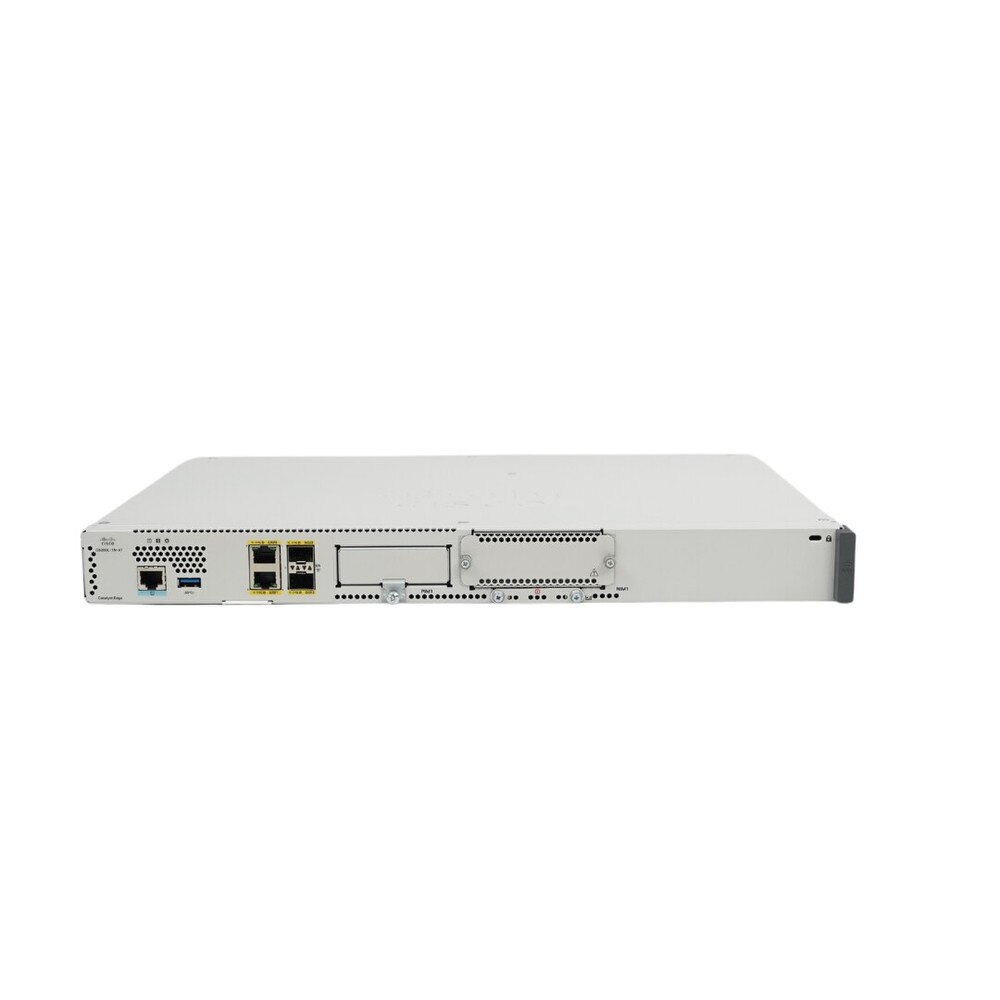

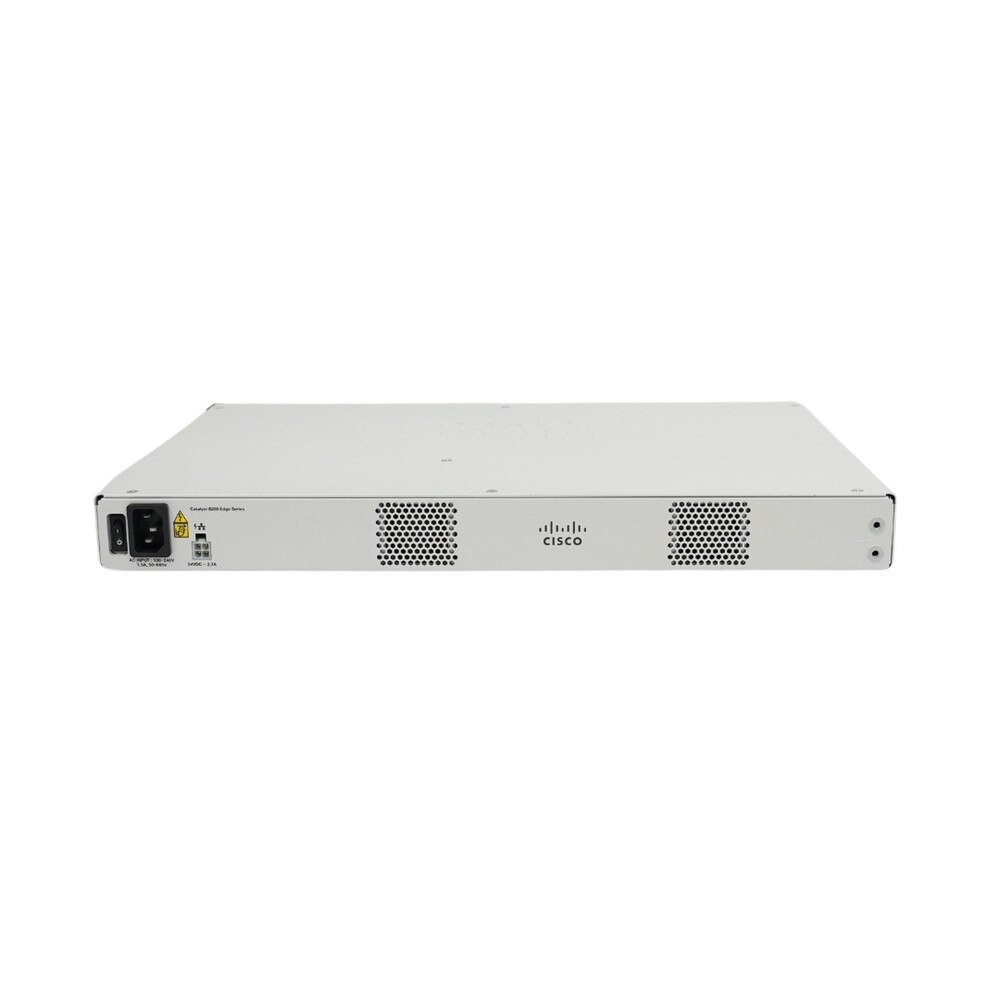

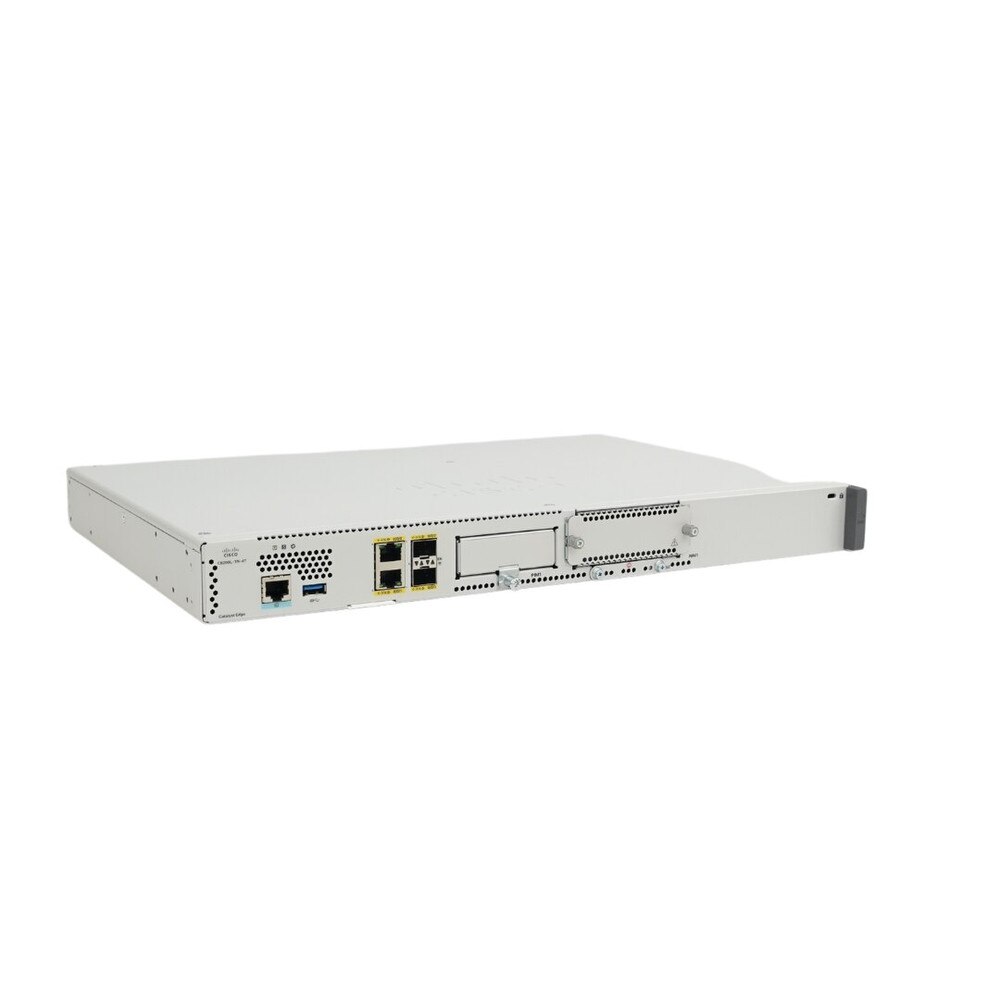

The Cisco Catalyst C8200L-1N-4T Router is a robust 5G-ready cloud edge platform aimed at small to medium-sized company branch offices. This adaptable router combines comprehensive security features with SD-WAN capabilities, making it suitable for enterprises making the switch to cloud-based services and SASE (Secure Access Service Edge) architectures. The C8200L-1N-4T has an Intel x86 CPU, 4GB of RAM (upgradable to 32GB), and four Gigabit Ethernet connections, which provide exceptional performance and flexibility. With up to 500 Mbps IPsec throughput and support for 1500 SD-WAN overlay tunnels, it offers reliable connection and security for modern networks.


Key Features of Cisco Catalyst C8200L-1N-4T Router


• Four built-in Gigabit Ethernet WAN ports (2 SFP, 2 RJ45)

• Up to 500 Mbps IPsec throughput with hardware acceleration

• SD-WAN capabilities with up to 1500 overlay tunnels

• SASE-compliant cloud security and on-premises containerized security apps

• One Network Interface Module (NIM) slot for expansion

• IPv4 forwarding throughput up to 3.8 Gbps

• Support for up to 800,000 IPv4 routes and 800,000 IPv6 routes

• Advanced QoS features for traffic prioritization

• Zero-touch provisioning for easy deployment

• Optional LTE and 5G connectivity for improved throughput


Benefits of Cisco Catalyst C8200L-1N-4T Router


🗹 Enhance network performance with Gigabit speeds and SD-WAN capabilities

🗹 Improve security posture with integrated SASE-compliant and on-premises security features

🗹 Future-proof your network with 5G-ready architecture and expandability options

🗹 Simplify deployment and management with zero-touch provisioning

🗹 Reduce operational costs with energy-efficient design

🗹 Scale your network easily with flexible connectivity options

🗹 Ensure business continuity with robust security and high availability features

🗹 Optimize application performance with advanced QoS and traffic management

🗹 Leverage Cisco's renowned quality and support for peace of mind

🗹 Accelerate your journey to the cloud with cloud-native agility

Specifications

Specifications for the Cisco Catalyst C8200L-1N-4T Router | New

ManufacturerCisco
Manufacturer Part NumberC8200L-1N-4T
Product NameCisco Catalyst C8200L-1N-4T Router
Product TypeNetworking Switch
Enclosure Type
Rack-mountable - 1U
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet
Performance
IPsec throughput (1400Bytes, clear text): 1 Gbps ¦ SD-WAN IPsec throughput (IMIX, clear text): 900 Mbps ¦ IPv4 forwarding throughput (1400-byte packet size): 6 Gbps
Capacity
SD-WAN overlay tunnels scale: 4000 ¦ IPsec SVTI tunnels: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 72000 ¦ IPv4 routes: 1600000 ¦ IPv6 routes: 1500000 ¦ Queues: 16000 ¦ NAT sessions: 1200000 ¦ Firewall sessions: 512000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000
Network / Transport Protocol
RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP
Routing Protocol
OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP, SCP, OMP
Encryption Algorithm
DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI, 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC
Authentication Method
Secure Shell (SSH), RADIUS
Features
NAT support, PAT support, Syslog support, URL filtering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Bidirectional Forwarding Detection (BFD), DHCP client, Forward Error Correction (FEC), Class of Service (CoS), Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Datagram Transport Layer Security (DTLS), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Application Aware Routing (AAR), Interactive Voice Response (IVR), Service Advertisement Framework (SAF), Secure Unique Device Identification (SUDI)
Compliant Standards
IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032, CISPR 32 Class A, VCCI-CISPR 32:2016 Class A, EN 55035, IEC/EN 61000-3-3, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1
Processor
Intel
RAM
8 GB (installed) / 32 GB (max)
Flash Memory
8 GB
Hard Drive
16 GB
VoIP Protocols
SRTP
Interfaces
WAN: 4 x Ethernet 1000
Expansion Slots
1 (total) / 1 (free) x NIM ¦ 1 (total) / 1 (free) x Pluggable Interface Module (PIM)
Installed Modules Qty (Max)
0 (installed) / 2 (max)
Power Device
Internal power supply - 100 Watt
Installed Qty
1 (max)
Voltage Required
AC 120/230 V (50/60 Hz)
MTBF
692,577 hours
OS Required
Cisco IOS XE 17.4.1
Width
17.2 in
Depth
11.8 in
Height
1.7 in
Weight
10.01 lbs
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
5 - 85% (non-condensing)

User Guides

Cisco Catalyst C8200L-1N-4T Router Data Sheet

Frequently Asked Questions

Cisco Catalyst C8200L-1N-4T Router
Frequently Asked Questions (FAQ's)



What are the main features of the Cisco Catalyst C8200L-1N-4T Router?
  • The router provides high-performance routing, built-in security, advanced WAN edge capabilities, and scalability for branch deployments.
    • What interfaces does the Cisco Catalyst C8200L-1N-4T Router support?
  • It includes one NIM slot, four T1/E1 interfaces, and several high-speed WAN/LAN interfaces.
    • Is the Cisco Catalyst C8200L-1N-4T Router suitable for small to medium-sized businesses?
  • Yes, it is intended to meet the needs of both small to medium-sized and large businesses.
    • Does the Cisco Catalyst C8200L-1N-4T Router support SD-WAN?
  • Yes, it supports Cisco SD-WAN, which enables advanced software-defined networking capabilities.
    • What security features are included in the Cisco Catalyst C8200L-1N-4T Router?
  • Cisco Umbrella, firewall, IPS/IDS, VPN, and secure boot are among the features included with the router.
    • Can the Cisco Catalyst C8200L-1N-4T Router be managed through the cloud?
  • Yes, it can be managed using Cisco DNA Center and Cisco vManage for cloud-based management.
    • What routing protocols does the Cisco Catalyst C8200L-1N-4T Router support?
  • It supports BGP, OSPF, EIGRP, and RIP, among other common routing protocols.
    • What is the maximum throughput of the Cisco Catalyst C8200L-1N-4T Router?
  • It supports a maximum throughput of 1 Gbps.
    • Does the Cisco Catalyst C8200L-1N-4T Router support modular expansion?
  • Yes, it has a modular design that includes a NIM slot for additional modules.
    • What is the power consumption of the Cisco Catalyst C8200L-1N-4T Router?
  • The power consumption varies, but typically ranges between 60 and 100 watts depending on the configuration.
    • Can the Cisco Catalyst C8200L-1N-4T Router be used for voice services?
  • Yes, it supports voice services via integrated voice ports and can handle VoIP traffic.
    • What are the dimensions of the Cisco Catalyst C8200L-1N-4T Router?
  • The dimensions are approximately 1.75 x 17.50 x 11.25 inches (H x W x D).
    • What are the software options available for the Cisco Catalyst C8200L-1N-4T Router?
  • The router supports Cisco IOS XE, which includes routing, switching, and security.
    • Is there support for IPv6 on the Cisco Catalyst C8200L-1N-4T Router?
  • Yes, it can handle both IPv4 and IPv6.
    • How many devices can the Cisco Catalyst C8200L-1N-4T Router support simultaneously?
  • The exact number varies by configuration, but it can support hundreds of connected devices.
    • What type of VPN capabilities does the Cisco Catalyst C8200L-1N-4T Router offer?
  • It supports IPsec, SSL, and DMVPN to ensure secure remote access and site-to-site VPNs.
    • Can the Cisco Catalyst C8200L-1N-4T Router be rack-mounted?
  • Yes, it is designed to be mounted in standard server racks.
    • Does the Cisco Catalyst C8200L-1N-4T Router support dual power supplies?
  • Yes, it supports dual redundant power supplies to ensure high availability.
    • What kind of technical support is available for the Cisco Catalyst C8200L-1N-4T Router?
  • Cisco provides a variety of support options, including 24/7 technical support, software updates, and online resources.
    • Can the Cisco Catalyst C8200L-1N-4T Router support wireless connectivity?
  • Yes, it can be combined with wireless LAN controllers to provide seamless wireless connectivity.
