Overview of Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Network Switch | Refresh
The Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Network Switch is a powerful and adaptable networking solution for small and medium-sized businesses. This switch combines high-performance connectivity, advanced features, and easy management, making it an excellent choice for modern network environments. The C1300-24T-4X is intended to lay a solid foundation for your business network. Its advanced features and intelligent management options make it an excellent choice for businesses seeking to improve their network infrastructure without the need for dedicated IT personnel.
Key Features of Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Network Switch
• 24 Gigabit Ethernet Ports offers reliable high-speed connectivity for various network devices, ensuring seamless data transfer and communication.
• Features four 10GbE SFP+ ports for flexible and high-speed uplink options, enabling easy integration with existing network infrastructure and enhancing scalability.
• Supports essential Layer 2 features, including VLANs, Quality of Service (QoS), and link aggregation, as well as Layer 3 routing capabilities for efficient data traffic management.
• Incorporates IP-MAC port binding to detect and block deliberate network attacks, along with IPv6 First Hop Security to protect against address spoofing and man-in-the-middle attacks.
• Compliant with IEEE 802.3az Energy Efficient Ethernet, optimizing power usage to lower operational costs. The fanless design ensures silent operation, making it suitable for noise-sensitive environments.
• Managed through Cisco's intuitive web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring without requiring extensive IT expertise.
• Engineered for high reliability and performance, ensuring consistent network uptime and productivity for critical applications.
• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.
Specifications
Specifications for Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1300-24T-4X-RF |
| Product Name | Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Network Switch |
| Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000Base-T + 4 x 10 Gigabit SFP+ |
Performance | Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps |
Capacity | MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9000 bytes |
Max Units In A Stack | 8 |
Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | MD5, SSL |
Authentication Method | RADIUS, TACACS+ |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, fanless, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, link/activity/speed |
Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |

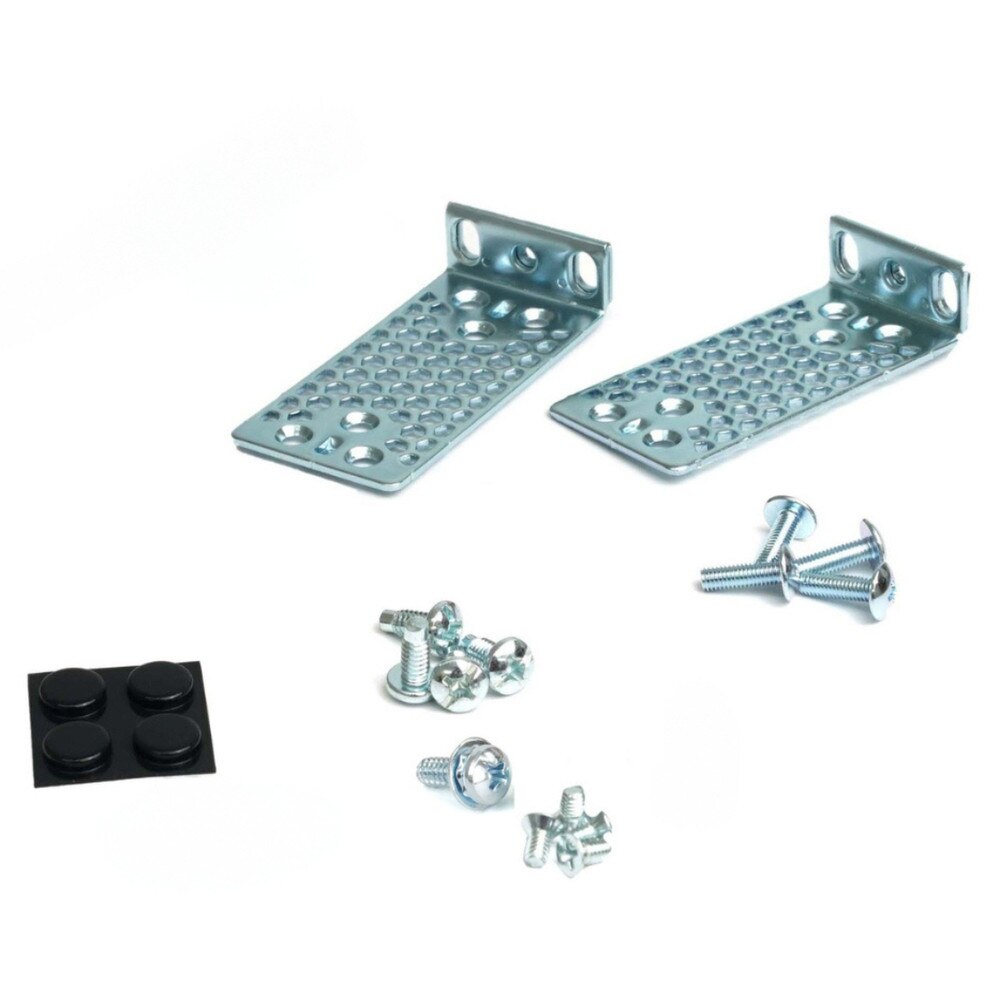

Included Accessories | Mounting kit, pointer card |
MTBF | 2,026,793 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Width | 17.5 in |
Depth | 9.4 in |
Height | 1.7 in |
Weight | 6.13 lbs |
Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 90% RH (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1300-24T-4X 24-Port Gigabit Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C1300-24T-4X switch? The Cisco Catalyst C1300-24T-4X is a 24-port Gigabit managed network switch with four 10 Gigabit SFP+ uplink ports intended for enterprise and business networks.
What are the primary use cases for the C1300-24T-4X switch? It is ideal for businesses that need high-performance, scalable, and secure network solutions, such as core, distribution, and access layer deployments.
Does the C1300-24T-4X support Layer 3 routing? Yes, it supports advanced Layer 3 features such as static routing, dynamic routing protocols, and inter-VLAN routing.
What are the uplink options available on the C1300-24T-4X? The switch has four 10 Gigabit SFP+ uplink ports, which enable high-speed connections to other switches or network infrastructure.
How is the C1300-24T-4X managed? The switch can be managed using Cisco's web-based interface, Command-Line Interface (CLI), or Cisco DNA Center, which provides advanced automation and management.
Is the C1300-24T-4X suitable for small businesses? Yes, it is appropriate for small and medium-sized businesses looking for enterprise-level features and scalability.
What kind of power supply options does the C1300-24T-4X have? The switch includes an internal power supply, and redundant power supply options are available for increased reliability.
Can the C1300-24T-4X be mounted in a rack? Yes, the switch is rack-mountable and typically comes with mounting brackets for simple installation.
Does the C1300-24T-4X support VLANs? Yes, it supports VLANs, which allow network segmentation for improved performance and security.
What is the switching capacity of the C1300-24T-4X? The switch has a high switching capacity, which allows it to efficiently handle large amounts of data traffic, though specific values vary depending on configuration.
Is there a warranty included with the C1300-24T-4X? Yes, Cisco typically includes a limited lifetime warranty with this switch, as well as options for extended support through Cisco Smart Net Total Care.
Can I stack multiple C1300-24T-4X switches? This model does not enable stacking. Other Cisco Catalyst models should be considered for their stacking capabilities.
Does the C1300-24T-4X support Quality of Service (QoS)? Yes, it supports advanced QoS features that prioritize critical network traffic, resulting in optimal performance.
How do I update the firmware on the C1300-24T-4X? Firmware updates can be done using the web interface, CLI, or Cisco DNA Center.
What are the environmental operating conditions for the C1300-24T-4X? The switch is intended to function within a specific temperature and humidity range, usually between 0°C and 40°C and 10% to 90% non-condensing humidity.
Is the C1300-24T-4X compatible with Cisco DNA Center? Yes, it works with Cisco DNA Center, enabling centralized management, automation, and advanced analytics.
Does the C1300-24T-4X support multicast routing? Yes, the switch can handle multicast routing, including Protocol Independent Multicast (PIM) modes.
What is the maximum number of MAC addresses the C1300-24T-4X can support? The switch can handle a large number of MAC addresses, typically up to 32,000, making it ideal for networks with many connected devices.
Does the C1300-24T-4X support Power over Ethernet (PoE)? No, this particular model (C1300-24T-4X) does not support PoE. Other Cisco Catalyst models should be considered for their PoE capabilities.
What security features are available on the C1300-24T-4X? The switch includes advanced security features such as Access Control Lists (ACLs), 802.1X authentication, DHCP snooping, and Secure Shell (SSH) for encrypted management.
