Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

SKU: CBS350-8P-E-2G-NA-RF
(0)No Reviews yet

🗹 8 x Gigabit PoE+ Ethernet Ports
🗹 2 x 1GbE SFP/RJ45 Combo Ports
🗹 20 Gbs Switching Capacity
🗹 14.88 Mpps Forwarding Rate
🗹 800 MHz ARM Processor
🗹 512MB RAM
🗹 60W Power Budget
🗹 Rack-Mountable Design
🗹 Comprehensive Layer 2 & 3 Features
🗹 Works with Cisco Business Dashboard

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$209.99 $209.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

The Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) is a dependable and flexible networking solution for small and medium-sized enterprises. The CBS350-8P-E-2G is a member of Cisco's Business 350 Series, which provides comprehensive management capabilities and robust security features in a small form factor. With 8 Gigabit Ethernet ports that enable Power over Ethernet Plus (PoE+) and two additional combination ports for flexibility, this switch provides dependable, high-speed connectivity as well as the ability to power devices like IP phones, cameras, and wireless access points. Its wide feature set makes it an excellent alternative for enterprises seeking to improve network performance, security, and scalability. The CBS350-8P-E-2G is an excellent choice for businesses looking for a dependable, feature-rich networking solution that delivers performance, security, and ease of control in a small package.


Key Features of Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo


• 8 Gigabit Ethernet Ports delivers high-speed connectivity for multiple devices.

• PoE+ Support offers up to 67W of power budget for powering PoE-enabled devices.

• 2 Combo Ports (SFP/RJ45) provides flexible uplink options for network expansion.

• Advanced Layer 2 and Layer 3 Features that supports static routing, VLAN, QoS, and more.

• Enhanced Security includes 802.1X authentication, ACLs, and DHCP snooping.

• Supports Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption.

• Flexible Management offers web GUI, CLI, and SNMP management options.

• Cisco Business Dashboard Compatible enables easy network management and monitoring.

• Advanced QoS ensures optimal performance for voice, video, and data applications.

• IPv6 Support ensures future-proofing for next-generation IP networks.

• Compact Design with desktop form factor ideal for small offices and retail environments.

• Fanless Operation ensures quiet operation for noise-sensitive environments.

• Limited Lifetime Warranty backed by Cisco's renowned support and service.

• Auto Smartports that automatically configures ports based on connected devices.

• Dual Image Support allows for backup of firmware for enhanced reliability.

Specifications

Specification for Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

ManufacturerCisco
Manufacturer Part NumberCBS350-8P-E-2G-NA-RF
Product NameCisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
67 W
Performance
Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, PoE, link/activity/speed
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

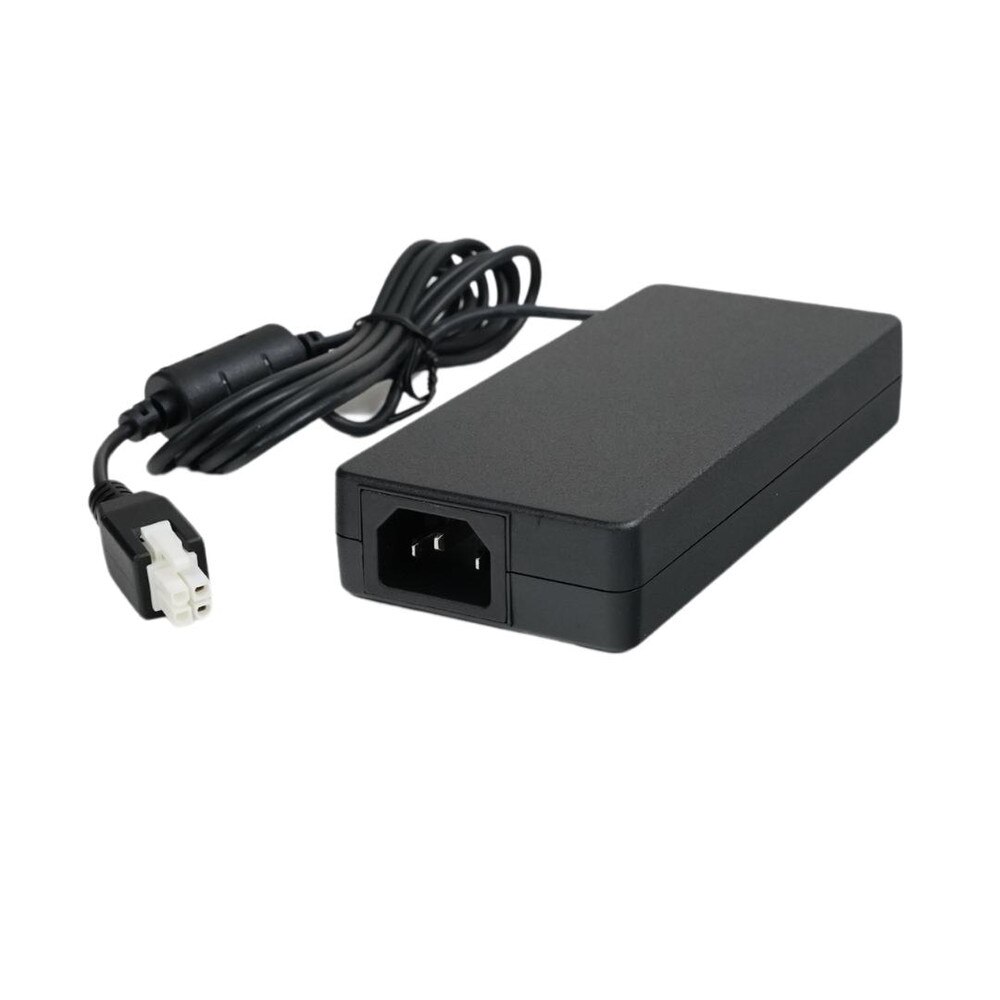

Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
80.86 Watt

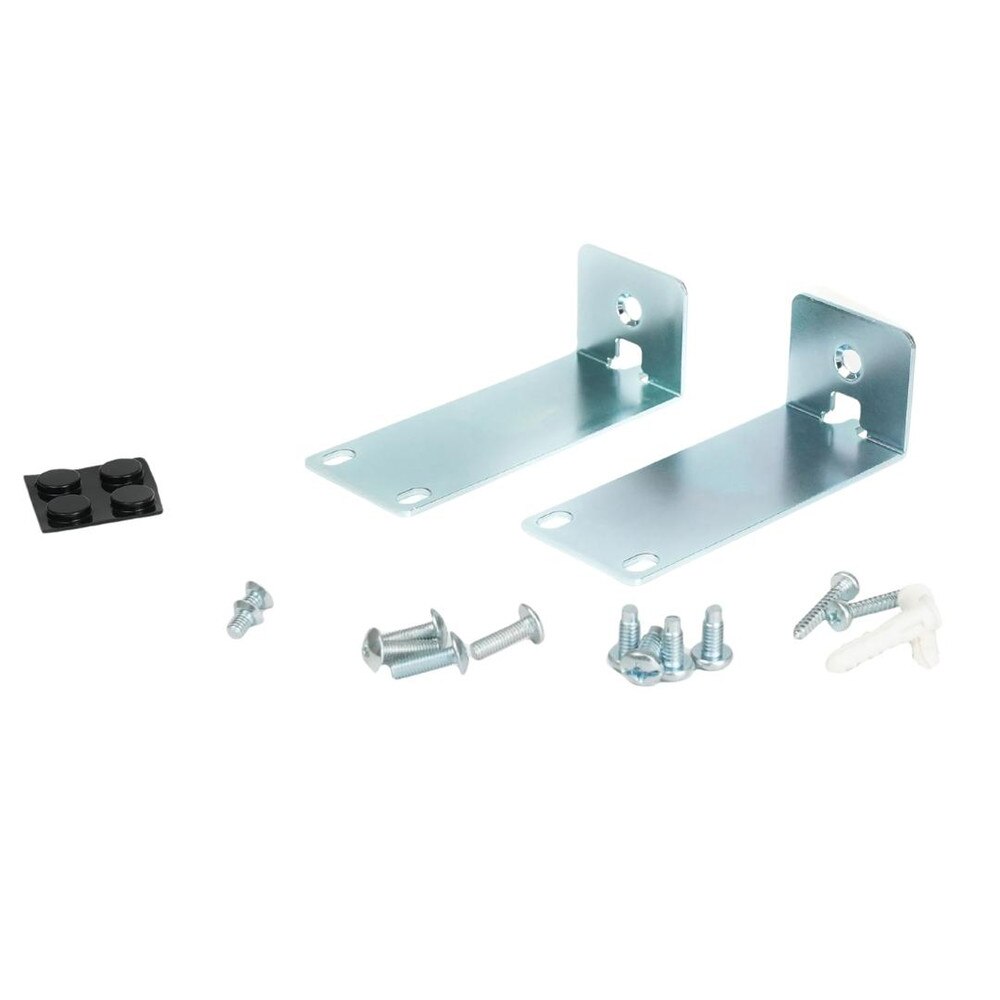

Rack Mounting Kit
Included
MTBF
1,706,649 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
10.6 in
Depth
7.3 in
Height
1.7 in
Weight
7.72 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo Data Sheet

Frequently Asked Questions

Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo
Frequently Asked Questions (FAQ's)



What is the switching capacity?
  • The switch has a 20 Gbps switching capacity.
    • Does it support Layer 3 routing?
  • Yes, it enables static Layer 3 routing, which improves network flexibility.
    • What is the maximum data transfer speed per port?
  • Each Gigabit Ethernet port can accommodate up to 1 Gbps.
    • How many SFP/RJ45 combo ports does it have?
  • It includes two SFP/RJ45 combination uplink ports, allowing for versatile connectivity.
    • Can this switch be managed remotely?
  • Yes, it has web-based management and remote management capabilities using the Cisco Business Dashboard.
    • Is it compatible with Cisco’s network security protocols?
  • Yes, it supports advanced security protocols like as 802.1X authentication and access control lists (ACLs).
    • What is the operating temperature range?
  • The temperature range for the switch is 0°C to 40°C (32°F to 104°F).
    • Does it support VLANs?
  • Yes, it supports VLANs to improve traffic segmentation and network efficiency.
    • Can it handle high-priority data traffic?
  • Yes, Quality of Service (QoS) settings enable traffic prioritization.
    • What is the maximum power output per PoE+ port?
  • Each PoE+ port may deliver up to 30W.
    • Is there energy-saving functionality?
  • Yes, it incorporates energy-efficient Ethernet (EEE) to reduce power consumption.
    • Does it require a fan for cooling?
  • No, it has a fanless design to ensure silent operation.
    • Can the switch be rack-mounted?
  • Yes, it can be rack mounted using the provided mounting gear.
    • Does it support link aggregation?
  • Link aggregation is enabled for enhanced bandwidth and redundancy.
    • Is it compatible with Cisco IP phones and access points?
  • Yes, the PoE+ feature supports IP phones, cameras, and access points.
    • What management features are available?
  • It has a web-based GUI, SNMP, and Cisco Business Dashboard support.
    • How many devices can be powered via PoE?
  • Up to 8 devices can be powered by the PoE+ ports, depending on the power budget.
    • Does it have multicast support?
  • Yes, it supports multicast with IGMP snooping for more efficient media streaming.
    • Can it detect and prioritize voice traffic?
  • Yes, QoS prioritizes voice traffic to ensure clarity during VoIP calls.
    • Can this switch be managed via CLI?
  • Yes, CLI management is available for advanced configurations.
