  • Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo (NA) | Refresh
Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo (NA) | Refresh

Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo (NA) | Refresh

SKU: CBS250-8FP-E-2G-NA-RF
(0)No Reviews yet

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$129.99 $129.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

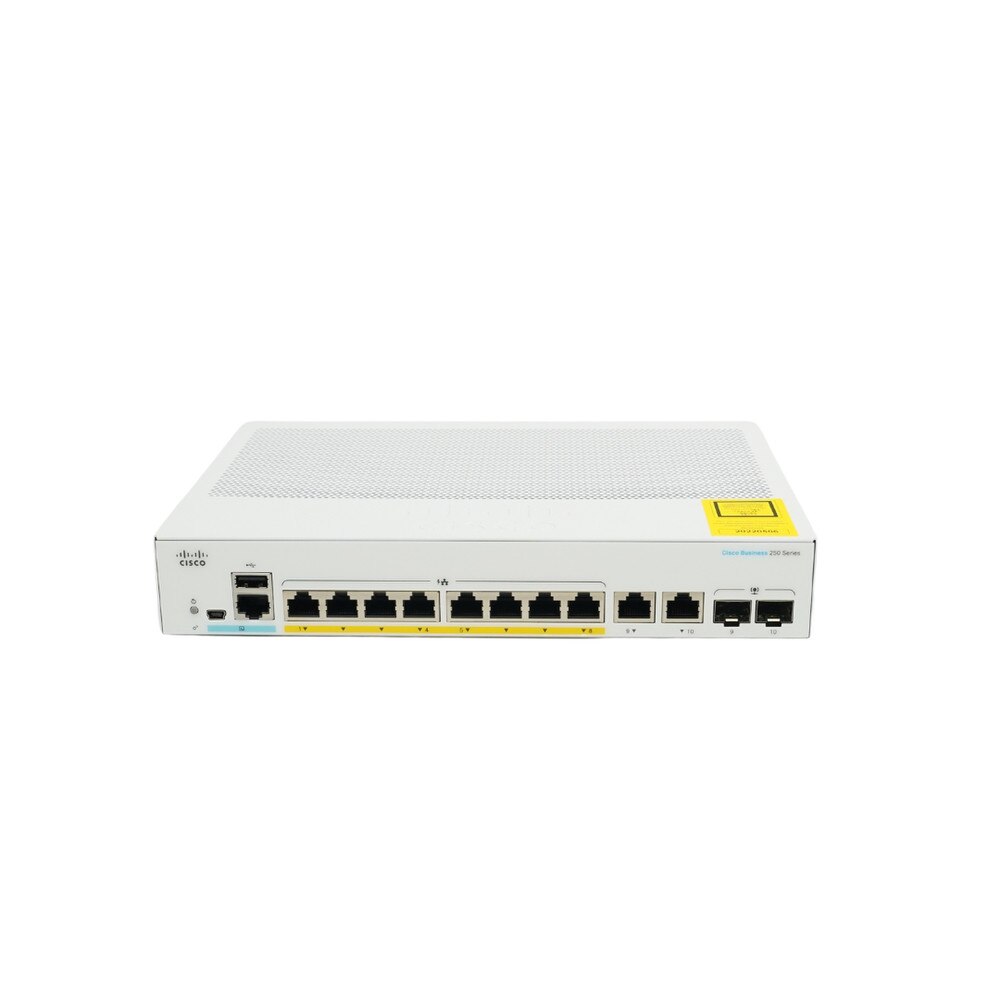

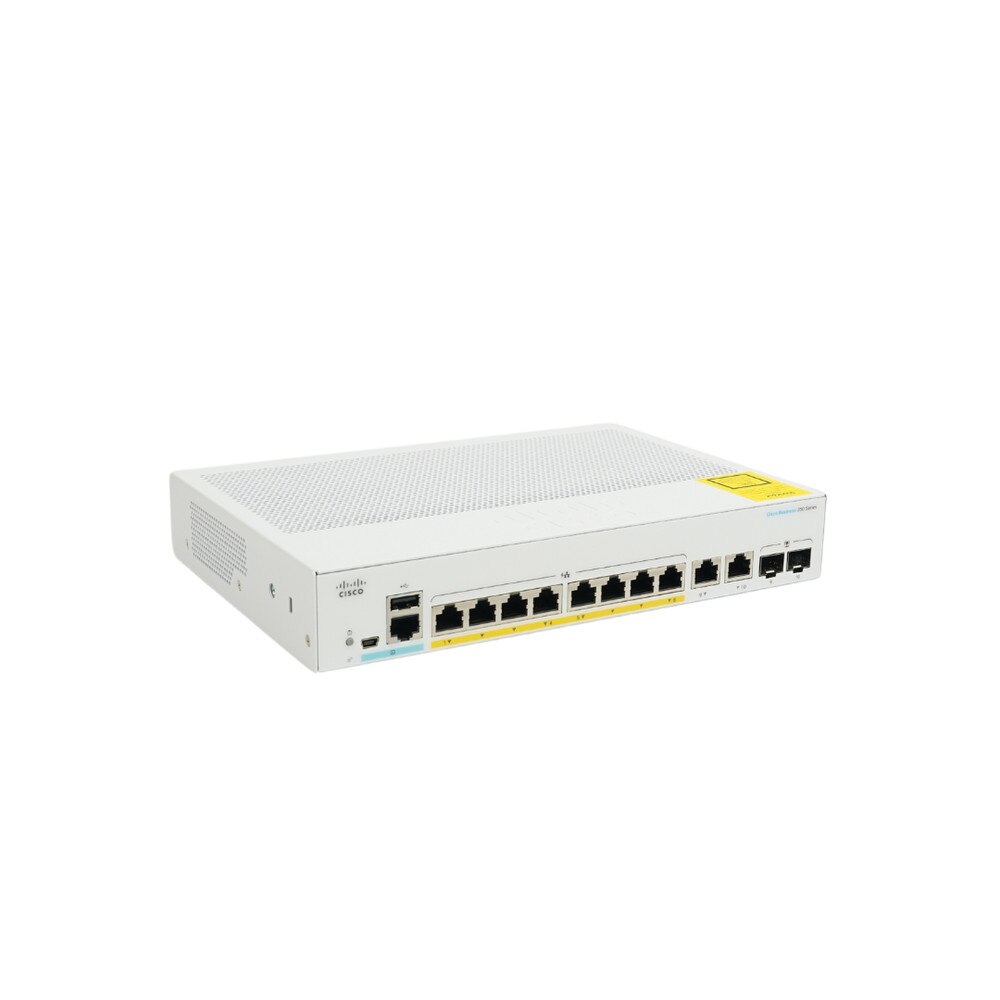

Overview of Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo (NA) | Refresh

The Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo (NA) is a powerful managed switch intended for small to medium-sized enterprises that require a dependable, secure, and scalable network solution. This adaptable switch combines advanced features, high-power PoE+ capabilities, and various connectivity options to enable modern business applications and future network expansion. The CBS250-8FP-E-2G has 8 Gigabit Ethernet ports with PoE+ capability and a huge 120W power budget, allowing you to power IP phones, wireless access points, and security cameras directly via network cables. In addition, it has two Gigabit copper/SFP combination ports for flexible uplink connection. This switch's 20 Gbps switching capacity and 14.88 Mpps forwarding rate provide smooth and efficient data transfer for your business-critical applications.


Key Features of Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo


8 Gigabit Ethernet ports with PoE+ support (up to 30W per port)

Two Gigabit copper/SFP combo ports for versatile uplink options

120W total PoE budget for powering multiple devices

20 Gbps switching capacity and 14.88 Mpps forwarding rate

Layer 2 and basic Layer 3 features including static routing

• Intuitive web-based interface and Cisco Business Dashboard for easy configuration

• Robust security features including ACLs and 802.1X authentication

• Energy-efficient design with Energy Efficient Ethernet (IEEE 802.3az) support

QoS capabilities for prioritizing delay-sensitive traffic

Compact, fanless design for quiet operation in office environments


Benefits of Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo


🗹 Enhance network performance with Gigabit speeds and high-power PoE+ support

🗹 Simplify deployment of IP telephony, wireless, and video surveillance solutions

🗹 Improve network reliability with advanced QoS and security features

🗹 Reduce operational costs with energy-efficient design

🗹 Scale your network easily with flexible SFP/RJ45 combo uplink options

🗹 Simplify management and troubleshooting with intuitive interfaces

🗹 Ensure business continuity with robust security and high availability

🗹 Future-proof your investment with a high-performance, feature-rich switch

🗹 Optimize application performance with advanced traffic management

🗹 Leverage Cisco's renowned quality and support for peace of mind

Specifications

Specifications for Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo (NA) | Refresh

ManufacturerCisco
Manufacturer Part NumberCBS250-8FP-E-2G-NA-RF
Product NameCisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Forwarding performance (64-byte packet size): 14.88 Mpps ¦ Switching capacity: 20 Gbps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 255 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size
8K entries
Jumbo Frame Support
2KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, SmartPort technology, dual image support, VLAN mirroring, DNS client, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, Secure Sensitive Data (SSD), ISATAP tunnel support, User Datagram Protocol (UDP), STP loop guard, Denial of Service (DoS) protection, Weighted Round Robin (WRR), loopback detection, Unknown Storm Control, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, PoE, link/activity/speed
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device

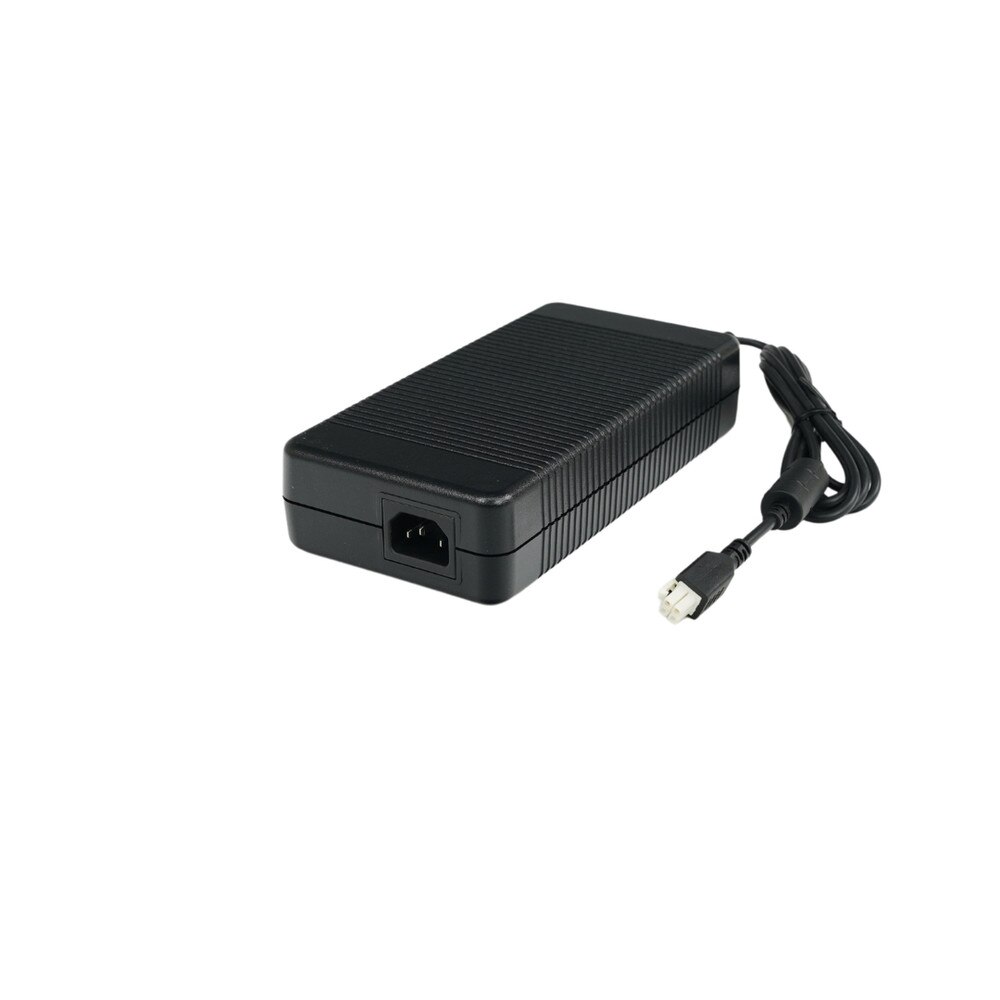

External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
147.48 Watt

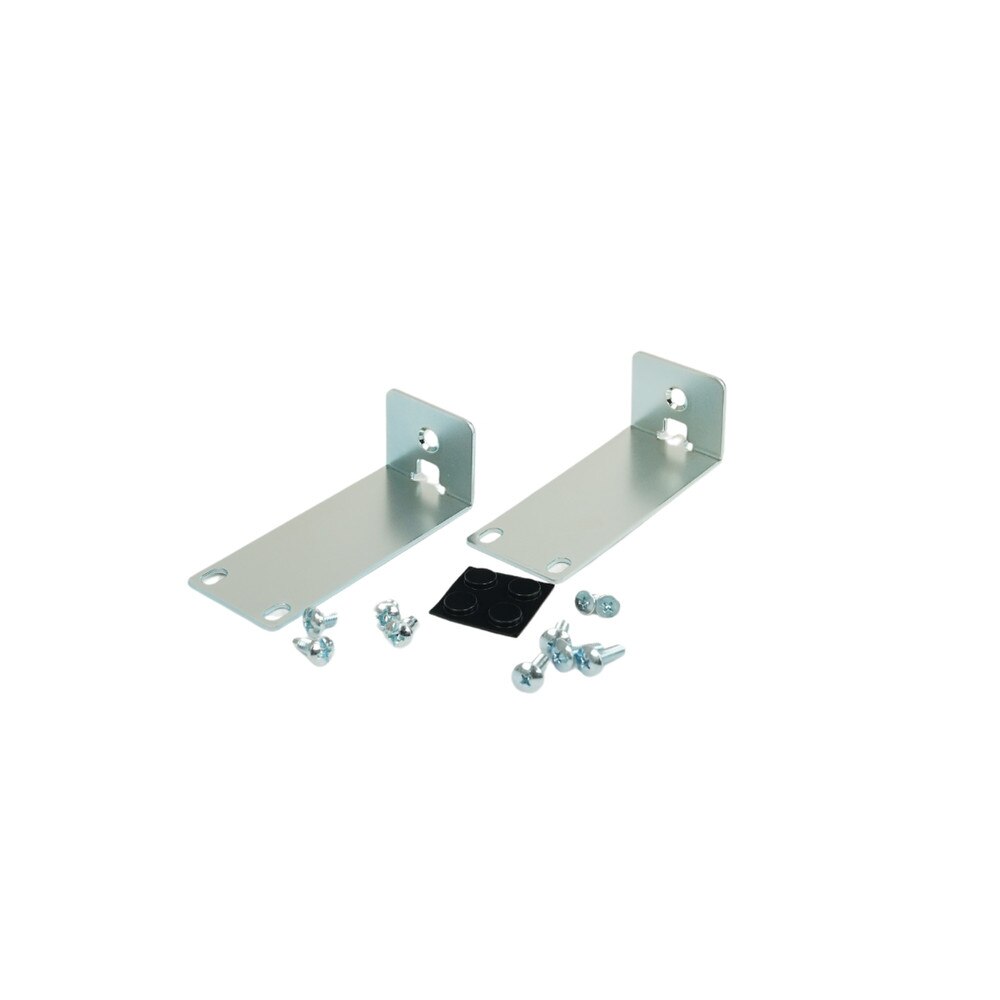

Rack Mounting Kit
Included
MTBF
1,706,649 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
10.6 in
Depth
7.3 in
Height
1.7 in
Weight
7.72 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS250-8FP-E-2G 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo
Frequently Asked Questions (FAQ's)



What is the Cisco CBS250-8FP-E-2G?
  • The Cisco CBS250-8FP-E-2G is an 8-Port Gigabit PoE+ Managed Switch with SFP/RJ45 Combo ports that is ideal for small and medium-sized businesses.
  • What does PoE+ mean?
  • PoE+ (Power over Ethernet Plus) enables the switch to provide power via Ethernet cables to connected devices such as IP cameras and wireless access points.
  • How many ports does this switch have?
  • It features eight Gigabit Ethernet ports and two Gigabit SFP/RJ45 uplink ports.
  • What are SFP/RJ45 combo ports?
  • These are versatile ports that can accept both SFP (Small Form-Factor Pluggable) modules for fiber connectivity and standard RJ45 Ethernet cables.
  • Can this switch be used in a home network?
  • Yes, while it is intended for small to medium-sized businesses, it can also be used in a home network for advanced networking requirements.
  • Is this switch managed or unmanaged?
  • The Cisco CBS250-8FP-E-2G is a managed switch with advanced features for network management and configuration.
  • What type of devices can be powered using the PoE+ ports?
  • The PoE+ ports can power IP cameras, VoIP phones, and wireless access points.
  • What security features does this switch offer?
  • It protects the network from unauthorized access using security features such as access control lists (ACLs), 802.1X authentication, and port security.
  • How do I configure the switch?
  • An intuitive web-based interface allows you to configure the switch, making setup and management easier.
  • Is it energy-efficient?
  • Yes, the Cisco CBS250-8FP-E-2G uses energy-efficient technology to reduce power consumption while maintaining performance.
  • What is the total PoE power budget of the switch?
  • The total PoE power budget varies, but it's usually around 120 watts.
  • Can this switch be mounted on a rack?
  • Yes, it is intended for desktop and rack-mount installations, with rack-mounting hardware included.
  • Does it support VLANs?
  • Yes, the switch does support Virtual Local Area Networks (VLANs) for network segmentation and management.
  • What is the warranty on the Cisco CBS250-8FP-E-2G?
  • It comes with a limited lifetime warranty, giving you peace of mind for long-term use.
  • Does it support QoS (Quality of Service)?
  • Yes, it supports QoS features for prioritizing critical network traffic and ensuring peak performance.
  • Can the switch be managed remotely?
  • Yes, remote management is possible using a web interface or other network management tools.
  • What operating systems are compatible with this switch?
  • The switch is OS-agnostic, meaning it can work with any operating system that supports Ethernet networking.
  • Does it have any built-in redundancy features?
  • While the switch does not have redundancy features, it can be connected to a network with redundant paths to ensure high availability.
  • Is there a fan in the switch, and is it noisy?
  • The switch may include a fan for cooling; however, Cisco switches are designed to operate quietly.
  • How do I update the firmware on the Cisco CBS250-8FP-E-2G?
  • Firmware updates can be performed using the web-based interface, which allows you to download and install the most recent firmware from Cisco's support site
