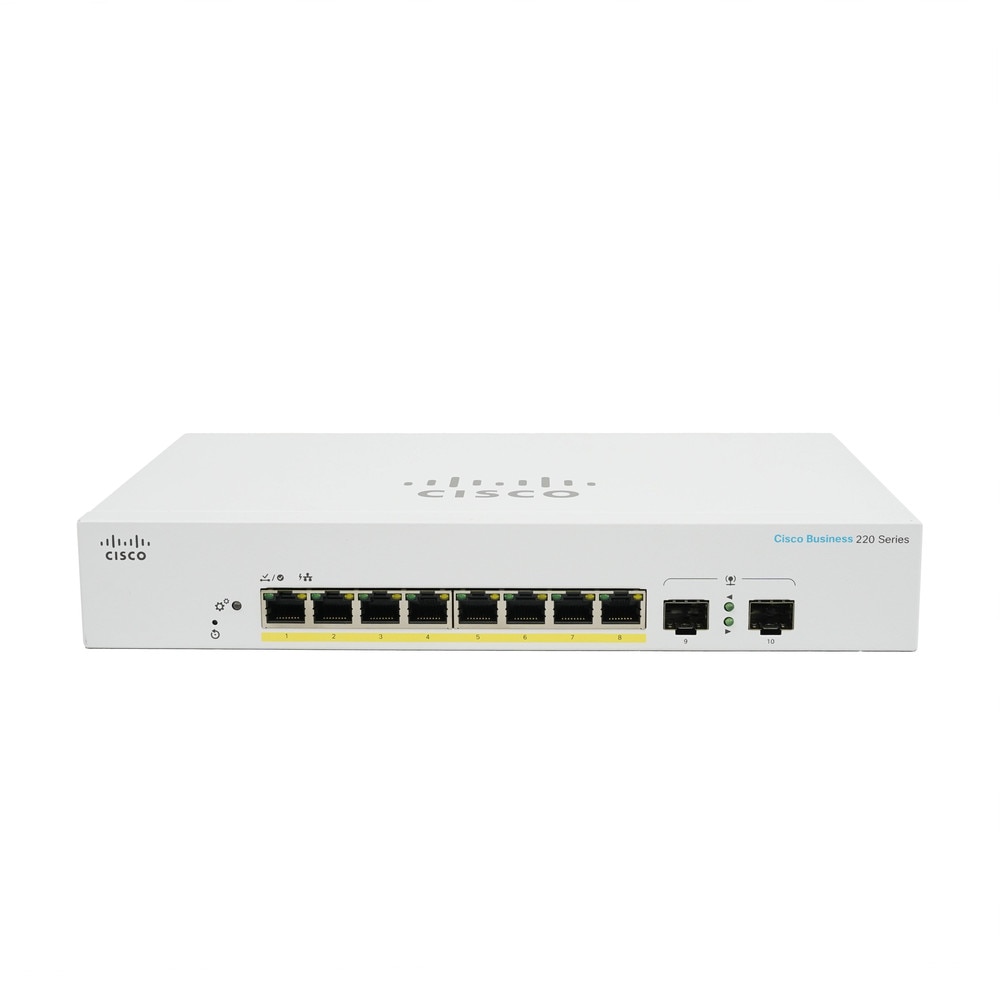

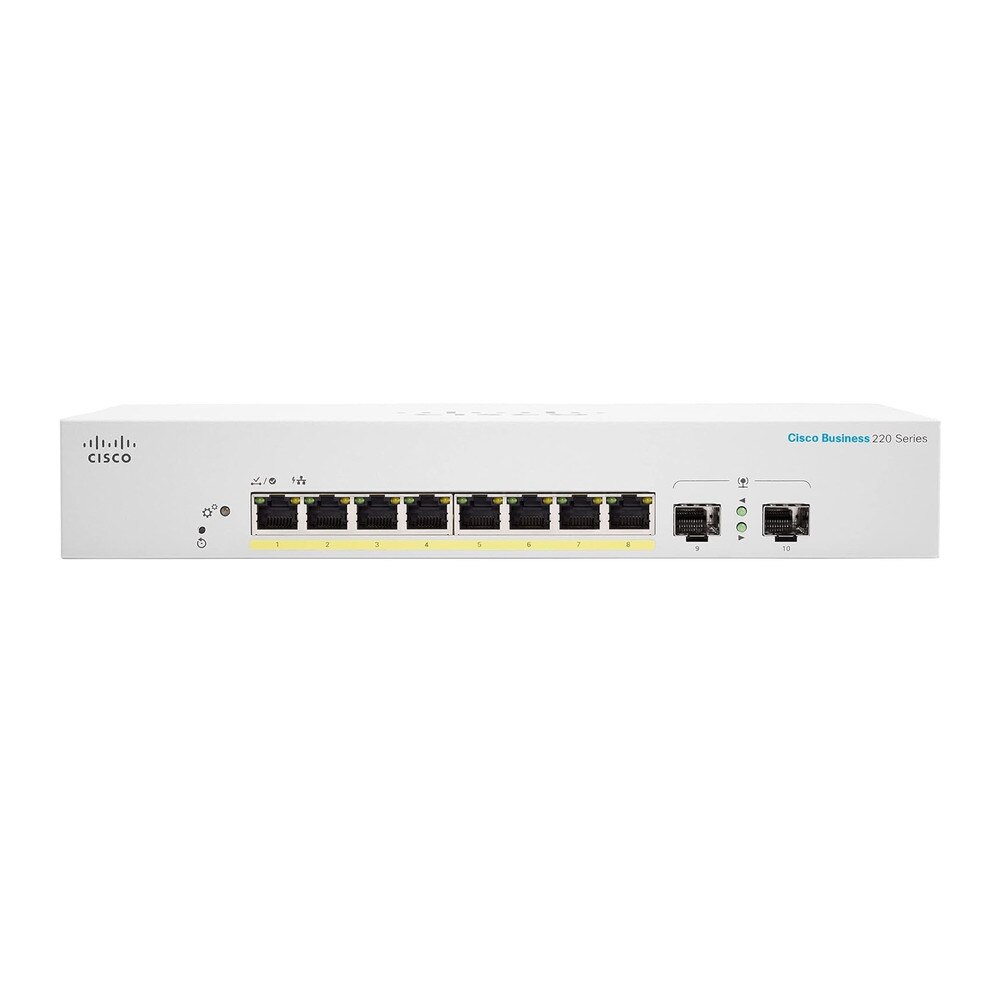

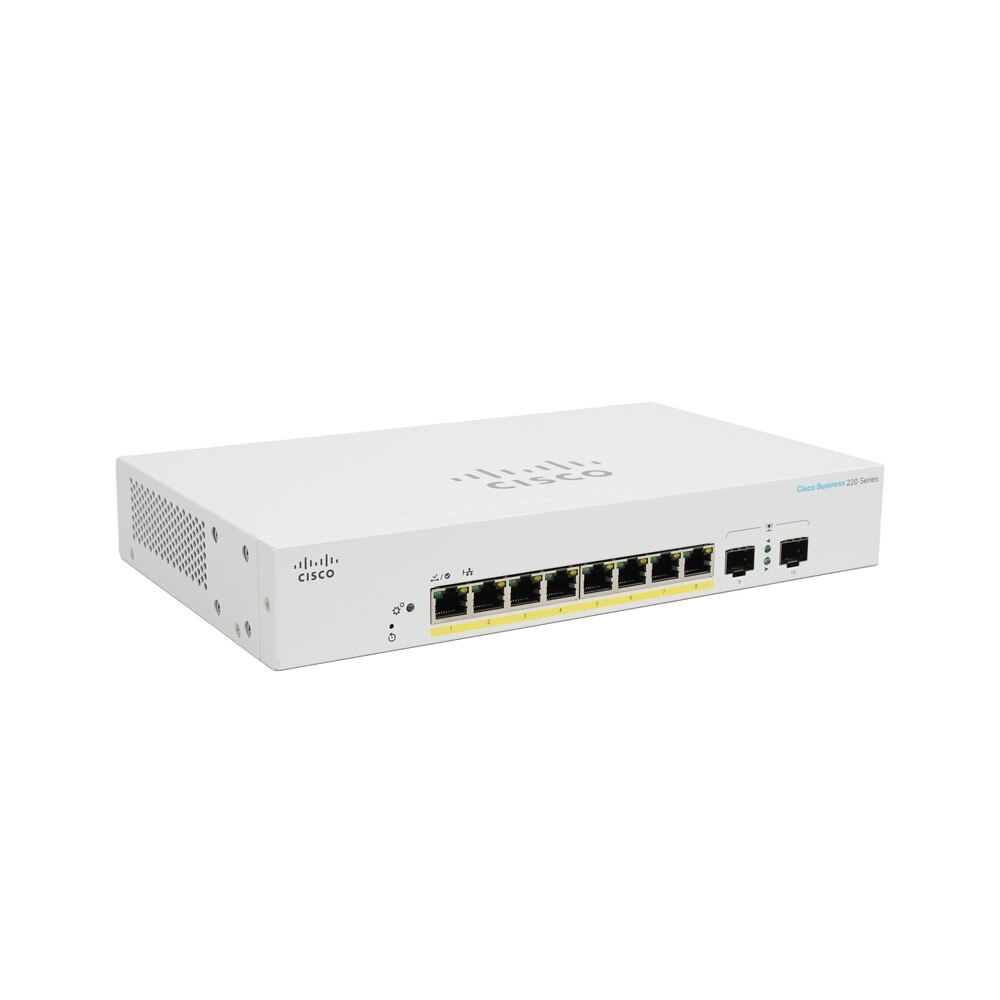

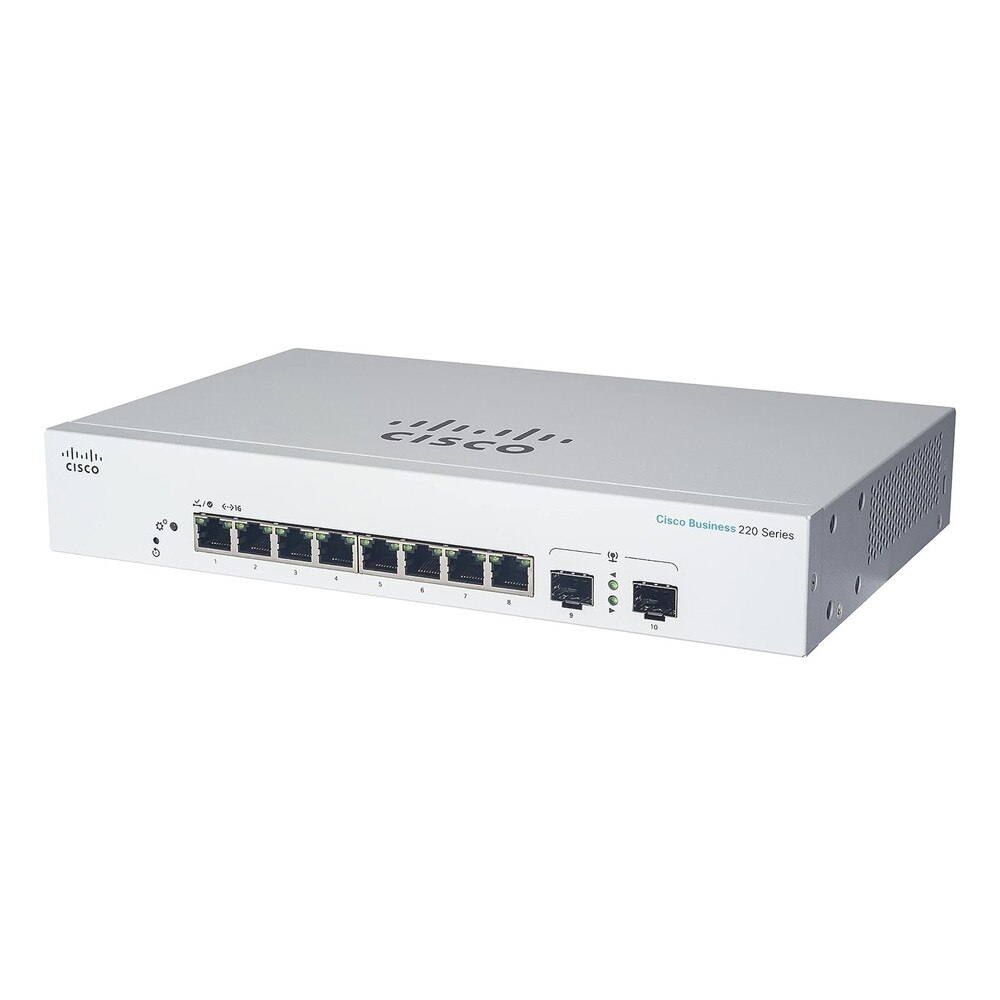

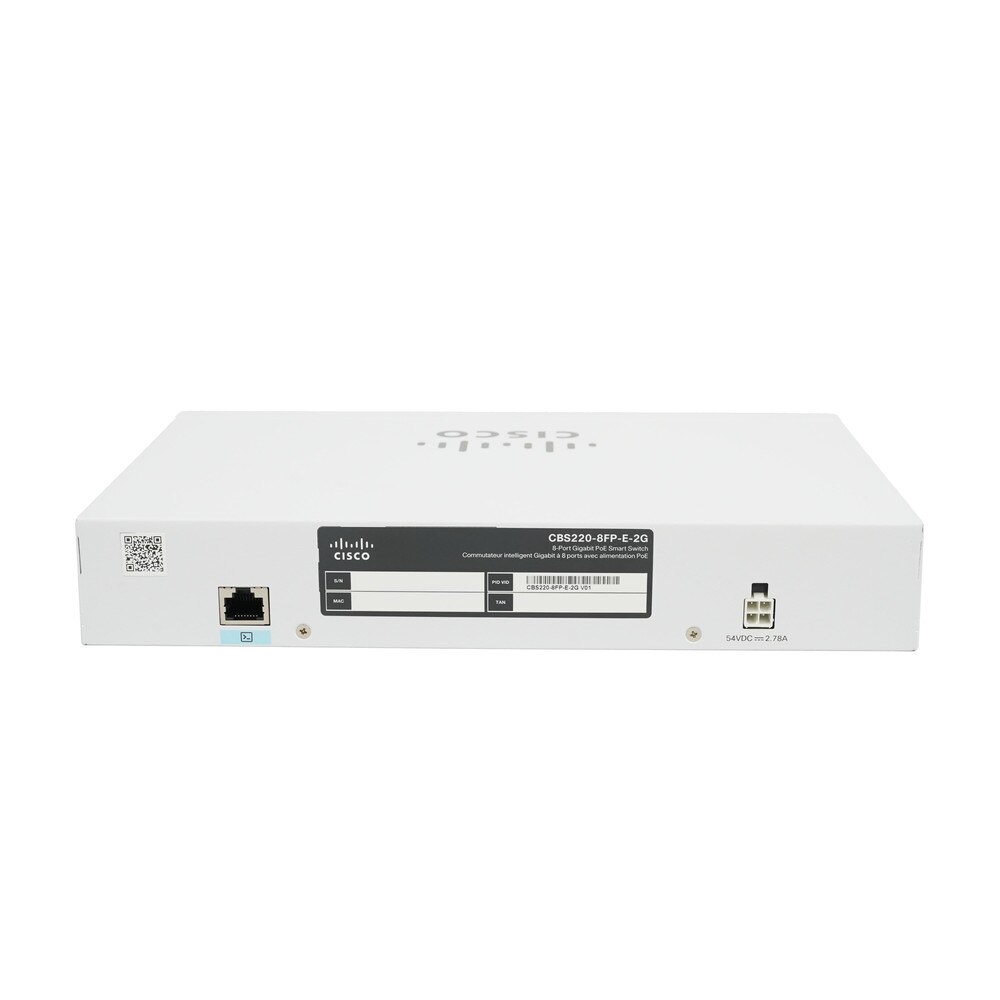

Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

SKU: CBS220-8FP-E-2G-NA-RF
(0)No Reviews yet

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$99.99 $99.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

The Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP (NA) is a powerful managed network switch built for small and medium-sized enterprises that want dependable, secure, and cost-effective networking solutions. This adaptable switch combines great performance, innovative functionality, and ease of use to meet the demands of current corporate applications and networking. The CBS220-8FP-E-2G has 8 Gigabit Ethernet ports that support PoE+ and a hefty 130W power budget, allowing you to power devices like IP phones, wireless access points, and security cameras directly from the switch. It also includes two 1GbE SFP ports for high-speed fiber connections, which allow for network expansion and uplink options. With a switching capability of 20 Gb/s and a forwarding rate of 14.88 Mpps, this switch offers smooth and dependable data transfers for your mission-critical applications.


Key Features of Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP


8 Gigabit Ethernet ports with PoE+ support (130W budget)

Two 1GbE SFP ports for flexible network expansion

20 Gb/s switching capacity and 14.88 Mpps forwarding rate

Layer 2 switching capabilities with advanced QoS features

• Comprehensive security features including DoS attack prevention

• Easy management via Cisco Business Dashboard and mobile app

Energy-efficient fanless design for quiet operation

• Support for up to 8,192 MAC addresses

9216-byte jumbo frame support

IPv4 and IPv6 compatible for future-proof networking


Benefits of Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP


🗹 Enhance network performance with Gigabit speeds and PoE+ support

🗹 Simplify deployment of IP phones, cameras, and wireless access points

🗹 Improve network reliability with advanced QoS and security features

🗹 Reduce operational costs with energy-efficient design

🗹 Scale your network easily with flexible SFP uplink options

🗹 Simplify management and troubleshooting with intuitive interfaces

🗹 Ensure business continuity with robust security and high availability

🗹 Future-proof your investment with IPv6 support and software updates

🗹 Optimize application performance with advanced traffic management

🗹 Leverage Cisco's renowned quality and support for peace of mind

Specifications

Specifications for Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP (NA) | Refresh

ManufacturerCisco
Manufacturer Part NumberCBS220-8FP-E-2G-NA-RF
Product NameCisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
130 W
Performance
Forwarding performance (64-byte packet size): 14.88 Mpps ¦ Switching capacity: 20 Gbps
Capacity
MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1
MAC Address Table Size
8192 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, fanless, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM
256 MB
Flash Memory
64 MB
Status Indicators
System, link/activity/speed
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP uplink

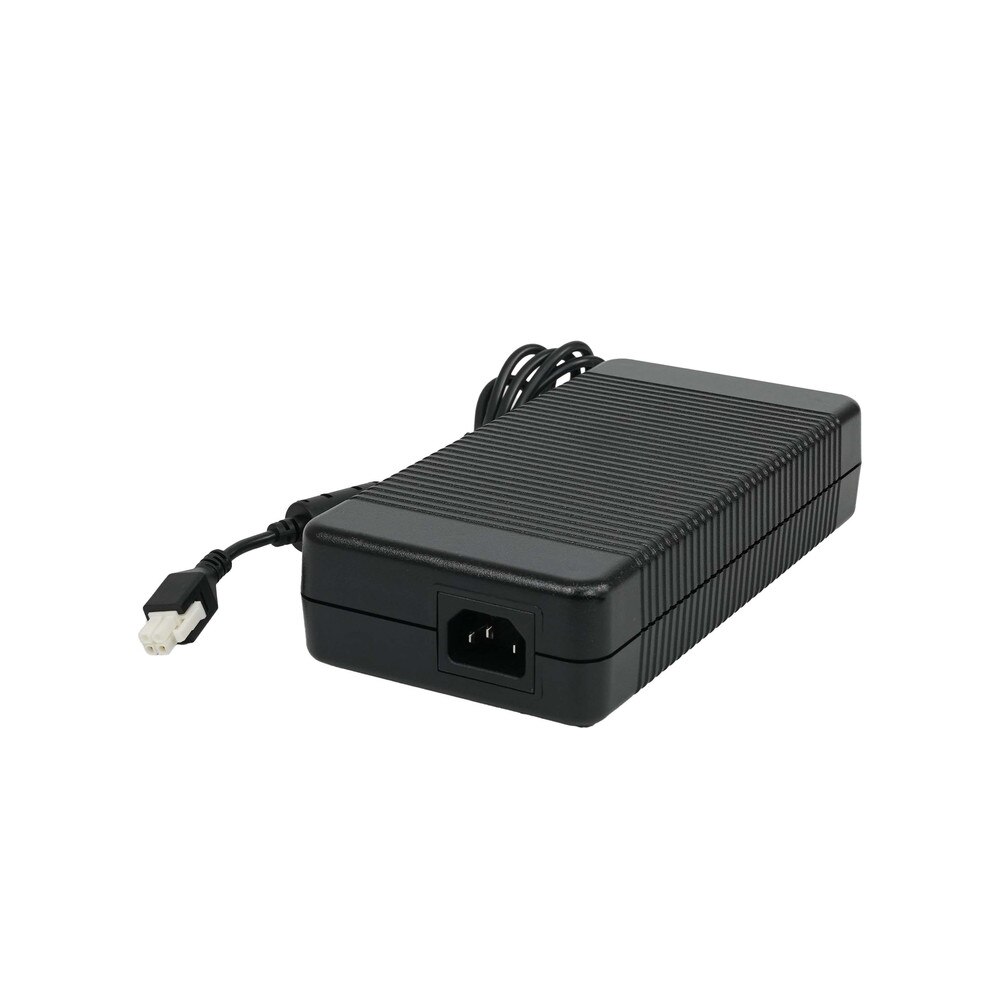

Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
151.4 Watt

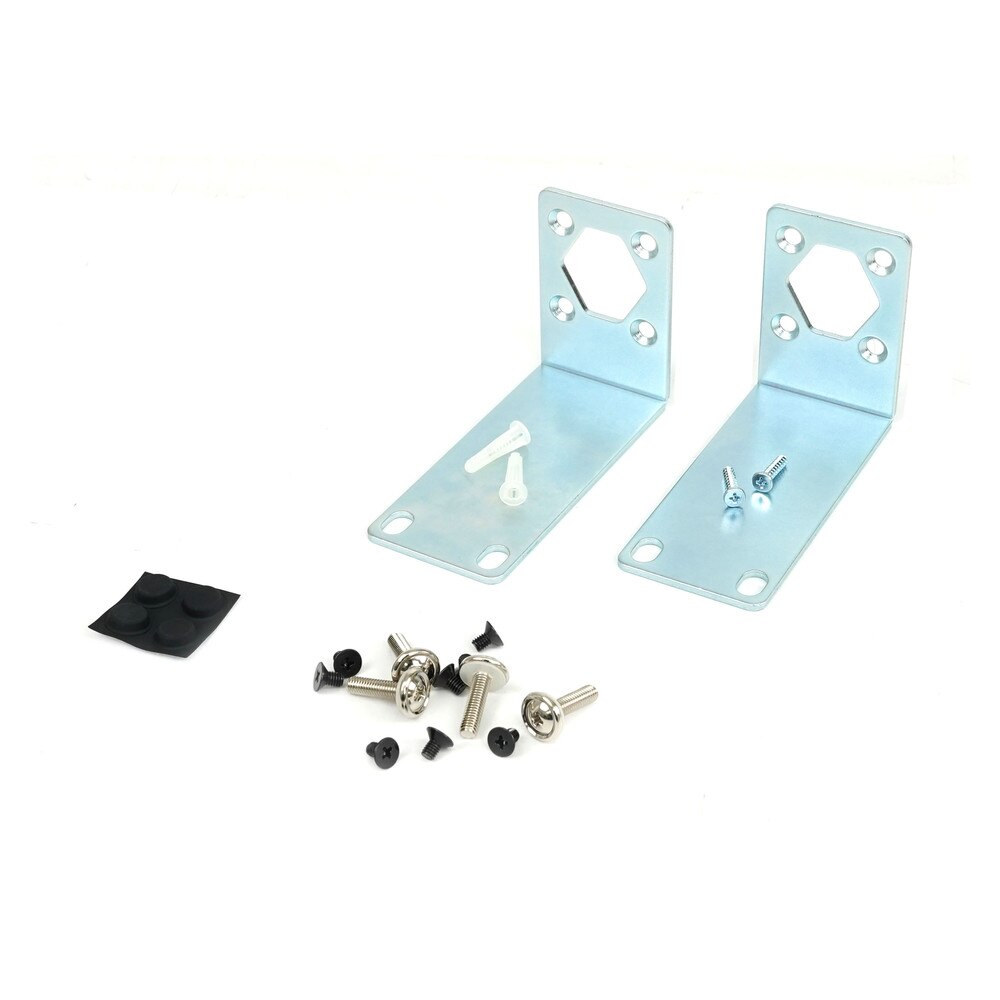

Rack Mounting Kit
Included
MTBF
660,457 hours
Compliant Standards
C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
11 in
Depth
6.7 in
Height
1.7 in
Weight
2.6 lbs
Service & Support
Limited warranty - replacement - 3 years - response time: next business day
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Managed Network Switch with SFP
Frequently Asked Questions (FAQ's)



What is the primary function of the Cisco CBS220-8FP-E-2G?
  • The Cisco CBS220-8FP-E-2G is a managed network switch designed for small businesses, offering high-speed connectivity and Power over Ethernet (PoE) for connected devices.
  • How many devices can the Cisco CBS220-8FP-E-2G connect simultaneously?
  • The switch features 8 Gigabit Ethernet ports and 2 Gigabit uplink ports, allowing for a total of 10 simultaneous connections.
  • What is PoE, and how does the Cisco CBS220-8FP-E-2G utilize it?
  • Power over Ethernet (PoE) allows the switch to transmit both data and electrical power through a single Ethernet cable. This model provides up to 240W of PoE power to support devices like IP phones, cameras, and wireless access points.
  • Is the Cisco CBS220-8FP-E-2G suitable for small business environments?
  • Yes, it is designed for small businesses, providing advanced features like VLAN support, QoS, and security, along with easy management.
  • What is the total switching capacity of this model?
  • The Cisco CBS220-8FP-E-2G has a switching capacity of 20 Gbps, ensuring high-speed data transfer for demanding applications.
  • Does the Cisco CBS220-8FP-E-2G support Layer 2 management features?
  • Yes, it offers Layer 2 management capabilities such as VLANs, link aggregation, and network monitoring.
  • How does the switch handle security?
  • The Cisco CBS220-8FP-E-2G includes advanced security features like port security, access control lists (ACLs), and network monitoring to safeguard connected devices.
  • What kind of uplink options does it provide?
  • It features 2 Gigabit SFP uplink ports, which can connect to higher-level switches or a network backbone.
  • Can it be managed remotely?
  • Yes, it offers both a web-based user interface and support for Cisco Business Dashboard, enabling remote management and monitoring.
  • What power budget does the PoE feature offer?
  • The switch provides a total PoE power budget of 240W, adequate for powering multiple high-consumption devices simultaneously.
  • Is it energy-efficient?
  • Yes, the switch includes energy-saving technologies, such as support for Energy Efficient Ethernet (EEE), reducing power consumption.
  • Does it support Quality of Service (QoS)?
  • Yes, it includes QoS features to prioritize traffic for critical applications, ensuring optimal performance.
  • How compact is the Cisco CBS220-8FP-E-2G?
  • The switch has a compact design suitable for desktop or rack-mount installations, making it flexible for small spaces.
  • Can the switch handle video surveillance networks?
  • Yes, with its PoE capabilities and robust bandwidth, it is well-suited for supporting IP cameras and other surveillance devices.
  • Does the switch support network segmentation?
  • Yes, it includes VLAN support for creating isolated networks within a single infrastructure.
  • Is the Cisco CBS220-8FP-E-2G compatible with other Cisco devices?
  • Yes, it integrates seamlessly with other Cisco products, providing a unified networking experience.
  • What is the typical use case for this switch?
  • The switch is ideal for small business offices, retail environments, or setups requiring PoE for devices like phones, cameras, or access points.
  • How user-friendly is the configuration process?
  • The switch is designed for simplicity, offering an intuitive web-based interface and a quick-start setup.
  • Can it handle high-bandwidth applications?
  • Yes, with its 20 Gbps switching capacity and Gigabit ports, it supports high-bandwidth needs like video streaming or data transfers.
  • Does it offer redundancy features?
  • The Cisco CBS220-8FP-E-2G supports link aggregation for redundancy and increased throughput, ensuring reliable connectivity.
