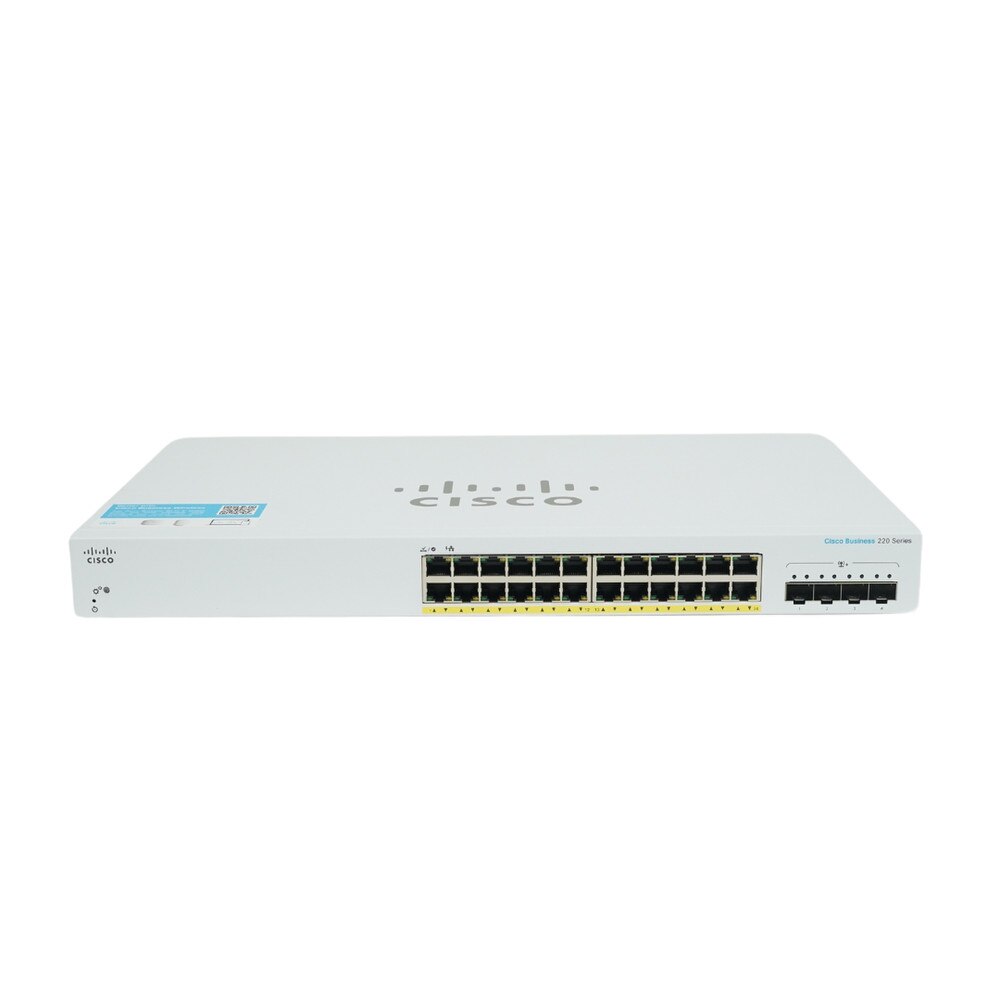

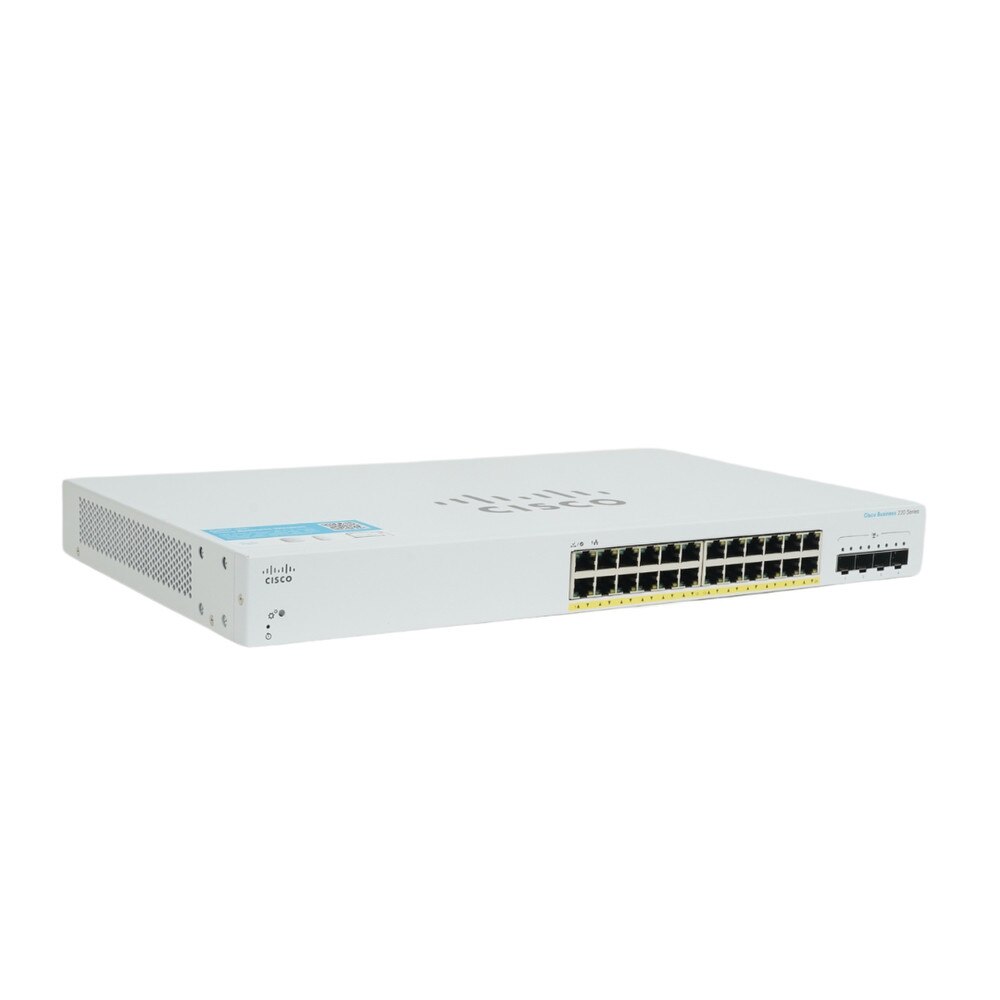

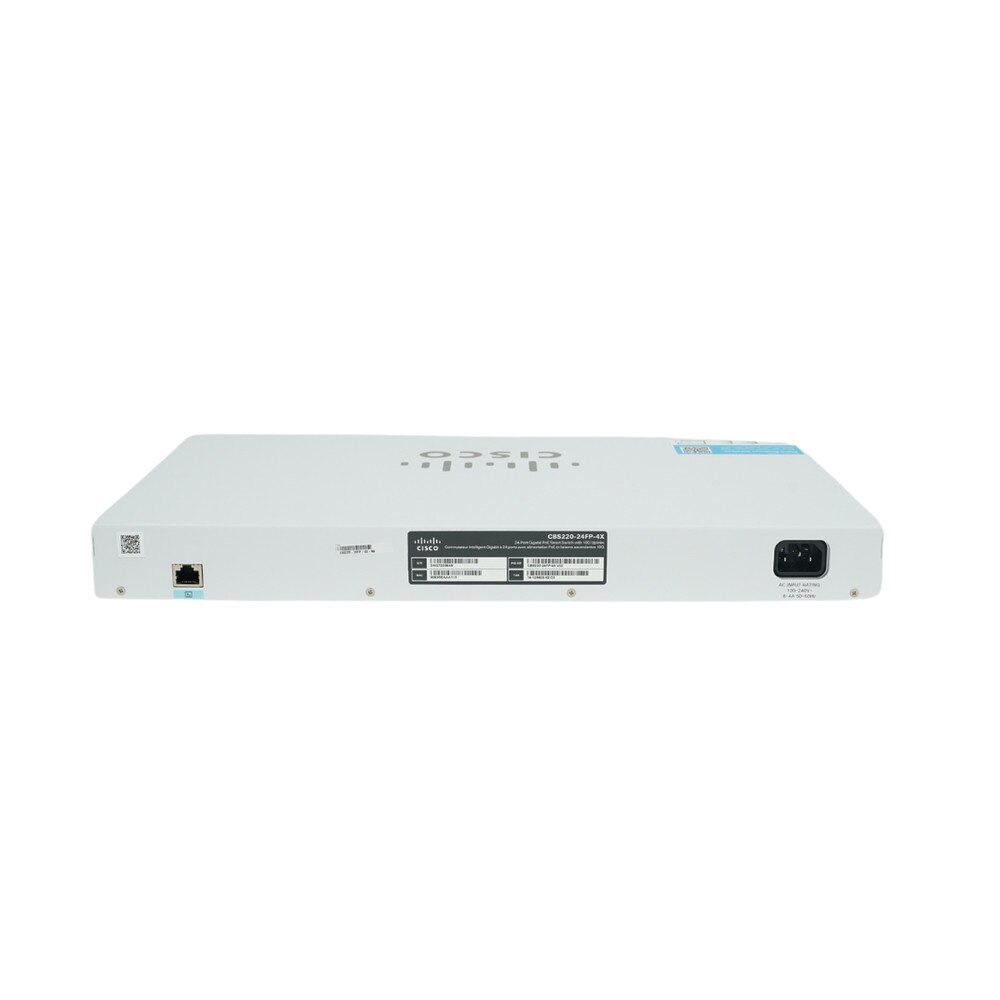

Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

SKU: CBS220-24FP-4X-NA-RF
(0)No Reviews yet

🗹 24 x Gigabit Ethernet PoE+ Ports
🗹 4 x 10GbE SFP+ Slots
🗹 128 Gb/s Switching Capacity
🗹 95.23 Mpps Forwarding Rate
🗹 382W Power Budget
🗹 Rack-Mountable Design
🗹 Works with Cisco Business Dashboard

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$249.99 $249.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

The Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) is a Layer 2 managed switch built for small and medium-sized enterprises that require PoE+ and high-speed 10G uplink connectivity. This versatile network switch combines full PoE+ functionality with 10G uplink capabilities, making it suitable for deploying IP phones, WLAN access points, and bandwidth-intensive applications. The CBS220-24FP-4X provides 370W of PoE+ power across 24 Gigabit Ethernet ports and four 10G SFP+ uplink ports for increased network expansion. With its simple administrative interface and dependable performance, this switch is an affordable alternative for expanding business networks.


Key Features of Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+


• 24 Gigabit Ethernet ports with PoE+ support

• 370W PoE+ power budget for connected devices

• 4 SFP+ uplink ports supporting 10G connectivity

• Layer 2 switching with essential management features

• 128 Gbps switching capacity

• User-friendly web-based management interface

• Basic security features with 802.1X support

• Easy-to-use device manager

• Energy-efficient design with EEE support

• VLAN support for network segmentation

• Quality of Service (QoS) capabilities

• IPv6 support

• Simple network monitoring and control

• Perpetual PoE operation

• Limited lifetime warranty

Specifications

Specifications for Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS220-24FP-4X-NA-RF
Product Name Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+
Product Type Networking Switch
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 382 W
Performance Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps
Capacity MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 12
MAC Address Table Size 8192 entries
Jumbo Frame Support 9216 bytes
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM 256 MB
Flash Memory 64 MB
Status Indicators System, link/activity/speed
Interfaces 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ uplink
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 470 Watt
Rack Mounting Kit Included
MTBF 588,411 hours
Compliant Standards C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localisation United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area
Width 44 cm
Depth 25.7 cm
Height 4.4 cm
Weight 4.03 kg
Service & Support Limited warranty - replacement - 3 years - response time: next business day
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -20 °C
Max Storage Temperature 70 °C
Humidity Range Storage 10 - 90% (non-condensing)

User Guides

Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ Data Sheet

Frequently Asked Questions

Cisco CBS220-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch with SFP+ (NA)
Frequently Asked Questions (FAQ's)



What is the Cisco CBS220-24FP-4X switch?
  • It is a 24-port Gigabit Ethernet switch that supports Power over Ethernet (PoE) and includes advanced functionality for small enterprises.
    • Does the Cisco CBS220-24FP-4X support PoE?
  • Yes, it supports PoE+ on all 24 ports, with a total power budget of up to 195W.
    • What is the uplink capability of this switch?
  • It features 4 10-Gigabit SFP+ uplink ports.
    • Is the switch managed or unmanaged?
  • It is a smart managed switch that supports basic Layer 2 and modest Layer 3 capability.
    • Can this switch be used in a stackable configuration?
  • No, the Cisco CBS220 series does not allow stacking.
    • Does the Cisco CBS220-24FP-4X support VLANs?
  • Yes, it supports VLANs, which provide network segmentation for security and performance.
    • Is the switch suitable for VoIP deployments?
  • Yes, it is great for VoIP and IP telephony, as it supports PoE+ and has sophisticated QoS.
    • How is the switch powered?
  • It requires an AC power source and includes a built-in power supply.
    • Can the switch be mounted in a rack?
  • Yes, it is meant for rack mounting and includes mounting hardware.
    • Does the Cisco CBS220-24FP-4X support SNMP?
  • Yes, it allows network monitoring via the Simple Network Management Protocol (SNMP).
    • What security features are available?
  • It supports 802.1X port security, access control lists (ACLs), and DoS attack prevention.
    • Is the switch energy-efficient?
  • Yes, it supports Energy Efficient Ethernet (IEEE 802.3az), which reduces power usage.
    • Does it have a web-based management interface?
  • Yes, the changeover can be managed through a simple web interface.
    • Can this switch be used for both wired and wireless networks?
  • Yes, it is suited for wired networks and supports wireless access points via PoE+.
    • What is the total switching capacity?
  • The switch has a total switching capacity of 128 Gbps.
    • Does the switch support Layer 3 routing?
  • It provides limited Layer 3 routing, such as static routing.
    • What kind of devices can be connected to the switch?
  • It works with any Ethernet-compatible device, including computers, servers, IP phones, and access points.
    • How do I perform a factory reset?
  • Press and hold the switch's Reset button for at least 10 seconds, or reset it using the web-based interface.
    • Does it support copper cable diagnostics?
  • Yes, it has a built-in copper test feature
    • What is the maximum data transfer rate for each port?
  • Each Gigabit Ethernet port can carry data at up to 1 Gbps, while SFP+ uplink ports can handle up to 10 Gbps.
