Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).
Clean Serial: YES
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

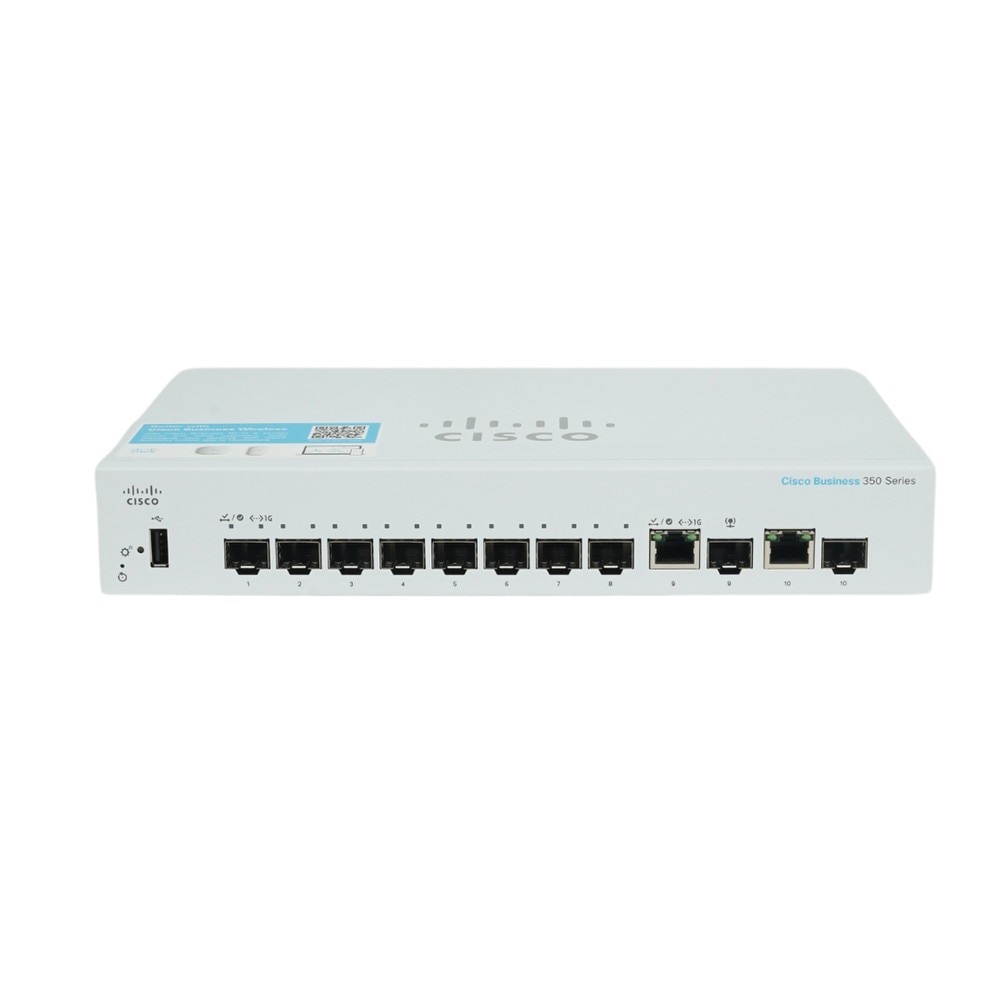

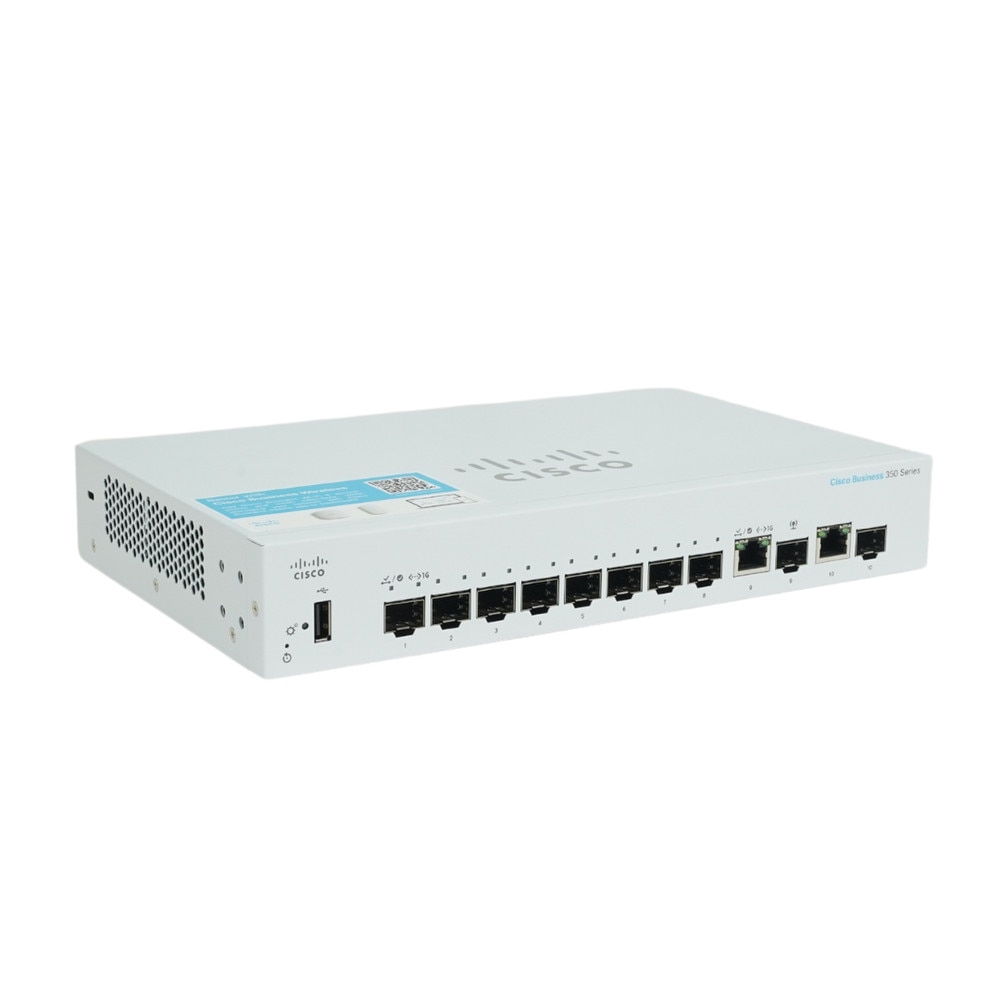

The Cisco CBS350-8S-E-2G 8-Port SFP Gigabit Managed Network Switch (NA) is a high-performance managed network switch developed for small and medium-sized enterprises that want a reliable, secure, and scalable network solution. This adaptable switch combines advanced capabilities, various connectivity options, and simple management to enable modern corporate applications and future network expansion. The CBS350-8S-E-2G has 8 Gigabit SFP slots that can connect to a range of wired devices, including computers and network-attached storage. It also includes two Gigabit SFP/RJ45 combination ports for flexible uplink connectivity. This switch has a switching capacity of 20 Gbps and a forwarding rate of 14.88 Mpps, ensuring seamless and efficient data transport for your business-critical applications. Its 800 MHz ARM processor and 512MB of RAM provide dependable performance while also supporting advanced Layer 2 and Layer 3 functionalities.
• 8 Gigabit SFP ports for high-speed fiber connectivity
• Two Gigabit SFP/RJ45 combo ports for versatile uplink options
• 20 Gbps switching capacity and 14.88 Mpps forwarding rate
• Advanced Layer 2 and Layer 3 features including static routing
• True stacking capability for unified management of up to 4 switches
• Robust security features including ACLs, 802.1X authentication, and DHCP snooping
• Energy-efficient design with Energy Efficient Ethernet (IEEE 802.3az) support
• Intuitive web-based interface and Cisco Business Dashboard for easy configuration
• Compact, fanless design for quiet operation in office environments
• IPv6 support for future-proof networking
🗹 Enhance network performance with Gigabit SFP connectivity
🗹 Improve network reliability with advanced QoS and security features
🗹 Simplify management and troubleshooting with true stacking capability
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with advanced Layer 3 features and IPv6 support
🗹 Optimize application performance with advanced traffic management
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with flexible SFP/RJ45 combo uplink options
🗹 Deploy in various environments thanks to the compact, fanless design
🗹 Leverage Cisco's renowned quality and support for peace of mind
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-8S-E-2G-NA-RF |
| Product Name | Cisco CBS350-8S-E-2G 8-Port SFP Gigabit Managed Network Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x Gigabit SFP + 2 x combo Gigabit Ethernet/Gigabit SFP |
Performance | Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps |
Capacity | RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 2KB |
Max Units In A Stack | 4 |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, link/activity/speed |
Interfaces | 10 x 1000Base-X SFP ¦ 2 x 1000Base-T RJ-45 ¦ 1 x USB Type A ¦ 1 x console RJ-45 |

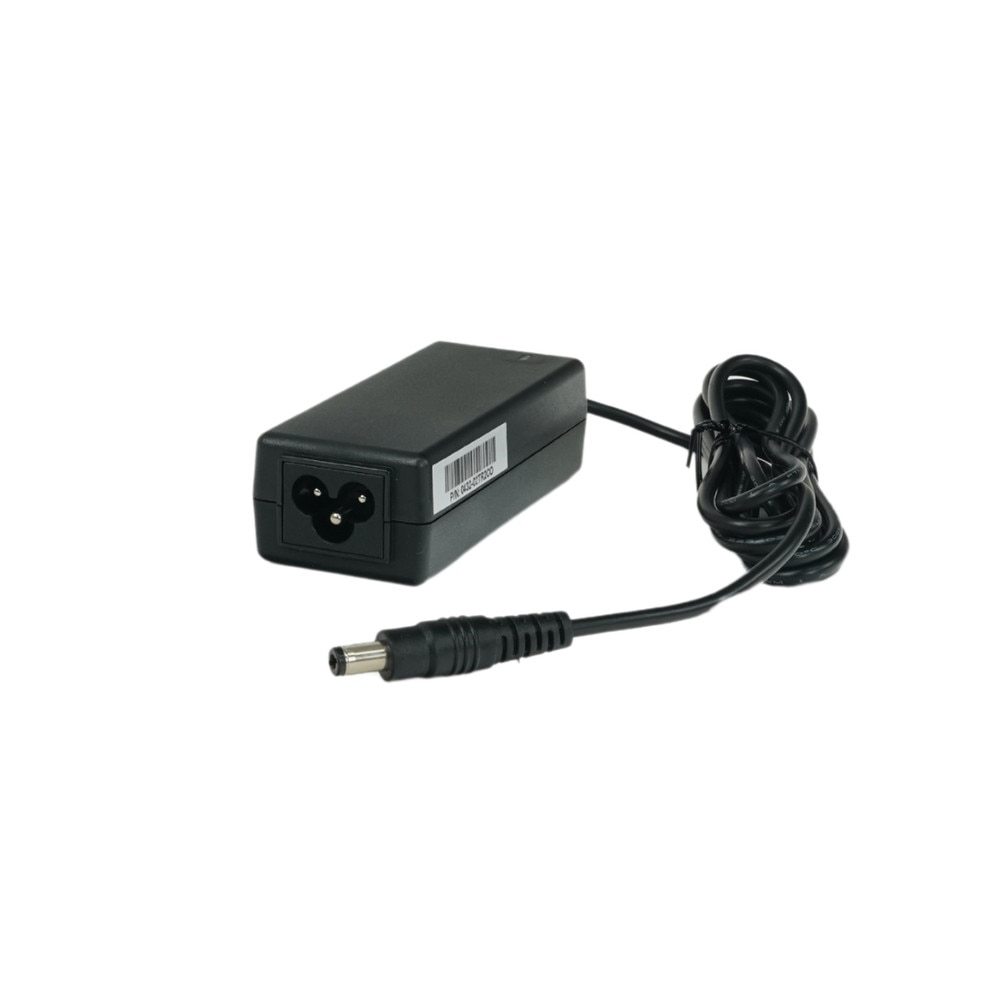

Power Device | External power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 11.9 Watt |
Rack Mounting Kit | Included |
MTBF | 2,242,229 hours |
Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 11 in |
Depth | 6.7 in |
Height | 1.7 in |
Weight | 2.2 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
