  • Cisco CBS350-16XTS 16-Port 10G Managed Network Switch (NA) | Refresh
Cisco CBS350-16XTS 16-Port 10G Managed Network Switch (NA) | Refresh

Cisco CBS350-16XTS 16-Port 10G Managed Network Switch (NA) | Refresh

SKU: CBS350-16XTS-NA-RF
(0)No Reviews yet

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$699.99 $699.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco CB350-16XTS 16-Port 10G Managed Network Switch (CBS350-16XTS-NA-RF) | Refresh

The Cisco CB350-16XTS 16-Port 10G Managed Network Switch (CBS350-16XTS-NA-RF) is a high-performance 16-port 10G managed network switch aimed at small and medium businesses. It provides dependable, secure, and simple-to-manage networking with advanced Layer 2/3 capabilities at an affordable price. This 16-port 10G switch has 8 10GBase-T Ethernet ports and 8 10G SFP+ ports for true 10 Gigabit connectivity, resulting in lightning-fast data transfer speeds for bandwidth-intensive applications. It supports link aggregation, which increases bandwidth and redundancy, making it a scalable and high-performance solution for expanding businesses.

The CBS350-16XTS is a fully managed Layer 3 switch with extensive Layer 2 and Layer 3 capabilities, including dynamic routing support, making it ideal for complex network environments. It supports advanced protocols such as GVRP and MSTP to ensure effective VLAN management and network segmentation. The switch is designed for easy management, with an intuitive Cisco Business Dashboard and mobile app. You can easily configure, monitor, and troubleshoot your network using a centralized interface, saving time and resources. The dashboard automates deployment and lifecycle management, making traditional networking challenges easier to manage.

The Cisco CBS350-16XTS is an excellent choice for small businesses, branch offices, and workgroups that need a dependable, secure, and affordable 10G network solution with advanced Layer 2/3 capabilities and management features for converged data, voice, and video applications.


Key Features of Cisco CB350-16XTS 16-Port 10G Managed Network Switch


• 8 x 10GBase-T Ethernet ports

• 8 x 10G SFP+ ports for fiber connectivity

• Support for link aggregation to create up to 8 groups of 16 ports for multi-Gigabit connections

• Comprehensive Layer 2 and Layer 3 features

• Dynamic routing support

• Support for advanced protocols like GVRP and MSTP

• 320 Gbps switching capacity

• 238.08 Mpps forwarding rate

• 3 MB packet buffer

• Cisco Business Dashboard portal and mobile app for easy configuration and monitoring

• Automated deployment and lifecycle management

• Access control lists (ACLs)

• Guest VLANs

• Advanced access control

• DoS attack prevention

• RADIUS authentication

• Traffic prioritization for voice, video, and critical data

• 8 priority queues

• Strict priority and weighted round-robin (WRR) queuing

• IPv6 support

• Energy-efficient design with eco-friendly features

• Compact form factor with triple-fan design for quiet operation

• Limited Lifetime Warranty and Cisco technical support

Specifications

Specifications for Cisco CB350-16XTS 16-Port 10G Managed Network Switch (CBS350-16XTS-NA-RF) | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS350-16XTS-NA-RF
Product Name Cisco CB350-16XTS 16-Port 10G Managed Network Switch
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
8 x 10GBase-T + 8 x 10 Gigabit SFP+
Performance
Switching capacity: 320 Gbps ¦ Forwarding performance (64-byte packet size): 238.08 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 3
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity/speed
Interfaces
8 x 10GBase-T RJ-45 ¦ 8 x 10GBase-X SFP+ ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)

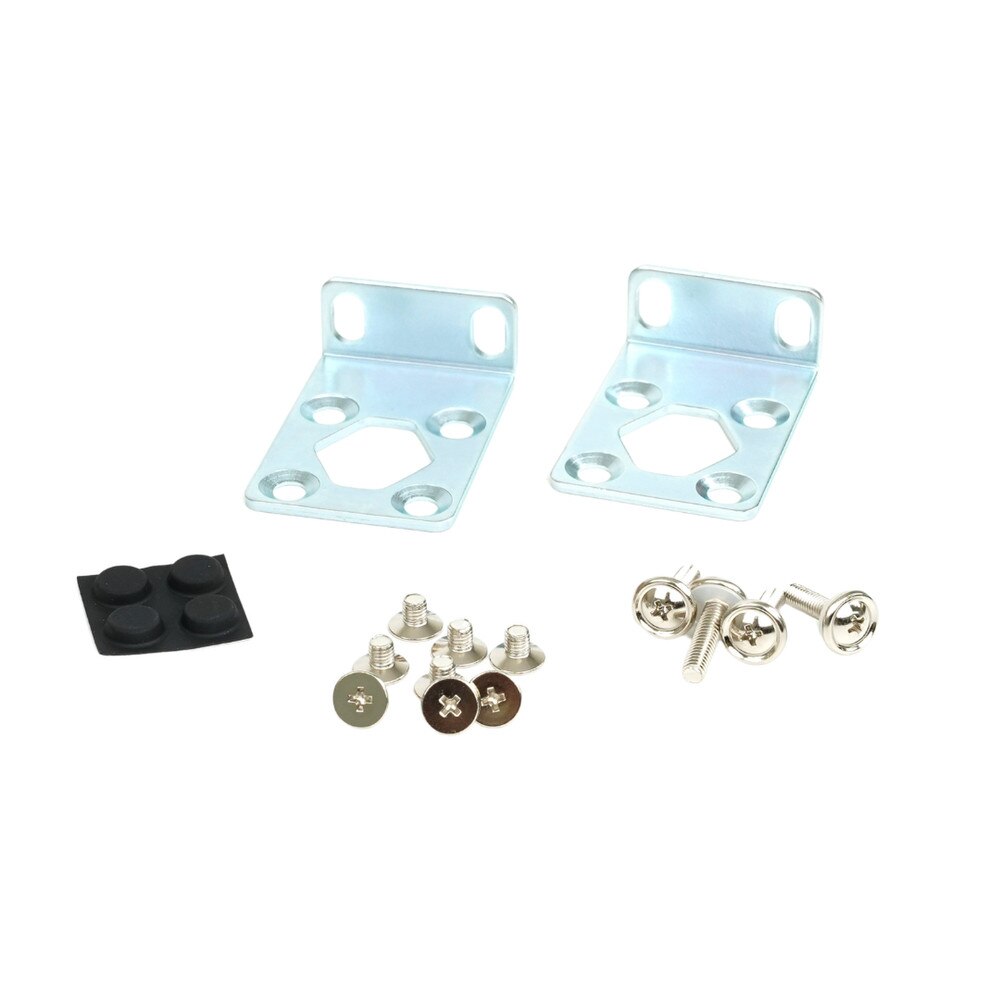

Rack Mounting Kit
Included
MTBF
798,504 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
17.3 in
Depth
10.1 in
Height
1.7 in
Weight
8.36 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS350-16XTS 16-Port 10G Managed Network Switch (NA)
Frequently Asked Questions (FAQ's)



What are the key features of the Cisco CB350-16XTS switch?
  • Advanced security features include 16 10G SFP+ ports, QoS, VLAN support, energy efficiency, and Layer 3 switching.
  • Is the Cisco CB350-16XTS suitable for small and medium-sized businesses?
  • Yes, it is intended to meet the networking needs of small and medium-sized enterprises with high performance requirements.
  • What type of ports does the switch have?
  • It has 16 10GB SFP+ Ethernet ports.
  • How is the switch managed?
  • The switch can be managed using a web-based interface, CLI, SNMP, or the Cisco Business Dashboard.
  • Does the switch support Power over Ethernet (PoE)?
  • The CB350-16XTS does not support PoE. It focuses on delivering 10G connectivity.
  • What security features are included in the CB350-16XTS?
  • It features access control lists (ACLs), 802.1X authentication, and advanced threat protection.
  • Does the switch support VLANs?
  • Yes, it supports VLANs for better network segmentation and security.
  • Is the CB350-16XTS fanless?
  • The CB350-16XTS is not fanless and requires active cooling.
  • What is the power consumption of the CB350-16XTS?
  • To reduce power consumption, the switch supports the Energy Efficient Ethernet (EEE) standard.
  • Can the switch prioritize different types of network traffic?
  • Yes, it uses Quality of Service (QoS) to prioritize critical traffic like VoIP and video conferencing.
  • Is the CB350-16XTS stackable?
  • No, the CB350-16XTS does not stack.
  • What is the warranty period for the Cisco CB350-16XTS?
  • Cisco provides a limited lifetime warranty for this switch.
  • Does the switch support Link Aggregation?
  • Yes, it supports Link Aggregation, which increases bandwidth and redundancy.
  • Can the switch be mounted in a rack?
  • Yes, it is intended for rack mounting.
  • What is the switching capacity of the CB350-16XTS?
  • The switching bandwidth is 320 Gbps.
  • Does the switch have IPv6 support?
  • Yes, the switch supports IPv6, which will help to future-proof your network.
  • Is the CB350-16XTS suitable for use in a home office?
  • Yes, it can be used in home offices with high-performance and managed network requirements.
  • Does the switch support remote management?
  • Yes, it can be remotely managed using the web interface, CLI, SNMP, and Cisco Business Dashboard.
  • What are the dimensions of the switch?
  • The dimensions are approximately 440 x 44 x 257 mm (width, height, and depth).
  • Is the Cisco CB350-16XTS compatible with other Cisco networking equipment?
  • Yes, it is fully compatible with other Cisco networking products, resulting in seamless integration and network scalability.
