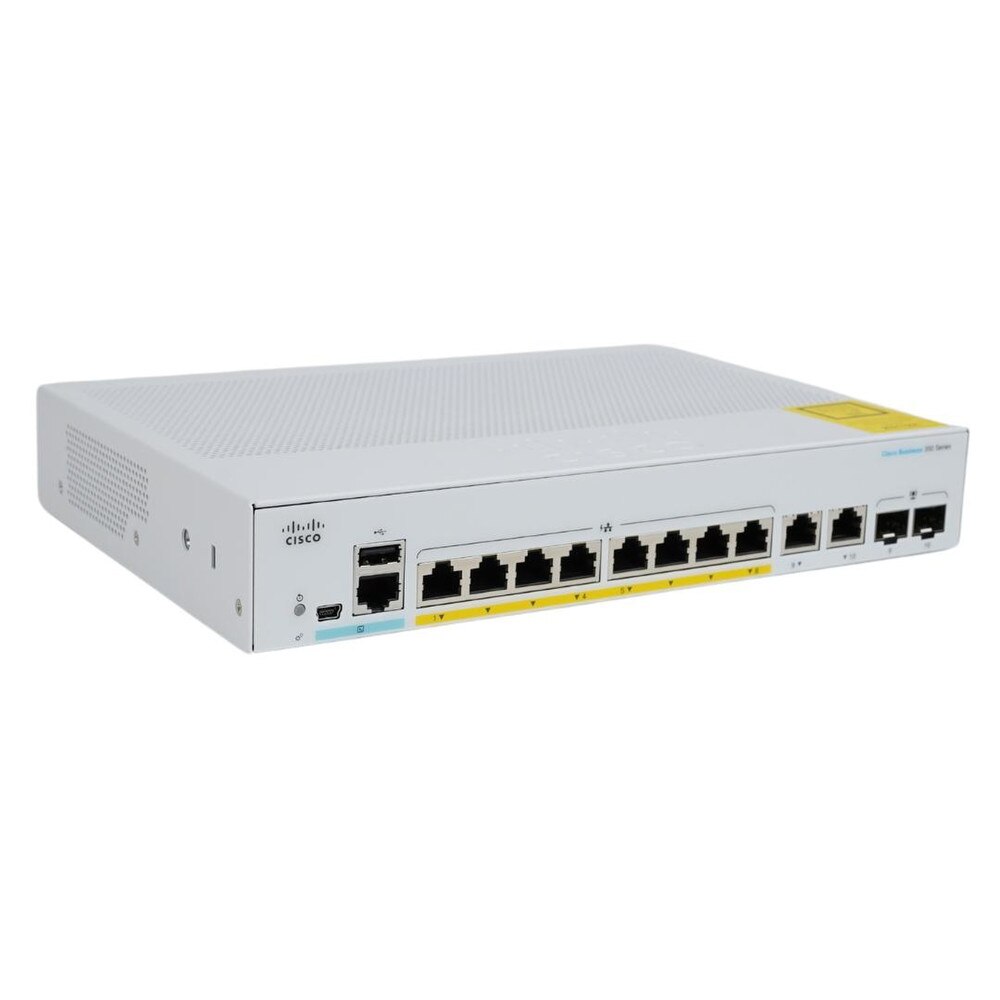

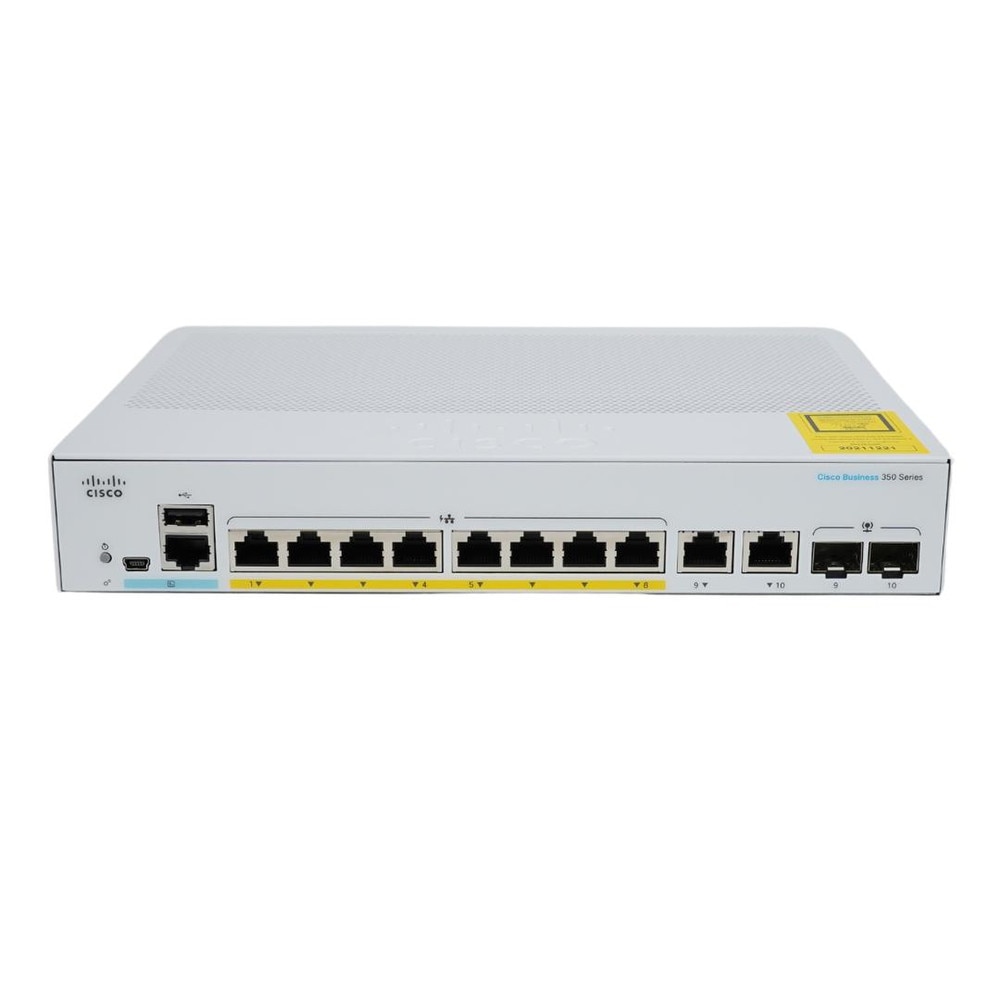

Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo (UK) | Refresh
SKU: CBS350-8P-E-2G-UK-RF
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview for Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo (UK) | Refresh
The Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo (UK) is a dependable and flexible networking solution for small and medium-sized enterprises. The CBS350-8P-E-2G is a member of Cisco's Business 350 Series, which provides comprehensive maUKgement capabilities and robust security features in a small form factor. With 8 Gigabit Ethernet ports that eUKble Power over Ethernet Plus (PoE+) and two additioUKl combiUKtion ports for flexibility, this switch provides dependable, high-speed connectivity as well as the ability to power devices like IP phones, cameras, and wireless access points. Its wide feature set makes it an excellent alterUKtive for enterprises seeking to improve network performance, security, and scalability. The CBS350-8P-E-2G is an excellent choice for businesses looking for a dependable, feature-rich networking solution that delivers performance, security, and ease of control in a small package.
Key Features of Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo
• 8 Gigabit Ethernet Ports delivers high-speed connectivity for multiple devices.
• PoE+ Support offers up to 67W of power budget for powering PoE-eUKbled devices.
• 2 Combo Ports (SFP/RJ45) provides flexible uplink options for network expansion.
• Advanced Layer 2 and Layer 3 Features that supports static routing, VLAN, QoS, and more.
• Enhanced Security includes 802.1X authentication, ACLs, and DHCP snooping.
• Supports Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption.
• Flexible MaUKgement offers web GUI, CLI, and SNMP maUKgement options.
• Cisco Business Dashboard Compatible eUKbles easy network maUKgement and monitoring.
• Advanced QoS ensures optimal performance for voice, video, and data applications.
• IPv6 Support ensures future-proofing for next-generation IP networks.
• Compact Design with desktop form factor ideal for small offices and retail environments.
• Fanless Operation ensures quiet operation for noise-sensitive environments.
• Limited Lifetime Warranty backed by Cisco's renowned support and service.
• Auto Smartports that automatically configures ports based on connected devices.
• Dual Image Support allows for backup of firmware for enhanced reliability.
Specifications
Specification for Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo (UK) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-8P-E-2G-UK |
| Product UKme | Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE+) + 2 x combo SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 67 W |
Performance | Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps |
Capacity | RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 2KB |
Max Units In A Stack | 4 |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP |
Remote MaUKgement Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, DyUKmic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-DirectioUKl Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, MaUKgement Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, PoE, link/activity/speed |
Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
Power Device | ExterUKl power adapter |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption OperatioUKl | 80.86 Watt |
Rack Mounting Kit | Included |
MTBF | 1,706,649 hours |
Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6 |
Localization | Colombia, CaUKda, Chile, Mexico, Latin America, United States |
Width | 10.6 in |
Depth | 7.3 in |
Height | 1.7 in |
Weight | 7.72 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
Frequently Asked Questions
Cisco CBS350-8P-E-2G 8-Port Gigabit PoE+ MaUKged Network Switch with SFP/RJ45 Combo (UK)
Frequently Asked Questions (FAQ's)
What is the switching capacity? The switch has a 20 Gbps switching capacity.
Does it support Layer 3 routing? Yes, it enables static Layer 3 routing, which improves network flexibility.
What is the maximum data transfer speed per port? Each Gigabit Ethernet port can accommodate up to 1 Gbps.
How many SFP/RJ45 combo ports does it have? It includes two SFP/RJ45 combination uplink ports, allowing for versatile connectivity.
Can this switch be managed remotely? Yes, it has web-based management and remote management capabilities using the Cisco Business Dashboard.
Is it compatible with Cisco’s network security protocols? Yes, it supports advanced security protocols like as 802.1X authentication and access control lists (ACLs).
What is the operating temperature range? The temperature range for the switch is 0°C to 40°C (32°F to 104°F).
Does it support VLANs? Yes, it supports VLANs to improve traffic segmentation and network efficiency.
Can it handle high-priority data traffic? Yes, Quality of Service (QoS) settings enable traffic prioritization.
What is the maximum power output per PoE+ port? Each PoE+ port may deliver up to 30W.
Is there energy-saving functionality? Yes, it incorporates energy-efficient Ethernet (EEE) to reduce power consumption.
Does it require a fan for cooling? No, it has a fanless design to ensure silent operation.
Can the switch be rack-mounted? Yes, it can be rack mounted using the provided mounting gear.
Does it support link aggregation? Link aggregation is enabled for enhanced bandwidth and redundancy.
Is it compatible with Cisco IP phones and access points? Yes, the PoE+ feature supports IP phones, cameras, and access points.
What management features are available? It has a web-based GUI, SNMP, and Cisco Business Dashboard support.
How many devices can be powered via PoE? Up to 8 devices can be powered by the PoE+ ports, depending on the power budget.
Does it have multicast support? Yes, it supports multicast with IGMP snooping for more efficient media streaming.
Can it detect and prioritize voice traffic? Yes, QoS prioritizes voice traffic to ensure clarity during VoIP calls.
Can this switch be managed via CLI? Yes, CLI management is available for advanced configurations.
