Ubiquiti UniFi Dream Machine Pro Max with 5 Gbps IDS/IPS and Redundant NVR Storage | New

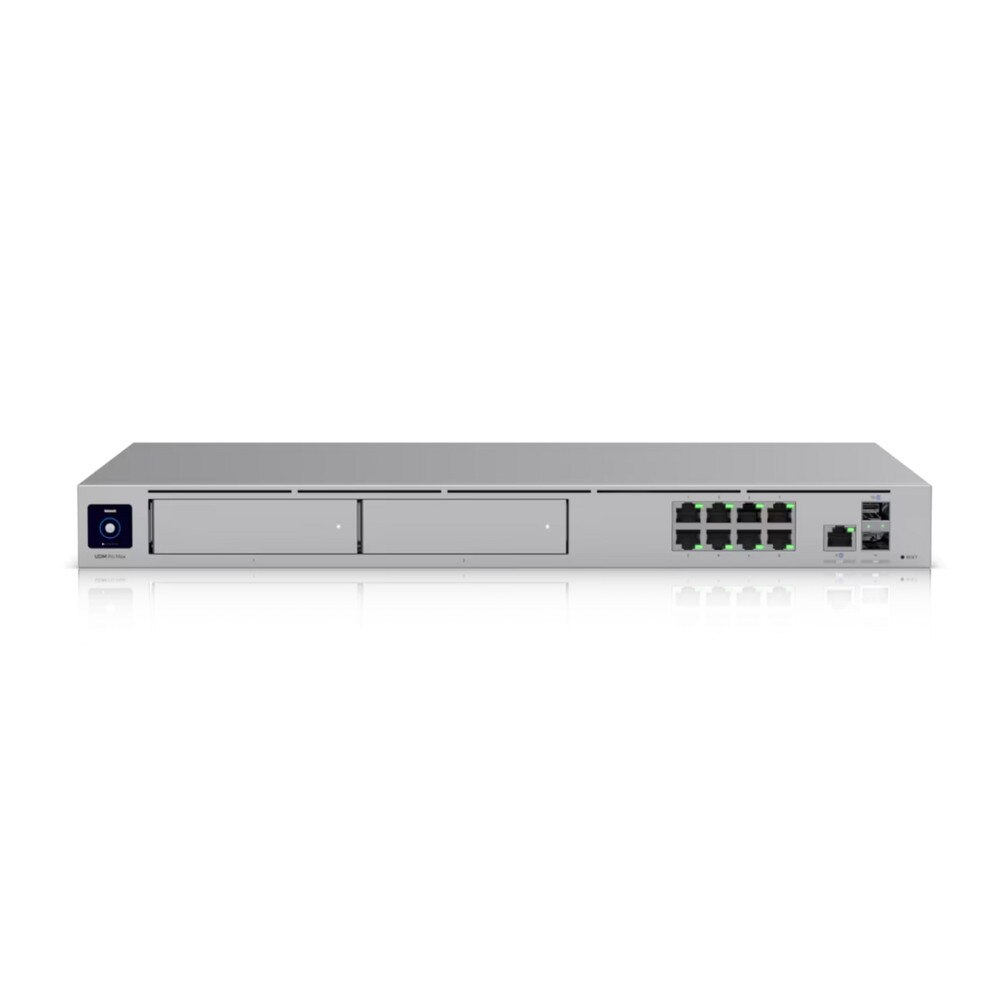

Ubiquiti UniFi Dream Machine Pro Max (UDM-PRO-MAX)

The Ubiquiti UniFi Dream Machine Pro Max is a comprehensive networking solution tailored for large-scale deployments. This all-in-one device combines high-performance routing, extensive device support, and integrated security features, making it ideal for enterprises seeking a scalable and efficient network management system.

Enhanced Performance and Scalability

Powered by a quad-core ARM Cortex-A57 processor at 2.0 GHz and 8 GB DDR4 RAM, the UDM-PRO-MAX delivers robust performance. It supports over 200 UniFi devices and more than 2,000 clients, effectively doubling the capacity of the standard Dream Machine Pro/SE models. This ensures seamless operation even in demanding network environments.

Advanced Routing Capabilities

With Intrusion Detection and Prevention Systems (IDS/IPS) throughput of up to 5 Gbps, the UDM-PRO-MAX provides secure and efficient data transmission. This high-speed routing capability is essential for maintaining optimal network performance while safeguarding against potential threats.

Comprehensive UniFi Application Suite

The device integrates the full UniFi application suite, offering centralized management for network devices, security cameras, and more. This unified approach simplifies network administration and enhances operational efficiency.

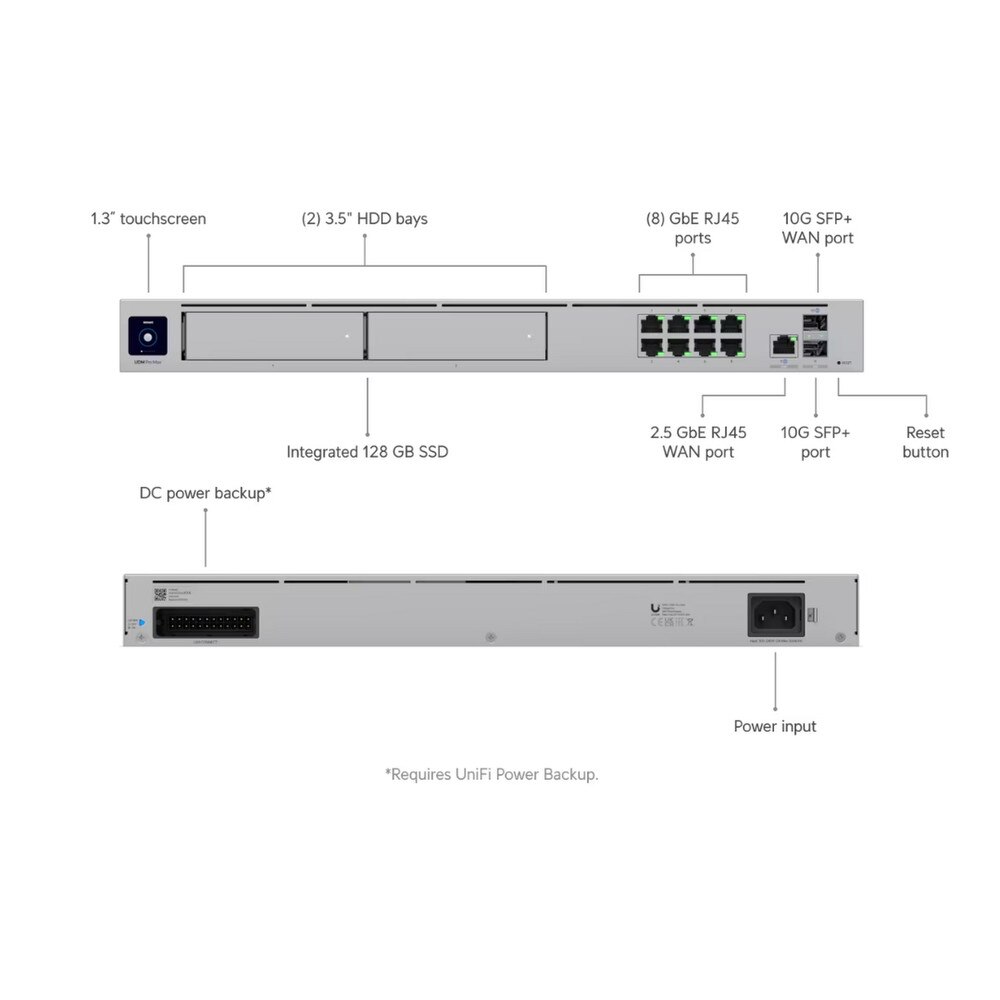

Versatile Networking Interfaces

The UDM-PRO-MAX features a variety of networking interfaces to accommodate diverse connectivity needs:

• LAN Ports: Eight Gigabit Ethernet RJ45 ports and one 10G SFP+ port.
• WAN Ports: One 2.5 GbE RJ45 port and one 10G SFP+ port.

These ports provide flexible options for integrating with existing network infrastructures and support high-speed data transfers.

Integrated Redundant NVR Storage

Equipped with two 3.5" HDD bays supporting RAID configurations and a built-in 128 GB SSD, the UDM-PRO-MAX offers redundant Network Video Recorder (NVR) storage. This setup ensures reliable and secure storage for surveillance footage, enhancing your security infrastructure.

Enhanced Security Features

The UDM-PRO-MAX includes advanced security functionalities such as application-aware firewall rules, signature-based IDS/IPS threat detection, and content filtering. These features work together to protect your network from unauthorized access and potential cyber threats.

User-Friendly Interface and Management

Featuring a 1.3" touchscreen display, the UDM-PRO-MAX allows for easy monitoring and quick adjustments directly from the device. Additionally, management interfaces via Ethernet and Bluetooth provide flexible options for configuration and control.

Reliable Power and Redundancy

The device supports dual power inputs, including a universal AC input and a DC input compatible with the UniFi Smart Power Redundant Power System (USP-RPS). This ensures continuous operation and minimizes downtime, even in the event of a power failure.
