Overview of Ubiquiti EdgeRouter X SFP Advanced Gigabit Ethernet Router (ER-X-SFP) | Like New

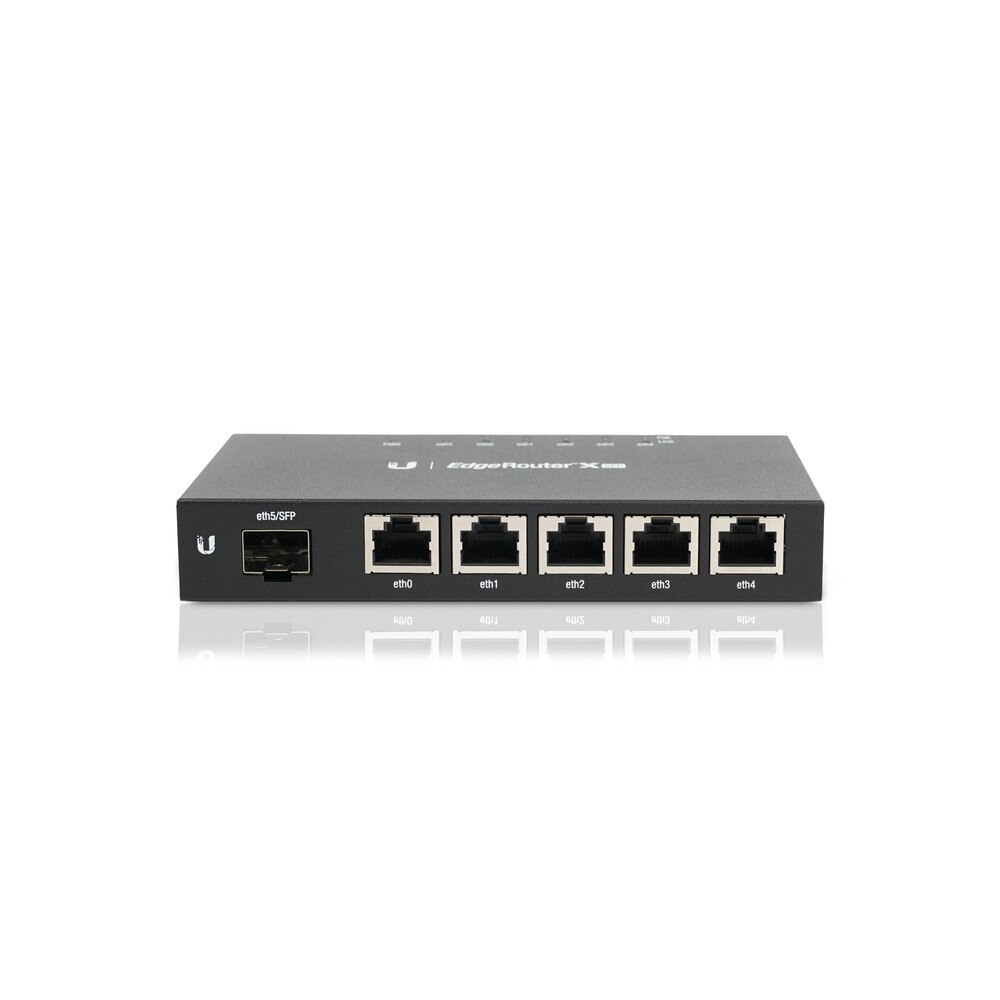

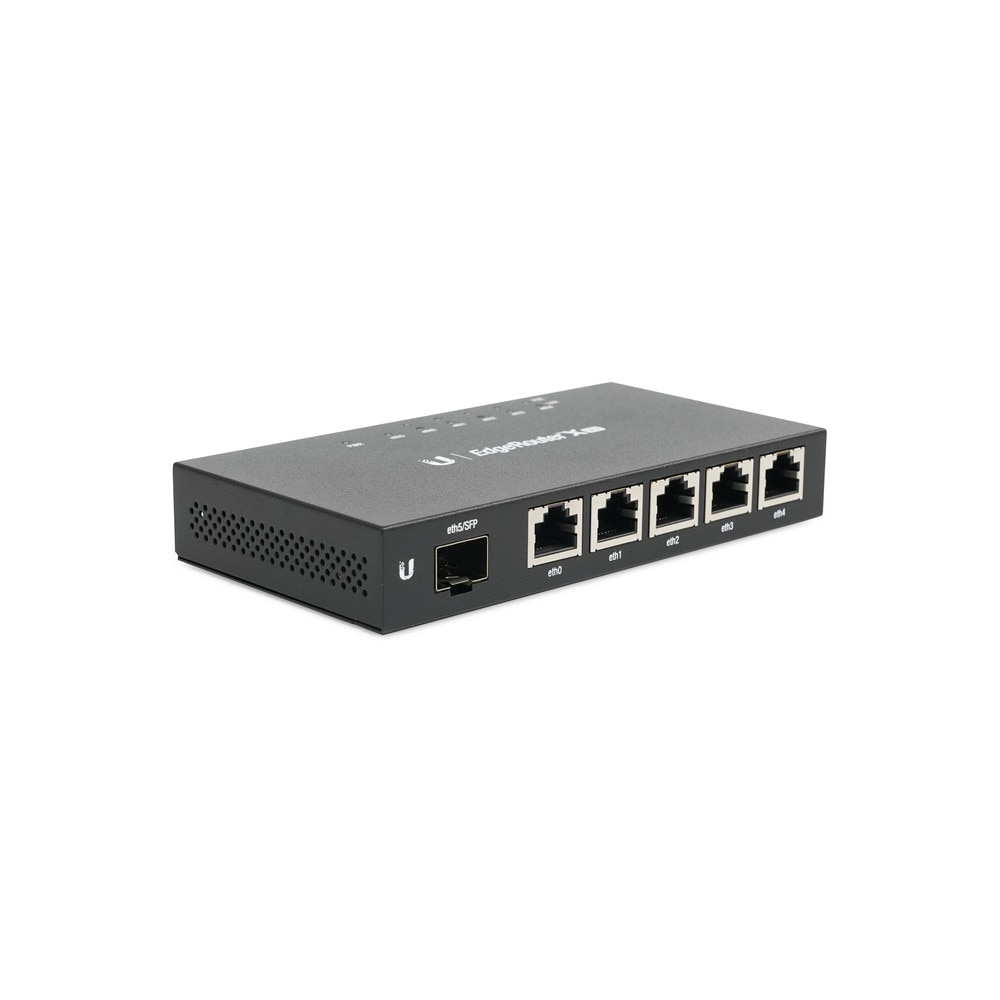

This router has five Gigabit Ethernet ports with passive PoE capability as well as one Gigabit SFP port for backhaul applications. Each of these ports can be set up for line-rate, Layer-2 switching. The router is powered by an 880 MHz dual-core processor, 256 MB of DDR3 RAM, and 256 MB of NAND code storage.
The ERXSFP SFP variant is powered by an external power adaptor. The five Gigabit RJ45 ports enable 24 V passive PoE output for airMAX or UniFi devices, while the SFP port supports backhaul applications.
This EdgeRouter X, which is powered by a proprietary and user-friendly graphical interface called EdgeOS, can be simply customized for the routing, security, and administration functions needed to run your network efficiently. An integrated CLI is offered for advanced network experts for rapid and direct access to known commands.
Specifications
Specifications for Ubiquiti EdgeRouter X SFP Advanced Gigabit Ethernet Router (ER-X-SFP) | Like New
| Manufacturer | Ubiquiti |
| Brand: | Ubiquiti Networks |
| Model Name: | EdgeRouter X ER-X-SFP |
| Special Feature: | WPS |
| Compatible Devices: | Personal Computer |
| Frequency: | 880 MHz |
| Recommended Uses For Product: | Home |
| Connectivity Technology: | Ethernet |
| Color: | Black |
| Item Weight: | 0.6 Kilograms |
| Dimensions: | 142 x 75 x 23 mm (5.59 x 2.95 x 0.91") |
| Weight: | 215 g (7.58 oz) |
| Processor: | Dual-Core 880 MHz, MIPS1004Kc |
| Memory: | 256 MB DDR3 RAM |
| Code Storage: | 256 MB NAND |
| Max. Power Consumption: | 5W |
| Power Input: | 24VDC, 2.5A Power Adapter (Included) |
| Power Supply: | External AC/DC Adapter |
| Supported Voltage Range: | 9 to 26VDC |
| Buttons: | Reset |
| LEDs: | Power, Link/Activity (6), PoE (5) |
| Wall Mount: | Yes |
| Operating Temperature: | -10 to 45° C (14 to 113° F) |
| Operating Humidity: | 10 to 90% Noncondensing |
| Certifications: | CE, FCC, IC |
User Guides
Frequently Asked Questions
Ubiquiti EdgeRouter X SFP Advanced Gigabit Ethernet Router (ER-X-SFP)
Frequently Asked Questions (FAQ's)
What are the main features of the EdgeRouter X SFP? The EdgeRouter X SFP features five Gigabit RJ45 ports with passive 24V PoE support and one SFP port for fiber connectivity.
What is the purpose of the SFP port on the EdgeRouter X SFP? The SFP port provides fiber connectivity options for extending networks over longer distances.
Does the EdgeRouter X SFP support PoE? Yes, it supports passive 24V PoE output on its RJ45 ports.
What is the maximum power consumption of the EdgeRouter X SFP? The maximum power consumption is 5 watts.
What are the dimensions of the EdgeRouter X SFP? The router measures 142 x 75 x 23 mm (5.6 x 3 x 0.9 inches).
What is the operating temperature range for the EdgeRouter X SFP? The operating temperature range is -10°C to 45°C (14°F to 113°F).
How do I reset the EdgeRouter X SFP to factory defaults? Press and hold the reset button located on the device for about 10 seconds until the port LEDs flash, then release the button.
What type of power adapter is included with the EdgeRouter X SFP? A 24V DC, 2.5A power adapter is included.
Can the EdgeRouter X SFP be mounted on a wall? Yes, it can be wall-mounted using appropriate hardware (not included).
Is the EdgeRouter X SFP suitable for outdoor use? No, it is designed for indoor use only.
What is the default IP address for accessing the EdgeRouter X SFP's web interface? The default IP address is 192.168.1.1.
What are the default login credentials for the EdgeRouter X SFP? The default username is "ubnt" and the default password is "ubnt".
Does the EdgeRouter X SFP support VLANs? Yes, it supports VLAN tagging and configuration.
Can I configure the EdgeRouter X SFP using a mobile app? No, configuration is done through the web interface or command-line interface.
What is the data transfer rate of the SFP port? The SFP port supports 100 Mbps or 1 Gbps data rates.
Is the EdgeRouter X SFP fanless? Yes, it has a fanless design for silent operation.
What is the warranty period for the EdgeRouter X SFP? The warranty period may vary by region; please check with the retailer or Ubiquiti for specific warranty information.
Can the EdgeRouter X SFP be used as a DHCP server? Yes, it can be configured to function as a DHCP server.
Does the EdgeRouter X SFP support IPv6? Yes, it supports both IPv4 and IPv6 protocols.
Where can I find the user manual for the EdgeRouter X SFP? The user manual is available on Ubiquiti's official website.
