Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ) | New

Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ) | New

SKU: ZD4A043-30EE00EZ-N
(0)No Reviews yet

🗹 Thermal transfer
🗹 Backwards compatible with virtually any existing printer
🗹 Quick printer setup via Bluetooth Low Energy (BLE) using the mobile Zebra app
🗹 Use the included Print Touch tag (NFC) to simply tap to pair and print
🗹 PrintSecure
🗹 The smart chip in the ribbon lets you know when it needs replacing
🗹 Print DNA software tools to remotely manage and optimise printers, track and automate supplies replenishment and ensure security.

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$499.99 $499.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ) | New

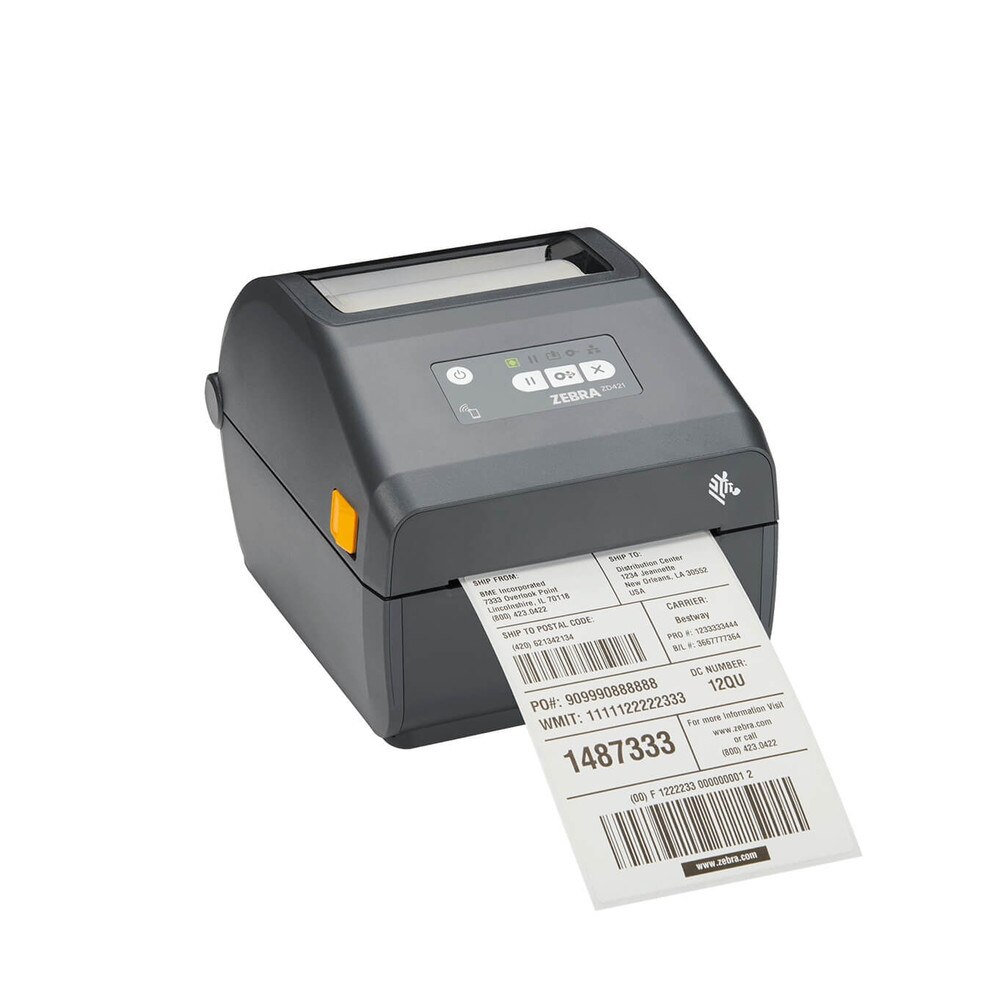

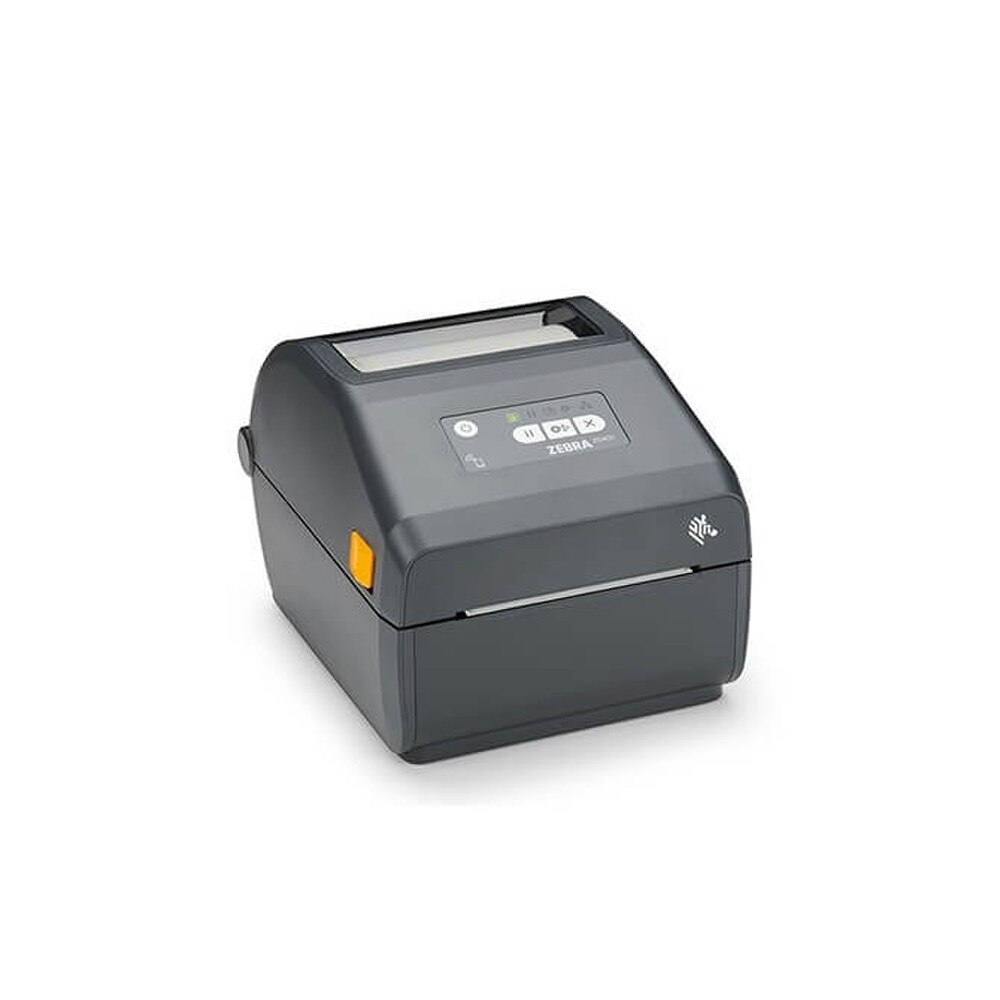

The Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ) is a high-resolution, cutting-edge desktop printer designed for companies that require exceptional print quality, robustness and operational effectiveness. The ZD421T's sophisticated 300 dpi thermal transfer technology creates incredibly sharp barcodes, text and graphics, making it ideal for applications requiring accuracy and long-lasting labels in manufacturing, healthcare, retail and logistics. This printer produces durable, smudge-resistant labels that can survive repeated handling, shipping and storage due to its strong performance. With Zebra's patented clamshell design, the ZD421T makes it simple to load media and ribbons, cutting down on downtime and increasing efficiency. Even for novice users, its color-coded LED status indications and user-friendly three-button interface make operation straightforward. The ZD421T effortlessly adjusts to changing business needs because to its support for a large variety of media types and formats, as well as its smooth integration via Ethernet, USB and USB Host connectivity. This printer, which is enhanced by Zebra's Print DNA software suite, is a wise investment for any expanding company since it provides remote management, cutting-edge security and future-ready scalability.


Key Features of Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer


• 300 dpi High-Resolution Printing delivers sharp, professional-quality barcodes, text and graphics for precise labeling.

• Thermal Transfer Technology produces durable, smudge-resistant labels ideal for long-term use in demanding environments.

• Fast Print Speed that prints up to 4 inches per second for efficient, high-volume label production.

• Intuitive User Interface with three-button control panel with color-coded LED indicators for easy, error-free operation.

• Flexible Media Handling that supports a variety of label sizes and types, including continuous, die-cut and black mark media.

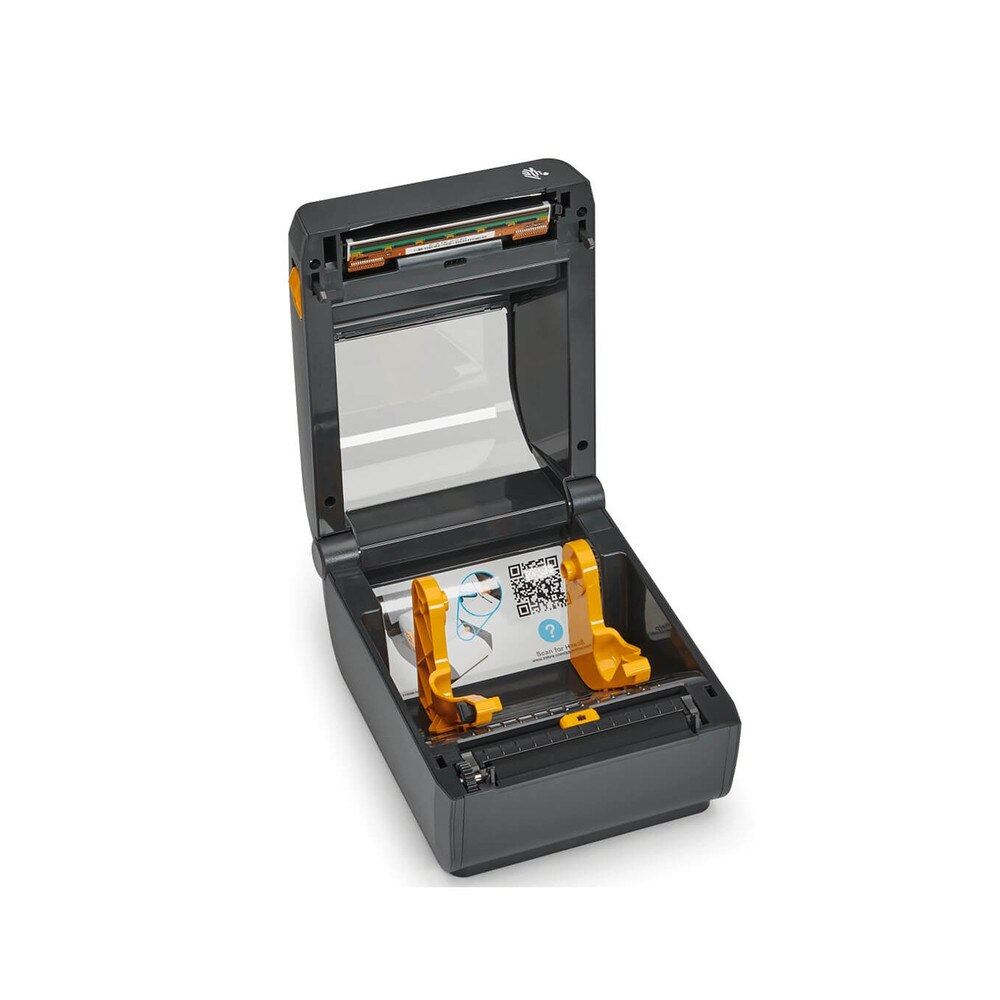

• Easy Media Loading with clamshell design enables quick, hassle-free ribbon and label changes.

• Multiple Connectivity Options with USB, USB Host and Ethernet ports for seamless integration into existing workflows.

• Compact Desktop Design with space-saving footprint fits easily in crowded workspaces or retail counters.

• Zebra Print DNA Suite with advanced management, security and integration tools for streamlined operations.

• Backward Compatibility that works with legacy Zebra printer models and media for easy upgrades and transitions.


Benefits of Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer


🗹 300 dpi resolution ensures every barcode and label is crisp, clear and easily scannable.

🗹 Fast print speeds and simple operation keep workflows moving and minimize downtime.

🗹 Intuitive controls and status indicators make operation easy for all team members.

🗹 Durable construction and reliable thermal transfer technology lower the need for repairs and replacements.

🗹 Versatile media support and multiple connectivity options fit diverse labeling requirements.

🗹 Backward compatibility and Print DNA tools make setup and upgrades effortless.

🗹 Advanced security features safeguard sensitive information and support regulatory compliance.

🗹 Compact design fits neatly on any desktop, ideal for busy retail, healthcare or office environments.

Specifications

Specifications for Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ) | New


ManufacturerZebra
Manufacturer Part NumberZD4A043-30EE00EZ, ZD4A043-301E00EZ
Product NameZebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer
Product TypeLabel Printer
Enclosure Color
Gray
Print Speed
Up to 240.9 inch/min - max speed
Connectivity Technology
Wireless
Interface
USB 2.0, USB host, Bluetooth 5.0 LE
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL II, EPL2, ZBI, Extensible Mark-up Language (XML), PDF Direct
Features
Realtime clock, Print Touch tag, transmissive/gap sensor, reflective/black mark sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (4.4 in)
Min Media Size (Custom)
0.59 in
Max Media Size (Custom)
4.65 in x 39 in
Media Sizes
Roll (1.5 - 11.2 cm)
Max Printing Width
4.09 in
Media Thickness Range
0.003 in - 0.0075 in
Roll Maximum Outer Diameter
5 in
Roll Core Diameter
1 in, 3 in, 1.5 in, 0.5 in, 2 in
Media Feeders
1 x manual - 1 roll - Roll (4.4 in)
Networking
Print server
Connections
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A
Included Accessories
2 core adapters, 2 ribbon cores
Cables Included
1 x USB cable
Features
Printer setup mobile app via BLE connection
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, IEC 62368-1, EN 301 893, RoHS 2011/65/EU Amendment 2015/863
Power Device
Power adapter - external
Voltage Required
AC 100-240 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities
ENERGY STAR
Yes
Service & Support
Limited warranty - 2 years
Min Operating Temperature
39.9 °F
Max Operating Temperature
105.8 °F
Humidity Range Operating
10 - 90% (non-condensing)
Width
10.5 in
Depth
8 in
Height
7.4 in
Weight
4.52 lbs

User Guides

Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ) Data Sheet

Frequently Asked Questions

Zebra ZD421T 300dpi Thermal Transfer Desktop Barcode Label Printer (ZD4A043-30EE00EZ, ZD4A043-301E00EZ)
Frequently Asked Questions (FAQ's)



What are the key features of the Zebra ZD421 TT printer?
  • The Zebra ZD421 TT printer features include a thermal transfer printing method, a 4.09-inch print width, 203 dpi resolution, USB, USB Host, Ethernet connectivity and support for multiple label and ribbon sizes.
    • What types of media can the ZD421 TT print on?
  • It can print on thermal transfer labels, tags and continuous roll or fanfold media.
    • How do I load labels into the ZD421 TT printer?
  • Open the printer cover, place the roll of labels on the spindle, thread the labels through the print mechanism and close the cover.
    • How do I load a ribbon into the ZD421 TT printer?
  • Open the printer cover, place the ribbon roll on the supply spindle, thread the ribbon through the print mechanism, attach the ribbon leader to the take-up spindle and close the cover.
    • What is the print speed of the ZD421 TT printer?
  • The print speed is up to 6 inches per second (152 mm per second).
    • What connectivity options are available for the ZD421 TT?
  • The ZD421 TT supports USB, USB Host, Ethernet and optional wireless connectivity (Wi-Fi and Bluetooth).
    • Can the ZD421 TT printer be used with a mobile device?
  • Yes, with the optional wireless connectivity, it can be used with mobile devices.
    • How do I perform a factory reset on the ZD421 TT printer?
  • Hold down the Feed button and the Pause button simultaneously for a few seconds until the status indicator flashes.
    • What software is compatible with the ZD421 TT printer?
  • ZebraDesigner, Zebra Setup Utilities, and other Zebra software utilities are compatible, along with third-party label design software.
    • How do I update the firmware on the ZD421 TT printer?
  • Use the Zebra Setup Utilities or download the firmware update from the Zebra website and follow the instructions.
    • What maintenance is required for the ZD421 TT printer?
  • Regularly clean the printhead, platen roller and media path to ensure optimal performance.
    • What is the warranty period for the ZD421 TT printer?
  • The standard warranty period is usually one year from the date of purchase.
    • Can the ZD421 TT printer print in color?
  • No, the ZD421 TT is designed for monochrome (black and white) thermal transfer printing.
    • How do I calibrate the ZD421 TT printer?
  • Use the Feed button to initiate the calibration process or use the Zebra Setup Utilities for automatic calibration.
    • Is there a way to monitor the printer's status remotely?
  • Yes, with Zebra's Print DNA tools, you can monitor and manage the printer remotely.
    • What is the maximum print length of the ZD421 TT printer?
  • The maximum print length is 39 inches (991 mm).
    • How do I connect the ZD421 TT printer to my network?
  • Use the Ethernet port for wired connections or the optional Wi-Fi module for wireless connections.
    • Can the ZD421 TT print barcodes?
  • Yes, it supports a wide range of barcode symbologies, including 1D and 2D barcodes.
    • What type of ribbon does the ZD421 TT use?
  • It uses standard 1-inch core ribbons with a maximum length of 300 meters.
    • How do I troubleshoot print quality issues with the ZD421 TT printer?
  • Check the printhead for cleanliness, ensure proper media and ribbon loading, verify print settings, and calibrate the printer if necessary.
