Lenovo ThinkPad Universal USB-C Dock (40AY0090UK) | Like New
SKU: 40AY0090UK-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview for Lenovo ThinkPad Universal USB-C Dock (40AY0090UK) | Like New

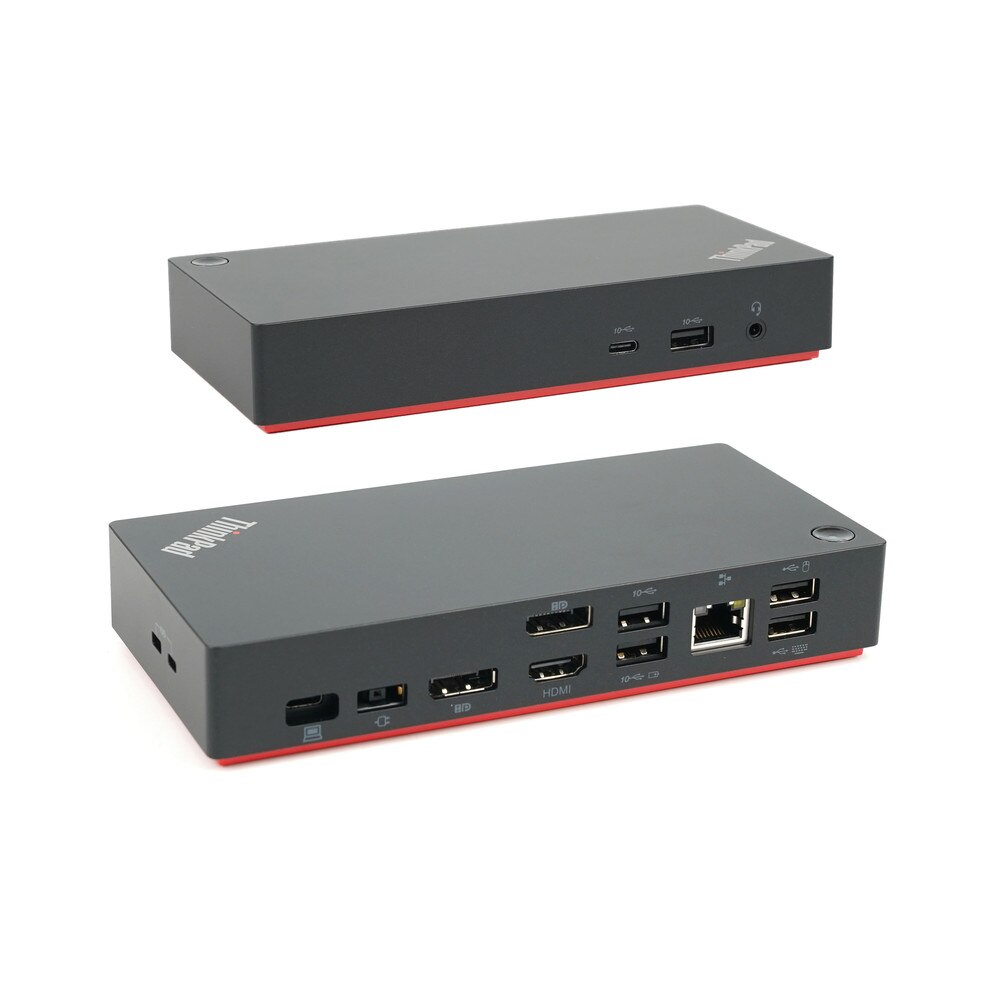

The Lenovo ThinkPad Universal USB-C Dock (40AY0090UK) is a cutting-edge, one-cable docking solution that allows you to work smarter, not harder. It includes numerous connectors, next-generation plug and play capability, and fast charging capabilities (up to 100W for most USB-C notebooks*). It's smart enough to install important firmware upgrades automatically, making it excellent for any mixed-PC setting or home-based working, and it provides you the freedom and power to do more.
Key Features of Lenovo ThinkPad Universal USB-C Dock (40AY0090UK) | New
One Dock. No Limits.
It's an IT manager's dream because important firmware upgrades are installed automatically, and typical IT technologies like PXE boot, WOL, and MAC Address Pass Through are also supported.
One Cable. No Clutter.
ThinkPad Universal USB-C Dock enables you to enjoy lightning-fast data transfers, charge USB-C notebooks quickly, and plug and play screens and other PC devices. Furthermore, its sophisticated one-cable docking system provides you with additional desk space for work and play.
One Remote Workforce. No Problem.
Whether end users are at the office, hot-desking, or working from home, IT managers may remotely and securely obtain essential information about the dock and its attached devices with no disruption to the user's productivity.
Specifications
Specification for Lenovo ThinkPad Universal USB-C Dock (40AY0090UK) | Like New
| Manufacturer | Lenovo |
| Manufacturer Part Number | 40AY0090UK |
| Product Name | Lenovo ThinkPad Universal USB-C Dock |
| Product Type | Docking Station |
| Color | Black |
| Max Number of External Monitors | 3 |
| New Weight | 340g |
| Refresh Rate | 2x 3840x2160 @60Hz |
| 1x 3840x2160 @30Hz | |
| AC Plug | Slim-tip |
| Warranty Type | CRU |
| Output Power | 65W with 90W power adapter connected,100W with 135W power adapter connected |
| Agency Approvals | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
| Audio Ports | 1x Combo Audio Jack |
| Charging Port | DC-IN |
| USB Ports | 3x USB3.1 |
| 2x USB2.0 | |
| 1x USB-C | |
| Video Ports | 2x Display Port |
| 1x HDMI Port | |
| Ethernet | 1x Gigabit Ethernet |
| Maximum Operating Temperature | 35° C |
| Minimum Operating Temperature | 0° C |
| Ethernet | 1x Gigabit Ethernet |
| Maximum Relative Humidity (%) | 95% ( no Condensation) |
| Minimum Relative Humidity (%) | 0.2 |
| Input Power | 90W |
| Physical Security Feature | 2x Security lock slot |
| Power Button | Yes |
| Power Delivery | Yes |
| Driver Needed | Yes |
| Dimension | Height: 30.75 mm |
| New Cable Length: 171mm | |
| Depth : 80mm |
User Guides
Frequently Asked Questions
Lenovo ThinkPad Universal USB-C Dock
Frequently Asked Questions (FAQ's)
What is the primary purpose of the Lenovo ThinkPad Universal USB-C Dock? It provides a universal docking solution for laptops, enabling expanded connectivity, multiple monitor support, and power delivery via a USB-C connection.
Which laptops are compatible with this dock?
It is compatible with Lenovo ThinkPads and other laptops that support USB-C docking, including many non-Lenovo devices.
How many external monitors can the dock support?
The dock can support up to three external monitors, depending on your laptop’s specifications and the monitors’ resolution.
What resolutions are supported for external displays? It supports resolutions up to 4K at 60Hz, depending on the configuration and connected monitors.
Does the dock support power delivery? Yes, it delivers up to 100W of power to the connected laptop via USB-C, suitable for charging most laptops.

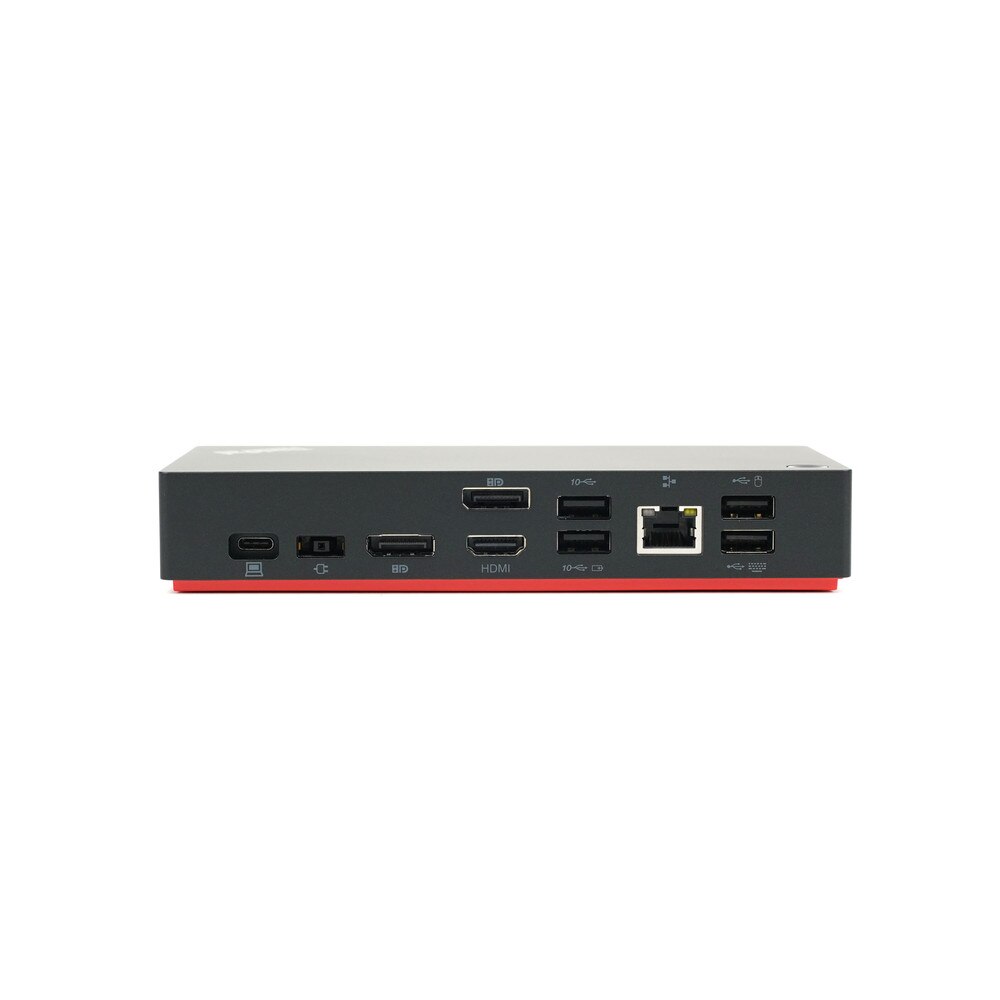

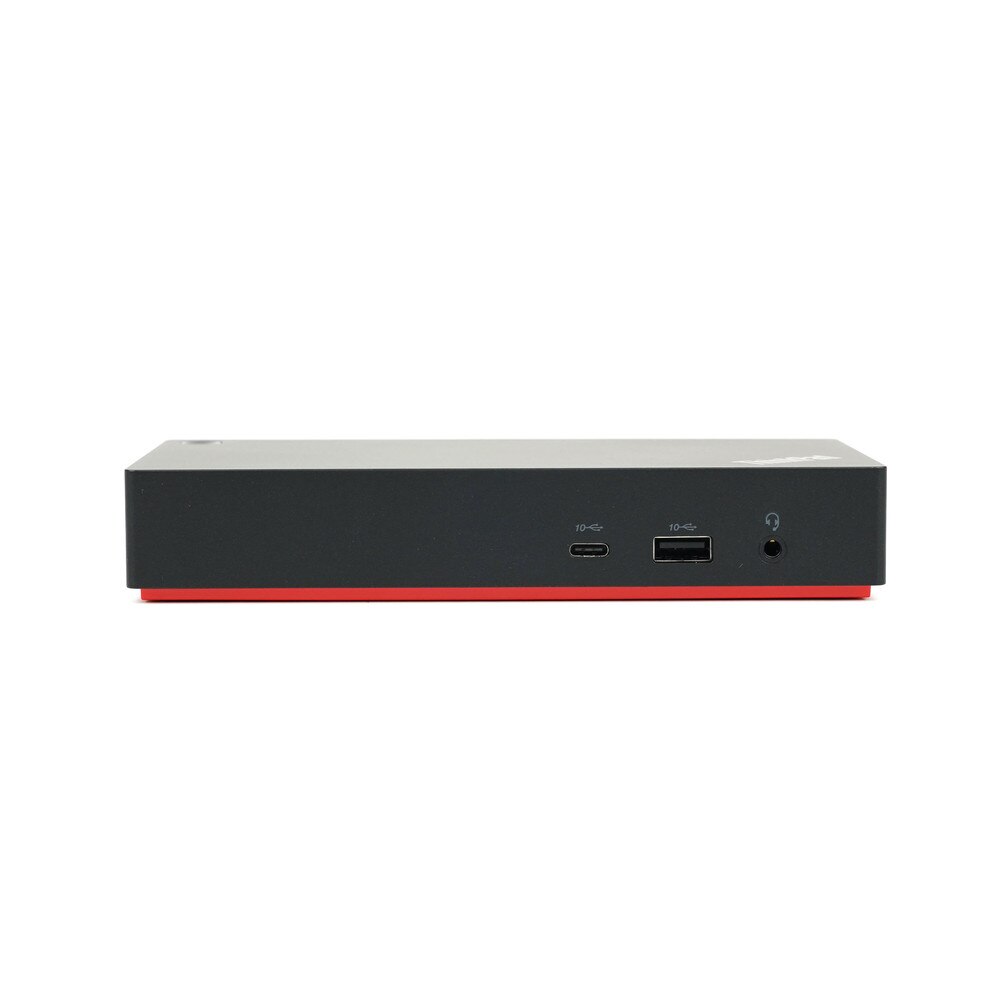

What types of ports are available on the dock? It includes USB-C, USB-A, HDMI, DisplayPort, Ethernet, and audio ports for comprehensive connectivity.
Is the dock compatible with macOS? Yes, it works with macOS devices, although some features like driver-dependent functions may have limitations.
Can the dock be used with Thunderbolt 3/4 laptops? Yes, it can work with Thunderbolt-enabled laptops, but it operates as a USB-C dock.
Does the dock require additional software or drivers? In most cases, it works plug-and-play, but Lenovo provides drivers for enhanced performance and compatibility.
Does it support dual 4K monitors? Yes, the dock supports dual 4K monitors, depending on the host system’s USB-C capabilities.
What is the Ethernet speed supported by the dock? The dock includes a Gigabit Ethernet port for high-speed wired network connections.
Can I use this dock with non-Lenovo laptops? Yes, it is designed to be universally compatible with any USB-C laptop that supports video output and power delivery.
What operating systems are supported by the dock?
The dock is compatible with Windows, macOS, and some Linux distributions.
How many USB ports are included, and what types are they? It has three USB 3.1 ports, two USB 2.0 ports, and one USB-C port.
Does the dock support fast charging for smartphones or other devices? Yes, the USB-C and some USB-A ports support fast charging for compatible devices.
Can the dock wake the connected laptop from sleep mode? Yes, the dock includes wake-on-USB functionality to wake the laptop from sleep.
Is a power adapter included with the dock? Yes, it comes with a 135W power adapter to power the dock and connected devices.
Can I use it for gaming purposes? While it supports high-resolution displays, it may not offer the low-latency performance preferred for gaming setups.
Does it support audio output? Yes, the dock includes a 3.5mm combo audio jack for headphones and microphones.
Is the CBS250-48T-4X energy efficient? Yes, it complies with Energy Efficient Ethernet (EEE) standards to reduce power consumption during low activity periods.
Ratings & Reviews
1 review
Easy to set up
by Daniel H.
The dock arrived fast and was very easy to setup and use
