Lenovo ThinkPad Universal USB-C Dock (40AY0090CN) | New
SKU: 40AY0090CN-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Lenovo ThinkPad Universal USB-C Dock (40AY0090CN) | New

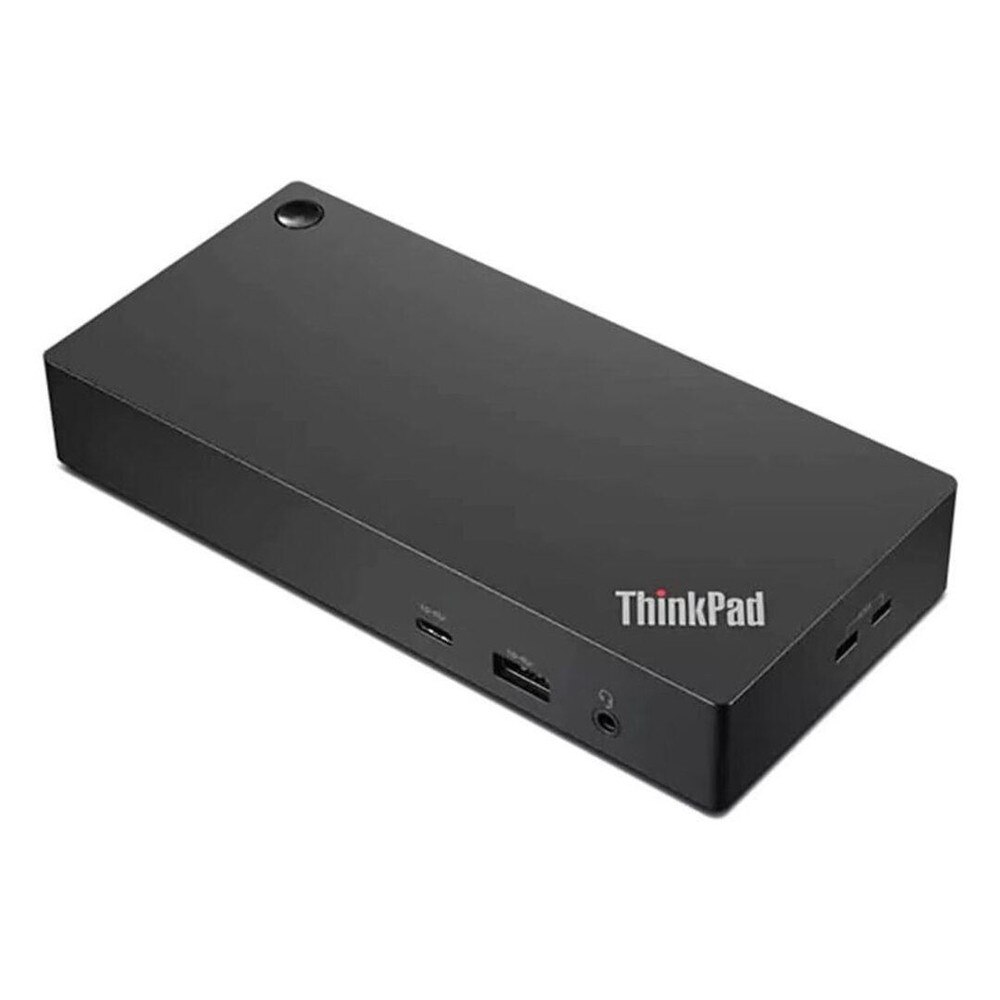

The Lenovo ThinkPad Universal USB-C Dock (40AY0090CN) is a cutting-edge, universally compatible one-cable docking solution that allows you to work smarter, not harder. It has a plethora of ports, next-generation plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*). It's intelligent enough to automatically install critical firmware updates, making it ideal for any mixed-PC environment and home-based working, and it gives you the freedom and power to do more.
Key Features of Lenovo ThinkPad Universal USB-C Dock
One Dock. No Limits.
Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported.
One Cable. No Clutter.
ThinkPad Universal USB-C Dock lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced one-cable docking solution gives you more desk-space to work and play with.
One Remote Workforce. No Problem.
Whether end users are in the office, hot-desking, or working from home, IT managers can remotely and securely gather key information about the dock and its attached devices—with minimal interruption to the user’s workflow.
Specifications
Specifications for Lenovo ThinkPad Universal USB-C Dock (40AY0090CN) | New
| Manufacturer | Lenovo |
| Manufacturer Part Number | 40AY0090CN |
| Product Name | Lenovo ThinkPad Universal USB-C Dock |
| Product Type | Docking Station |
| Color | Black |
| Max Number of External Monitors | 3 |
| New Weight | 340g |
| Refresh Rate | 2x 3840x2160 @60Hz |
| 1x 3840x2160 @30Hz | |
| AC Plug | Slim-tip |
| Warranty Type | CRU |
| Output Power | 65W with 90W power adapter connected,100W with 135W power adapter connected |
| Agency Approvals | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |

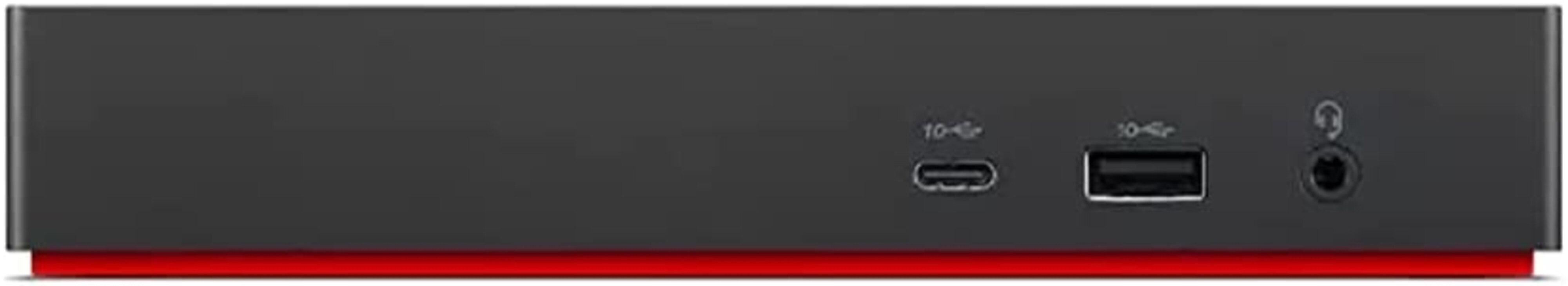

| Audio Ports | 1x Combo Audio Jack |
| Charging Port | DC-IN |
| USB Ports | 3x USB3.1 |
| 2x USB2.0 | |
| 1x USB-C | |

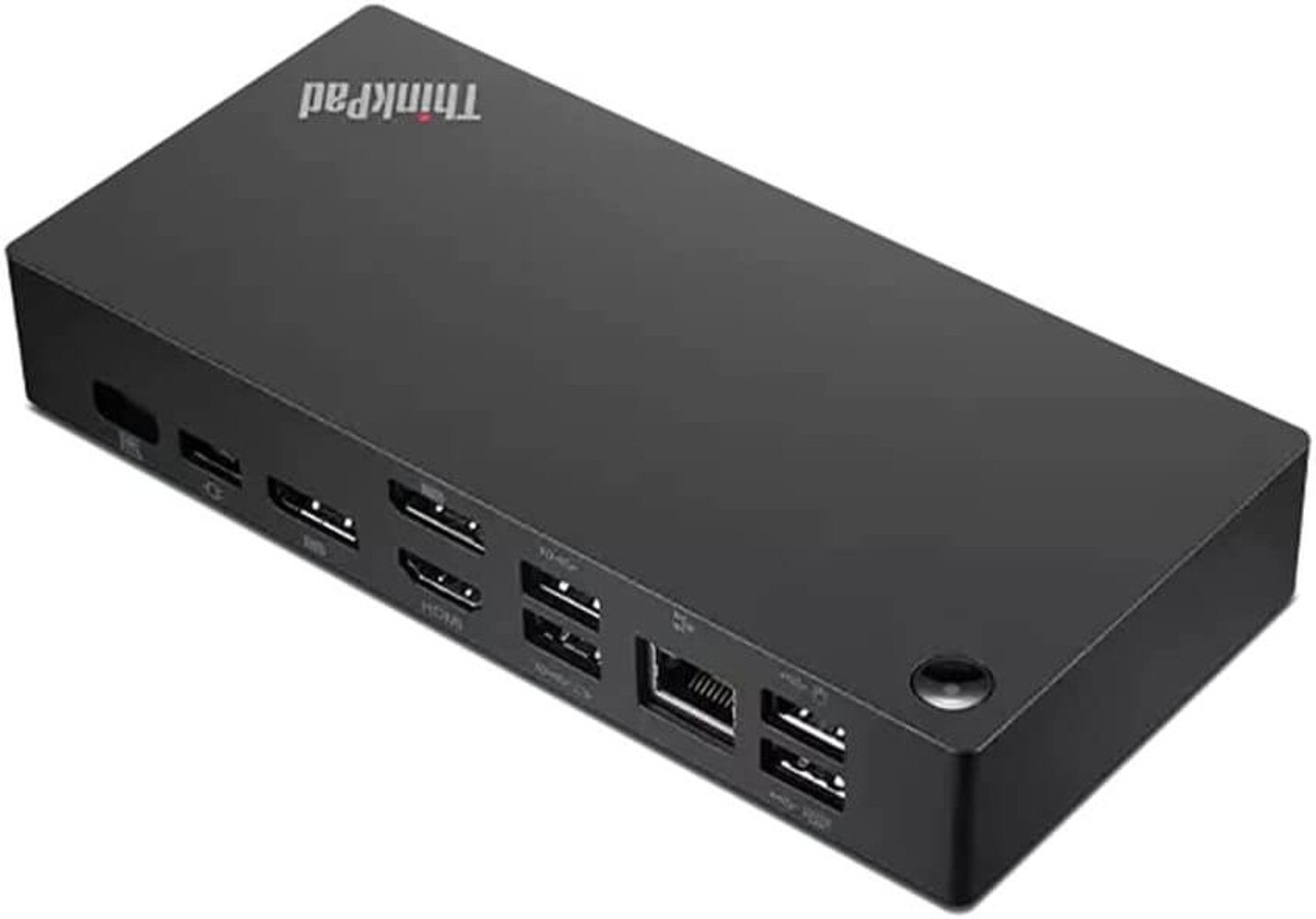

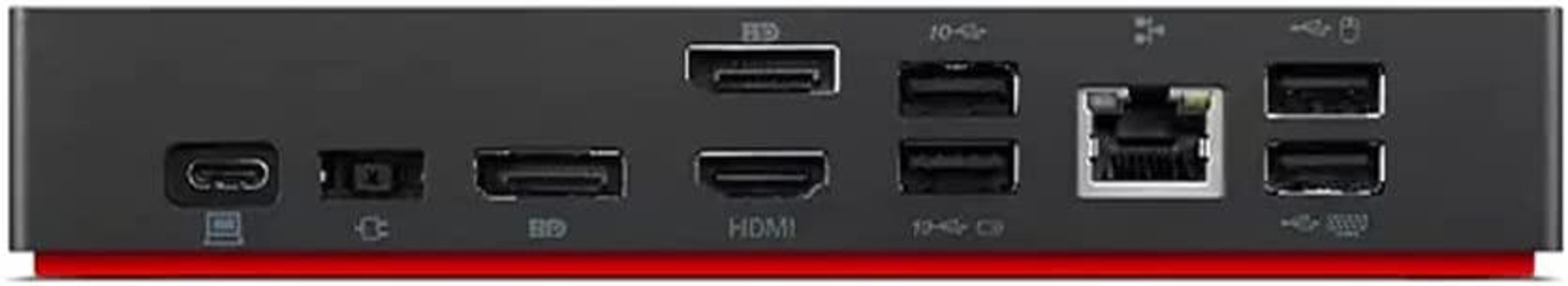

| Video Ports | 2x Display Port |
| 1x HDMI Port | |
| Ethernet | 1x Gigabit Ethernet |
| Maximum Operating Temperature | 35° C |
| Minimum Operating Temperature | 0° C |
| Ethernet | 1x Gigabit Ethernet |
| Maximum Relative Humidity (%) | 95% ( no Condensation) |
| Minimum Relative Humidity (%) | 0.2 |
| Input Power | 90W |

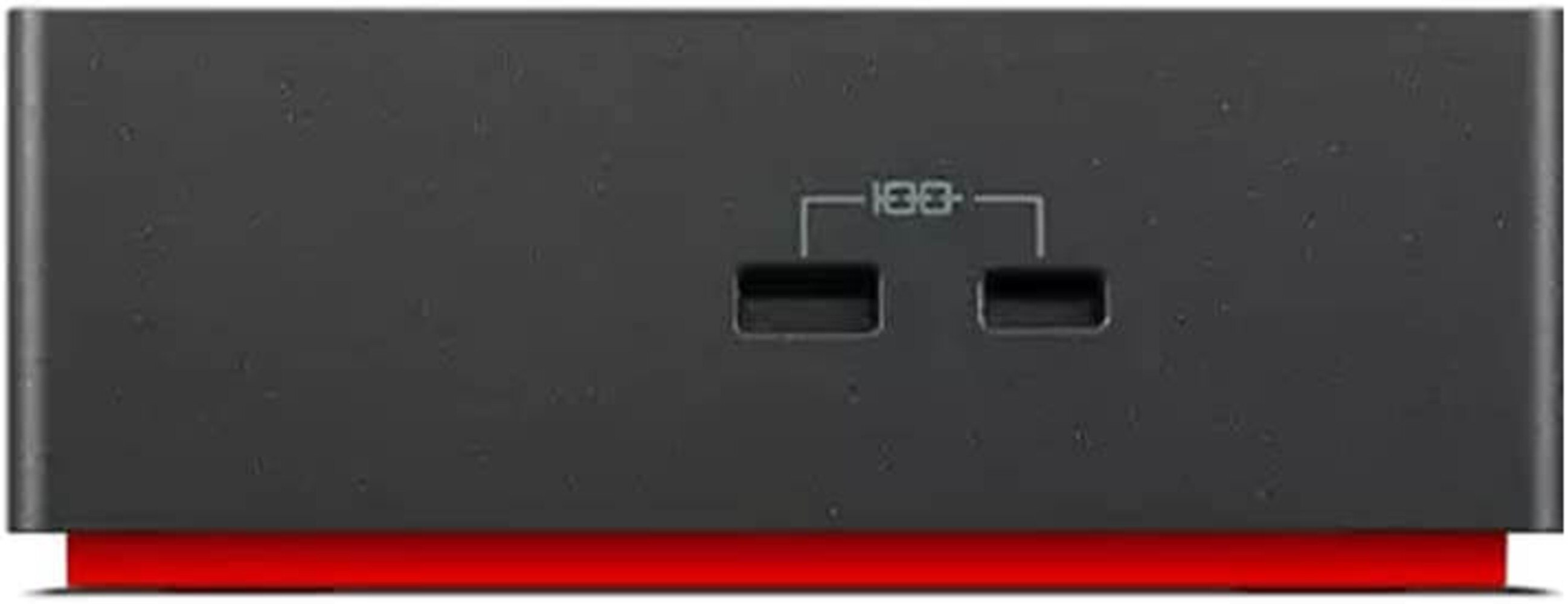

| Physical Security Feature | 2x Security lock slot |
| Power Button | Yes |
| Power Delivery | Yes |
| Driver Needed | Yes |
| Dimension | Height: 30.75 mm |
| New Cable Length: 171mm | |
| Depth : 80mm |
User Guides
Frequently Asked Questions
Lenovo ThinkPad Universal USB-C Dock (40AY0090CN)
Frequently Asked Questions (FAQ's)
What laptops is this dock compatible with? Primarily designed for Lenovo ThinkPad laptops, but compatible with most laptops with a USB-C port supporting DisplayPort Alt Mode and Power Delivery.
Can it charge my laptop? Yes, it can deliver up to 100W of power to charge your laptop.
How many displays can I connect? Up to three displays: one HDMI and two DisplayPort outputs. It supports a single 4K monitor at 60 Hz or dual 4K monitors at 30 Hz.
Does it have Ethernet? Yes, it has a Gigabit Ethernet port for wired network connectivity.
What's the maximum resolution for the connected displays? Up to 4K at 60Hz for a single display, or up to 4K at 30Hz for dual displays.
Does it support dual monitors? Yes, it supports dual 4K monitors at 30Hz.
Can I use it with my MacBook? Yes, if your MacBook has a USB-C port with DisplayPort Alt Mode and Power Delivery.
What's the difference between the Lenovo ThinkPad Universal USB-C Dock and the ThinkPad Thunderbolt 3 Dock? The ThinkPad Thunderbolt 3 Dock has higher bandwidth, supports Thunderbolt devices, and can charge at a higher wattage.
Is it plug-and-play? Mostly, but you may need to install drivers for full functionality.
Does it have a security lock slot? Yes, it has a Kensington lock slot for security.

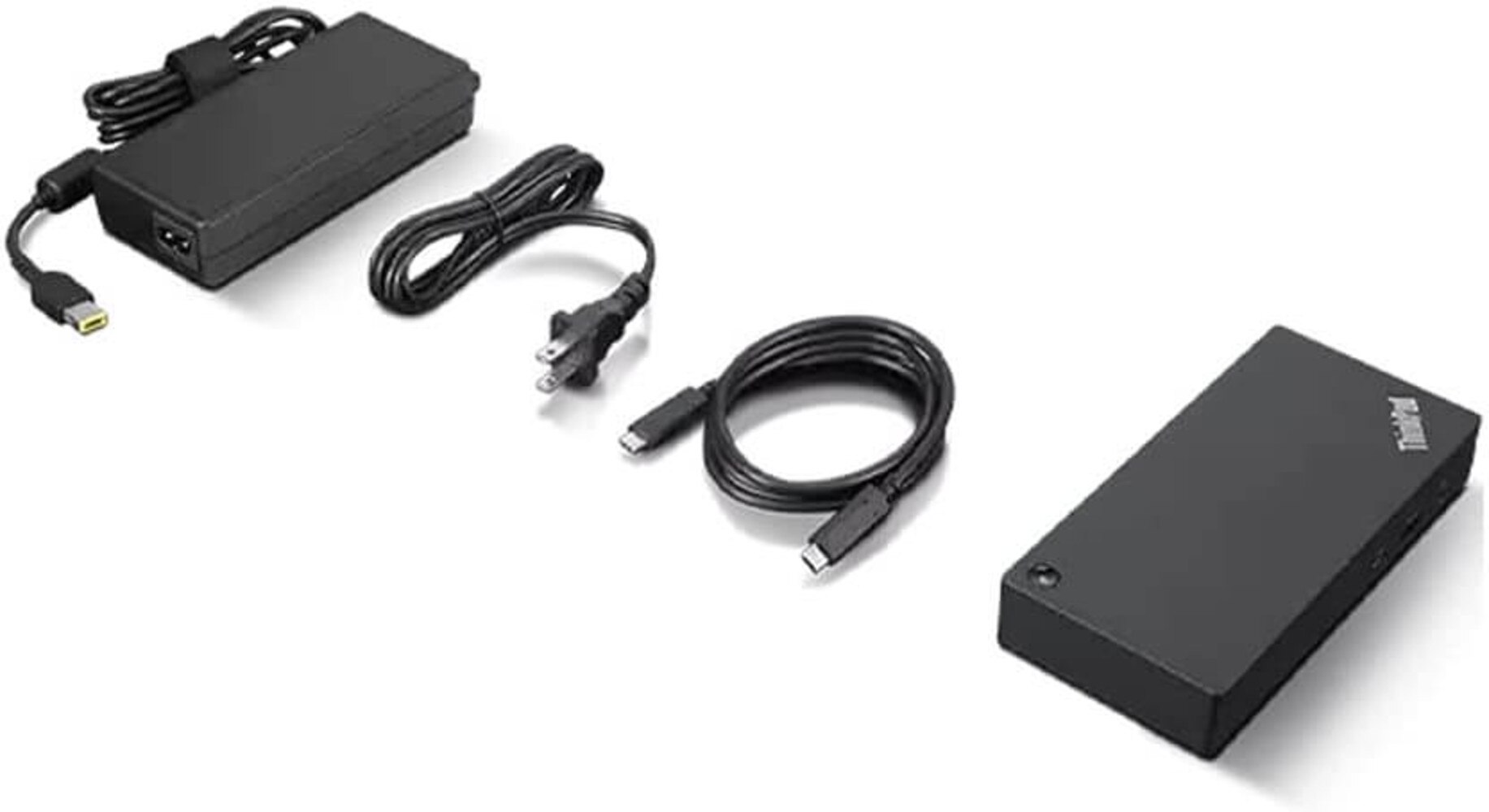

Does it come with a power adapter? Yes, it includes a 135W power adapter.
Does it support audio output? Yes, through the 3.5mm audio combo jack.
Can I use it to charge my phone? Yes, you can use the USB-A ports to charge your phone.
Is it VESA mount compatible? No, it doesn't have VESA mounting holes.
