Lenovo 135W ThinkPad Ultra Docking Station (40AJ0135US) | New
SKU: 40AJ0135US-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Lenovo 135W ThinkPad Ultra Docking Station (40AJ0135US) | New

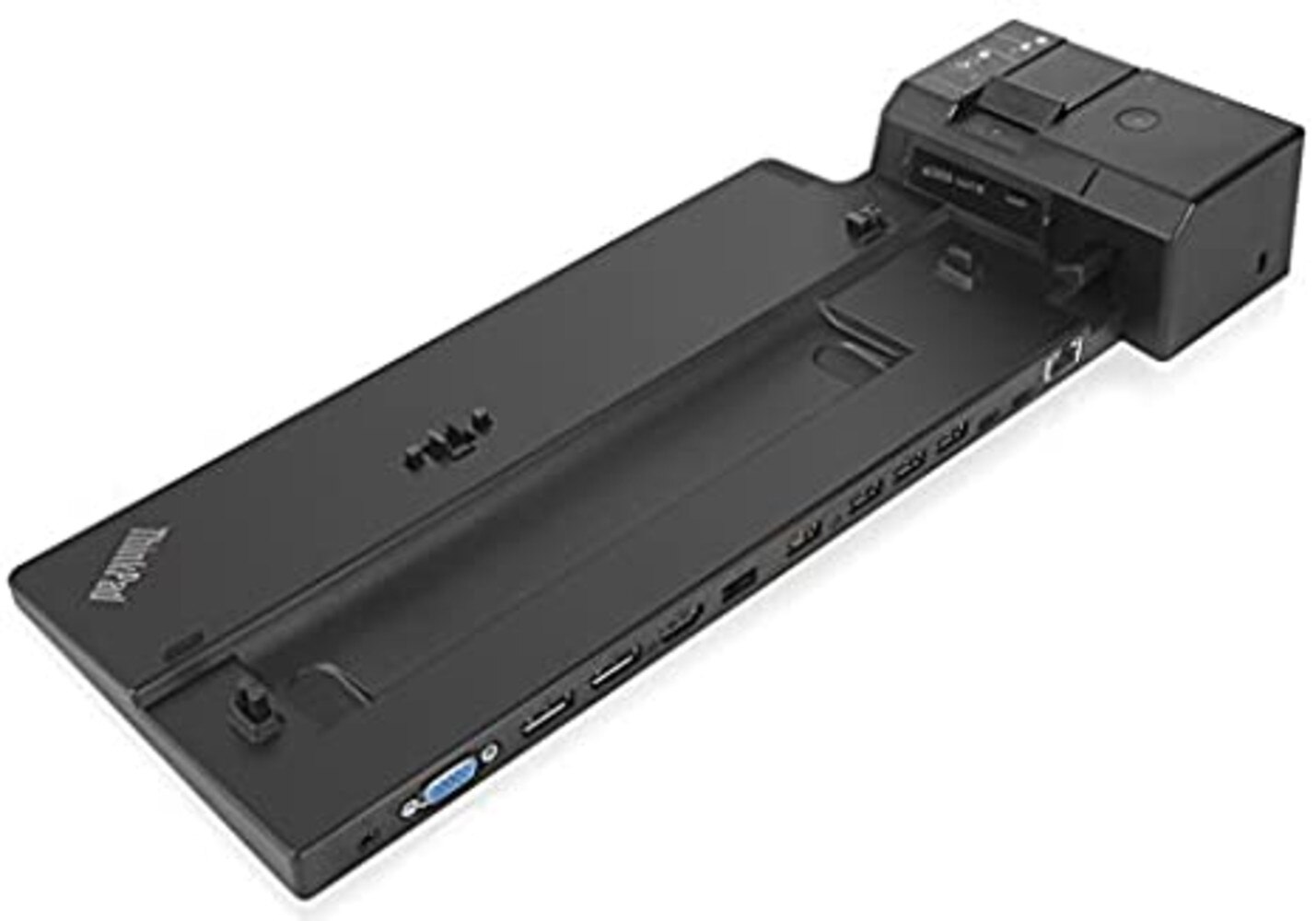

The Lenovo 135W ThinkPad Ultra Docking Station (40AJ0135US) is designed to provide 5V of power to connected devices. The ThinkPad Ultra has two USB 3.0 Gen 2 Type-C ports, four USB 3.0 Gen 2 Type-A inputs, and a 3.5mm stereo and mic headphone jack. Extend your laptop's display to external monitors using the two DisplayPort 1.4 ports, an HDMI 2.0 connection, and a VGA port on the ThinkPad Ultra. In addition, when connected to a router, modem, or network switch, the system includes an integrated Gigabit Ethernet controller for internet access.
Features
- 10/1000 Gigabit Ethernet; supports enterprise manageability
- Driver-free and perfect video quality

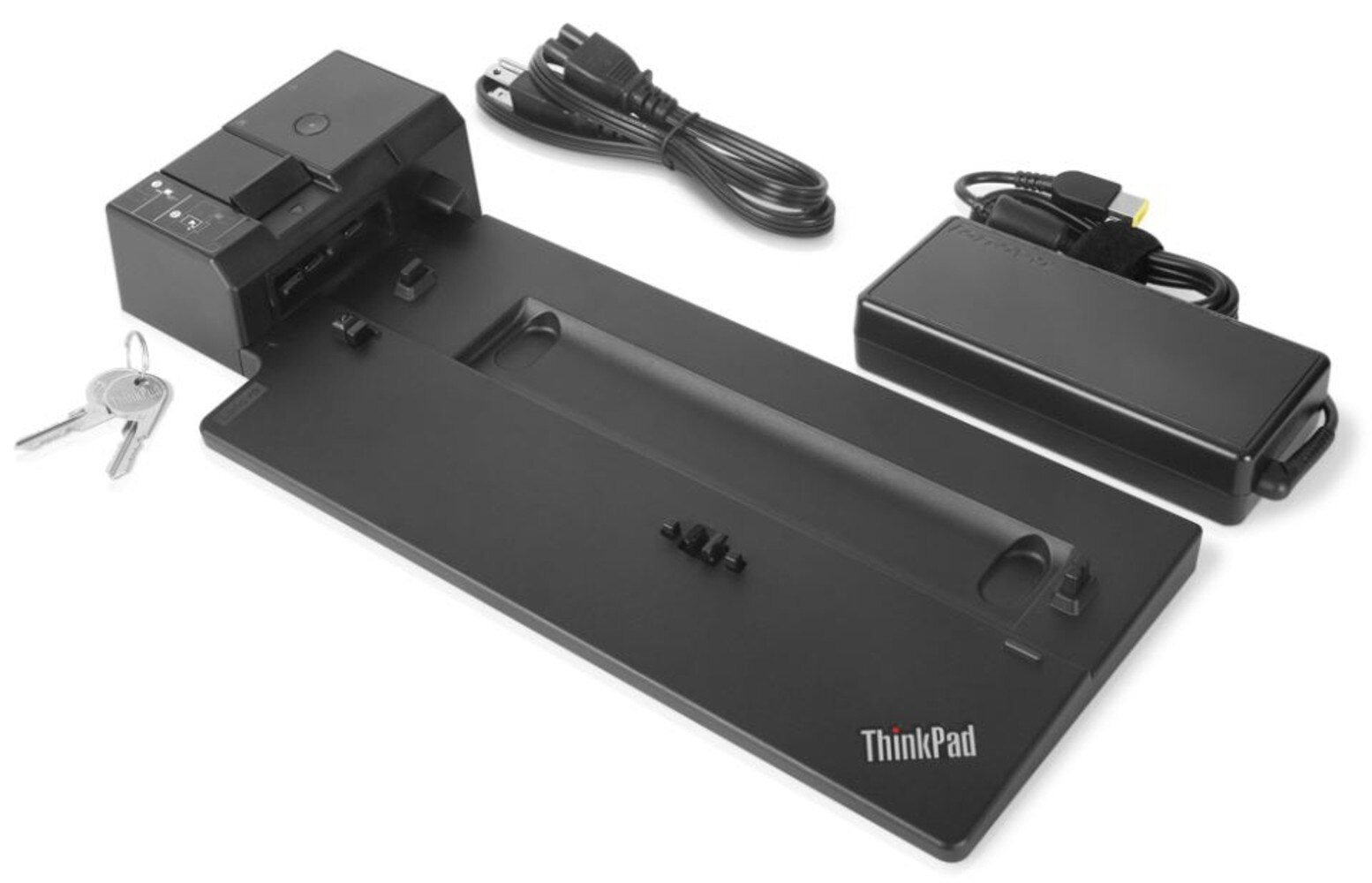

- Charges Lenovo ThinkPads with an included ThinkPad 135W AC adapter
- Physical rear alignment for a perfect dock every time
- Smaller desktop footprint vs. Series 3 docking stations
Compatibility
- ThinkPad L Series-L480
- ThinkPad L Series-L490
- ThinkPad L Series-L580
- ThinkPad L Series-L590
- ThinkPad L13 Series-L13 Clam 2019
- ThinkPad L13 Series-L13 Yoga 2019
- ThinkPad P Series-P43s
- ThinkPad P Series-P52s
- ThinkPad P Series-P53s
- ThinkPad T Series-T480
- ThinkPad T Series-T480s
- ThinkPad T Series-T490
- ThinkPad T Series-T490s
- ThinkPad T Series-T495
- ThinkPad T Series-T495s
- ThinkPad T Series-T580
- ThinkPad T Series-T590
- ThinkPad X Series-A285
- ThinkPad X Series-A485
- ThinkPad X1 Series-X1 Carbon 6th Generation
- ThinkPad X1 Series-X1 Carbon 7th Generation
- ThinkPad X1 Series-X1 Yoga 4th Generation
- ThinkPad X1 Series-X280
- ThinkPad X1 Series-X390
- ThinkPad X1 Series-X390 Yoga
- ThinkPad X1 Series-X395
Specifications
Specifications for Lenovo 135W ThinkPad Ultra Docking Station (40AJ0135US) | New
| Manufacturer | Lenovo |
| Manufacturer Part Number | 40AJ0135US |
| Product Name | Lenovo 135W ThinkPad Ultra Docking Station |
| Product Type | Docking Station |
| Connectivity Technology | Docking, Wired |
| Proprietary Interface | USB Type C |
| Headphone / Microphone Combo Port | Yes |
| USB | 2 x USB-C USB 3.1/3.2 Gen 2 (3 A), 4 x USB-A USB 3.1/3.2 Gen 2 |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Display | 2 x DisplayPort 1.4, 1 x HDMI 2.0, 1 x VGA |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Number of Displays Supported | 4 |
| UASP Support | No |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | 8 to 95% |
| Dimensions | 14.9 x 6.3 x 2.1" / 37.85 x 16 x 5.33 cm |
| Weight | 1.76 lb / 0.8 kg |
User Guides
Frequently Asked Questions
Lenovo 135W ThinkPad Ultra Docking Station (40AJ0135US)
Frequently Asked Questions (FAQ's)
What laptops are compatible with the Lenovo 135W ThinkPad Ultra Docking Station? This docking station is designed for select Lenovo ThinkPad models, including the T, X, and L series. Always check Lenovo's official compatibility list before purchasing.
What ports are available on the Lenovo 135W ThinkPad Ultra Docking Station? It includes multiple USB 3.1 ports, USB-C, HDMI, DisplayPort, VGA, Ethernet, and an audio combo jack for extensive connectivity options.
Can the Lenovo ThinkPad Ultra Docking Station support dual monitors? Yes, it supports dual-monitor setups via DisplayPort, HDMI, or VGA, depending on your laptop’s capabilities and the connected displays.
Does the Lenovo 135W Ultra Docking Station charge the laptop? Yes, it provides power to compatible ThinkPad laptops through the docking connection, eliminating the need for a separate charger.
Is this docking station plug-and-play? Yes, it supports plug-and-play functionality with most ThinkPad models. However, installing Lenovo drivers may improve performance.
What is the power output of the Lenovo 135W Ultra Docking Station? It delivers up to 135W of power, sufficient for high-performance ThinkPad laptops while also powering connected peripherals.
Does the docking station support USB-C charging? No, it uses Lenovo’s proprietary docking connection and does not charge via USB-C.
Can I use this docking station with non-Lenovo laptops? No, it is specifically designed for Lenovo ThinkPad models with an ultra-dock connector. Non-Lenovo laptops will not fit.
How many USB ports are available on this docking station? It features multiple USB 3.1 and USB 2.0 ports, ensuring sufficient connectivity for peripherals such as keyboards, mice, and external drives.
Does the docking station support 4K resolution? Yes, it supports 4K resolution via DisplayPort, but performance may depend on your ThinkPad’s GPU and display configuration.
Can I connect wired internet through the docking station? Yes, it includes a Gigabit Ethernet port for stable wired network connections.
Is this docking station compatible with ThinkPad X1 Carbon? It is compatible with certain generations of the ThinkPad X1 Carbon. Verify compatibility with your specific model before purchasing.
Does the docking station have an audio jack? Yes, it includes a 3.5mm audio combo jack for headphones and microphones.
How do I install drivers for the Lenovo ThinkPad Ultra Docking Station? Drivers typically install automatically, but you can also download them from Lenovo’s support website for full functionality.
Can I use this docking station for gaming? While it supports external displays and peripherals, it is not optimized for gaming and does not provide dedicated GPU support.
Does the Lenovo Ultra Docking Station support Thunderbolt devices? No, it does not have Thunderbolt 3 or 4 support; it uses standard USB and DisplayPort connections.

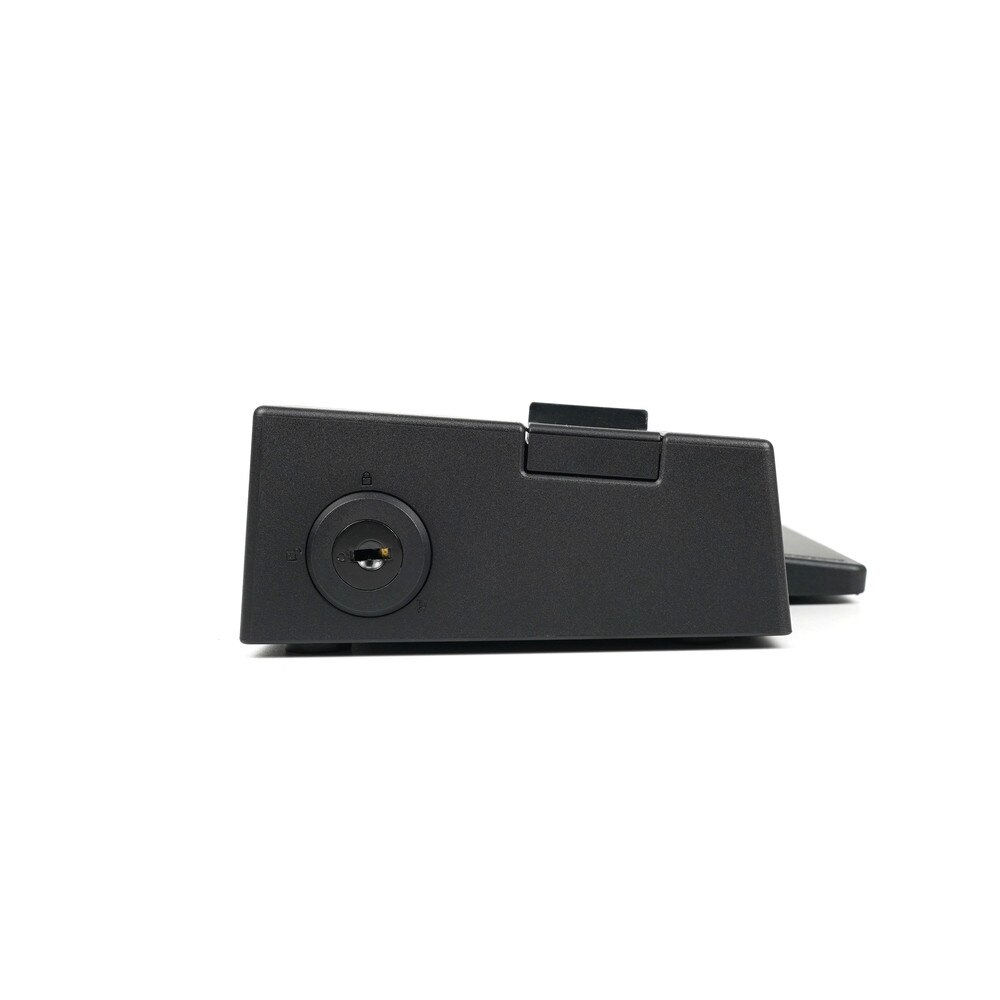

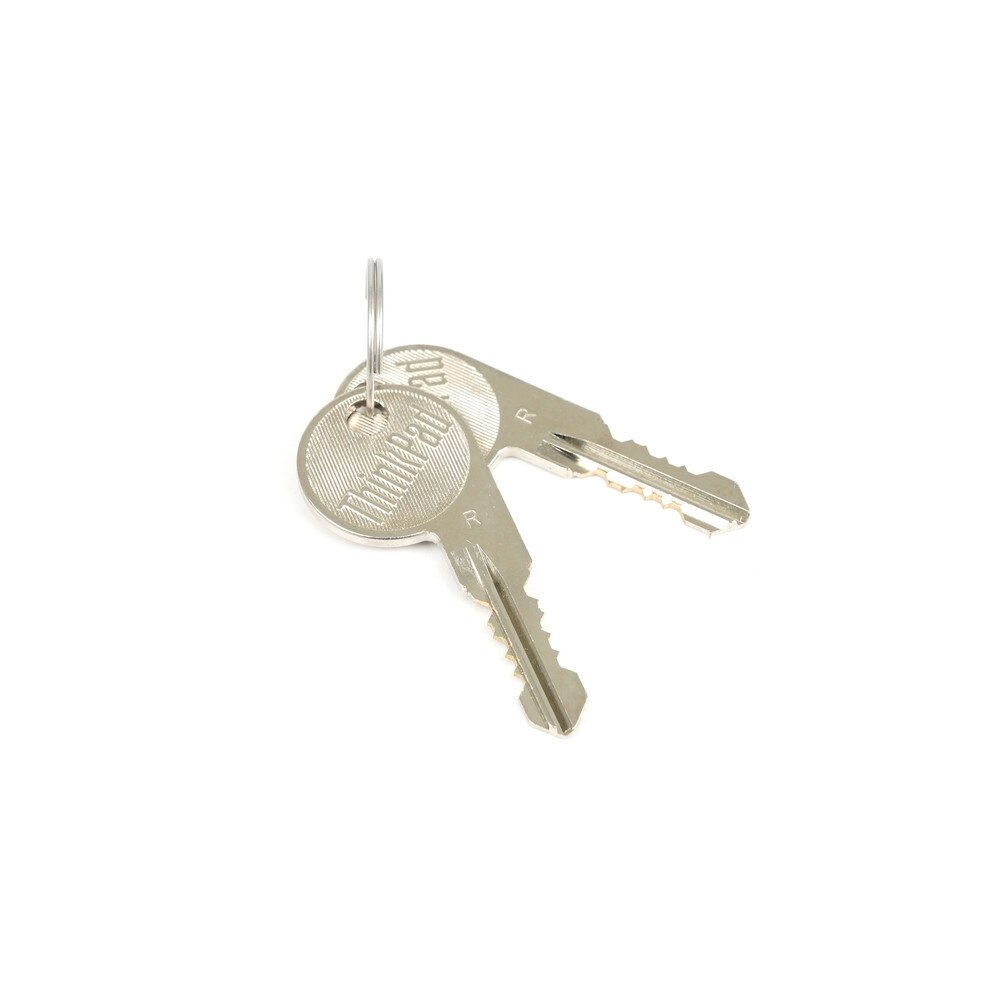

Can I lock my laptop to the docking station? Yes, it includes a security key lock to secure your laptop while docked.
Is the Lenovo 135W Ultra Docking Station compatible with Linux? Some Linux distributions support it, but functionality may vary. Check Lenovo forums or support for specific compatibility details.
What is the difference between this docking station and USB-C docking stations? This model uses a proprietary docking connector for ThinkPads, offering more stability and power delivery than USB-C docks, which work with various brands.
Can I connect external hard drives to this docking station? Yes, external hard drives and SSDs can be connected via the USB ports for fast data transfer.
