Overview of Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135US) | Like New
The Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135US) has a 4 bandwidth of 40 Gb/s and allows you to connect either one 7680 x 4320 resolution 8K monitor or up to four 4K 3840 x 2160 resolution displays via its HDMI 1.4, Thunderbolt 4, and two DisplayPort 1.4 ports to significantly improve your multitasking efficiency. The Thunderbolt 4 connector can also deliver up to 100W of power. There are also four USB 3.2 Gen 2 Type-A ports and a Type-C port that can transfer up to 10 Gb/s with compatible devices. Other useful features include a Gigabit Ethernet port for high-speed network connections and a 3.5mm audio jack.
Key Features of Lenovo ThinkPad Universal Thunderbolt 4 Dock
One Cable. All Your Needs.
All you need is a single Thunderbolt™ cable to boost your productivity to new heights. Including an 8K @ 30 Hz display or up to four 4K @ 60 Hz displays, 40 Gbps transfer speeds, vPro® pass-through support, and enhanced dynamic power charging up to 100W. With the ThinkPad® Universal Thunderbolt™ 4 Dock, you can do it all.
Compatibility. Made Limitless.
Productivity requires freedom. That's why we designed the ThinkPad ThunderboltTM 4 Dock to be infinitely adaptable, with up to 100W PD and unrivaled performance on all Thunderbolt™ 3 and 4, USB 4, Windows 10 and above USB-C notebooks.
Remote Management. But Smarter.
Remote dock management has just gotten a lot smarter. Because of Dock Manager and our cutting-edge hardware, firmware updates can be performed without affecting end-user productivity.
Specifications
Specifications for Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135US) | Like New
| Manufacturer | Lenovo |
| Manufacturer Part Number | 40B00135US |
| Product Name | Lenovo ThinkPad Universal Thunderbolt 4 Dock |
| Product Type | Docking Station |
| Color | Black/Red |
| Max Number of External Monitors | 4 |
| Weight | 0.45Kg |
| Refresh Rate | 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz |
| AC Plug | Slim Tip |
| Hardware Requirements | Host with USB-C/Thunderbolt port |
| Warranty Type | CRU |
| Output Power | Max 100W |
| OS Requirements | Win10 64 bit, Win 11 64 bit |
| Packed Weight | 1.2Kg |
| Agency Approvals | cULus, FCC,ICES,NOM |
| Audio Ports | 1* 3.5mm Audio combo Jack |
| Charging Port | DC-IN |
| Thunderbolt Port | 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect |
| USB Ports | 4 x USB-A 3.2 Gen 2 (1 always on), 1 x USB-C 3.2 Gen 2 |
| Video Ports | 1* HDMI 2.1 2* DP 1.4 |
| Ethernet | 1* Gigabit Ethernet |
| Package Type | brown box |
| Packed Dimensions (L x D x H) | 270*195*85mm |
| Height | 30mm |
| Cable Length | 220mm |
| Depth | 80mm |
| Warranty Period | 3 years |
| Maximum Operating Temperature | 40 celsius |
| Minimum Operating Temperature | 0 celsius |
| Maximum Relative Humidity (%) | 0.95 |
| Minimum Relative Humidity (%) | 0.05 |
| Driver Needed | Yes |

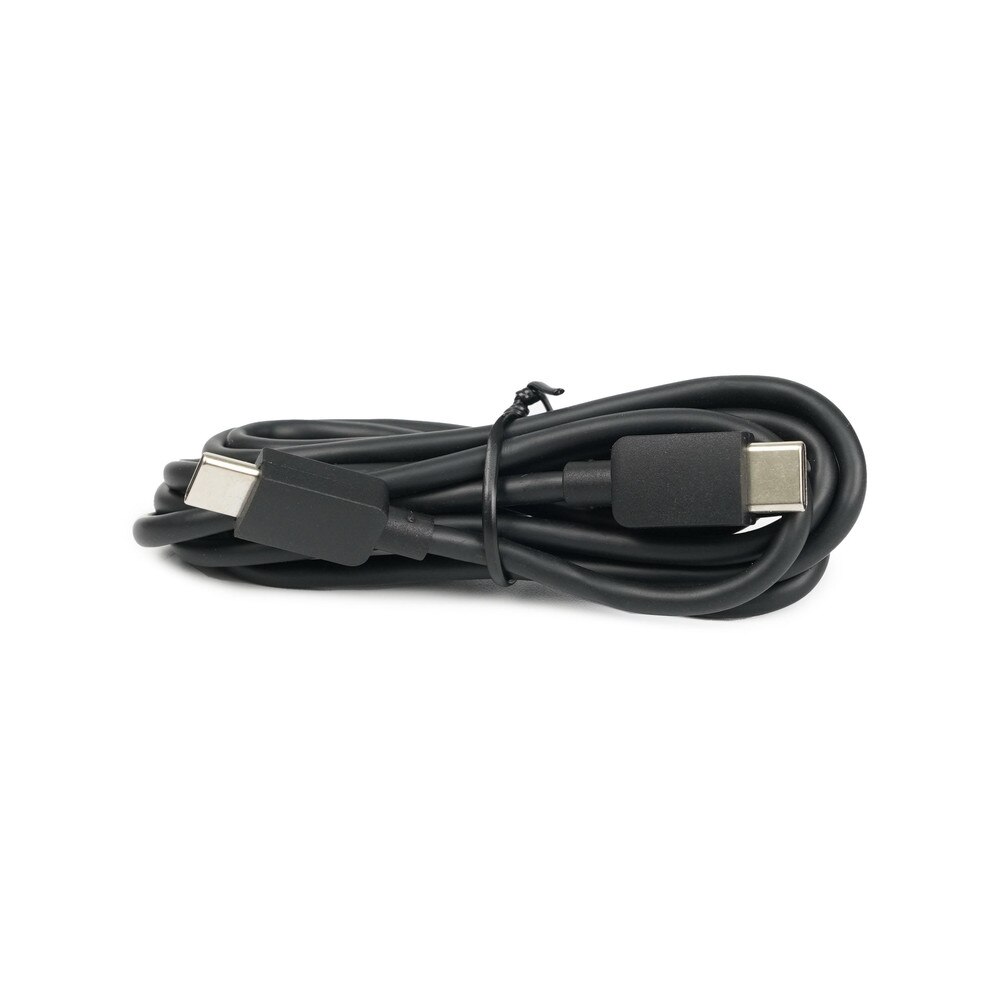

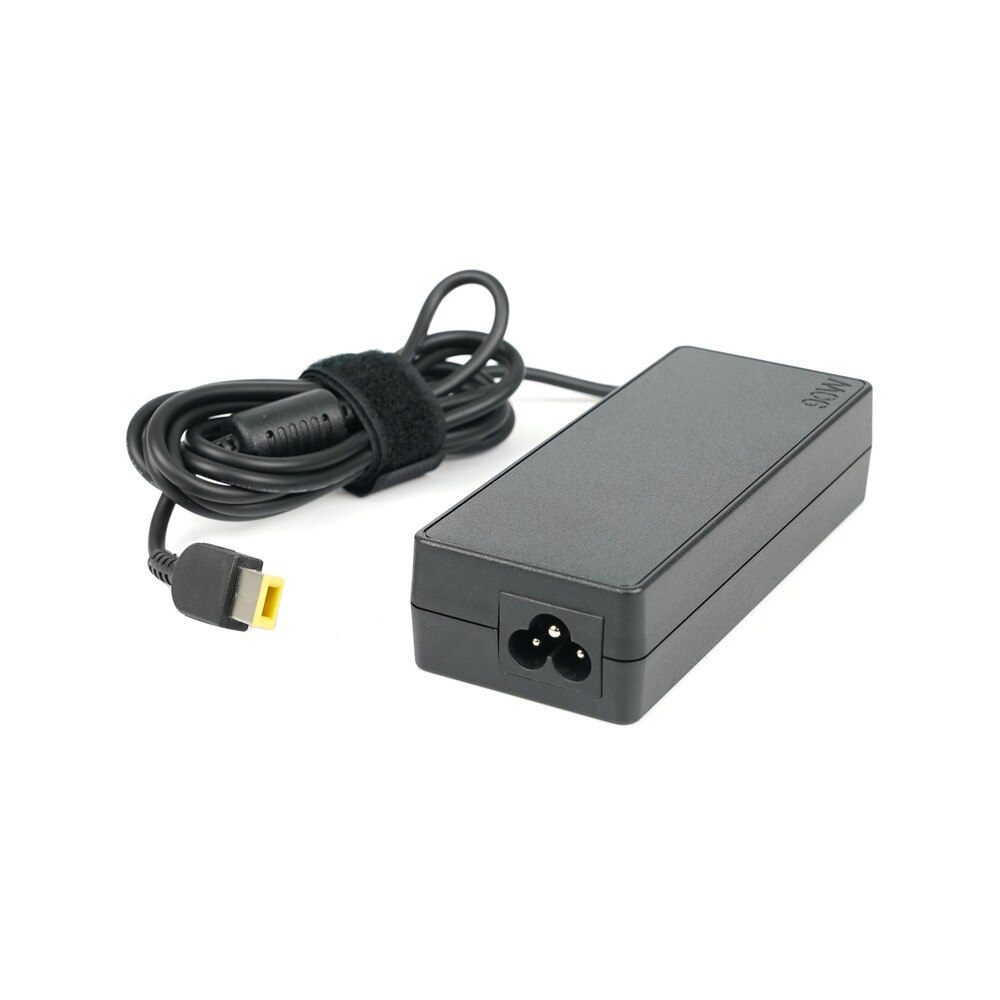

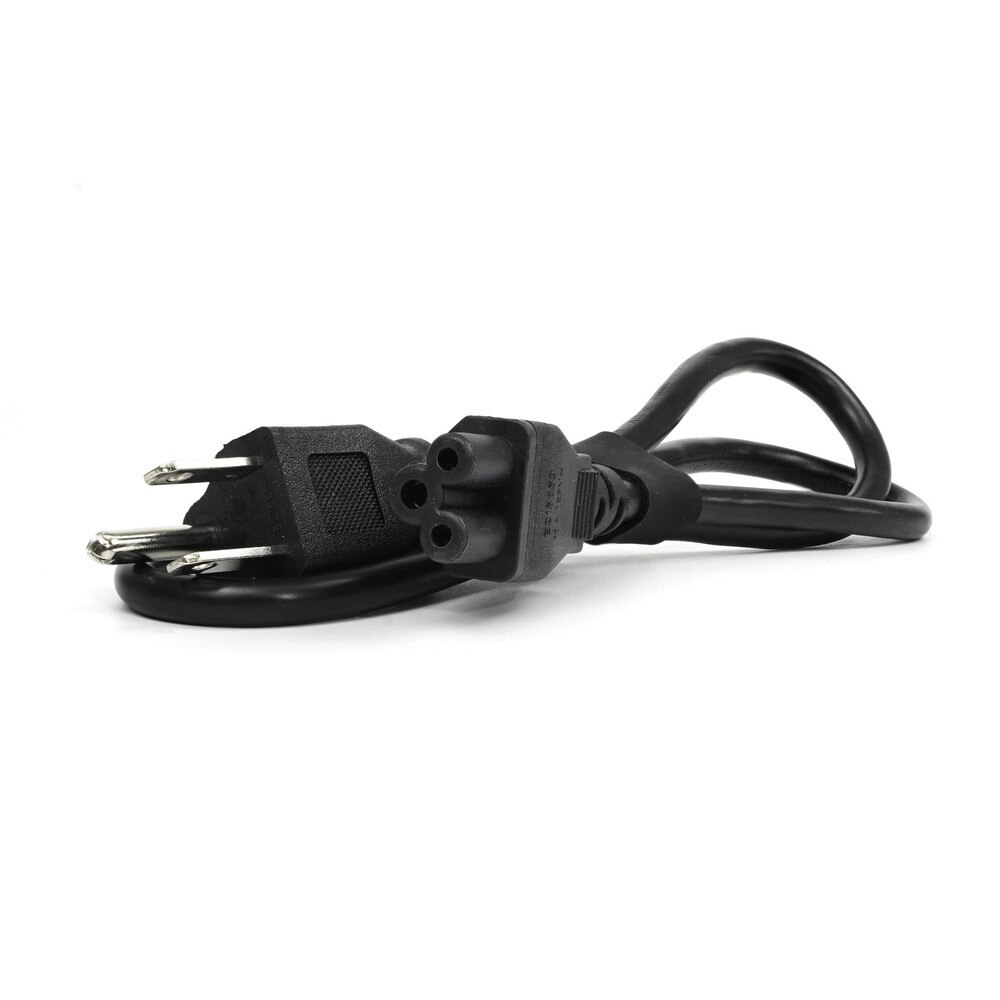

| Included Accessory | 135W adapter, 1x power cord, standard Thunderbolt cable |
| Input Power | 20V 6.75A |
| Physical Security Feature | 1* NanoSaver lock slot 1*MicroSaver lock slot |
| Power Button | Yes |
| Power Delivery | Yes |
User Guides
Frequently Asked Questions
Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135US)
Frequently Asked Questions (FAQ's)
What comes in the box for model 40B00135US?
What is the maximum supported display resolution?
How many displays can it support simultaneously?
Does the dock include a power supply?
How many and what USB ports are there?
Is there an Ethernet port?
How do I update dock firmware or drivers?
What is Lenovo Dock Manager?
Can this dock charge a laptop?
Can it be used with Macs?
Does the downstream USB‑C port support Thunderbolt?
Why doesn’t it support 4K @144 Hz or 120 Hz?
Why are only four monitors supported, not eight?
What do the LED indicators mean?
What should I check if the dock is not working?
Why is my wireless keyboard or mouse lagging?
Why can’t some devices wake the PC when plugged in?
Why is charging via dock slow or not working?
Can I mount this dock behind a monitor or on a wall?
Is this dock compatible only with Windows PCs?
