Overview of Crown XLS 1502 DriveCore Power Amplifier (NXLS1502-0-US) | Like New

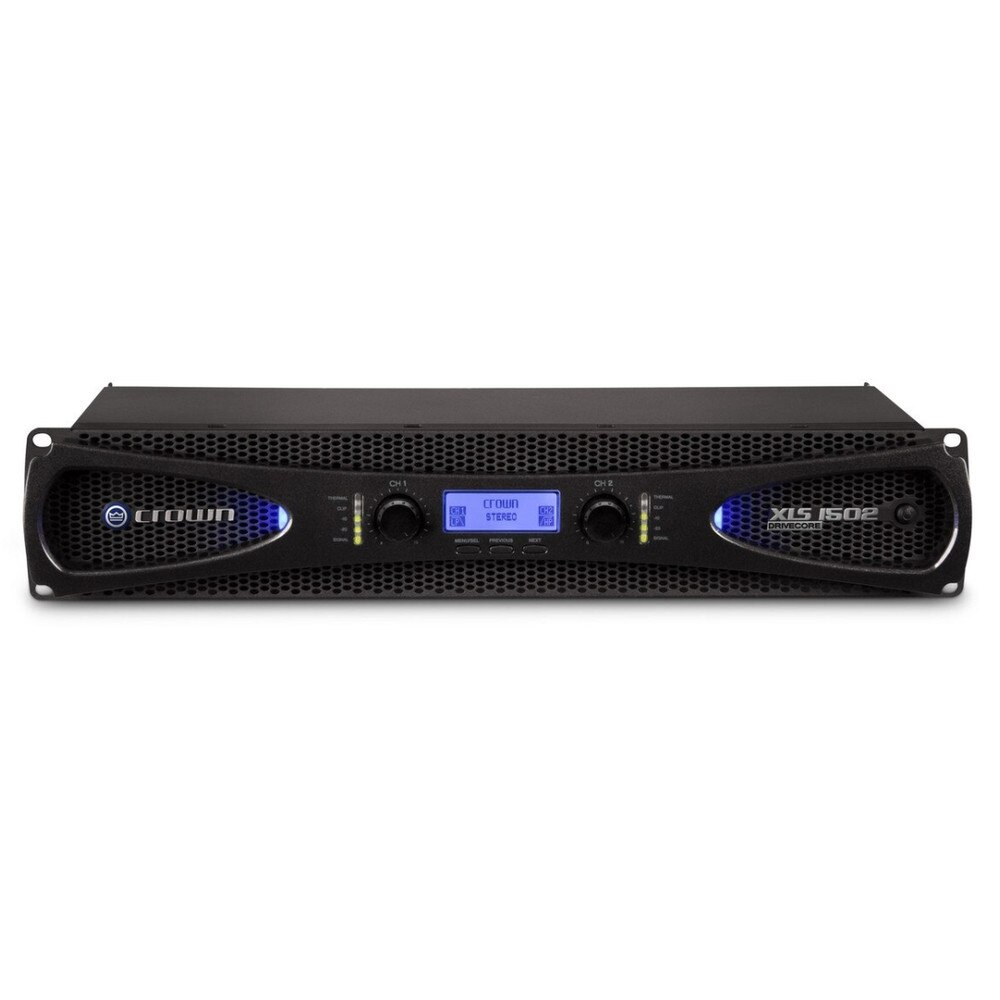

The Crown XLS 1502 DriveCore Power Amplifier is a two-channel, 525W power amplifier with improved DSP capabilities and tons of headroom, making it ideal for portable PA systems and other venues.
It features Crown's patented DriveCore technology, which is ultra-efficient and can drive 2400W at 4Ω bridged.
The XLS 1502 is also known for its sleek new look and a larger LCD display than its predecessor.
According to a review, the XLS 1502's audio performance is impressive, and it is not far from the performance of more expensive amps.
However, it should be noted that the XLS 1502 digitizes the incoming analog audio signal, which may not be ideal for high definition audio content sampled beyond 48 kHz.
Overall, the Crown XLS 1502 is a powerful and efficient amplifier that is suitable for a variety of applications.
Specifications
Specifications for Crown XLS 1502 DriveCore Power Amplifier (NXLS1502-0-US) | Like New
| Brand | Crown |
| Sensitivity | 1.4Vrms |
| Frequency Response | +0dB, -1dB |
| Signal to Noise | >103dB (at .775Vrms, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz > 85dB, At 20kHz > 55dB |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) |
| Weight | 8.6 lbs (3.9 kgs) |
User Guides
Frequently Asked Questions
Crown XLS 1502 DriveCore Power Amplifier (NXLS1502-0-US)
Frequently Asked Questions (FAQ's)
What is the power output of the Crown XLS 1502? The Crown XLS 1502 provides 525W per channel at 4 ohms, 300W per channel at 8 ohms, and 1,550W at 4 ohms in bridged mode.
Does the Crown XLS 1502 have a built-in crossover? Yes, the Crown XLS 1502 features a built-in PureBand™ Crossover System for flexible control of low-pass, high-pass, and band-pass filters.
What is DriveCore technology in the Crown XLS 1502? DriveCore technology integrates the amplifier’s driver stage into the power stage, increasing efficiency, reliability, and performance while reducing the size and weight of the amplifier.
How much does the Crown XLS 1502 weigh? The amplifier weighs only 8.6 pounds (3.9 kg), making it lightweight and portable.
What are the input options for the Crown XLS 1502? The Crown XLS 1502 accepts both balanced XLR, 1/4" TRS, and unbalanced RCA inputs.
Does the Crown XLS 1502 have a fan? Yes, the amplifier is equipped with a forced-air cooling system that includes a variable-speed fan to maintain optimal temperature.
Can the Crown XLS 1502 be used in bridge-mono mode? Yes, the amplifier can be easily configured to operate in bridge-mono mode to provide higher power output.
What protection features does the Crown XLS 1502 have? The amplifier includes several protection features like Short Circuit, Thermal, and DC Protection to safeguard both the amplifier and connected speakers.
Is the Crown XLS 1502 rack-mountable? Yes, the amplifier is designed to be mounted in a standard 19-inch rack, occupying 2U of rack space.
What is the signal-to-noise ratio of the Crown XLS 1502? The signal-to-noise ratio is greater than 97 dB, ensuring clean and clear sound output.

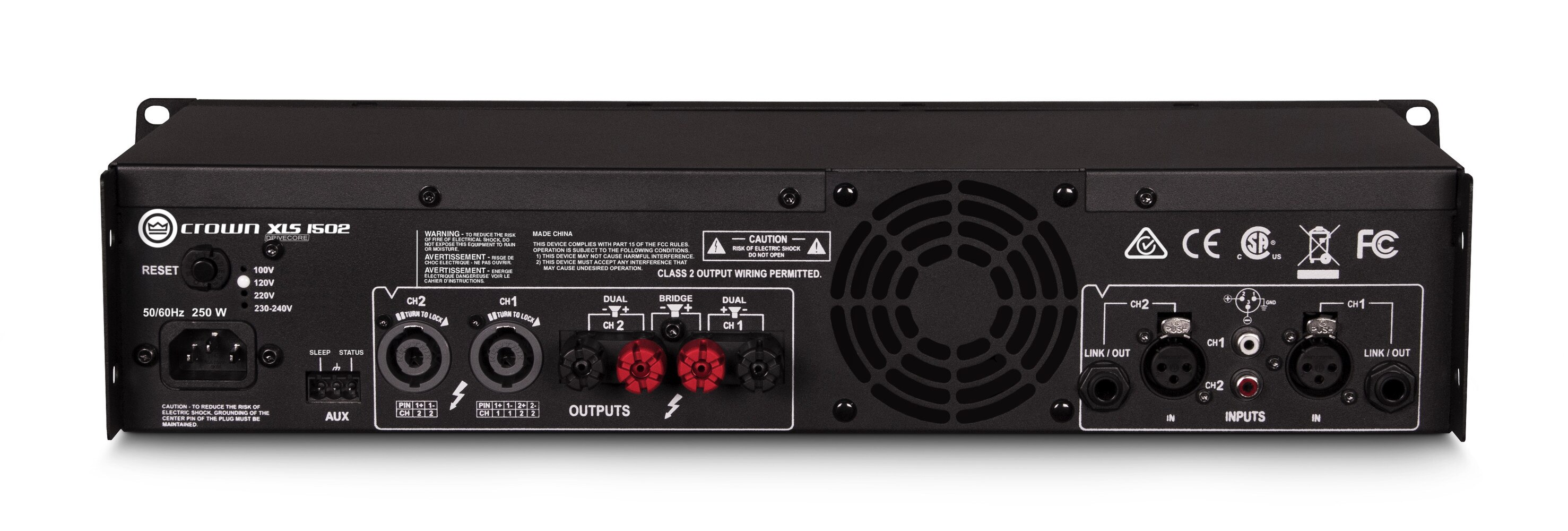

What are the output connection types on the Crown XLS 1502? The amplifier has binding post and Speakon output connectors for secure and reliable speaker connections.
Does the Crown XLS 1502 have a sleep mode? Yes, the amplifier features an automatic sleep mode to reduce power consumption when not in use.
What is the frequency response of the Crown XLS 1502? The frequency response ranges from 20 Hz to 20 kHz, ±0.5 dB.
Can the Crown XLS 1502 be used with a subwoofer? Yes, the built-in crossover allows the amplifier to be configured to drive a subwoofer.
What type of display does the Crown XLS 1502 have? The amplifier features a user-friendly LCD display with selectable sleep mode for easy operation and monitoring.
Does the Crown XLS 1502 have a limiter? Yes, the amplifier includes Peakx™ limiters that protect the speakers from distortion and clipping.
Is the Crown XLS 1502 energy efficient? Yes, the amplifier is highly energy-efficient, featuring a power supply that delivers maximum power with minimal waste.
Can the Crown XLS 1502 be used in a home theater setup? Yes, the amplifier can be integrated into a home theater system to provide powerful and clean amplification for high-quality audio.
How do you reset the Crown XLS 1502 to factory settings? To reset the amplifier, hold down the “Menu” button while powering on the unit until the display reads “RESET ALL.”
