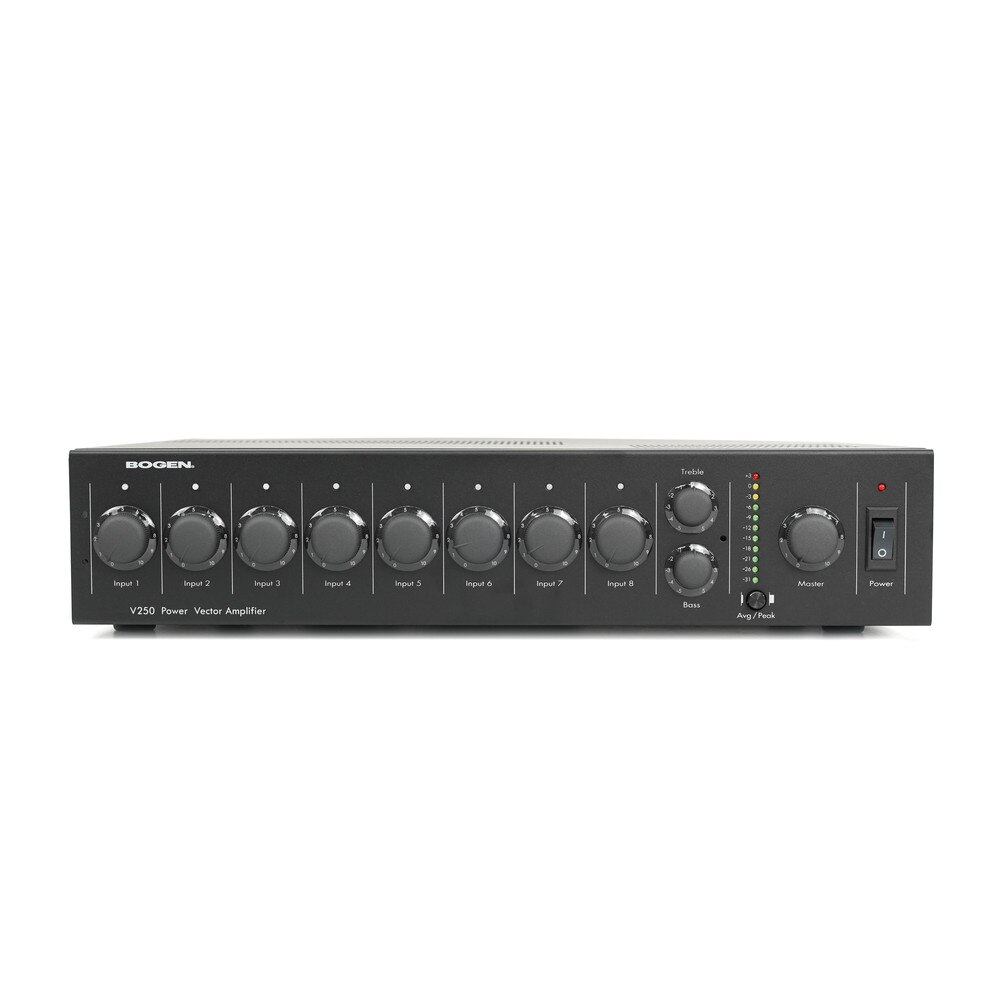

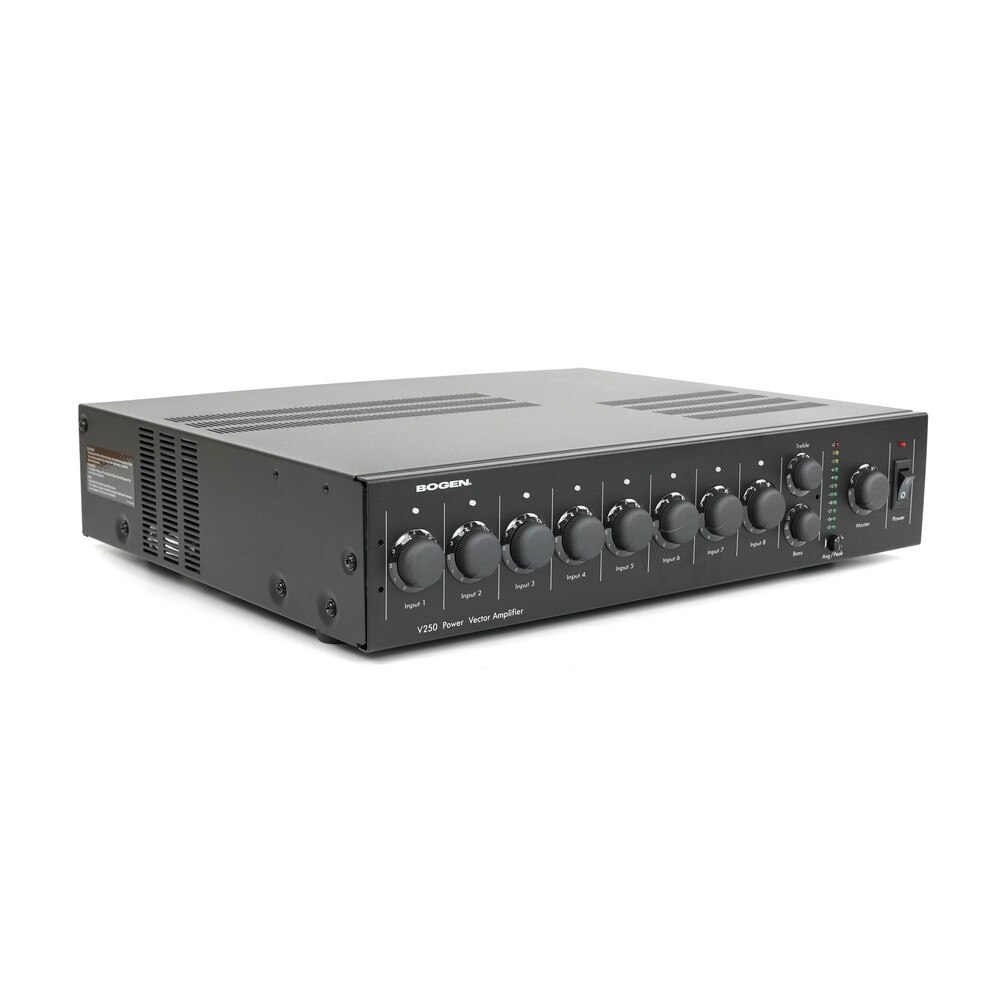

  • Bogen V250 Power Mixer Amplifier 250W (V250) | New
Bogen V250 Power Mixer Amplifier 250W (V250) | New

Bogen V250 Power Mixer Amplifier 250W (V250) | New

SKU: V250-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$769.99 $769.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Bogen V250 Power Mixer Amplifier 250W (V250) | New

Bogen’s Power Vector modular input amplifier series offers a wide range of power to choose from, with five models ranging from 35 W to 250 W. The amplifiers are designed to work with both high- (70/25 V) and low-impedance (4/8 ohm) speaker systems. Each model includes eight module bays for input modules and allows up to four levels of priority between modules. Two module bays are also capable of accepting signal processing output modules.

Specifications

Specifications for Bogen V250 Power Mixer Amplifier 250W (V250) | New

BrandBogen
Form Factor/TypeTabletop
Number of Channels8
Power Rating250 W
Load Impedance Voltage70 / 25 V, 4 / 8 Ohms
Frequency Response45 Hz to 20 kHz (70/100 V), 20 Hz to 20 kHz (Low-Z)
System-94 dB
Aux Module-70 dB
Mic Module-60 dB
Telephone Module-70 dB
Distortion< 0.5%
Ducking/MutingYes
Audio I/O1 x RCA Unbalanced Pre-EQ Output, 1 x RCA Unbalanced Signal Processor Output
Number of Module Slots8
AC Outlet500 W Max Load (Unswitched, Grounded)
Dimensions16.5 x 3.5 x 12.0" / 419.1 x 88.9 x 304.8 mm
Weight40 lb / 18.1 kg
Package Weight32.6 lb


User Guides

Frequently Asked Questions

Bogen V250 Power Mixer Amplifier
Frequently Asked Questions (FAQ's)



. What is the Bogen V250 Power Mixer Amplifier?
  • The Bogen V250 is a 250W power mixer amplifier designed for public address (PA) systems. It integrates both an amplifier and a mixer, making it ideal for small to medium-sized venues such as schools, churches, and meeting rooms.
  • How many inputs does the Bogen V250 have?
  • The Bogen V250 features 5 inputs: 3 microphone (XLR) inputs and 2 auxiliary (RCA) inputs for connecting various audio sources such as microphones, instruments, or media players.
  • What is the power output of the Bogen V250?
  • The Bogen V250 delivers a 250W RMS output at 4 ohms, which is suitable for driving a wide range of PA speakers.
  • Can the Bogen V250 be used with 70V or 100V speaker systems?
  • Yes, the Bogen V250 supports both 70V and 100V speaker systems, making it versatile for different commercial or institutional setups.
  • What is the impedance range of the Bogen V250?
  • The Bogen V250 supports both 4-ohm and 70V/100V speaker impedance, offering flexibility for a variety of speaker configurations.
  • Does the Bogen V250 have a built-in equalizer?
  • Yes, the Bogen V250 comes with a 3-band EQ (Bass, Mid, and Treble) for each microphone input, allowing for customized sound adjustments for different audio sources.
  • Can the Bogen V250 be used for both indoor and outdoor applications?
  • While the Bogen V250 is primarily designed for indoor use, it can be used outdoors in sheltered environments if paired with weather-resistant speakers.
  • What is the size and weight of the Bogen V250?
  • The Bogen V250 is a rack-mountable unit and has a typical size of 2U (3.5 inches high) and weighs approximately 17 lbs (7.7 kg).
  • How do I connect external speakers to the Bogen V250?
  • The Bogen V250 provides binding post and screw terminal connections for 4-ohm speakers and terminal block connectors for 70V/100V speakers.
  • Can I use wireless microphones with the Bogen V250?
  • Yes, wireless microphones can be connected to the Bogen V250 through one of the available mic inputs, typically via a wireless receiver that outputs to an XLR or 1/4" jack.
  • . Does the Bogen V250 have a built-in limiter?
  • Yes, the Bogen V250 features a built-in limiter to prevent distortion and protect the system from overdriving the amplifier, ensuring clean sound even at high volumes.
  • What type of output does the Bogen V250 provide?
  • The Bogen V250 provides both low impedance (4 ohm) and high impedance (70V or 100V) outputs, making it flexible for a range of speaker types and installation needs.
  • Can I connect multiple Bogen V250 amplifiers together?
  • While you cannot daisy-chain amplifiers directly, you can use a mixer or an audio distribution system to connect multiple amplifiers if you need to cover larger areas or multiple zones.
  • Does the Bogen V250 have any protection features?
  • Yes, the Bogen V250 is equipped with overload protection, short-circuit protection, and thermal protection to ensure safe and reliable operation.
  • What is the frequency response of the Bogen V250?
  • The Bogen V250 has a frequency response of 50 Hz to 15 kHz, ensuring it covers the full range of audio frequencies required for most PA applications.
  • Can I use the Bogen V250 with a subwoofer?
  • While the Bogen V250 does not have a dedicated subwoofer output, it can be used with a subwoofer if the subwoofer has a high-pass filter or if you add an external crossover.
  • Does the Bogen V250 have a master volume control?
  • Yes, the Bogen V250 features a master volume control to adjust the overall output level, in addition to individual volume controls for each input.
  • What type of connectors are available for the microphone inputs?
  • The Bogen V250 has 3 XLR microphone inputs and 1/4" jack inputs for connecting dynamic microphones, as well as RCA auxiliary inputs for connecting line-level audio sources.
  • . What is the cooling mechanism for the Bogen V250?
  • The Bogen V250 uses an internal fan for active cooling to prevent overheating, especially during extended use at high power levels.
  • . Is the Bogen V250 easy to install and operate?
  • Yes, the Bogen V250 is designed for easy rack-mount installation and simple operation with intuitive controls for volume, tone, and mic input selection. It also includes detailed user manuals for setup and troubleshooting.
