Bogen C60 60 Watt Amplifier | Like New
SKU: C60-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Bogen C60 60 Watt Amplifier | Like New

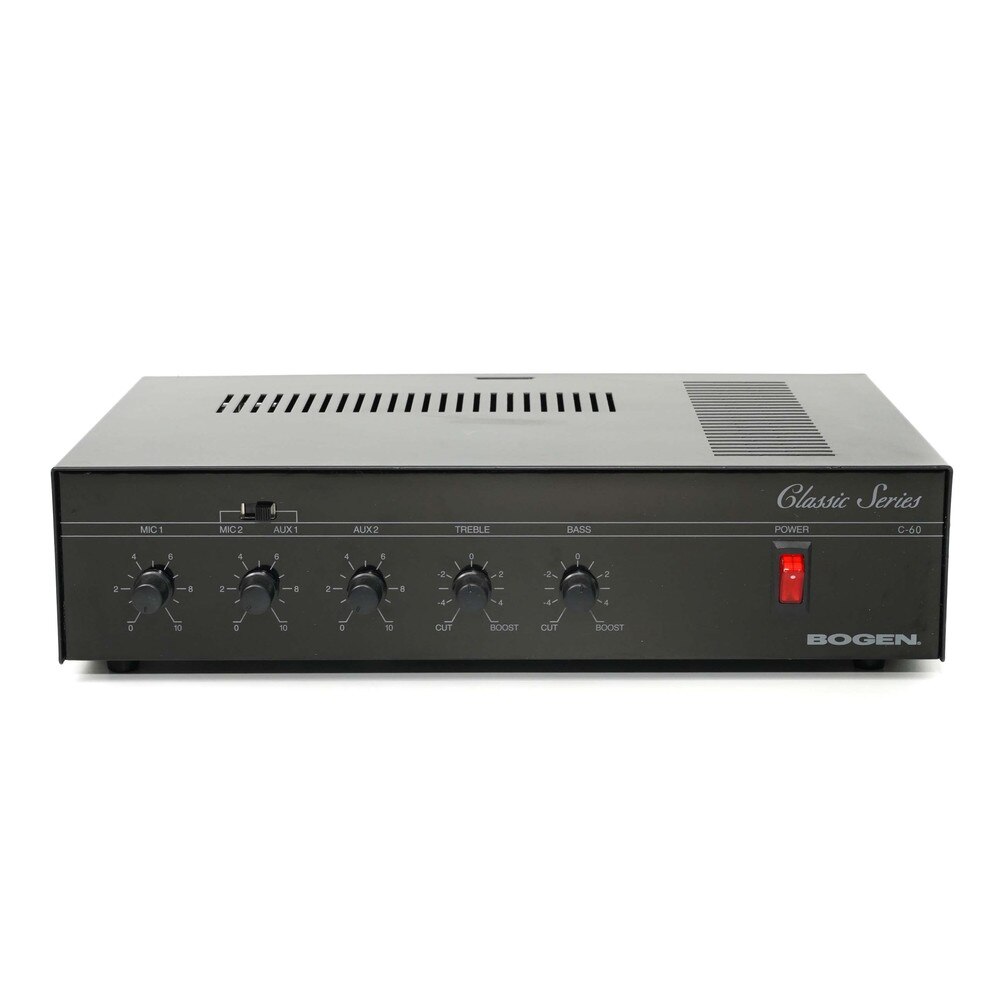

The Bogen C60 is a versatile 60-watt public address mixer amplifier designed for professional audio applications. This Classic Series model offers robust mixing capabilities for microphones, telephone lines, and auxiliary sources, making it ideal for various settings such as schools, offices, and public venues.
Key features of the Bogen C60 include:
- 60 watts of power output
- 4 input channels: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, and 1 selectable MIC or AUX
- Multiple output options: 4-ohm, 8-ohm, 16-ohm, 25V, and 70V
- Transformer-coupled speaker systems
- Output jacks for tape recorder or booster amplifier connection
- Compatibility with 600-ohm telephone line (using accessory transformer WMT1A)
Specifications
Bogen C60 60 Watt Amplifier | Like New
| Manufacturer | Bogen |
| Manufacturer Part Number | C60 |
| Product Name | Bogen C60 60 Watt Amplifier |
| Product Type | Amplifier |
| Amplifier Power Rating | 60 W |
| Load Impedance / Voltage | 4 / 8 / 16 Ohms |
| 70 / 25 V | |
| Audio I/O | 2x Barrier Strip Balanced Mic Input |
| 1x RCA Aux/Hi-Z Input | |
| 1x Barrier Strip Balanced Telephone Input | |
| 2x RCA Unbalanced Output | |
| Form Factor/Type | Tabletop |
| Amplifier Power Rating | 60 W |
| Load Impedance / Voltage | 4 / 8 / 16 Ohms |
| 70 / 25 V | |
| Frequency Response | 70 Hz to 16 kHz (70/100 V) |
| 20 Hz to 20 kHz (Low-Z) | |
| Input Sensitivity | Mic: |
| 600 mV (Balanced) | |
| Aux: | |
| 85 mV | |
| Telephone: | |
| 75 mV | |
| I/O Impedance | Aux Input: |
| 10 Kilohms | |
| RCA Output: | |
| 4 Ohms | |
| Noise | Mic Input: |
| -55 dB | |
| Aux Input: | |
| -70 dB | |
| Telephone Input: | |
| -70 dB | |
| Distortion | < 1% |
| Connectivity | |
| Audio I/O | 2x Barrier Strip Balanced Mic Input |
| 1x RCA Aux/Hi-Z Input | |
| 1x Barrier Strip Balanced Telephone Input | |
| 2x RCA Unbalanced Output | |

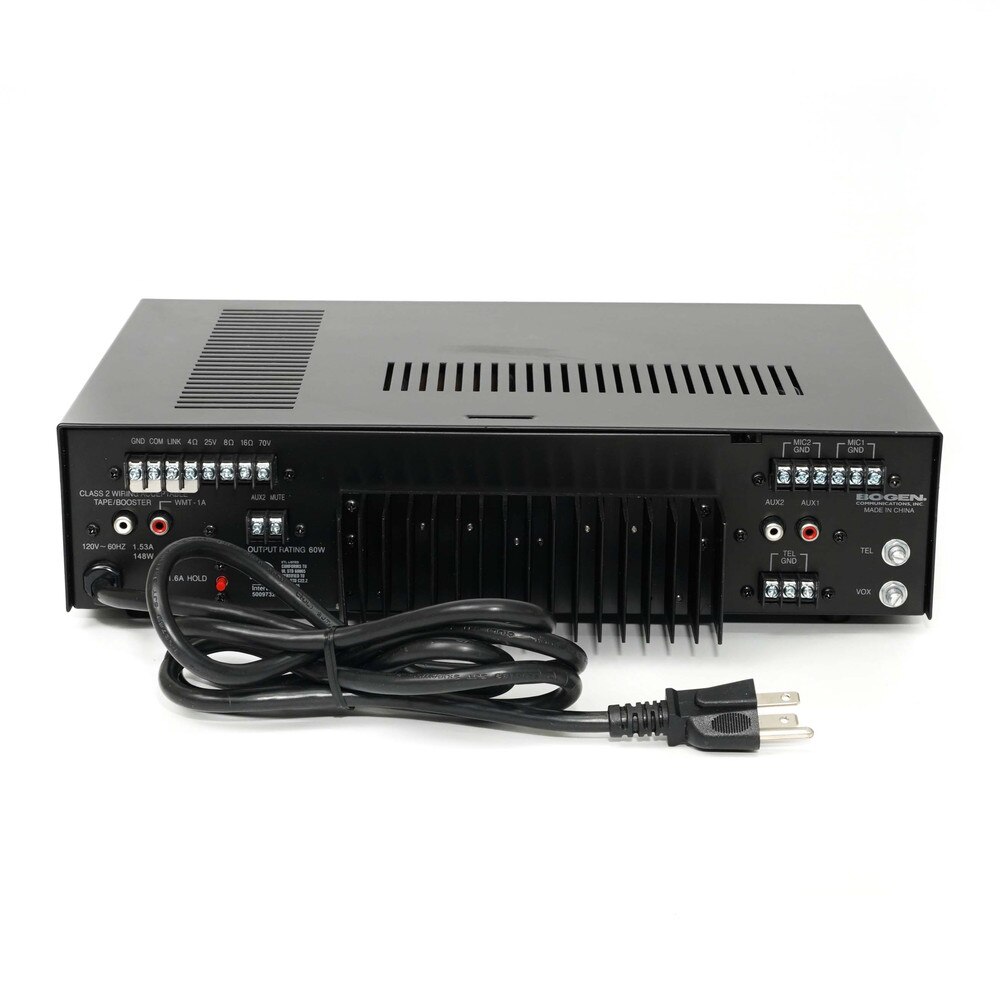

| Speaker Outputs | Screw Terminal |
User Guides
Frequently Asked Questions
Bogen C60 60 Watt Amplifier
Frequently Asked Questions (FAQ's)
What is the power output of the Bogen C60? The Bogen C60's rated power output is 60 watts RMS.
What are the input options for the C60? The C60 features four inputs: one MIC (Lo-Z), one AUX (Hi-Z), one TEL, and one selectable MIC or AUX.
What are the output options for the C60? It has outputs for 4-ohm (direct), 8-ohm, 16-ohm, 25V, and 70V speaker systems.
What is the frequency response of the C60? The frequency response ranges from 70 Hz to 16 kHz (± 2 dB) for transformer output and 20 Hz to 20 kHz (± 1 dB) for 4-ohm direct output.
Can the C60 be used for telephone paging? Yes, it has a TEL input for phone paging applications.
Does the C60 have tone controls? Yes, it features treble and bass controls.
Is there a muting function for push-to-talk microphones? Yes, it supports AUX muting via an external contact closure for push-to-talk mics.
Can the C60 be connected to a tape recorder? Yes, it features output connections for connecting to a tape recorder or an extra booster amplifier.
Is the C60 rack-mountable? Yes, it can be rack-mounted with an accessory mounting kit (model RPK50).
What are the dimensions of the C60? The dimensions are 14-1/2" W x 3-3/4" H x 11" D.
How much does the C60 weigh? The C60 weighs 17 lb.
What power requirements does the C60 have? It requires 120V AC, 60 Hz, and consumes 148W.
How does the sound quality of the C60 compare to other paging amplifiers? The C60 is known to sound better than most other paging amplifiers.
Is the C60 reliable? Yes, the C60 is considered a very reliable PA amplifier.
What should I do if the C60 turns off immediately after turning it on? This could be caused to a short circuit in the rectifier, output transistor(s), or filter capacitor. It is advised that you inspect these parts with a meter set to diode junction detect.
Does the C60 have thermal protection? Yes, it features thermal protection and electronic shutdown.
Can the C60 be connected to a 600-ohm telephone line? Yes, with an accessory transformer (Model WMT1A).
Is there a way to boost the amplifier's output? Yes, it has an output jack to connect an additional booster amplifier.
Is the C60 UL listed? Yes, it's listed to UL Standard 60065 for US and Canada.
Is there a reset button on the C60? Yes, the C60 has a reset button for protection against overloads
