Bogen C35 35 Watt Amplifier | New

Bogen C35 35 Watt Amplifier | New

SKU: C35-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$292.99 $292.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Bogen C35 35 Watt Amplifier | New


The C35 Classic Series Public Address Amplifier 35W from Bogen is a reliable mixer/amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panel has variable output taps at 4/8/16 ohms and 25/70V. This amp has 4 inputs with independent volume controls plus treble and bass controls. Output jacks are provided for recording or secondary amplifiers.

Product Features

  • 35-watts
  • 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
  • Each input controlled by an independent volume control
  • Treble and bass controls
  • AUX muting by external contact closure for push-to-talk microphones
  • TEL input for telephone paging applications
  • TEL input voice-activated (VOX) mute over AUX input
  • Variable threshold for TEL input voiceactivated AUX mute
  • Outputs for 4-ohm (direct), 8-ohm (C35 & C60 models only), and 16-ohm, 25V and 70V speaker systems (transformer coupled)
  • Output jack to connect a recording device or booster amplifier
  • Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
  • Thermal protection and electronic shutdown
  • Rack mountable with accessory mounting kit (model RPK50)
  • Listed to UL Standard 60065 for U.S. and Canada Features Description Specifications subject to change without notice. © 2002 Bogen Communications, Inc. 54-7853-

Specifications

Specifications for Bogen C35 35 Watt Amplifier | New


Manufacturer: Bogen
Power Output (RMS) C35 Rated 35W
Frequency Response & Distortion Transformer† 70 Hz-16 kHz (± 2 dB) @ 1% max. 4-Ohm Direct Output 20 Hz-20 kHz (± 1 dB) @ 0.5% max.
Hum and Noise MIC 55 dB below rated output AUX 70 dB below rated output TEL 70 dB below rated output
Input Sensitivity MIC Lo-Z Balanced 600μV AUX 85mV TEL 75mV

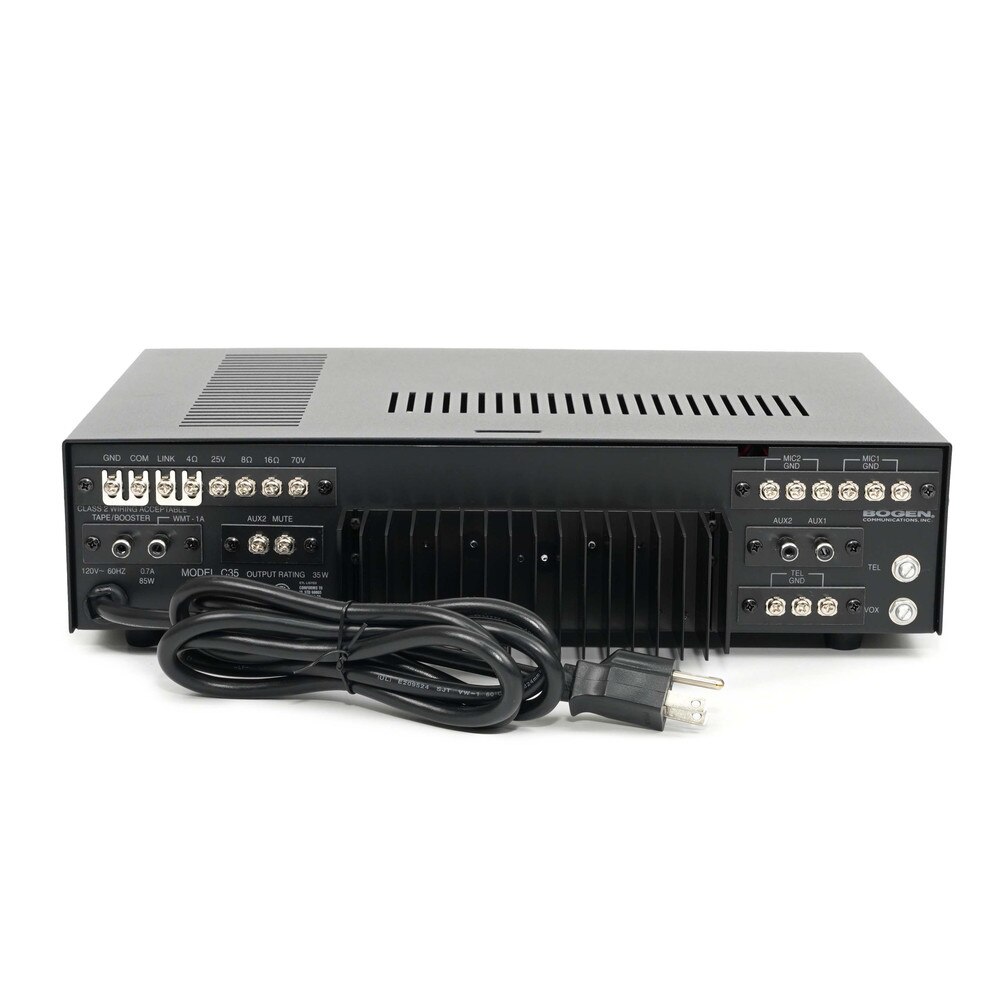

Outputs 8 ohms,16 ohms, 25V, 70V transformerisolated balanced or unbalanced; 4 ohms direct unbalanced
Output Connections Screw terminal strip, TAPE/BOOSTER jack; WMT1A jack (requires accessory transformer)
Input Connections Screw terminals for MIC and TEL, two AUX Hi-Z jacks

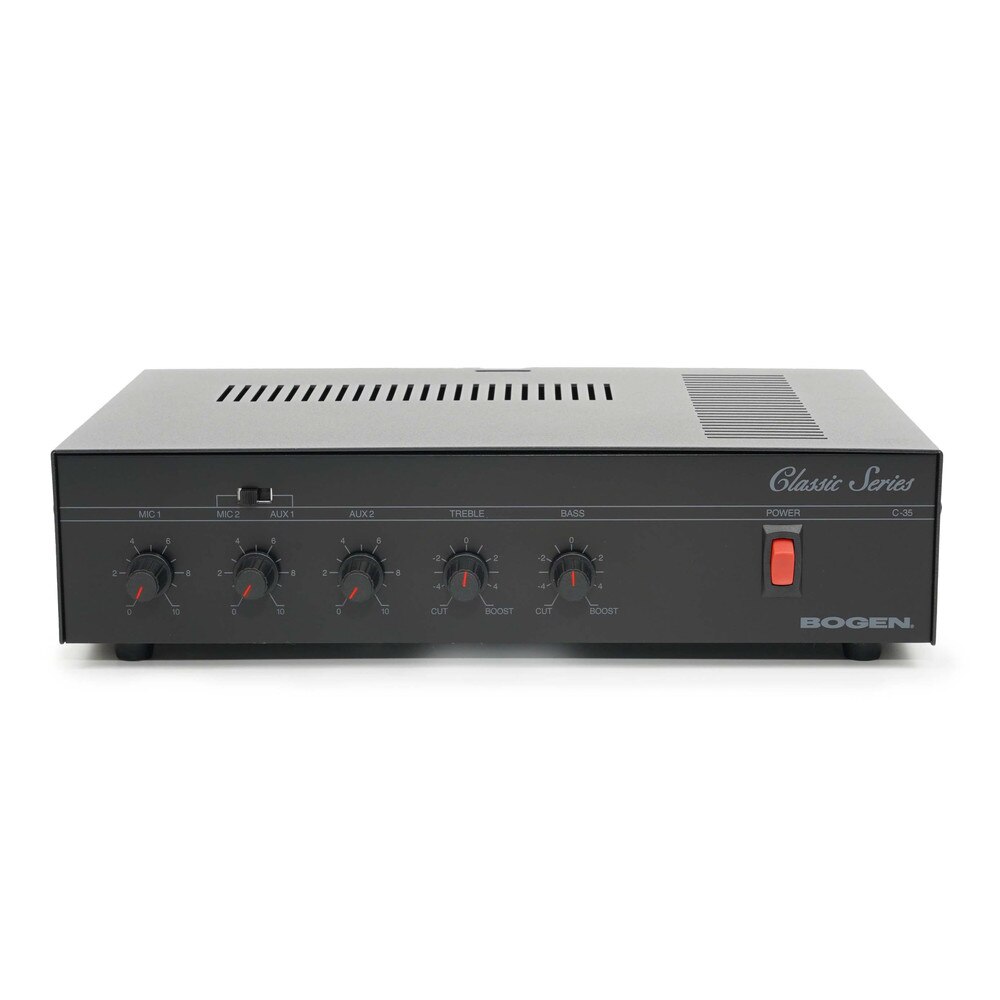

Controls MIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX
Tone Control Treble, ±11 dB @ 10 kHz; Bass ±11 dB @ 100 Hz
Dimensions 14-1/2" W x 3-3/4" H x 11" D
Product Weight 35 lb


User Guides

Bogen C35 data sheet
Bogen C35 user guide

Frequently Asked Questions

Bogen C35 35 Watt Amplifier
Frequently Asked Questions (FAQ's)



What is the Bogen C35 amplifier?
  • The Bogen C35 is a 35-watt commercial audio amplifier designed for use in paging, background music, and other public address applications.
    • What type of audio input connections does the C35 support?
  • The amplifier supports balanced microphone inputs, auxiliary inputs, and telephone paging inputs.
    • What is the power output of the Bogen C35?
  • It delivers 35 watts of output power to drive connected speakers.
    • What is the intended use of the Bogen C35 amplifier?
  • It is ideal for schools, offices, retail stores, and other venues needing clear audio for paging or background music.
    • Does the Bogen C35 support both 70V and 8-ohm speaker systems?
  • Yes, it supports 70V distributed systems as well as low-impedance (8-ohm) speaker connections.
    • Does the amplifier have tone controls?
  • Yes, it supports multiple microphone inputs with individual volume controls.
    • Does the amplifier have a built-in telephone paging input?
  • Yes, the C35 includes a telephone paging input for easy integration with phone systems.
    • CIs there a priority paging feature?
  • Yes, it includes a priority paging function to override other audio inputs during announcements.
    • Can I use the Bogen C35 to play background music?
  • Yes, it supports auxiliary inputs for connecting music sources like CD players or smartphones.
    • How do I connect speakers to the Bogen C35?
  • Speakers can be connected via terminal blocks for 70V distributed systems or the 8-ohm binding post outputs.
    • Can the Bogen C35 be rack-mounted?
  • Yes, optional rack-mounting brackets are available for installing the amplifier in a standard equipment rack.
    • Does the amplifier require ventilation during installation?
  • Yes, proper ventilation is needed to prevent overheating during operation.
    • What type of power supply does the Bogen C35 use?
  • It uses a standard 120V AC power supply.
    • How do I configure the priority paging feature?
  • The feature can be enabled through the dedicated input and configured using the manual for system integration.
    • What types of microphones are compatible with the C35?
  • Dynamic and condenser microphones with appropriate input impedance are compatible
    • Can the Bogen C35 connect to a phone system?
  • Yes, it includes a dedicated telephone paging input for direct connection to a PBX system.
    • Does it support external music devices like MP3 players?
  • Yes, it supports auxiliary inputs for external audio devices like MP3 players, smartphones, or CD players.
    • Can the amplifier drive multiple speakers?
  • Yes, it can drive multiple speakers in a 70V distributed system or in parallel on the 8-ohm output.
    • Is the Bogen C35 compatible with external equalizers or processors?
  • Yes, it can work with external audio processors through its auxiliary input/output connections.
    • How do I connect speakers to the Bogen C35?
  • Speakers can be connected via terminal blocks for 70V distributed systems or the 8-ohm binding post outputs.
