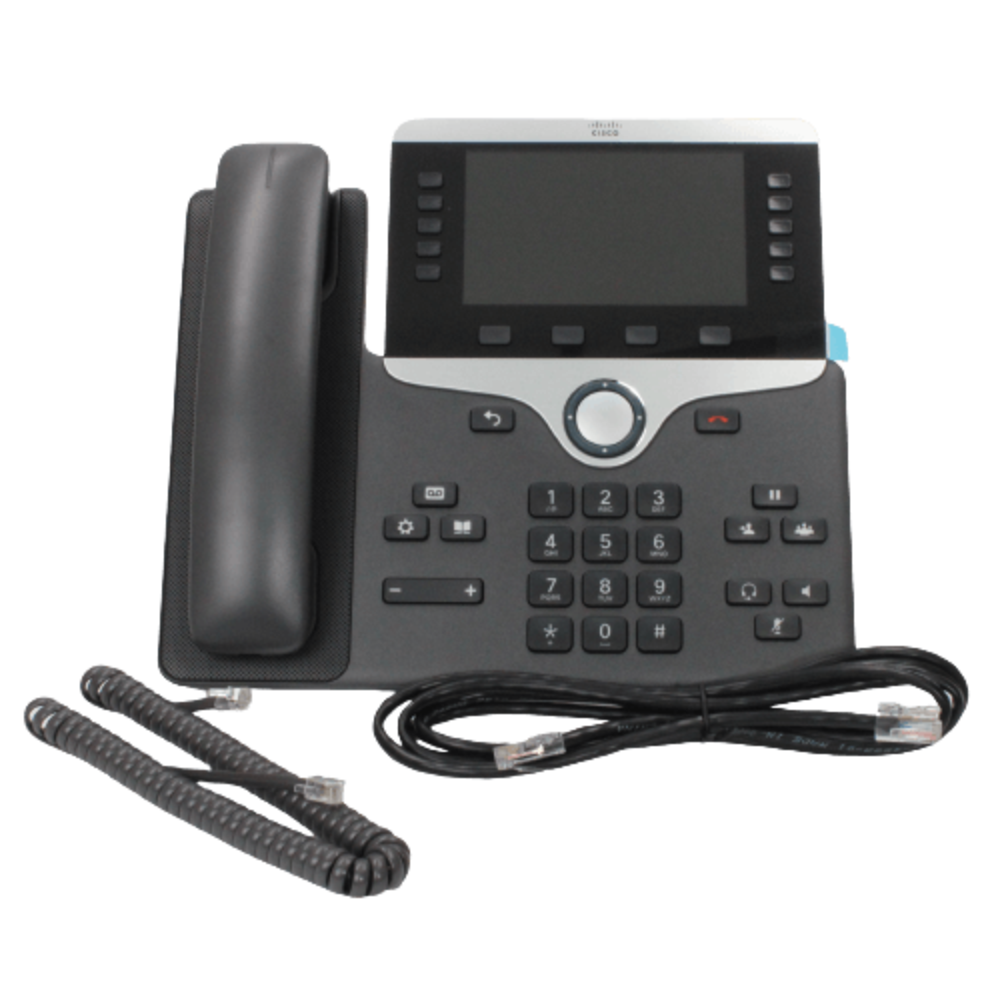

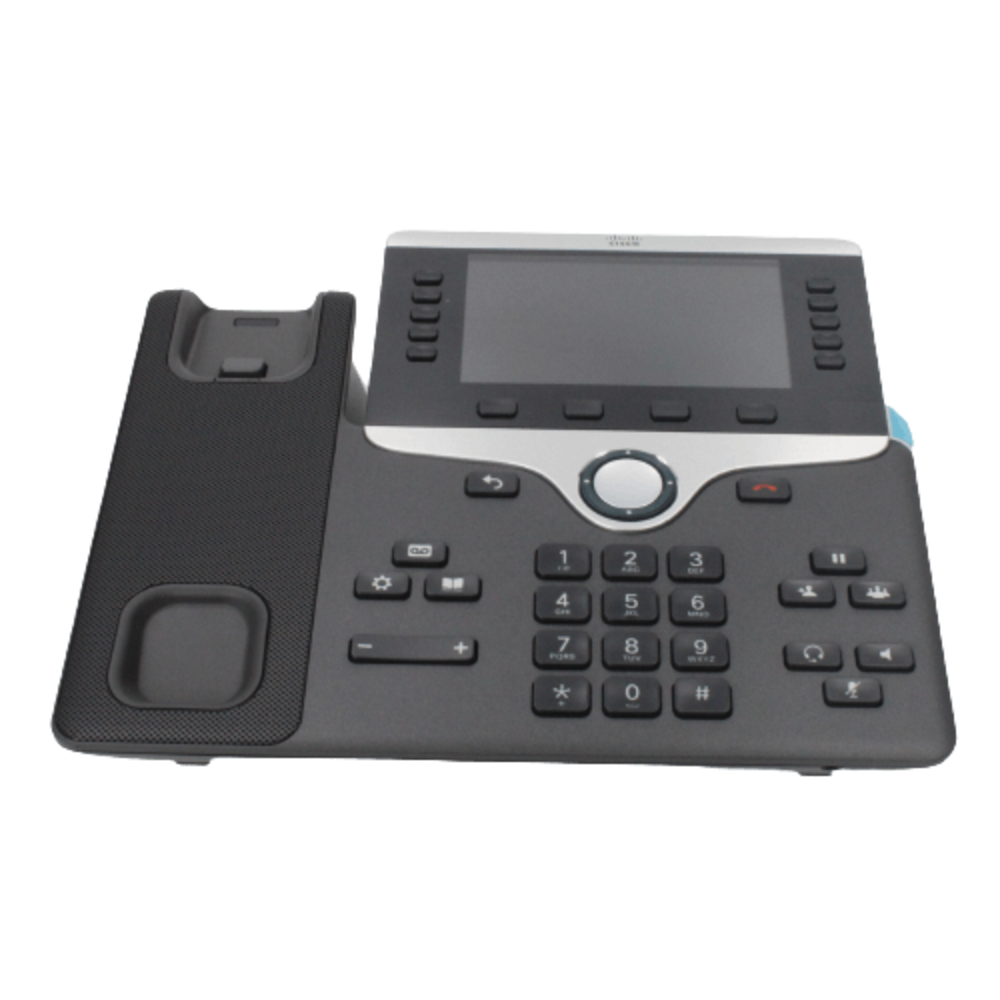

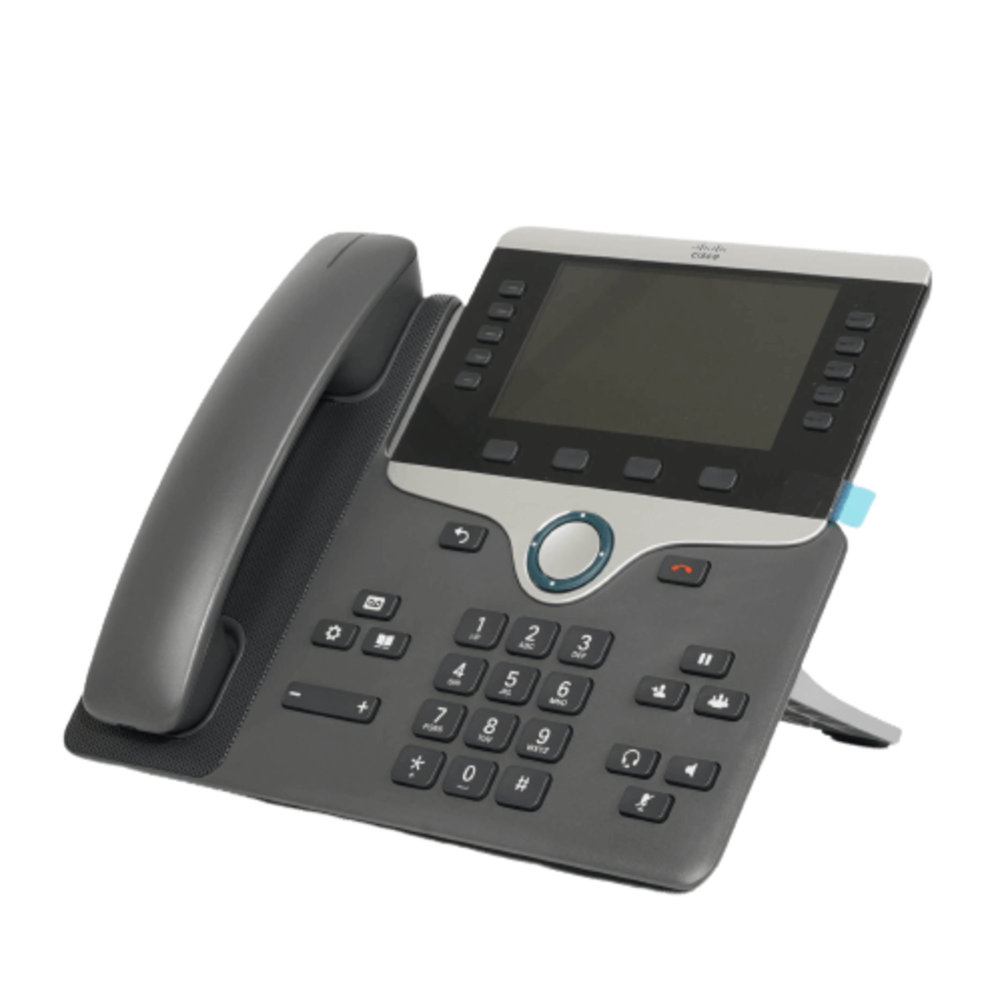

Cisco IP Phone 8841 (CP-8841-K9) | New

To forward calls on your Cisco IP Phone 8841, follow these steps:

Enable Call Forwarding
Press the "Forward All" soft key on the phone display.
Enter the destination number where you want calls to be forwarded:
For an internal extension, enter the extension number.
For an external number, enter the full phone number (including area code, if required).
Confirm forwarding—a message appears on the screen indicating that call forwarding is active.
Verify the forwarding icon (a handset with an arrow) appears on the display.

Disable Call Forwarding
Press the "Forward Off" soft key on the phone display.
The call forwarding setting will be removed, and calls will ring to your phone as usual.

To set up Speed Dial on your Cisco IP Phone 8841, follow these steps:

Method 1: Set Up Speed Dial from the Phone
Press the Applications button (gear icon).
Use the navigation button to scroll and select Preferences.
Choose Speed Dial Numbers from the list.
Select an available speed dial slot.
Enter the phone number you want to assign.
Press Apply or Save to confirm.

Method 2: Set Up Speed Dial from Cisco Self-Care Portal
Open a web browser and log in to your Cisco Unified Communications Self-Care Portal (provided by your IT admin).
Navigate to Device Settings > Speed Dial Numbers.
Click Add New Speed Dial.
Enter the label (name) and phone number for the contact.
Assign a speed dial index (e.g., 2 for Speed Dial 2).
Click Save and restart your phone if needed.
Using Speed Dial
Press the corresponding speed dial button (if assigned to a line key).
Or, press the number key and then the Speed Dial soft key.

To connect a Plantronics headset to your Cisco IP Phone 8841, follow these steps:

Wired Headset Connection (RJ9 or 3.5mm Jack)
Locate the headset port on the back of your Cisco 8841 (marked with a headset icon 🎧).
Plug in your wired Plantronics headset using the RJ9 or 3.5mm jack (depending on your headset model).
Enable the headset mode by pressing the Headset button on the phone (a headset icon will appear on the screen).
Dial a number or answer an incoming call to test.

Wireless (Bluetooth) Headset Connection (Only for select models with Bluetooth enabled)
Press the Applications button (gear icon).
Navigate to Bluetooth settings.
Enable Bluetooth and set your headset to pairing mode (refer to your Plantronics manual).
Select your headset from the list of available devices.
Press Pair and confirm the connection.
Once connected, press the Headset button to use it for calls.
Wireless (Plantronics EHS Adapter - for DECT Headsets)
If using a Plantronics Electronic Hook Switch (EHS) adapter:

Plug the EHS adapter into the AUX port on the back of the Cisco 8841.
Connect the adapter to your Plantronics wireless base station.
Pair your wireless Plantronics headset with its base station.
Press the call control button on the headset to answer/end calls.
After setup, test the headset by making a call and checking audio quality.

To add a third person to a call on the Cisco IP Phone 8841, you need to use the Conference (Conf) feature. Here’s how:

Steps to Add a Third Person to a Call on Cisco IP Phone 8841
During an active call, press the More soft key on your phone screen.
Select Conference (Conf)—this places the current call on hold.
Dial the number of the third person you want to add to the call.
Wait for them to answer and confirm they are ready to join.
Press Conference (Conf) again to merge the calls.
Now, all three participants are on the same call.

Adding More Participants
You can repeat steps 1–5 to add additional participants, depending on your system's configuration.

Ending the Call
If you hang up, the conference ends for all participants.
If a participant hangs up, the other two remain connected.

To block a number on a Cisco IP Phone 8841, you generally need to configure call blocking or call filtering features through the Cisco Unified Communications Manager (CUCM) or the Cisco Voice gateway. This process typically involves the following steps:

Option 1: Using CUCM (Cisco Unified Communications Manager)
Log in to Cisco Unified Communications Manager (CUCM):

Access the CUCM admin interface via a web browser.
Configure a Call Block Profile:

Navigate to Device > Phone.
Select the Cisco 8841 phone model from the list.
Add a new Block List or Call Filter under Call Blocking or Call Filtering.
Specify the number or range of numbers to block.
Assign the Call Block Profile to the Phone:

Under the phone configuration settings, link the block list or filter to the specific extension or user.
Option 2: Using the Voice Gateway (for PSTN Numbers)
If your system uses a Voice Gateway to handle external calls, you can configure call blocking for numbers directly on the gateway:

Configure a Voice Gateway:

Access the Cisco router or voice gateway configuration via the CLI.
Use voice class commands to block numbers (for example, voice class block to block certain numbers).
Apply Call Blocking:

Apply these configurations for incoming calls to the Cisco 8841 phone.
Option 3: Using Third-Party Call Blocking Apps or Services
Some users rely on third-party call blocking apps or services that can be integrated with their Cisco phones or PBX systems to block numbers directly at the phone level.

Blocking a specific phone number directly on the Cisco IP Phone 8841 cannot be done from the phone’s user interface alone. However, you can achieve this by configuring certain features through the Cisco Unified Communications Manager (CUCM) or Voice Gateway. Here’s how you can block a phone number in various ways:

Option 1: Block via Cisco Unified Communications Manager (CUCM)
Log into CUCM Admin Console:

Open your web browser and navigate to the CUCM Admin interface (typically something like https://<CUCM-IP>/ccmadmin).
Log in with admin credentials.
Create a Block List or Call Filter:

In the CUCM admin page, navigate to Call Routing > Call Block (or Call Filters).
You can create a new Call Block or Call Filter to specify which numbers to block.
Specify the phone number or range of numbers you want to block.
Assign Call Blocking to the Phone or Device:

Navigate to Device > Phone.
Select the Cisco 8841 phone that you want to block numbers on.
Under the Call Blocking or Call Filter section, assign the block list that you just created.
Apply Configuration:

Save the changes and reset the phone if needed.
The phone will now block calls from the numbers listed in the block list.

Option 2: Block via Voice Gateway (for external calls)
If you're using a Voice Gateway (like a Cisco router) to manage external calls, you can block numbers at the gateway level:

Access the Router/Voice Gateway CLI:

Use an SSH client or console connection to log in to the gateway.
Configure Call Blocking on the Gateway:

Enter the command line interface and create a Voice Class to block calls from specific numbers.
For example, you could configure a class map for the phone numbers you wish to block:
voice class block 10
match incoming called-number <blocked-number>

You can also use dial peers to block calls:
dial-peer voice 10 pots
destination-pattern <blocked-number>
reject

Save and Apply Changes:
Save the configuration and exit.
Calls from the blocked number will be rejected at the gateway level.

Option 3: Use a Third-Party Call Blocking Service
If you are not using CUCM or prefer a simpler method, some third-party services or applications can help block numbers directly at the phone level. These services are usually set up on the network or as part of a cloud-based phone system.

To enable Headset Hookswitch Control on a Cisco IP Phone 8841, you need to configure the phone to allow switching between the handset and headset using the hookswitch button. This can be done through Cisco Unified Communications Manager (CUCM), or the phone’s settings if necessary.

Here’s a step-by-step guide to enable headset hookswitch control:

Option 1: Enable Headset Hookswitch Control via CUCM (Cisco Unified Communications Manager)
Log into CUCM Admin Console:

Open your web browser and go to the CUCM Admin page (typically https://<CUCM-IP>/ccmadmin).
Log in using your administrator credentials.
Navigate to Phone Configuration:

Go to Device > Phone.
Find and select the Cisco 8841 phone that you want to configure.
Enable Headset Hookswitch Control:

In the Phone Configuration page, scroll down to the Headset section.
Under the Headset Hookswitch field, select the "Enabled" option. This option allows the hookswitch on the headset to control the call (i.e., to pick up and hang up calls).
Configure Headset Settings (Optional):

You may also configure additional headset settings such as "Headset Mode" to ensure the phone uses a headset when one is connected.
You can configure this under Device Settings > Headset.
Save and Apply Configuration:

After making the necessary changes, click Save and reset the phone if necessary for the settings to take effect.
Test the Configuration:

Once applied, you should be able to pick up or hang up calls using the headset button.
Option 2: Enable Headset Hookswitch Control via the Phone’s Local Settings (If Available)
For some Cisco phones, there might be an option to configure the headset hookswitch via the phone’s local settings:

Access the Phone’s Menu:

On the Cisco IP Phone 8841, press the Settings button (gear icon).
Navigate to Preferences.
Enable Headset Hookswitch Control:

If available, find an option under Headset Settings or Hookswitch Control and enable it.
Save Changes:

Save any changes and test to ensure the headset is working properly for hookswitch control.
Option 3: Using the Hookswitch Button on the Headset
If your headset supports hookswitch control, ensure that it is properly connected and compatible with the Cisco 8841 phone. Some headsets, especially those designed for Cisco phones, have a hookswitch button that allows you to pick up or hang up calls without touching the phone.

Ensure Compatibility: Make sure the headset is either a Cisco-supported headset or one that has hookswitch functionality (often via a special cable or wireless dongle).
Test: After configuration, test the headset’s hookswitch button by making a call and using the headset to answer and end the call.

To push a background image to a Cisco IP Phone 8841, you typically need to configure it through the Cisco Unified Communications Manager (CUCM) or the Cisco Expressway (if using a more advanced system). The process involves setting up the image on the CUCM server and assigning it to the specific phone. Here's how you can do it:

Steps to Push a Background Image to Cisco IP Phone 8841
1. Prepare the Image
Format and Size: Ensure the image is in the correct format (usually .jpg or .png) and is of the correct size. A typical recommended size for Cisco IP Phone backgrounds is 480 x 272 pixels (which is the screen resolution of the 8841) and less than 1 MB in size.
Rename: Make sure the image file has a simple name without special characters (e.g., background.jpg).
2. Upload the Image to CUCM
Log into your Cisco Unified Communications Manager (CUCM) administration page.
Go to System > Server and select the server you want to upload the image to (typically the CUCM Publisher).
Navigate to Device > Phone.
Click Add New (to add a new device or phone) if needed.
Under Image Settings, look for the Phone Background Image section.
Click Browse, locate your image file, and upload it.
3. Assign the Background Image to a Phone
After uploading the image, navigate to the specific Cisco 8841 phone that you want to apply the background to.
In the Phone Configuration page, under Phone Settings, look for the Background Image option.
Select the image that you uploaded from the drop-down list.
4. Save and Apply Changes
Click Save to apply the configuration.
The phone may need to reset for the image to appear. You can reset the phone manually or let it automatically reboot after the configuration is saved.
5. Verify the Image on the Phone
After the phone reboots, the background image should appear on the Cisco 8841 screen.
If the image does not appear, verify that the image format and resolution are correct, and ensure the upload process to CUCM was completed properly.
Option: Using Cisco WebEx Devices for Background Customization (If Applicable)
If you're using WebEx Devices, the method can differ slightly. You would use the WebEx Control Hub to upload and assign images to devices, including the Cisco 8841 phone.

Troubleshooting
If the background image does not appear, check the following:
File Size/Format: Make sure the image file is under the maximum file size (1 MB) and is in an accepted format (.jpg or .png).
CUCM Configuration: Ensure the background image is correctly uploaded and assigned to the phone profile in CUCM.
Reboot: Ensure the phone is rebooted after configuration changes.

To upload ringtones to a Cisco IP Phone 8841, you need to follow a process through the Cisco Unified Communications Manager (CUCM). Here’s how to do it:

Steps to Upload Ringtones to Cisco IP Phone 8841
1. Prepare the Ringtone Files
Format and Size: Ringtones must be in the correct format, typically .wav or .mp3. Cisco IP phones generally support .wav files with the following specifications:
Codec: G.711 (A-law or μ-law) codec.
Sample Rate: 8 kHz or 16 kHz.
File Size: Try to keep the file size reasonable (under 500 KB for smooth performance).
2. Upload Ringtones to CUCM
Log into CUCM: Open your web browser and navigate to the CUCM Admin page (typically https://<CUCM-IP>/ccmadmin).
Go to Media Resources: In the CUCM Admin page, navigate to System > Cisco Unified CM (Version) > Media Resources.
Upload the Ringtone Files:
Under Media Resources, locate Ringtone Settings.
Click Add New or Upload New File to upload your custom ringtone.
Browse and select the .wav or .mp3 file you want to upload.
Click Save after the upload.
3. Assign Ringtones to the Cisco IP Phone 8841
Navigate to Device Settings:
Go to Device > Phone.
Select the Cisco 8841 phone for which you want to assign the ringtone.
Configure Ringtone:
In the Phone Configuration page, scroll down to the Ringtone section.
In the Ringtone Selection drop-down, select the custom ringtone that you uploaded earlier.
Choose the ringtone for different events, like incoming calls or voicemail, if applicable.
Save and Apply Changes: Click Save to apply the configuration. The phone may need to reboot for changes to take effect.
4. Verify the Ringtone on the Phone
After the phone reboots, test by making an incoming call or triggering the event for which the ringtone was set.
You should hear the custom ringtone play on the Cisco IP Phone 8841.
Alternative Method: Using the Phone's Web Interface (if applicable)
If you have access to the phone's web interface, you may be able to upload the ringtone directly there:

Find the IP Address of the Phone:
On the Cisco 8841, press the Settings button and navigate to Status > Network Status to find the phone's IP address.
Access the Web Interface:
Open a web browser and enter the phone's IP address (e.g., http://<phone-IP>).
Log in using the administrator credentials (default username is often admin and password is cisco).
Upload Ringtone:
Navigate to the Ringtone section or Settings where you can upload custom files.
Upload the .wav file for your ringtone and save.
Troubleshooting
File Format/Codec: Ensure that the ringtone file is in the correct .wav format and uses the supported G.711 codec.
Phone Reboot: After applying the ringtone setting, make sure the phone is rebooted to load the new ringtone correctly.
Network Issues: If the ringtone isn't showing up, verify there are no network or file upload issues in the CUCM configuration.

No, the Cisco IP Phone 8841 does not have built-in Wi-Fi capabilities. The 8841 is a wired IP phone designed to connect via Ethernet for network access and calls.

If you require Wi-Fi functionality, you would typically need to use an external Wi-Fi adapter or Wi-Fi access point connected to the network to enable wireless connectivity for the phone. However, the phone itself does not have a native Wi-Fi module.

For a Cisco phone with built-in Wi-Fi, you might want to consider models like the Cisco 8800 Series with Wi-Fi or Cisco 8800 Series Wireless Phones.

The Cisco IP Phone 8841 consumes the following power:

Maximum Power Consumption: 12.5 watts
Typical Power Consumption: 5.3 watts
The power consumption can vary depending on factors such as the usage of features like the backlight, speakerphone, and other activities. The phone can be powered via Power over Ethernet (PoE) or through an external power adapter.

PoE Power Requirement: IEEE 802.3af PoE
If you're using PoE, the phone will receive power directly from the network switch, which simplifies setup and reduces the need for an additional power adapter. If you're using an external power adapter, it would typically supply the required 12V power.

To reset the Cisco IP Phone 8841, you have several options depending on the type of reset you want to perform (soft reset, factory reset, or a hard reset). Here's how to perform each one:

Option 1: Soft Reset (Rebooting the Phone)
A soft reset simply restarts the phone without clearing any configurations or settings.

From the Phone's Menu:

Press the Settings button (gear icon) on the phone.
Navigate to Settings > Restart.
The phone will automatically restart.
Manual Power Cycle:

Unplug the phone’s power cable (or Ethernet cable if using PoE).
Wait for about 10-15 seconds.
Plug the cable back in to reboot the phone.
Option 2: Factory Reset (Clearing All Configuration and Data)
A factory reset restores the phone to its original state, erasing all configuration settings (like accounts, preferences, and network settings). This option is useful if you're reusing the phone or troubleshooting a persistent issue.

1. Using the Phone’s Menu:
Press the Settings button (gear icon).
Scroll to Device Settings.
Select Reset Settings or Factory Reset (depending on software version).
Confirm the reset by following the on-screen prompts.
2. Manual Factory Reset (using the Phone's Physical Buttons):
Power off the Phone:

Unplug the power cable from the phone.
Hold Down the Following Buttons:

Press and hold the # button (pound key) on the keypad.
Plug in the Power:

While holding the # button, plug the power cable back into the phone.
Wait for the Reset:

Keep holding the # button until you see the light on the phone flash (it may take 10-15 seconds).
When the light starts flashing, release the # button.
The phone should now display Reset to Factory Defaults and begin the reset process.
Phone Reboots:

The phone will reboot and return to its factory default settings.
Option 3: Resetting Through Cisco Unified Communications Manager (CUCM)
If the phone is registered with CUCM, you can reset the phone from the CUCM interface:

Log into CUCM Admin (Cisco Unified Communications Manager).
Navigate to Device > Phone.
Find and select the Cisco IP Phone 8841.
Under Device Information, click the Reset or Reboot button.
The phone will restart, and you may need to wait for it to complete its initialization.

Important Notes:
A soft reset does not erase any settings, while a factory reset will erase all user configurations.
After a factory reset, the phone will need to be reconfigured to reconnect to the network or CUCM server.

To upgrade the firmware on a single Cisco IP Phone 8841, the process involves updating the firmware through the Cisco Unified Communications Manager (CUCM), assuming the phone is already registered with CUCM. The phone will automatically download and install the firmware from the CUCM server.

Here’s a step-by-step guide:

Steps to Upgrade Firmware on a Cisco IP Phone 8841
1. Check the Current Firmware Version
To check the current firmware version on the Cisco IP Phone 8841:
Press the Settings button (gear icon) on the phone.
Navigate to Status > Device Information.
The Firmware Version should be displayed on this page.
2. Download the Latest Firmware
Download from Cisco’s website:
Visit the Cisco Software Download Center: https://software.cisco.com/download/home.
Search for the Cisco IP Phone 8841 firmware.
Download the latest SIP firmware version for the 8841 (e.g., SIP88xx.11-5-x-xxx or similar, depending on the latest version).
Make sure to download the appropriate firmware package for your Cisco Unified Communications Manager version (CUCM) and phone model.
3. Upload Firmware to CUCM
Upload the firmware to CUCM:
Log into the CUCM Administration page (typically at https://<CUCM-IP>/ccmadmin).
Go to System > Software > Load/Software.
Under Firmware File, select the firmware file you just downloaded (e.g., SIP88xx.11-5-1-16).
Upload the firmware file to CUCM. This will allow CUCM to serve the firmware to the Cisco IP Phones.
4. Assign the Firmware to the Phone in CUCM
To assign the firmware to the Cisco IP Phone 8841:
Go to Device > Phone in CUCM Admin.
Locate and select the Cisco 8841 phone for which you want to upgrade the firmware.
In the Phone Configuration page, look for the Firmware Load Information section.
Under Firmware Load Name, choose the latest firmware version you uploaded from the drop-down list (e.g., SIP88xx.11-5-x-xxx).
Click Save to apply the new firmware load to the phone.
5. Reboot the Phone
After the firmware is assigned to the phone, you need to reboot the phone for the firmware upgrade to take effect.
You can reboot the phone manually or through CUCM:
In CUCM Admin, under the Phone Configuration page for the specific Cisco 8841, click on Reset or Reboot.
The phone will reboot and download the new firmware from CUCM.
6. Verify the Firmware Upgrade
After the phone reboots, check the firmware version:
Press the Settings button on the phone.
Navigate to Status > Device Information to verify that the phone is running the updated firmware version.
Alternative Method: TFTP Server Firmware Upgrade
If you are not using CUCM or want a more manual method, you can use a TFTP server to serve the firmware to the phone:

Set up a TFTP server on your network and place the firmware files in the appropriate directory.
Configure the Cisco IP Phone to point to the TFTP server for firmware updates by either:
Manually setting the TFTP server address on the phone's settings (if it's not using CUCM).
Allow the phone to obtain the TFTP server information from a DHCP server if configured.
After the phone reboots, it should download the firmware from the TFTP server.

Troubleshooting
Firmware Compatibility: Ensure that the firmware you downloaded is compatible with the version of CUCM you are using.
Phone Not Updating: If the phone does not update, verify that the TFTP or CUCM server is properly configured, reachable from the phone, and that the firmware files are in the correct location.

For the Cisco IP Phone 8841, the required Cisco Voice License depends on your deployment model, typically either using Cisco Unified Communications Manager (CUCM) or a similar platform.

Here are the types of Cisco Voice Licenses you may need:

1. Cisco Unified Communications Manager (CUCM) Licensing
If you're using CUCM as your call control platform, you need the appropriate licensing to support the Cisco IP Phone 8841.

CUCM Device License (DL):

You need a Device License for each Cisco IP Phone. For the Cisco IP Phone 8841, the license required is typically part of the Essential or Enhanced CUCM licensing models.
Each phone, including the Cisco 8841, will consume one Device License on your CUCM server.
CUCM User License:

In addition to the device license, if you're assigning a user to the phone, you need a User License (this can be part of a CUWL - Cisco Unified Workspace Licensing model).

2. Cisco Unified Workspace Licensing (CUWL)
The CUWL licenses (both Standard and Enhanced) allow for user access to various collaboration tools, and they include the necessary phone licenses for Cisco IP Phones. For the Cisco 8841:

CUWL Standard or Enhanced License includes device licenses for phones and access to various collaboration services.
CUWL Pro offers additional features and may be needed for more advanced functionalities or additional users.

3. Cisco Unified Communications Manager (CUCM) Licensing Models
Cisco Unified Communications Manager (CUCM) Per-User Licensing: Under this model, users are licensed to access the system, and the license can be pooled across different devices (phones, softphones, etc.). It’s based on the number of users rather than devices.
Cisco Unified Communications Manager (CUCM) Device-Based Licensing: With this model, a specific license is needed for each device (phone). You'd need a license for each Cisco IP Phone 8841 in your deployment.

4. Specific Cisco Licensing for IP Phones
The Cisco IP Phone 8841 is supported under most of the modern Cisco Voice Licensing models, such as CUCM Essentials, Enhanced, and Pro, which provide licensing for desk phones.
If you're licensing for specific features like video conferencing or advanced call handling, you may need additional feature-specific licenses like the Cisco Webex Calling license.

Summary of Key Licenses:
CUCM Device License (one for each Cisco IP Phone 8841).
CUWL License (if using a user-based licensing model).
User License (if assigned to an individual user).

Ensure that your licensing matches your deployment needs, whether it's a small deployment or large enterprise scale.

Changing the voicemail greeting for a Cisco IP Phone 8841 from an iPhone generally requires interacting with the voicemail system that your Cisco phone is connected to, which is typically handled by your organization's Unified Messaging System (e.g., Cisco Unity Connection or a similar voicemail system).

Here are the general steps you can follow to change the voicemail greeting from your iPhone:

1. Access the Voicemail System
You’ll need to access your voicemail system remotely. The most common methods for this are:

Method 1: Access via Voicemail System (Cisco Unity Connection or similar)
Call the Voicemail System:

Dial your voicemail system’s access number (this could be something like *98 or a dedicated number provided by your organization).
If you’re off-site, you may need to dial the remote access number provided by your organization’s IT or phone system administrator.
Log in to Your Voicemail:

Enter your voicemail PIN or password when prompted.
This is the PIN associated with your voicemail account.
Change Your Greeting:

Once logged in, listen to the menu options.
Look for an option to manage greetings (typically this is a “personal options” or “greeting options” section).
Follow the prompts to record a new voicemail greeting. You can choose different types of greetings (e.g., a general greeting or an "unavailable" greeting).
Save the Changes:

After recording your new greeting, make sure to save the changes as instructed by the voicemail system prompts.
Method 2: Using the Cisco Unity Connection Mobile App (If Available)
If your organization uses Cisco Unity Connection for voicemail, and they support the Unity Connection Mobile App or Cisco Jabber with voicemail features, you can change your voicemail greeting through the app.

Install the Cisco Unity Connection or Jabber App:

Download the Cisco Jabber or Cisco Unity Connection app from the App Store if your organization uses it for voicemail management.
Log in to the App:

Open the app and log in with your credentials (your voicemail PIN and account information).
Manage Your Voicemail Settings:

Navigate to the voicemail or settings section in the app.
Follow the prompts to record or change your voicemail greeting.
2. Use Your iPhone to Access Voicemail by Calling Directly
If your system supports visual voicemail or direct voicemail access:

Open your Phone app on your iPhone.
Tap on the Voicemail tab at the bottom-right corner of the screen.
Tap Greeting in the top-left of the screen.
Select Custom and record your new voicemail greeting.
Note: This option is only available if your voicemail system supports Visual Voicemail on iPhones, which might not work for Cisco IP Phones directly.

3. Contact Your IT or System Administrator
If you’re unsure about the voicemail access method, or if the above methods do not work, you may need to contact your IT department or system administrator to get specific instructions for changing your voicemail greeting remotely.

They can provide you with the access number, PIN, and any additional details you need to manage your voicemail greeting effectively.

To set up voicemail on the Cisco IP Phone 8841, you'll typically be working with a Cisco Unified Communications Manager (CUCM) environment and a Cisco Unity Connection or similar voicemail system. Here’s how you can set up voicemail step-by-step:

1. Ensure Voicemail System Is Configured
Before setting up voicemail on the Cisco IP Phone 8841, make sure your organization has a voicemail system (like Cisco Unity Connection) already configured and integrated with your Cisco Unified Communications Manager (CUCM). The phone and voicemail system must be connected to each other for voicemail to work.

2. Set Up Voicemail Through CUCM
Step 1: Verify Voicemail Integration in CUCM
In CUCM, ensure that voicemail is configured properly. This may involve verifying settings related to voicemail ports and voicemail integration (via Cisco Unity Connection or another system).
Step 2: Assign Voicemail Pilot Number
Your phone will need a Voicemail Pilot Number, which is a special number to reach the voicemail system.
This will usually be set by your CUCM administrator, and it should be dialed on the Cisco IP Phone 8841 to access voicemail.

3. Access Voicemail on Cisco IP Phone 8841
Step 1: Access the Voicemail System
Press the Voicemail button (envelope icon) on your Cisco IP Phone 8841. If the voicemail button isn't visible, you might need to configure it.
Alternatively, you can dial the Voicemail Pilot Number manually on the keypad (e.g., *98) to reach the voicemail system.
Step 2: Enter Your Voicemail PIN
You’ll be prompted to enter your voicemail PIN. This is typically provided by your administrator or set by you during an initial configuration.
Step 3: Set Up Voicemail Greeting
After logging into your voicemail, follow the system prompts to record a personal greeting (you might be asked to choose between an initial greeting, an unavailable greeting, or a busy greeting).
Follow the voice prompts to record and save your message. You may also be given the option to change your PIN and configure other voicemail preferences.
Step 4: Save Settings
Once you’ve recorded your greeting, save the settings as per the voicemail system's instructions.

4. Configure Voicemail Message Waiting Indicator (MWI)
The Message Waiting Indicator (MWI) will light up or blink on the phone when you have new voicemail messages.
This is typically automatically configured by CUCM or Unity Connection, but if there are issues, you can check with your CUCM administrator to ensure the feature is active for your extension.

5. Test Voicemail
Once voicemail is set up, test it by calling your extension and leaving a voicemail message.
Then check the Voicemail indicator on your Cisco IP Phone 8841 (the envelope icon should light up when you have a new message).

6. Check and Manage Voicemail
Press the Voicemail button (envelope icon) to listen to your voicemail messages.
You can also delete, replay, and save messages as prompted by the voicemail system.

Additional Tips:
If your phone is connected to Cisco Unity Connection, you may have additional options available, such as setting up email integration, voicemail-to-email forwarding, and more.
Your CUCM administrator will provide you with any specific access numbers, PINs, or system settings required to configure voicemail properly.

Troubleshooting:
If you cannot access voicemail, check that the voicemail system is properly integrated with CUCM and that your phone is registered and assigned to the correct voicemail box.

If the Voicemail button is missing, you may need to have it added by your system administrator in CUCM under the Phone Configuration settings.

Programming a Cisco IP Phone 8841 typically involves configuring various settings like speed dials, line settings, features, and accessing network resources. Depending on your needs (e.g., configuring the phone for use with Cisco Unified Communications Manager (CUCM) or a similar system), you will use either the web interface, the phone’s menu system, or tools like CUCM.

Here’s a guide to program your Cisco IP Phone 8841:

1. Initial Setup of Cisco IP Phone 8841
Connect the Phone to the Network:
Plug the phone into a network cable and power source. If your network supports PoE (Power over Ethernet), the phone will receive power directly from the network switch.
Obtain Network Settings:
The phone will typically obtain its IP address via DHCP automatically. If static IP is required, you will need to manually set the IP address.
2. Accessing the Web Interface
The easiest way to configure advanced settings for the Cisco IP Phone 8841 is through the web-based user interface.

Steps:

Find the IP Address of the Phone:

Press the Settings button (gear icon) on the Cisco IP Phone 8841.
Navigate to Status > Network Status.
Look for the IP address of the phone in the display.
Login to the Web Interface:

Open a browser on your computer and enter the IP address of the phone in the address bar (e.g., http://<IP address of your phone>).
Log in with the appropriate username and password (usually, the default login is:
Username: admin
Password: cisco or empty depending on your system configuration).
Access and Configure Settings:

Once logged in, you can configure various settings like line appearance, call settings, directory access, and network configuration. For example:
Configure Lines: Add or configure multiple lines for calls.
Assign Speed Dials: Set up speed dials or call forwarding rules.
Adjust Audio and Video Settings: Adjust speaker volume, ringtones, and camera settings.
Set up Voicemail: Configure voicemail options and greetings.
Firmware Updates: Check for and apply firmware updates.
3. Configure Line Appearance and Features
Line appearances on the Cisco IP Phone 8841 are typically managed through Cisco Unified Communications Manager (CUCM).

Steps:

Log in to CUCM (if applicable):

Access the Cisco Unified Communications Manager Administration interface (web-based).
Go to Device > Phone and find the Cisco IP Phone 8841.
Assign Extensions to Lines:

Assign your user’s extension to a line key on the phone.
Add features like hold, transfer, speed dials, and others as per the company configuration.
Configure Buttons:

From the CUCM, you can set which buttons will appear on the phone (e.g., line keys, speed dials, conference buttons, etc.).
4. Speed Dials Setup (via Web Interface)
To add speed dials or program buttons:

Steps:

Navigate to Settings on the phone.
Scroll to Speed Dials or similar.
Enter the phone number or extension you want to assign to the speed dial key.
Save your changes.
5. Configure Ringtones
You can change the ringtone of the phone via the phone's settings or the web interface.

Steps via Web Interface:

Log into the web interface (as explained above).
Go to the Settings section.
Look for Ringtone options under Audio Settings.
Select the ringtone you want from the available options.

6. Set Up Voicemail
Press the Voicemail button on the Cisco IP Phone 8841 (envelope icon).
Log in with your PIN, follow the prompts to set up your voicemail.
You can also configure Voicemail Access Numbers or Voicemail Greeting options through CUCM.

7. Configure Advanced Settings (Optional)
For more advanced features like call forwarding, do not disturb, or multiple lines:

Access Settings > Call Forwarding through the phone’s interface, or configure features via CUCM.
Set up features like call park, BLF (Busy Lamp Field), or presence monitoring if required by your organization.

8. Firmware Updates
To ensure your phone has the latest software:

From the web interface, you can check for and apply firmware updates.
Alternatively, you may need to update the phone’s firmware through CUCM or use the TFTP server if the phone is set to download firmware updates automatically.

Additional Considerations:
Factory Reset: If you need to reset the phone, you can do so from the Settings menu or via the web interface.
Network Configuration: Set static IP, subnet, and gateway if your network doesn't use DHCP.
Call Features: Enable features like call forwarding, call transfer, and others either via the phone or through the CUCM.

Setting up a Cisco IP Phone 8841 involves connecting it to your network, configuring it to work with your Cisco Unified Communications Manager (CUCM) or similar call control system, and making sure it’s ready for use. Here’s a step-by-step guide to setting up the phone:

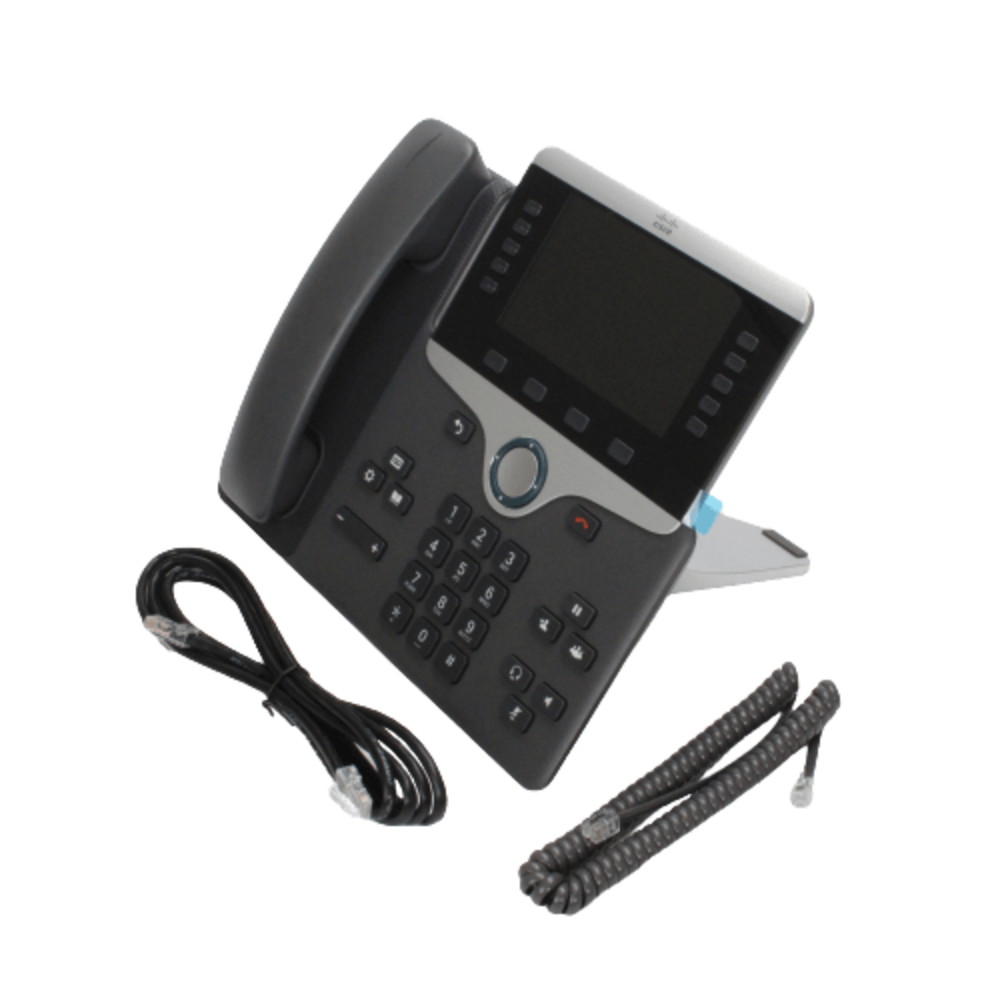

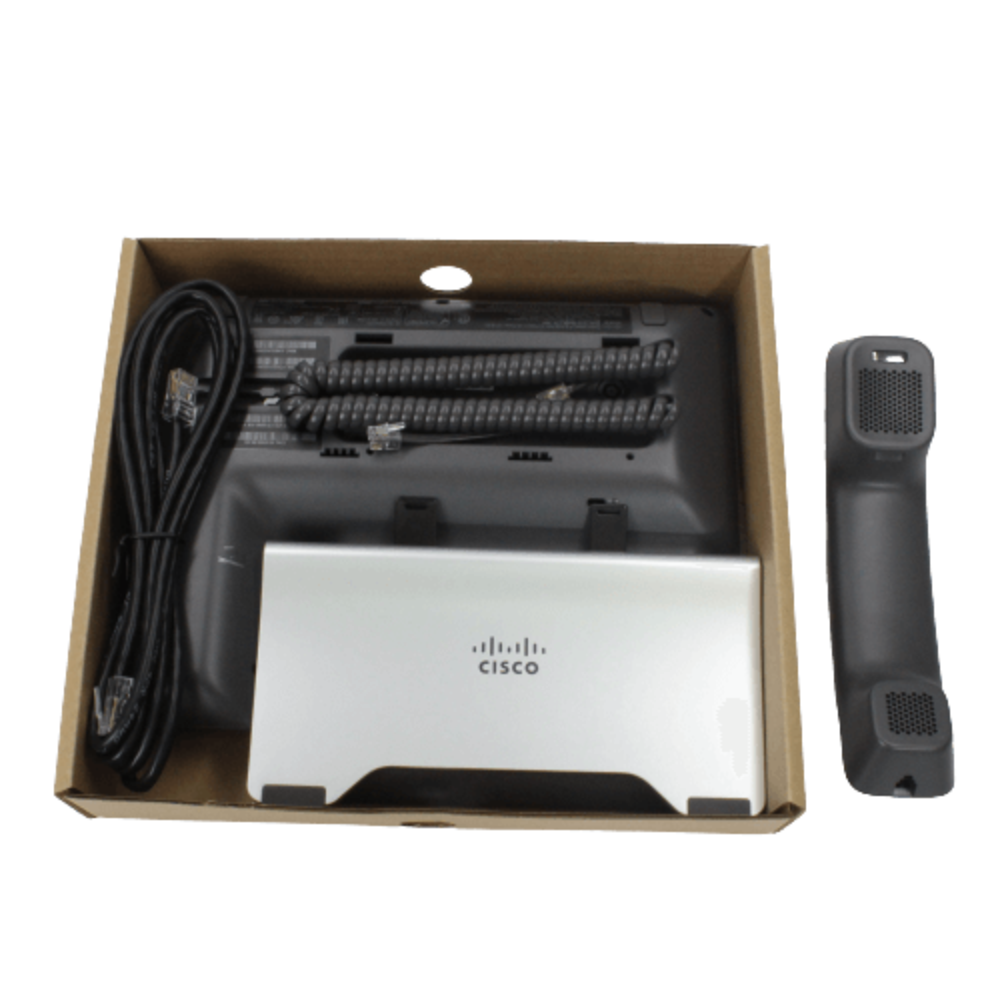

1. Unbox and Connect Hardware
Connect the Phone to Power:
PoE (Power over Ethernet): If your network switch supports PoE, simply plug the Ethernet cable into the Ethernet port on the back of the phone.
Power Adapter: If you're not using PoE, connect the phone to a power outlet via the provided power adapter.

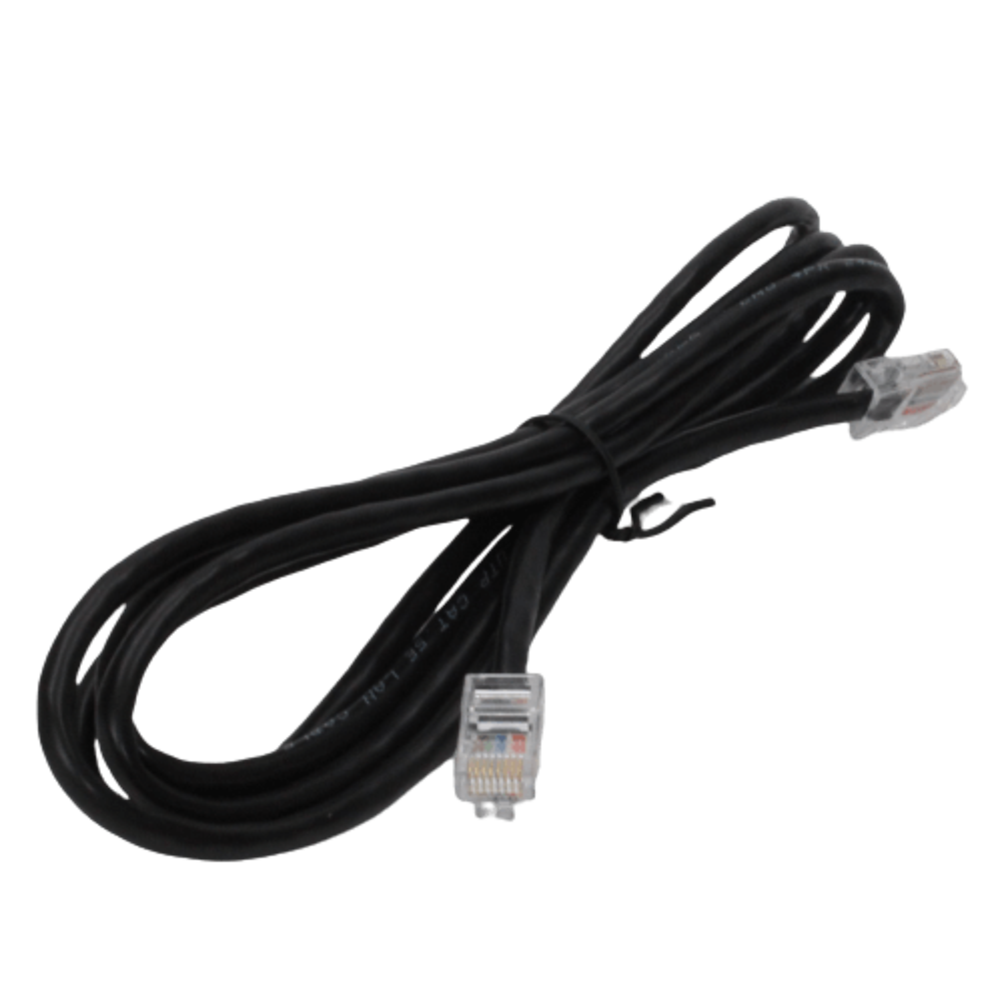

Connect the Phone to the Network:
Plug the Ethernet cable into the Ethernet port on the phone (this port may be labeled PC or LAN depending on the setup).
2. Get the Phone's IP Address
Once the phone is powered on, it will start up and automatically attempt to connect to your network.
To find the IP address:
Press the Settings button (gear icon).
Navigate to Status > Network Status.
The phone's IP address will be displayed on the screen.
3. Access the Web Interface
To configure advanced settings like call settings, ringtones, voicemail, and more, you can use the web-based interface of the phone.

Steps to Access:

Open a web browser on your computer.
Enter the IP address of the phone (e.g., http://<IP address of your phone>).
Log in using the default credentials:
Username: admin
Password: cisco (or empty if not set)
4. Configure Phone via CUCM (if applicable)
If you're using Cisco Unified Communications Manager (CUCM):

Register the Phone:

Log into CUCM.
Go to Device > Phone.
Add the Cisco IP Phone 8841 by selecting the Phone Type as 8841.
Assign the appropriate extension to the phone.
Configure Line Settings:

You can configure the line appearance, speed dials, features, and more.
Ensure Voicemail Integration:

Ensure that voicemail is set up in CUCM or Unity Connection and is linked to the phone.
5. Set Up Basic Features on the Phone
You can also set up some features directly on the phone through the Settings menu.

Change Ringtone:

Press Settings on the phone.
Scroll to Ringtone and select a ringtone.
Set Up Speed Dials:

Go to the Settings menu.
Select Speed Dials to program numbers.
Configure Call Forwarding:

From the Settings > Call Forwarding menu, configure how you want calls to be forwarded.
6. Set Up Voicemail
Press the Voicemail button (envelope icon) on the phone.
You’ll be prompted to enter your PIN (provided by your administrator).
Follow the prompts to set up your voicemail greeting and configure other voicemail options.
Alternatively, you can configure voicemail from CUCM to ensure it’s integrated with the phone system.

7. Test the Phone
After configuring the settings, perform a test:
Make a test call to another extension.
Verify Voicemail is working by leaving a voicemail and checking if the Voicemail LED is activated.
Test the Speed Dials to ensure they’re functioning correctly.
8. Optional: Set Up Other Advanced Features
Depending on your organization’s requirements, you might want to configure additional features such as:

Call Pickup groups.
Do Not Disturb mode.
Bluetooth settings (if needed).
Firmware Updates.
These settings can be done either through CUCM or the web interface of the phone.

Additional Tips:
Firmware Updates: Ensure the phone has the latest firmware installed for new features and bug fixes. This can be done through CUCM or by manually uploading firmware via the web interface.

Network Settings: If your network does not use DHCP, you can manually configure static IP settings through the Settings > Network Configuration menu on the phone.

By following these steps, you should have your Cisco IP Phone 8841 up and running for use. If you encounter issues or need additional configuration, your CUCM administrator can assist with advanced settings.

Using the Cisco IP Phone 8841 is fairly straightforward, especially after setting it up and configuring it for your network. Below is a guide on how to use the main features of the phone for making calls, managing voicemail, and configuring basic settings.

1. Making and Receiving Calls
Make a Call:

Dial directly: Lift the handset and dial the number using the keypad.
Using Speakerphone: Press the Speaker button and dial the number.
Using Headset: If you have a headset connected, press the Headset button and dial the number.
Answer a Call:

Lift the Handset or press the Answer button on the phone screen.
Using Speakerphone: Press the Speaker button to answer the call hands-free.
Using Headset: Press the Headset button to answer with your headset.
End a Call:

Hang up the handset.
Press the End Call button on the screen if using speakerphone or headset.
2. Using the Phone's Screen and Interface
Home Screen: Displays your lines, soft keys, and any notifications.
Soft Keys: These change depending on the current state (e.g., during a call, they allow actions like Hold, Transfer, or Conference).
Navigation: Use the Up/Down/Left/Right arrows to scroll through the menu options.
3. Placing a Call on Hold
While on a call, press the Hold soft key (displayed on the screen).
To resume the call, press the Resume soft key.
4. Transferring Calls
Warm Transfer (Call Transfer with Conversation):
While on a call, press the Transfer soft key.
Dial the number or extension you want to transfer the call to.
Press Transfer again to complete the transfer.
Blind Transfer (Call Transfer without Conversation):
While on a call, press the Transfer soft key.
Dial the number or extension.
Press the Transfer button again to transfer the call without speaking to the person being transferred.
5. Placing a Call on Conference
During a call, press the Conference soft key.
Dial the number of the person you want to add to the call.
Once they answer, press the Conference button again to join all parties into a conference call.
6. Using the Voicemail
To access Voicemail:
Press the Voicemail button (the envelope icon).
If this is your first time accessing voicemail, follow the prompts to set up your voicemail box and record a greeting.
To listen to voicemail:
Press the Voicemail button again when you have a voicemail indicator.
Follow the prompts to listen to and manage your messages.
Voicemail Indicators:
The Voicemail icon (envelope) will flash or show a red light when you have unread messages.
7. Using Speed Dial
To dial a speed dial number, press the Speed Dial button corresponding to the contact or extension.

To add a speed dial (via the web interface):

Log into the phone’s web interface using its IP address.
Go to Settings > Speed Dial.
Assign a number or extension to a speed dial button.
8. Adjusting Volume
During a Call: Use the Volume buttons to adjust the call volume.
For Ringtones: Press the Settings button (gear icon), navigate to Ringtone, and adjust the volume from there.
9. Managing Call Forwarding
To enable Call Forwarding:
Press the Settings button (gear icon).
Go to Call Forwarding and set it to forward all calls, forward calls when busy, or forward calls when unanswered.
Disable Call Forwarding: Follow the same steps and set forwarding to Off.
10. Customizing Settings
Change the Ringtone:
Press the Settings button.
Navigate to Ringtone and select a different tone.
Set a Screensaver:
Go to Settings > Display.
Choose a screensaver or background image if supported by your system.
11. Accessing the Phone’s Directory
To search for contacts in your directory, press the Directory button (usually a folder icon) on the phone.
You can then search for names, numbers, or extensions.
12. Using the Phone’s Bluetooth (if applicable)
If your Cisco IP Phone 8841 is equipped with Bluetooth, you can connect a Bluetooth headset for hands-free calling.

To pair a Bluetooth device:
Go to Settings > Bluetooth.
Enable Bluetooth and pair with the device (headset, etc.).
13. Using Do Not Disturb (DND) Mode
To enable Do Not Disturb (DND) mode, press the DND button on the screen.
This will stop incoming calls from ringing, and callers will hear a busy signal.
To turn it off, press the DND button again.
Summary of Common Features:
Make and receive calls via handset, speakerphone, or headset.
Transfer, hold, and conference calls using soft keys.
Manage voicemail by pressing the voicemail button.
Use speed dial, call forwarding, and Do Not Disturb through the settings menu.
Adjust volume for calls, ringtones, and media.
Access the directory and manage contacts.

The Cisco IP Phone 8841 is designed to make business communication easy and efficient. By utilizing these key features, you can ensure smooth, professional interactions.
