Cisco IP Phone 8800 Key Expansion Module (CP-BEKEM) | Like New
SKU: CP-BEKEM-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco IP Phone 8800 Key Expansion Module (CP-BEKEM) | Like New

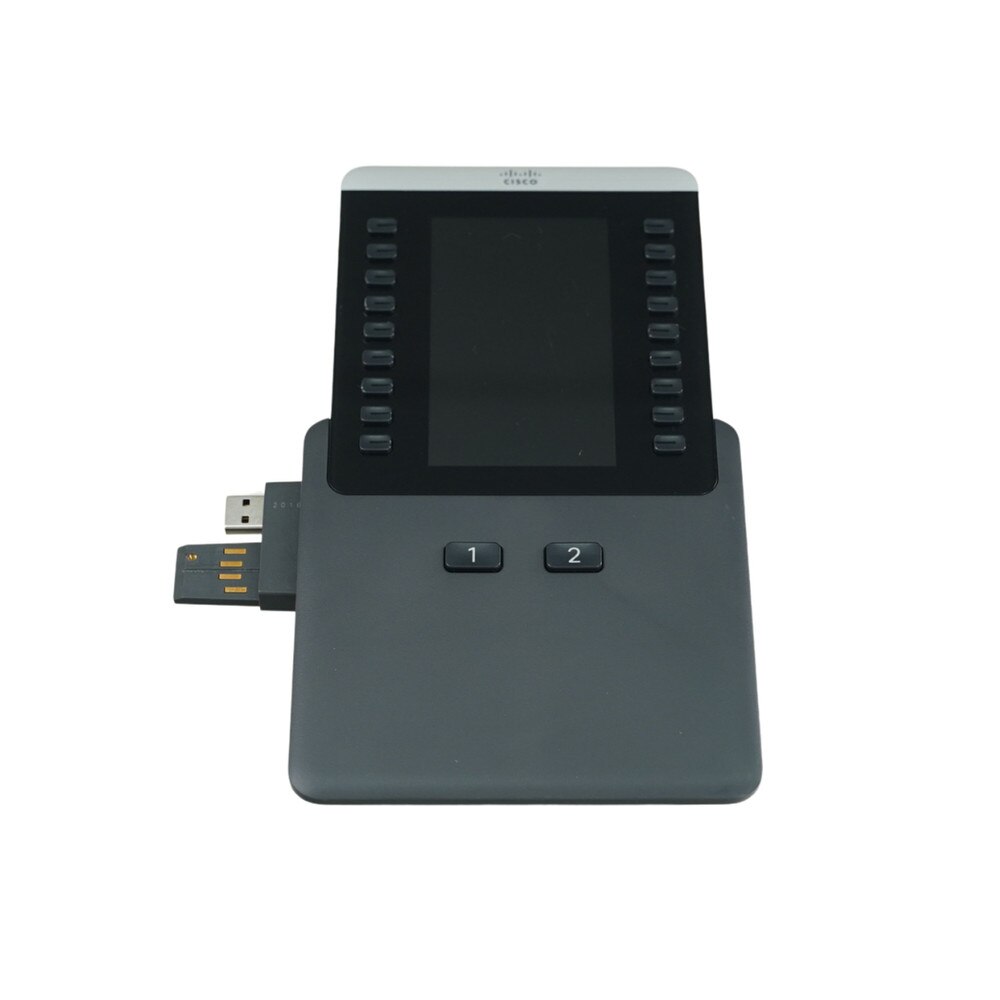

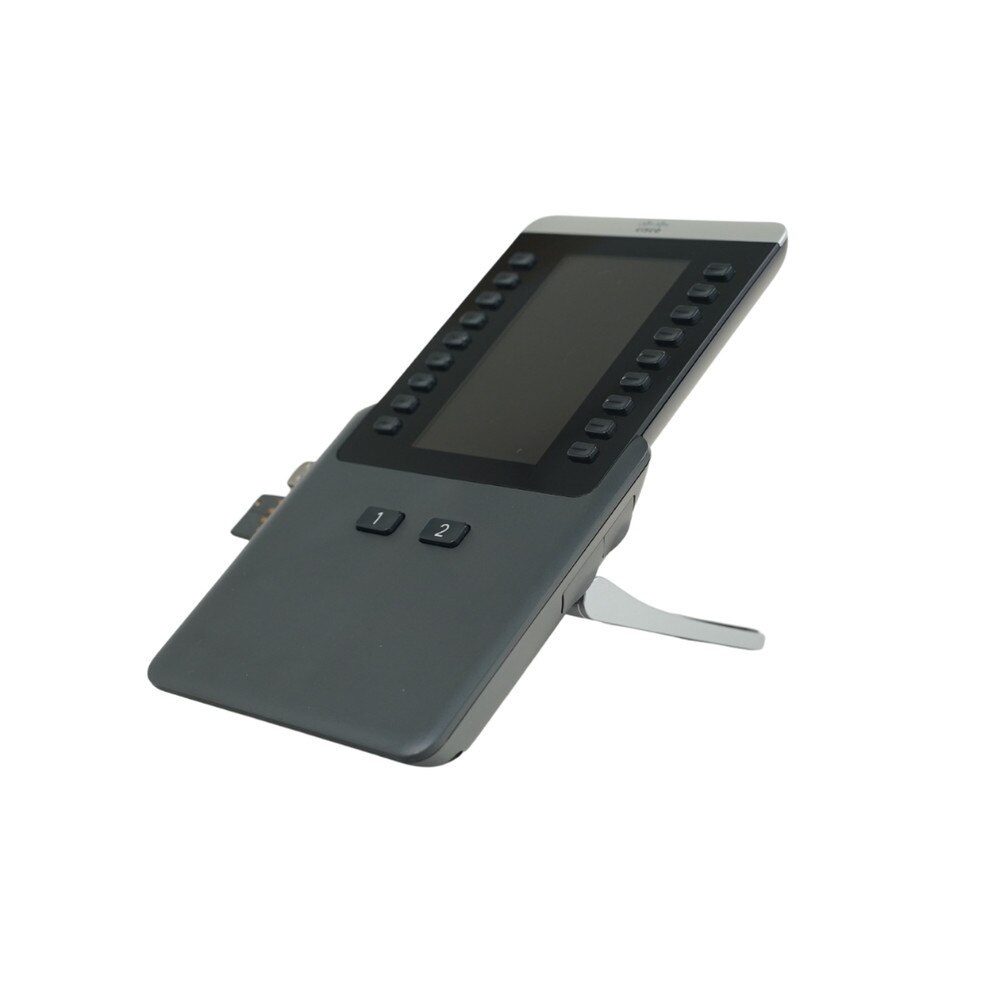

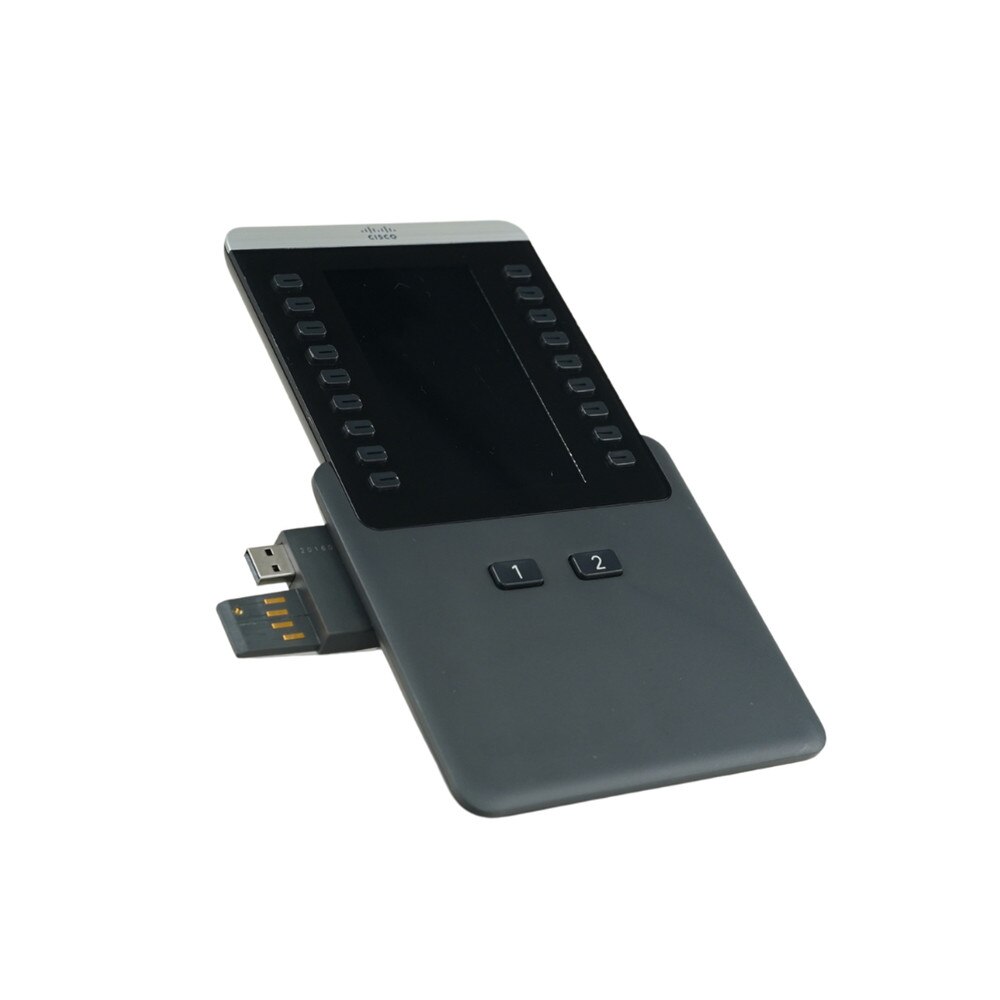

The Cisco IP Phone 8800 Key Expansion Module (CP-BEKEM) is an accessory that expands the capabilities of Cisco IP Phone 8851, 8861, and 8865 models by adding buttons and a color LCD display. It includes two pages of 18 additional buttons (a total of 36), each with red/green illuminated indicators for line status.
Features of the Cisco IP Phone 8800 Key Expansion Module
Additional Keys: The module adds 18 physical keys and provides access to 18 additional keys via the page keys, for a total of 36 additional keys.
Compatibility: The IP Phones 8861 and 8865 can connect up to three 8800 KEMs, while the IP Phone 8851 can connect up to two.
Large LCD Display: The module includes a 4.3-inch, 16-bit color, backlit 480x272 pixel display.
.
Programmable Buttons: The module's programmable buttons can be configured as phone keys, allowing you to access frequently used telephony features with a single button push.
Shared-Line Appearances: The module enables shared-line appearances for administrative staff, knowledge workers, and managers, which improves responsiveness and personal interaction with inbound calls.
Ease of Use: The module is intended for use with Cisco 8851 and 8861 IP phones, simplifying communication by providing one-button access to a variety of features.
Compatibility
Compatible with Cisco 8851, 8861 and 8865 IP phones
Up to 2 Cisco 8800 Key Expansion Modules can be connected to the Cisco 8851 IP phone
Up to 3 Cisco 8800 Key Expansion Modules can be connected to the Cisco 8861 IP phone
Requires Cisco Unified Communications Manager Version 8.5 (1) and later; Cisco Unified Survivable Remote Site Telephony (SRST) 8.0 (with Cisco IOS Software Release 15.1(1)T) and later
Requires Cisco IP Phone 8800 firmware 10.2(2) and later
Power Requirements:
8851 + (1) KEM - 802.3af PoE, 802.3at PoE, or Cisco Power Cube 4
8851 + (2) KEM - Cisco Power Cube 4
8861 + (1) KEM - 802.3at PoE or Cisco Power Cube 4
8861 + (2) KEM - 802.3at PoE or Cisco Power Cube 4
8861 + (3) KEM - 802.3at PoE or Cisco Power Cube 4
8865 + (1) KEM - 802.3at PoE or Cisco Power Cube 4
8865 + (2) KEM - 802.3at PoE or Cisco Power Cube 4
8865 + (3) KEM - 802.3at PoE or Cisco Power Cube 4
This product is discontinued.
For 8865 deployments please consider the CP-8800-V-KEM
For 8851/61 deployments please consider theCP-8800-A-KEM
Specifications
Specifications for Cisco IP Phone 8800 Key Expansion Module (CP-BEKEM) | Like New
| Manufacturer | Cisco |
| Manufacturer Part Number | CP-BEKEM |
| Product Name | Cisco IP Phone 8800 Key Expansion Module |
| Product Type | Wireless Headset |
Intended For | VoIP phone |
Display | LCD display - 4.3" |
Designed For | Cisco IP Phone 8851, 8861 |
Resources
Frequently Asked Questions
Cisco IP Phone 8800 Key Expansion Module (CP-BEKEM)
Frequently Asked Questions (FAQ's)
What is the Cisco IP Phone 8800 Key Expansion Module CP-BEKEM? The Cisco IP Phone 8800 Key Expansion Module CP-BEKEM is an accessory for Cisco IP Phones that provides additional programmable line keys for features such as speed dial, call pickup, and more.
Which Cisco IP Phones are compatible with the CP-BEKEM? The CP-BEKEM is compatible with the Cisco IP Phone 8851, 8861, and 8865 models.
How many programmable line keys does the CP-BEKEM provide? The CP-BEKEM provides 18 programmable line keys per module, with the capability to support up to two modules per phone.
What are the dimensions of the CP-BEKEM? The dimensions of the CP-BEKEM are 4.5 x 5.6 x 1.3 inches (11.5 x 14.2 x 3.4 cm).
How is the CP-BEKEM powered? The CP-BEKEM is powered directly through the phone, and no additional power supply is needed when connected to compatible Cisco IP Phones.
Can multiple CP-BEKEM modules be connected to a single Cisco IP Phone? Yes, up to two CP-BEKEM modules can be connected to a single compatible Cisco IP Phone, providing a total of 36 additional programmable line keys.
What are the key features of the CP-BEKEM? Key features include backlit keys, two-page views for a total of 36 contacts, and compatibility with features such as speed dial, call pickup, and line status indicators.
Does the CP-BEKEM support backlit keys? Yes, the CP-BEKEM supports backlit keys for easy viewing in various lighting conditions.
Is there a specific software version required for the CP-BEKEM to work? The CP-BEKEM requires the phone to be running at least Firmware Release 11.0(1) or later.

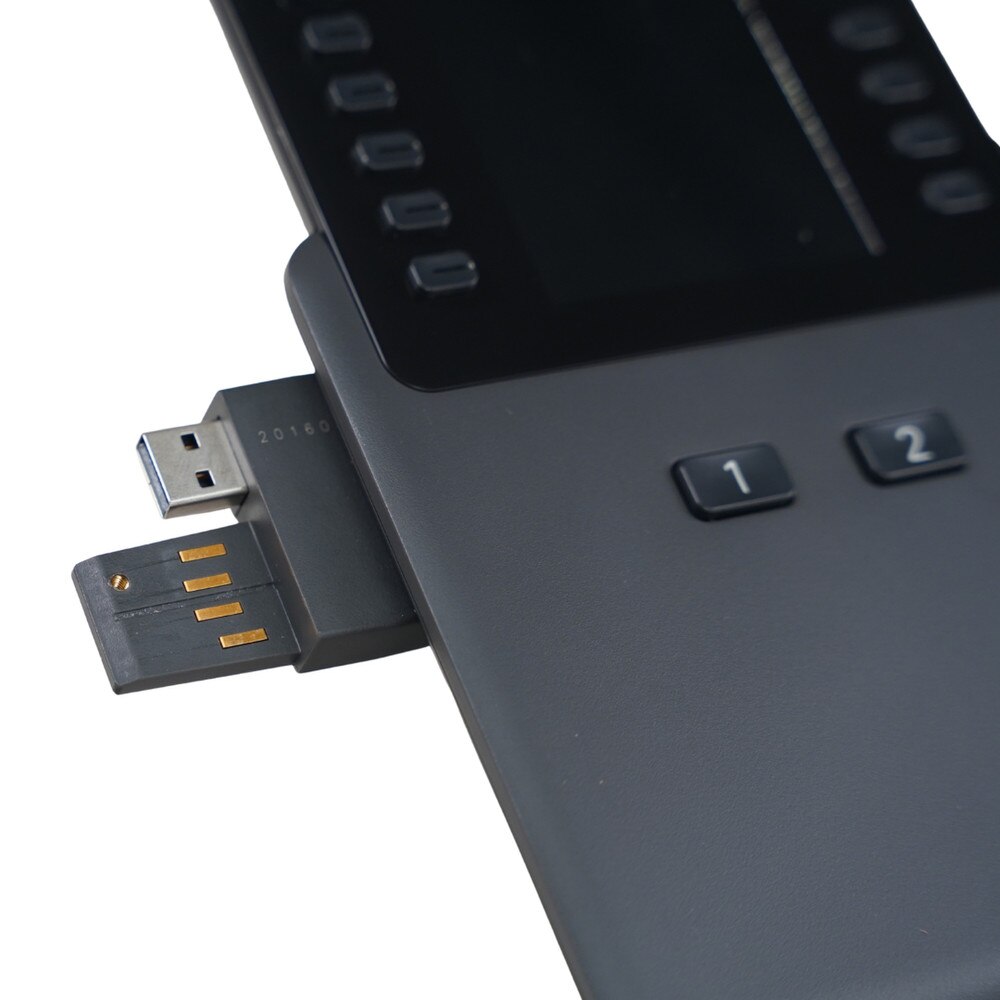

How is the CP-BEKEM connected to the Cisco IP Phone? The CP-BEKEM is connected to the compatible Cisco IP Phone via a dedicated connector on the side of the phone.
Can the CP-BEKEM be used in a Power over Ethernet (PoE) environment? Yes, the CP-BEKEM can be used in a PoE environment as it draws power from the connected IP Phone, which in turn is powered via PoE.
What type of user interface does the CP-BEKEM provide? The CP-BEKEM provides a user interface with backlit line keys and a two-page view for easy navigation and operation.
Does the CP-BEKEM require any additional licenses to operate? No additional licenses are required for the CP-BEKEM to operate when connected to a compatible Cisco IP Phone.
What is included in the box with the CP-BEKEM?
The box typically includes the CP-BEKEM module, a quick start guide, and a connector cable for attaching it to the IP Phone.
Can the CP-BEKEM be used in a wireless phone setup? The CP-BEKEM is designed for wired connections to compatible Cisco IP Phones and does not support direct wireless connections.
How do I configure the CP-BEKEM on a Cisco IP Phone? The CP-BEKEM can be configured through the Cisco Unified Communications Manager (CUCM) or the phone's web-based configuration utility.
Are there any special installation requirements for the CP-BEKEM? No special installation requirements are needed; it simply connects to the compatible Cisco IP Phone and can be configured via the phone's management software.
What kind of tasks can be programmed into the CP-BEKEM keys? Tasks such as speed dial, call forwarding, line monitoring, and other telephony features can be programmed into the CP-BEKEM keys.
Can the CP-BEKEM be used with third-party phone systems? The CP-BEKEM is designed specifically for use with Cisco IP Phones and may not be compatible with third-party phone systems.
