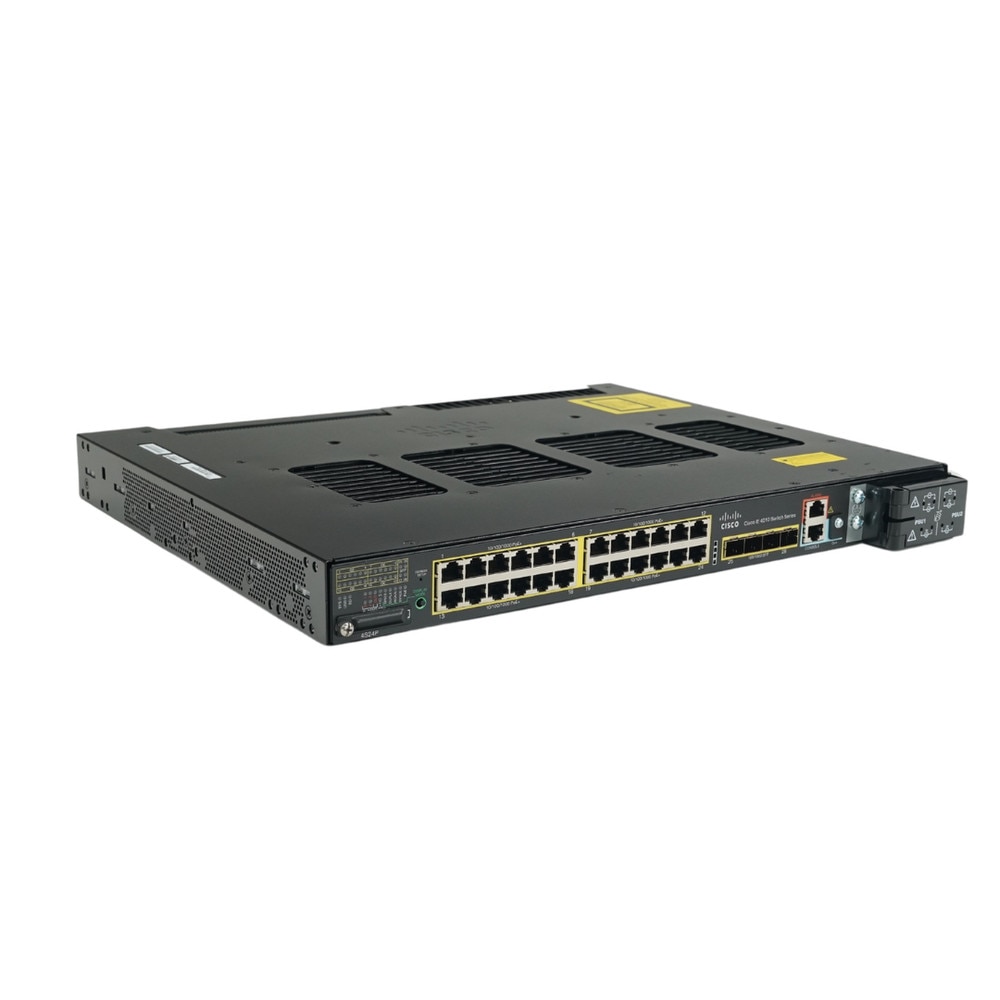

Overview of Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch | New
The Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch is a high-performance switch intended for industrial use. It has 24 gigabit PoE RJ-45 ports and 4 gigabit SFP ports, providing a wide range of network connectivity options. With a PoE budget of up to 385W, it can easily power devices like IP phones and security cameras. This switch has a 56 Gbps capacity and can forward data at an impressive 41.67 Mpps. The MAC address table can hold up to 16,000 entries. What distinguishes the Cisco IE-4010-4S24P is its rugged design, which is built for extreme temperatures ranging from -40°C to +75°C (-40°F to +167°F) as well as resistance to shocks/vibrations commonly found in industries such as manufacturing and transportation.
Key Features of Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch
24 Gigabit PoE RJ-45 ports
Provides power and data connectivity for a variety of devices.
4 Gigabit SFP portsProvides high-speed data transfer with minimal latency.
PoE budget of up to 385WAllows the switch to power devices like IP phones and security cameras.
Rugged designBuilt to withstand harsh industrial conditions such as high temperatures, humidity, and vibration.
High port densitySupports 24 ports with 10/100/1000Mbps data rates.
Gigabit Ethernet expansion slotsScalability allows for the expansion of network capabilities.
High performanceDesigned to deliver high-speed connectivity and advanced switching capabilities in harsh industrial environments.
Cisco Industrial Ethernet (IE) technologySpecifically designed for use in industrial environments, these switches provide greater reliability, security, and manageability than traditional Ethernet switches.
Advanced security featuresIncludes Cisco TrustSec, which provides identity-based security, access control, and network segmentation to protect against cyber threats and ensure secure access to sensitive data.
Redundant power supplyEnsures that the switch will continue to function even in the event of a power outage, resulting in maximum uptime and minimal downtime for critical industrial applications.
IEEE 1588 PTPv2 and IEEE 802.1AS time-stamping protocolsAllows for precise time synchronization across the network, which is critical in industrial settings where accurate time synchronization is required for machine-to-machine communication.
Layer 3 functionalityCapable of routing data between different subnets or networks, allowing for more efficient traffic management and network segmentation to improve performance and security.
Specifications
Specifications for Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch | New
| Manufacturer | Cisco |
| Manufacturer Part Number | IE-4010-4S24P |
| Product Name | Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch |
| Product Type | Networking Switch |
Enclosure Type | DIN rail mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
Capacity | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
MAC Address Table Size | 16K entries |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
Encryption Algorithm | FIPS 140-2 |
Authentication Method | RADIUS, TACACS |
Features | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613 |
RAM | 1 GB |
Flash Memory | 128 MB |
Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B |
Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
Included Accessories | 1 GB SD card |
MTBF | 429,620 hours |
Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223 |
TAA Compliant | Yes |
Software Included | Cisco IOS LAN Base |
Width | 17.5 in |
Depth | 14 in |
Height | 1.8 in |
Weight | 12.04 lbs |
Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
Min Operating Temperature | -40 °F |
Max Operating Temperature | 167 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 185 °F |
User Guides
Frequently Asked Questions
Cisco IE-4010-4S24P Industrial Ethernet 4010 Series Switch
Frequently Asked Questions (FAQ's)
What is the Cisco IE-4010-4S24P? It is a ruggedized Layer 2/3 industrial Ethernet switch with 28 Gigabit Ethernet ports and Power-over-Ethernet (PoE) features.
What are the main features of the IE-4010-4S24P? Key features include high-performance non-blocking switching, 24 PoE ports, twin ring resilience protocols, and compatibility for industrial automation protocols like as EtherNet/IP and Profinet.
What is the operating temperature range for the IE-4010-4S24P? The switch functions in a wide temperature range, from -40°C to 75°C, making it suited for harsh settings.
How many ports does the IE-4010-4S24P have? It has a total of 28 ports, including 24 copper PoE ports and 4 SFP uplink ports.
What is the power budget for PoE on this switch? The Cisco IE-4010-4S24P delivers up to 385W of PoE power budget.
Does the switch support redundancy? Yes, it supports multiple redundancy protocols, including Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), and High Availability Seamless Redundancy (HSR).
What management interfaces are available for the switch? It supports a GUI-based web user interface and Cisco Catalyst Center for management.
Is there support for zero-touch deployment? Yes, it features zero-touch deployment capabilities for simplified installation.
Can the switch be used outdoors? Yes, its tough construction makes it suitable for outdoor use in difficult settings.
What security features does the IE-4010-4S24P offer? It has advanced security features like Cisco IOS Software security and built-in software image verification.
How is the switch powered? The switch can be powered by two field-replaceable AC or DC power supply.
What types of devices can be connected to this switch? It can connect IP cameras, access points, IP phones, and other industrial devices requiring PoE.
What protocols does the switch support for industrial automation? It supports EtherNet/IP (CIP) and Profinet protocols among others.
How does the switch handle software upgrades? It provides a streamlined software upgrading path using universal images to aid with updating.
What are the dimensions of the IE-4010-4S24P? Specific measurements are not supplied in the search results, however it is intended to suit common rack mounts.
Can I manage this switch remotely? Yes, remote management is supported through its web interface and compatible management tools.
What is the typical installation process for this switch? Installation involves mounting the switch in a suitable enclosure, connecting power supplies, and configuring network settings via the GUI or CLI.
Does this model have any specific certifications? While the search results may not indicate specific certifications, Cisco devices typically meet a variety of industry safety and performance criteria.
Where can I find additional resources or documentation for this switch? Additional resources such as installation guides and configuration manuals can be found on Cisco's official website under their support section
Does the IE-4010-4S24P support network management tools? Yes, it supports Cisco Industrial Network Director and other management tools to facilitate network management.
